SKU: SKU: HKS80330-AT023P
Application
Specifications

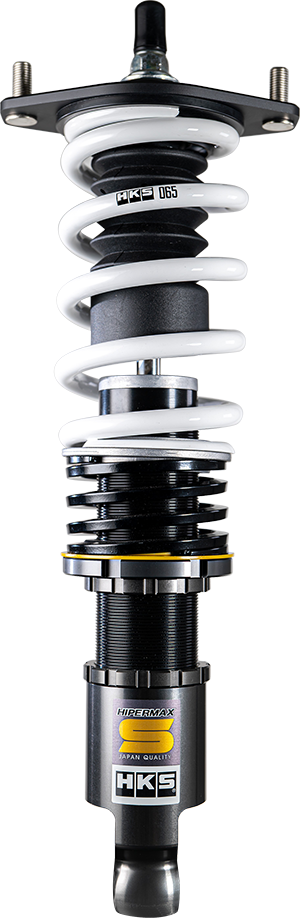

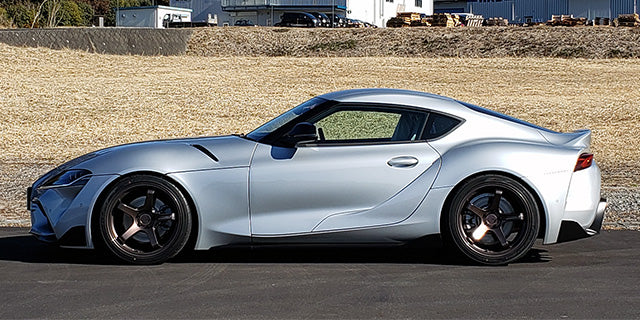

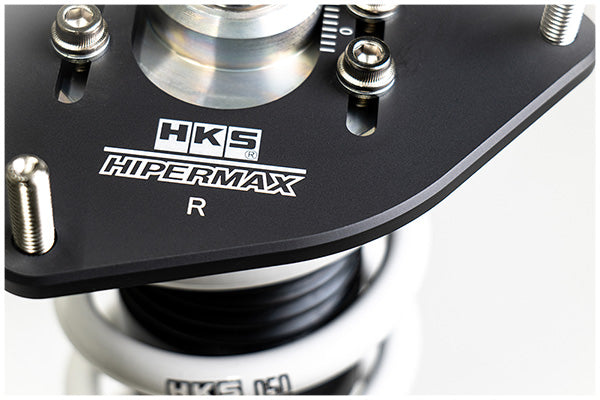

GR SUPRA DB22 A New Dimension of Driving Comfort The model in the photo is DB22/DB82. Application Engine B48 Model Year 19/05 - Remarks Front Upper Mount Pillow ball type * Toyota Safety Sense may malfunction due to narrowing of the radar/camera beam range and misalignment of the alignment center as the vehicle height is lowered. Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 661 ← 683 ～ 643 683 ～ 643 Against stock -22 ← 0 ～ -40 0 ～ -40 REAR Ride height *1 672 ← 694 ～ 638 694 ～ 638 Against stock -22 ← 0 ～ -56 0 ～ -56 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the pro
Source: HKS Japan · Detail page
