SKU: SKU: HKS80300-AT023
S (-2025)
Application
Specifications

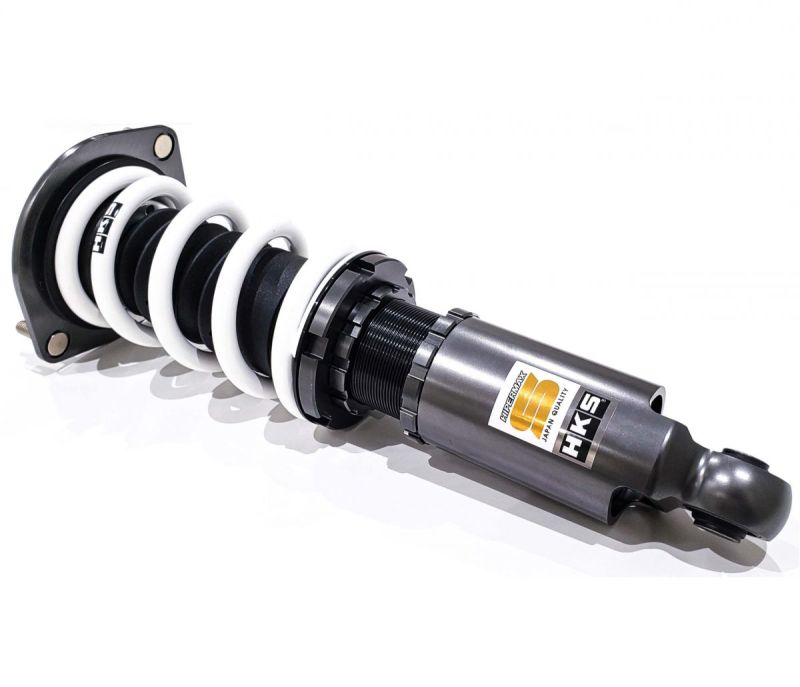

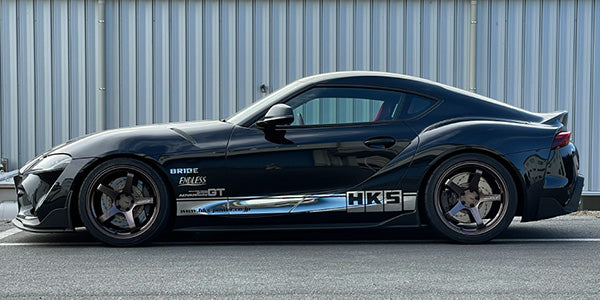

GR SUPRA DB06 Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving. The model in the photo is DB02. Application Engine B58B30B Model Year 22/10 - Remarks Toyota Safety Sense may malfunction due to narrowing of the radar/camera beam range and misalignment of the alignment center as the vehicle height is lowered. Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket ○ ○ Upper mount Spherical bearing Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory 〇 ○ Damping force adjustment with wire - ‐ Helper spring (Spring rate N/mm) - - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 642 662 664 ～ 635 664 ～ 635 Against stock -50 -30 -28 ～ -57 -28 ～ -57 REAR Ride height *1 660 673 683 ～ 630 683 ～ 630 Against stock -45 -32 -22 ～ -75 -22 ～ -75 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range,
