SKU: SKU: HKS80330-AH003
Application
Specifications

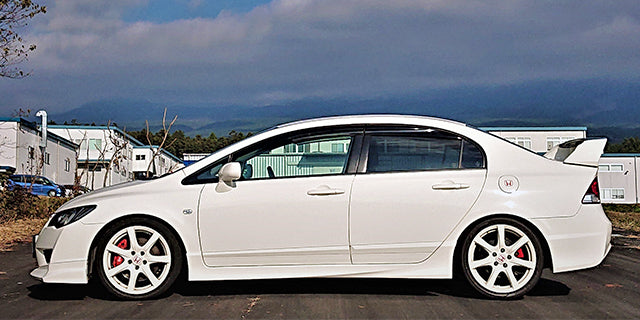

CIVIC TYPE R FD2 A New Dimension of Driving Comfort Application Engine K20A Model Year 07/03 - 10/08 Remarks MUGEN RR is not confirmed. Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Rubber Stock Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory Impossible Impossible Damping force adjustment with wire - 〇 Helper spring (Spring rate N/mm) 〇 (19.8) - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 640 ← 660 ～ 593 660 ～ 593 Against stock -20 ← 0 ～ -67 0 ～ -67 REAR Ride height *1 639 ← 662 ～ 621 662 ～ 621 Against stock -29 ← -6 ～ -47 -6 ～ -47 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each vehicle. Kit information
Source: HKS Japan · Detail page
