SKU: SKU: HKS80330-AT023CP
Application
Specifications

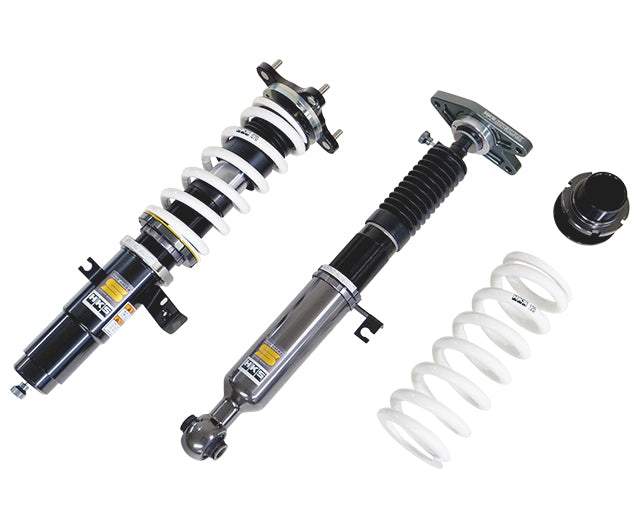

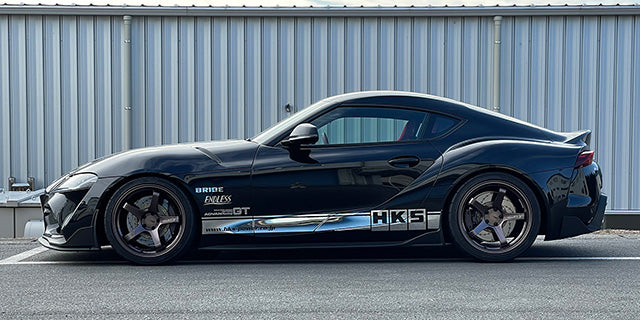

GR SUPRA DB06 A New Dimension of Driving Comfort with SEC ⇒ Suspension Error Canceler The model in the photo is DB02. Application Engine B58B30B Model Year 22/10 - Remarks Front Upper Mount Pillow ball type * Toyota Safety Sense may malfunction due to narrowing of the radar/camera beam range and misalignment of the alignment center as the vehicle height is lowered. Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 645 665 667 ～ 636 667 ～ 636 Against stock -41 -21 -19 ～ -50 -19 ～ -50 REAR Ride height *1 659 676 683 ～ 629 683 ～ 629 Against stock -39 -22 -15 ～ -69 -15 ～ -69 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height set
Source: HKS Japan · Detail page
