SKU: SKU: HKS80330-AN007
Application
Specifications

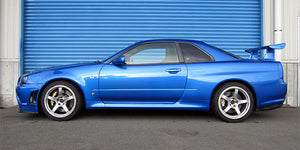

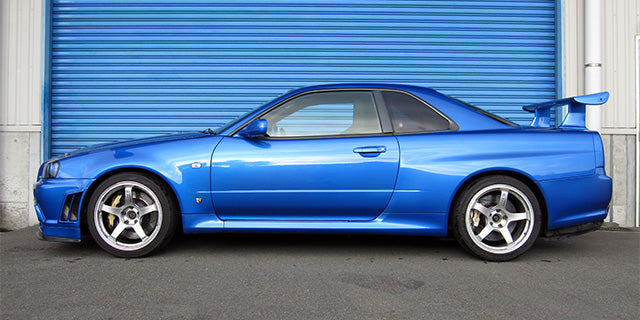

SKYLINE GT-R BNR34 A New Dimension of Driving Comfort Vehicle height data is measured on BNR34. Application Engine RB26DETT Model Year 99/01 - 02/08 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Rubber Rubber Inverted/Normal type Normal Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - 〇 Helper spring (Spring rate N/mm) 〇 (19.8) 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 662 ← 695 ～ 625 695 ～ 626 Against stock -44 ← -11 ～ -81 -11 ～ -80 REAR Ride height *1 664 ← 699 ～ 630 699 ～ 631 Against stock -35 ← 0 ～ -69 0 ～ -68 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends o
Source: HKS Japan · Detail page
