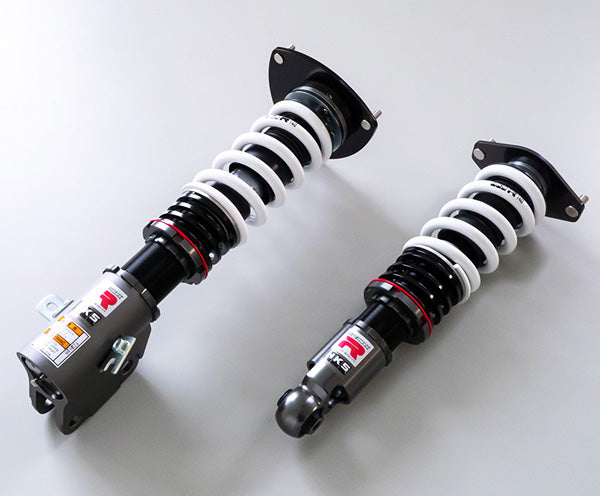

HKS Hipermax R VAB Full Kit - 80310-AF003

Application

• Engine: EJ20
• Code No.: 80310-AF003

Specifications

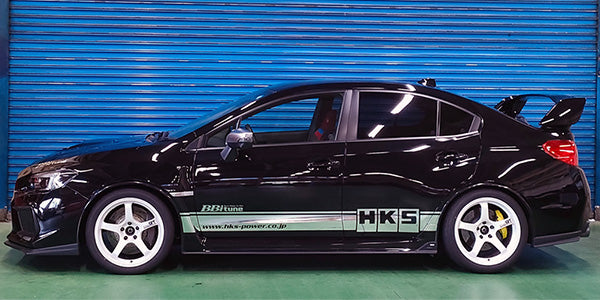

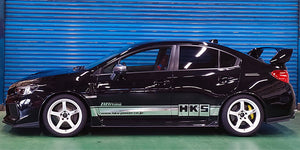

WRX STI VAB The fun to drive at will and the balance can be adapted from circuit to winding road. Reised Driving-Comfort, "Ultimate All-Rounder" The model in the photo is VAB. Application Engine EJ20 Model Year 14/08 - 20/04 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Spherical bearing Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) 〇 (19.8) 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 647 ← 666 ～ 603 666 ～ 603 Against stock -19 ← 0 ～ -63 0 ～ -63 REAR Ride height *1 652 648 666 ～ 612 666 ～ 612 Against stock -14 -18 0 ～ -54 0 ～ -54 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or
