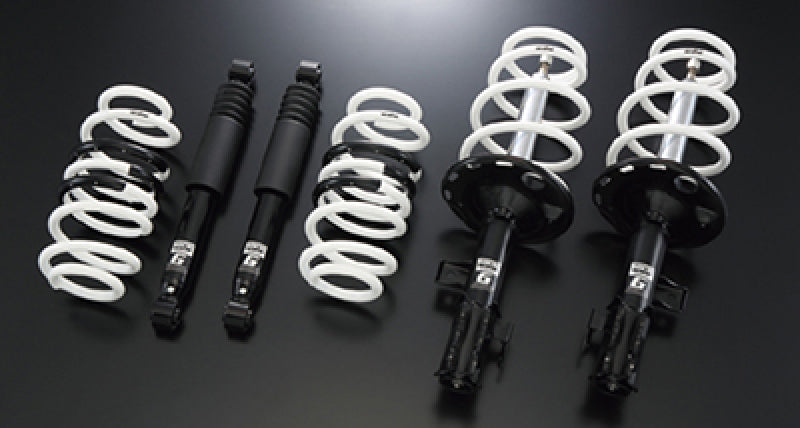

HKS HIPERMAX-G ZRR80G Full Strut/Spring Kit - 80260-AT005

Vehicle: Model

Application

• Engine: Model
• Code No.: 80260-AT005

Specifications

NOAH ZRR80W ~ For Obsession with High Quality ~ Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design. for NOAH/VOXY/ESQUIRE (ZR80G/ZRR80W/ZWR80G) ＜Product Basic Structure＞

Single

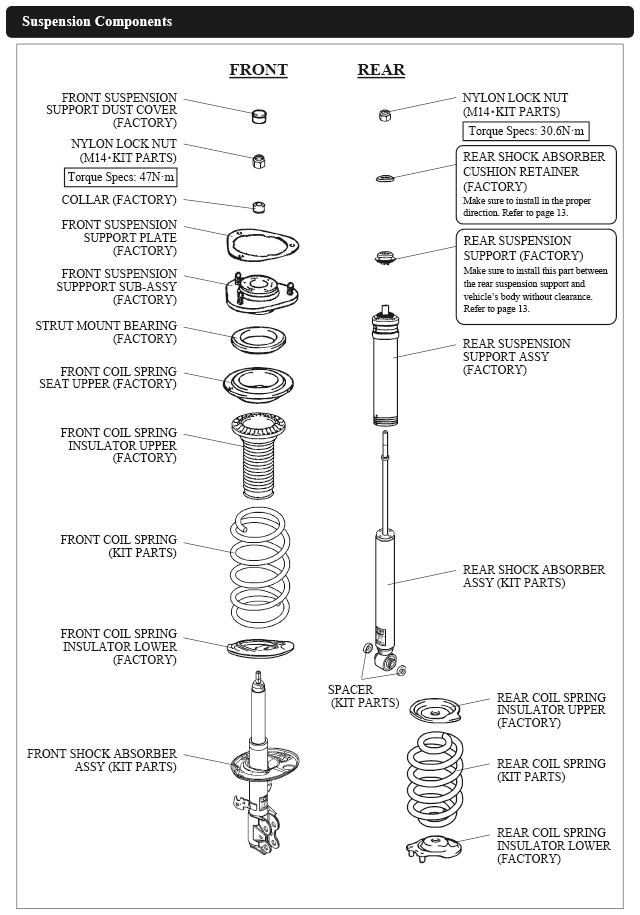

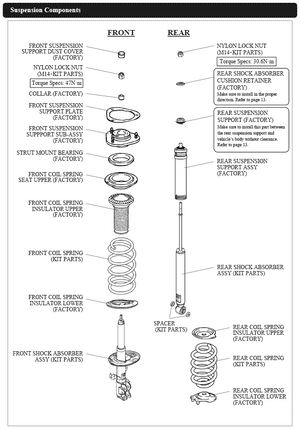

Tube Damper Assembly

Special

Low-down Style Spring *The stock upper mounts are used.

Features

Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height. The front stock design inverted mono tube damper delivers high rigidity and reliable handling performance. Setting was performed to ensure better ride quality and comfort so a driver won’t be tired even in long time driving.

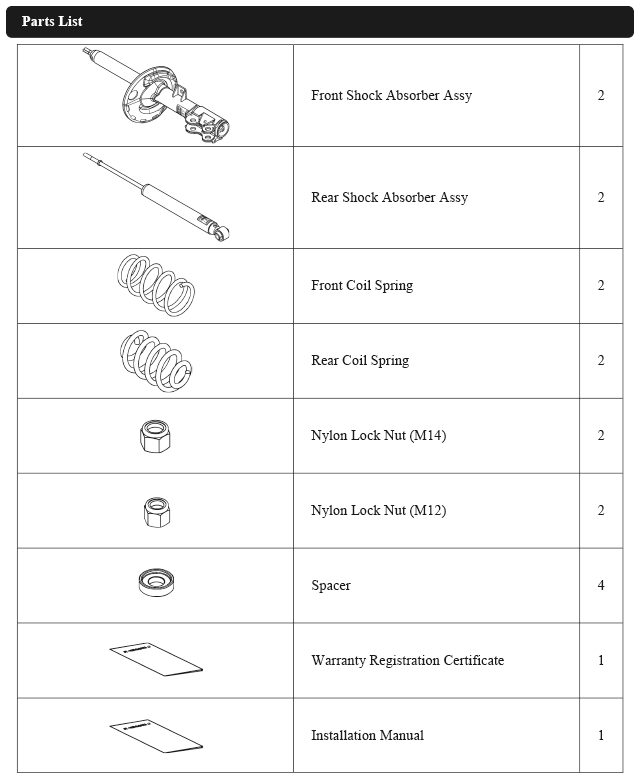

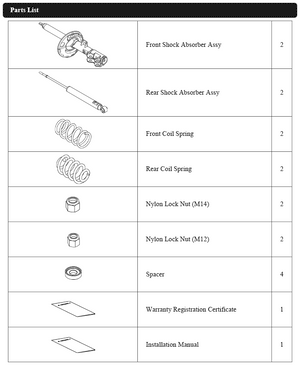

Kit

Parts Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks F: Rebound/Compression R: Rebound/Compression NOAH ZRR80W 3ZR-FAE 14/01 -21/12 G F=28(2.9)/R=60(6.1) Special/Special 206/88 265/88 -30 -35 80260-AT005 Make to order item The vehicle data is based on a 2WD gasoline car. [ CLOSE ]

Source: HKS Japan · Detail page
