Improved injector performance has increased the output volume, while shorting the invalid injection time compared to the previous 650 cc (yellow) type. (Voltage 14V and Fuel pressure 300 kPa Previous 650 cc: 1350 μsec >>> New 750 cc: 1030 μsec).

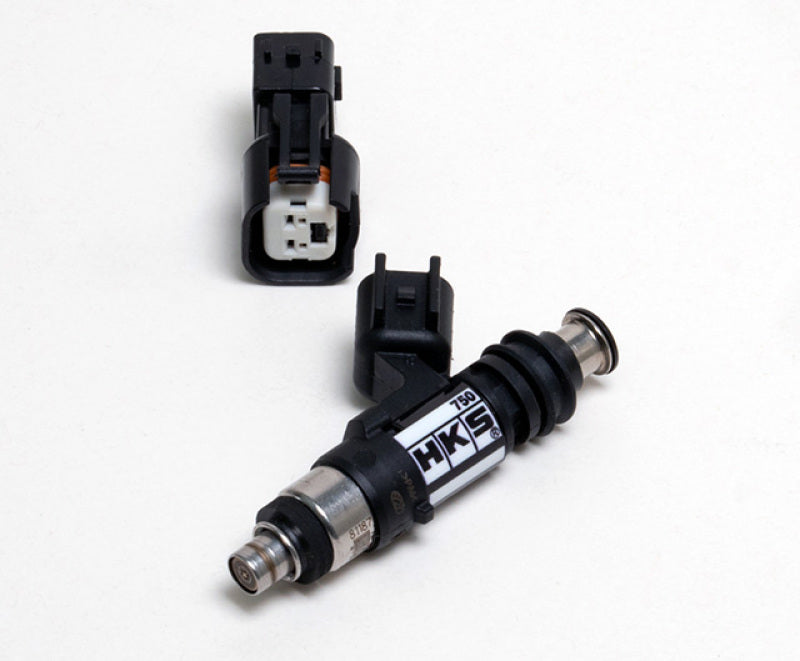

A conversion harness is provided. It can be connected to the factory harness without modification.
O-rings (2-piece) and spacer (backup ring) have been included to the fuel line connector for improved sealing.
All injectors are tested. 4 injectors with similar performance are combined into one kit for one vehicle.
■InactiveInjection Time
Supply Voltage (V)
8
10
12
14
16
18
300kPa
2470
1680
1270
1025
855
710
350kPa
2715
1790
1335
1070
880
725

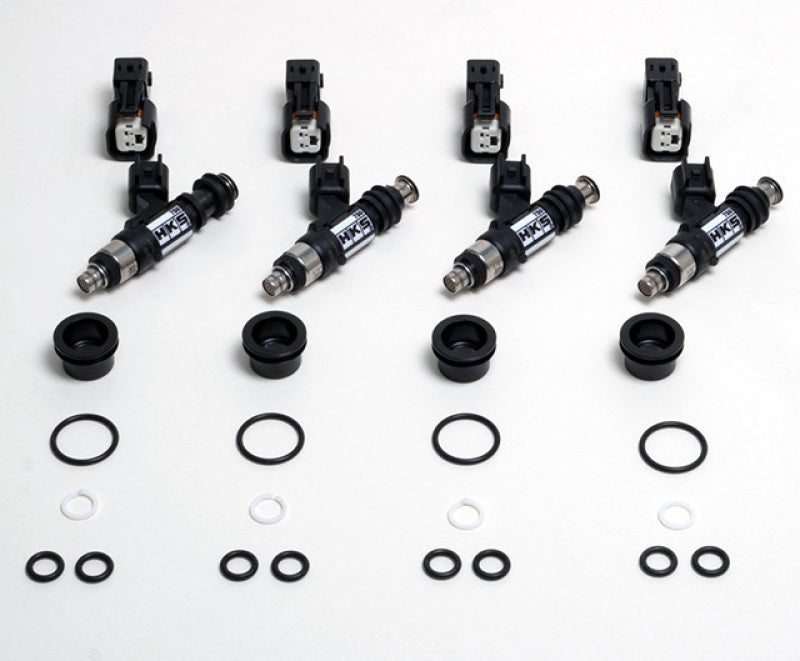

■Components
Injector (x4)
Conversion Connector
O-Ring
Backup Ring (Spacer)
Head-side Collar, etc.
■Note
Please upgrade fuel pump and fuel rail according to vehicle specifications.
