SKU: SKU: HKS80330-AT030
Application
Specifications

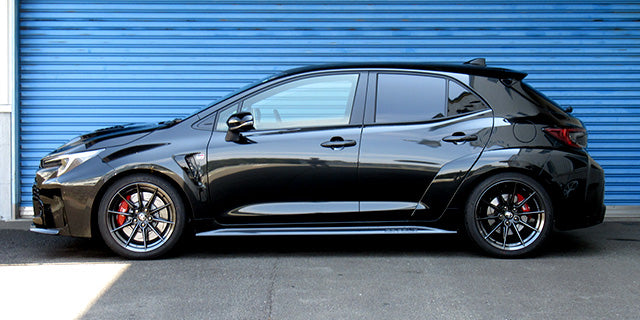

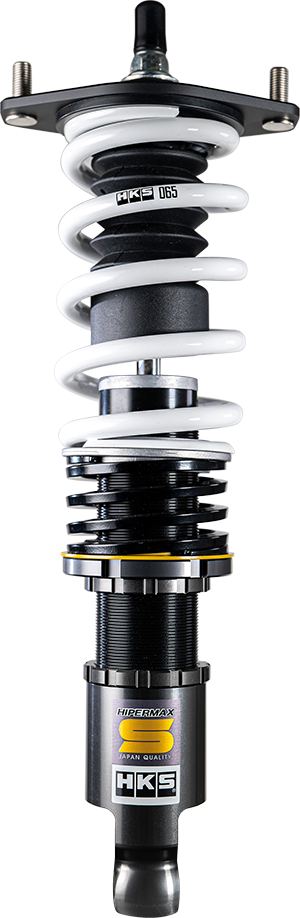

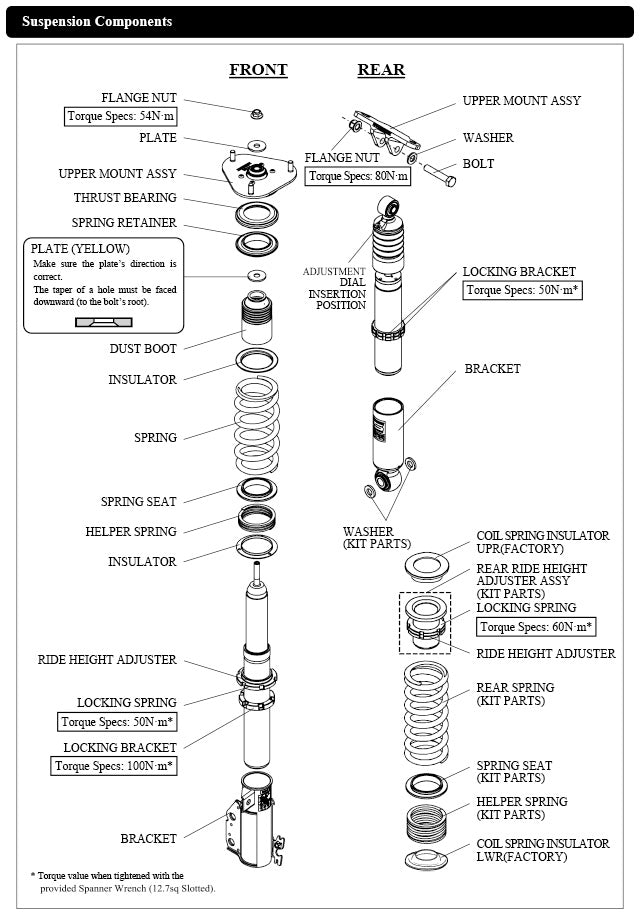

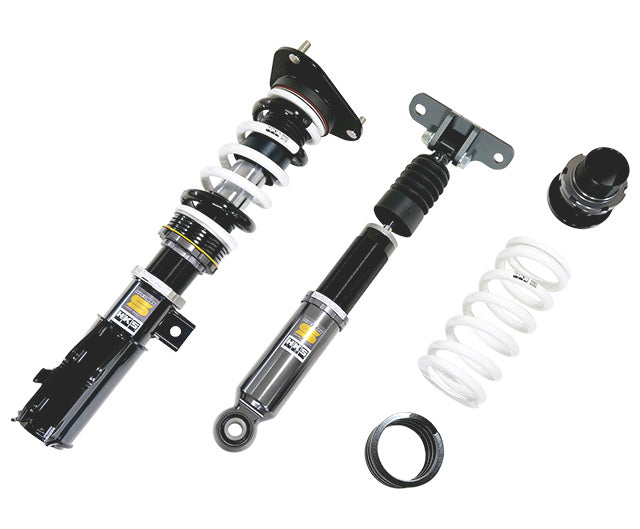

GR COROLLA GZEA14H A New Dimension of Driving Comfort Application Engine G16E-GTS Model Year 22/12 - Remarks Confirmed on RZ. Morizo Edition not confirmed. Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Rubber Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory Impossible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) 〇 (7.6) 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 658 ← 672 ～ 623 672 ～ 623 Against stock -14 ← 0 ～ -49 0 ～ -49 REAR Ride height *1 666 ← 691 ～ 620 691 ～ 620 Against stock -25 ← 0 ～ -71 0 ～ -71 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each
