SKU: SKU: HKS31008-BM001

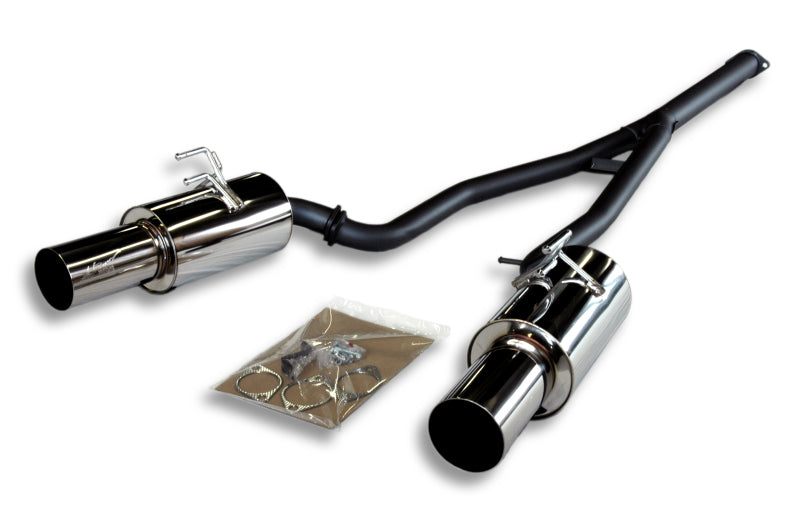

HKS 08-09 Evo 10 Hi-Power Dual Tip Catback Exhaust
| Cert. No. |
|---|
| Vehicle | LANCER EVOLUTION X |
|---|---|
| Model | CZ4A |
| Engine | 4B11(TURBO) |
| Model Year | 08/07 - 15/09 |
| Shape of muffler | HP (RACING MUFFLER) | |
|---|---|---|
| Main material | S409 | |
| Diameter of tip | 115 L&R | |
| Diameter of center pipe | 75-60 x 2 (*1) | |
| Close noise level | Stock | 84 |
| HKS | 102 | |
| About road clearance(*2) | Clearance | 125mm |
| Portion of the kit | Center pipe | |
| Remarks | ||
| Product Weight | ||
Removing the left side rear tow hook is required before installing.
*1: Center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
RACING MUFFLER
Vehicle: LANCER EVOLUTION X
Application
Specifications
LANCER EVOLUTION X CBA-CZ4A Cert. No. Vehicle LANCER EVOLUTION X Model CZ4A Engine 4B11(TURBO) Model Year 08/07 - 15/09 Shape of muffler HP (RACING MUFFLER) Main material S409 Diameter of tip 115 L&R Diameter of center pipe 75-60 x 2 (*1) Close noise level Stock 84 HKS 102 About road clearance(*2) Clearance 125mm Portion of the kit Center pipe Remarks Product Weight Remarks Removing the left side rear tow hook is required before installing. About HKS muffler *1: Center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]
Source: HKS Japan · Detail page
