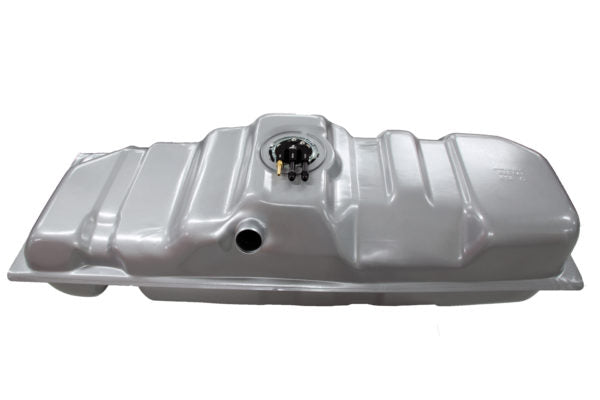

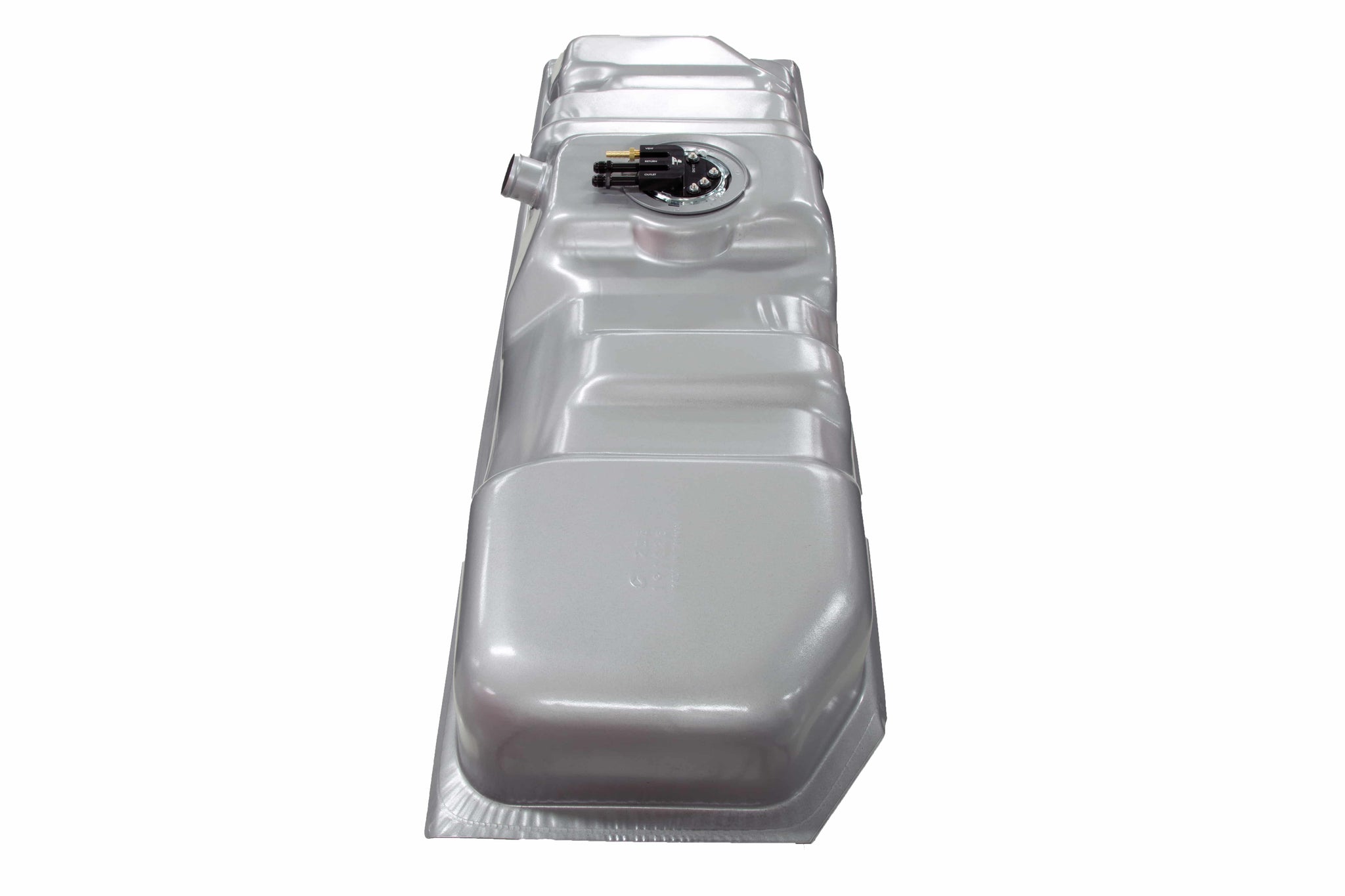

Aeromotive 88-99 Chevrolet C/K 1500/2500 Truck 340 Stealth Gen 2 Fuel Tank - 18474

SKU: SKU: AER18474

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>
This item is classified as Oversized and may incur an additional handling fee at checkout depending on your shipping location. No additional fees apply for pickup orders.
Oversize Debug
Tier code
Tier priority
Tier max weight (lb)
Tier max girth (in)
Product weight (lb)
L × W × H (in)
Girth L + 2×(W+H)
Requires acktrue
P/N 18174: 1988-2000 C/K 1500 / 2500 Chevy Truck
With Stealth 200 Pump and 0-90 ohm Sending Unit

P/N 18474: 1988-2000 C/K 1500 / 2500 Chevy Truck
With Stealth 340 Pump and 0-90 ohm Sending Unit



  • Perfect for EFI and carbureted engines
  • OEM appearance and 25-gallon capacity
  • High flow, 340 Stealth fuel pump
  • 0-90 Ohm fuel level sending unit included
  • Utilizes OEM fuel outlet location and seal
  • Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control

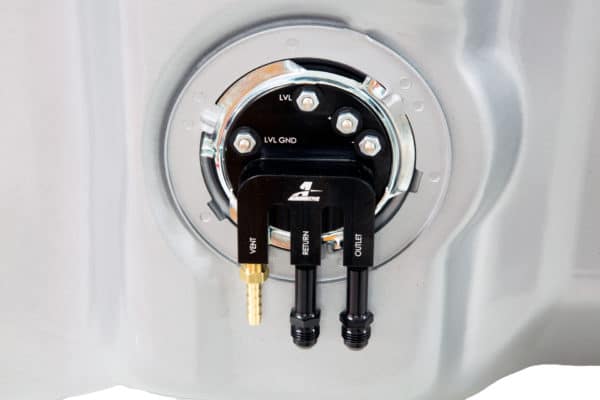

  • Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install
  • Utilizes stock mounting straps, filler cap and vent
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
P/N 18174 - 200lph Stealth Gen II Tank Application Specs:
  • Fuel Injected Engines:
    • Gasoline up to 600hp - Naturally Aspirated
    • Gasoline up to 450hp - Forced Induction
  • Carbureted Engines:
    • Gasoline up to 750hp - Naturally Aspirated
    • Gasoline up to 600hp - Forced Induction
P/N 18474 - 340lph Stealth Gen II Tank Application Specs:
  • Fuel Injected Engines:
    • Gasoline: up to 850 HP – naturally aspirated.
    • Gasoline: up to 700 HP – forced air induction.
    • E85: up to 595 HP – naturally aspirated.
    • E85: up to 490 HP – forced air induction.
  • Carbureted Engines:
    • Gasoline: up to 1000 HP – naturally aspirated.
    • Gasoline: up to 850 HP – forced air induction.
    • E85: up to 700 HP – naturally aspirated.
    • E85: up to 595 HP – forced air induction.

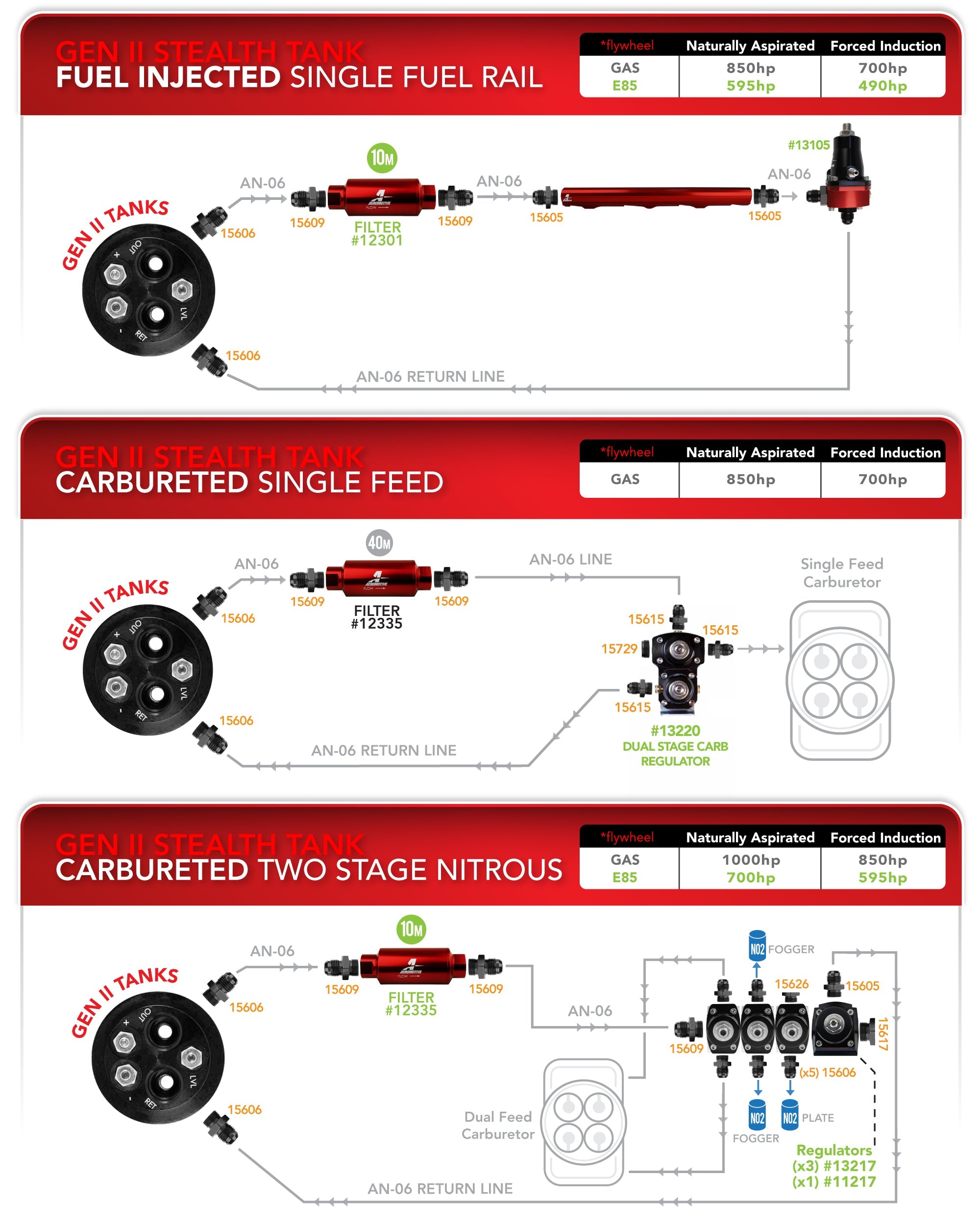

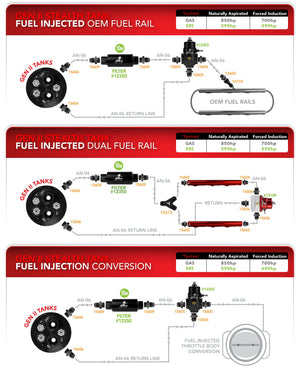

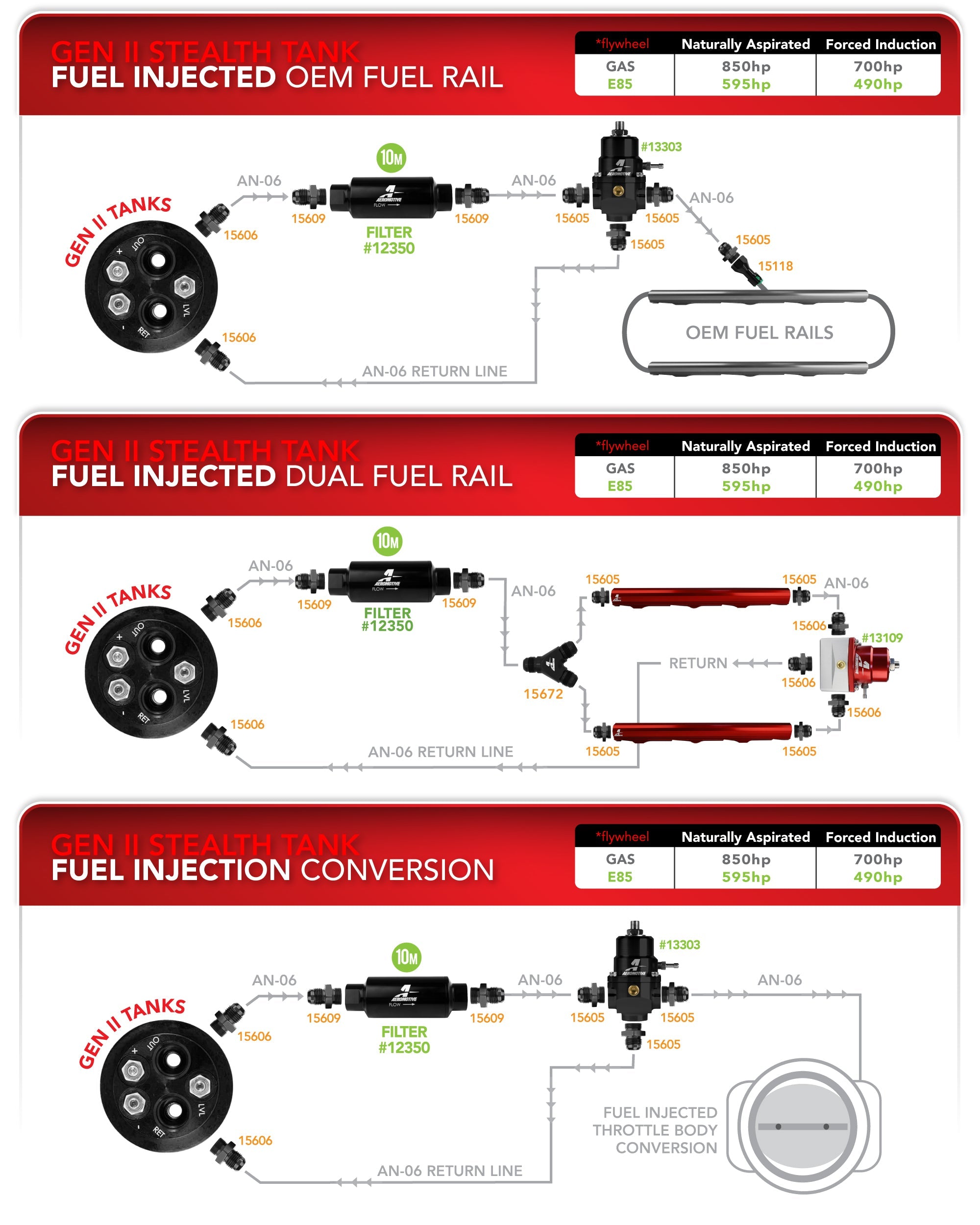

GEN II Stealth Tank Diagrams - Click Here
