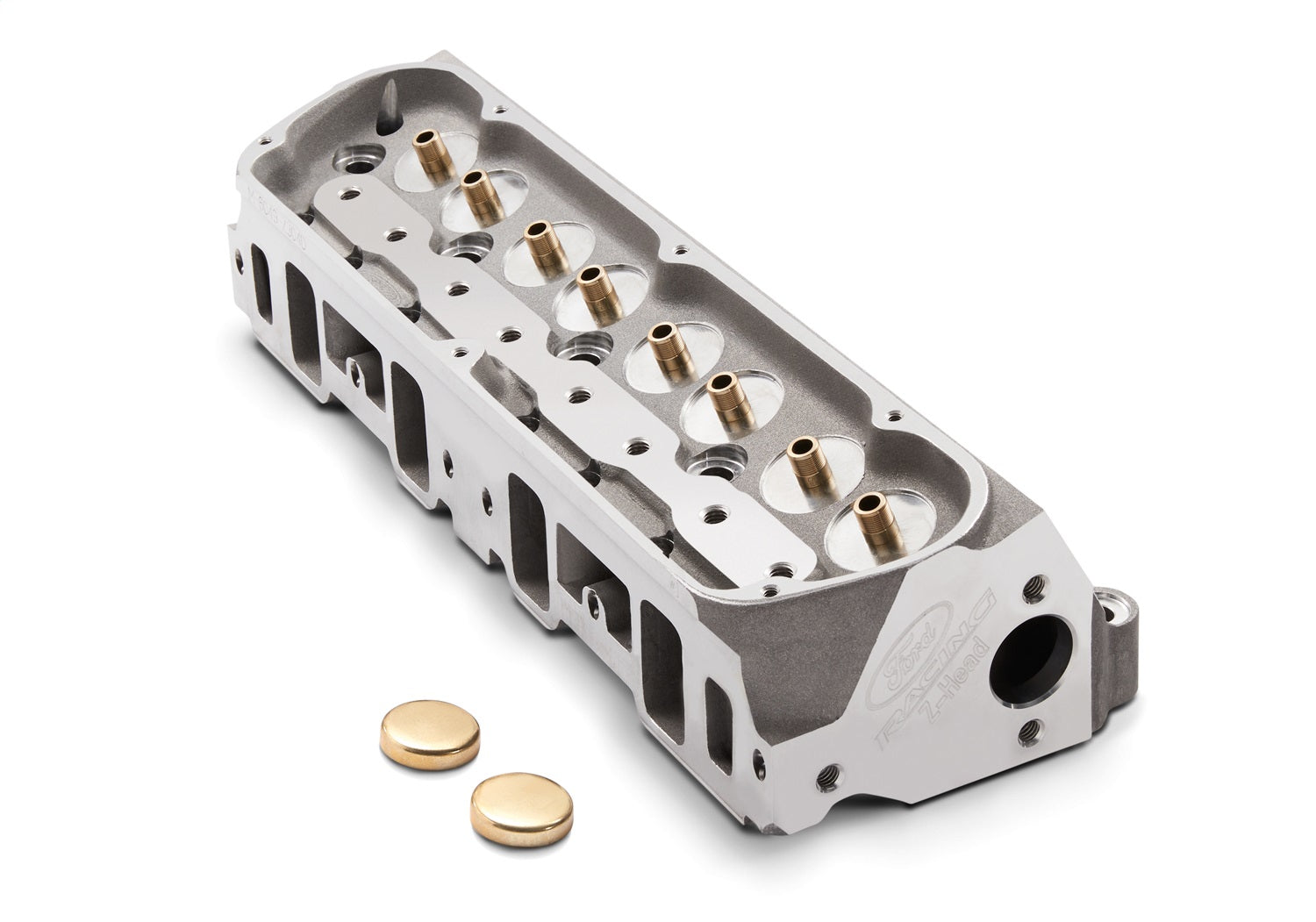

Ford Performance 302/351W "Z-Head" Aluminum Head-Bare 63CC (FRPM-6049-Z304D)

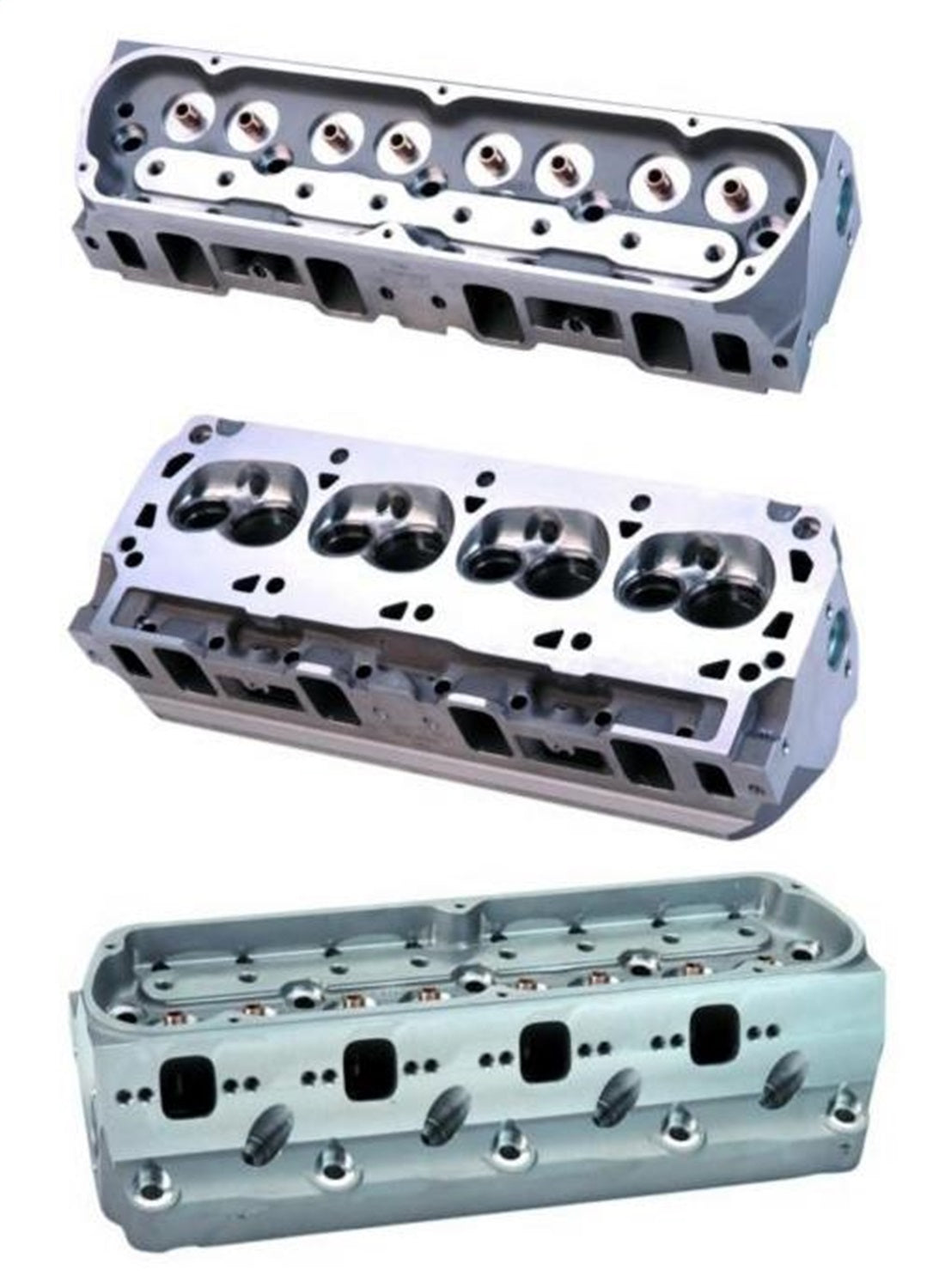

Ford Performance 302/351W "Z-Head" Aluminum Head-Bare 63CC — alternate view (FRPM-6049-Z304D)

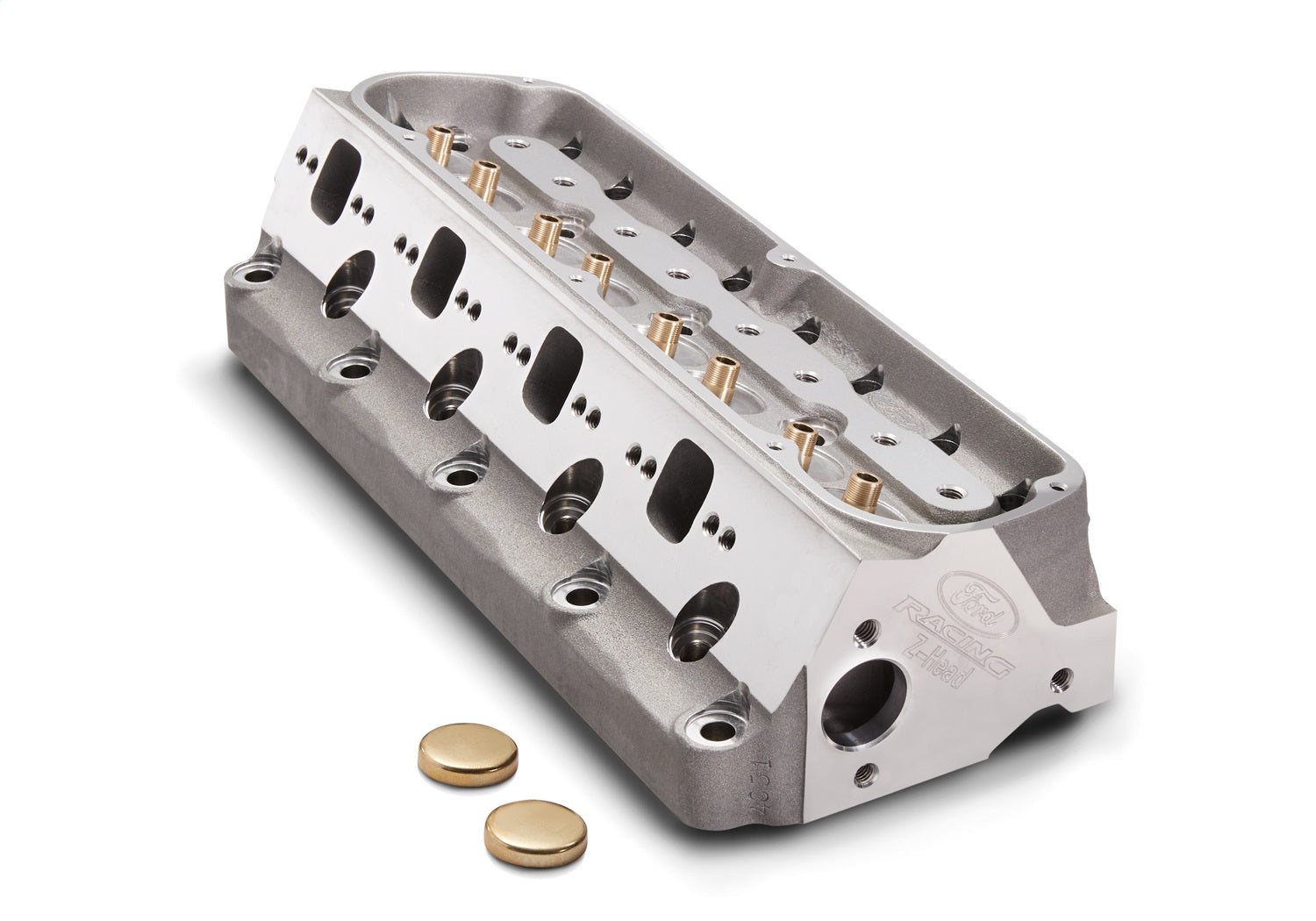

Ford Performance 302/351W "Z-Head" Aluminum Head-Bare 63CC — detail (FRPM-6049-Z304D)

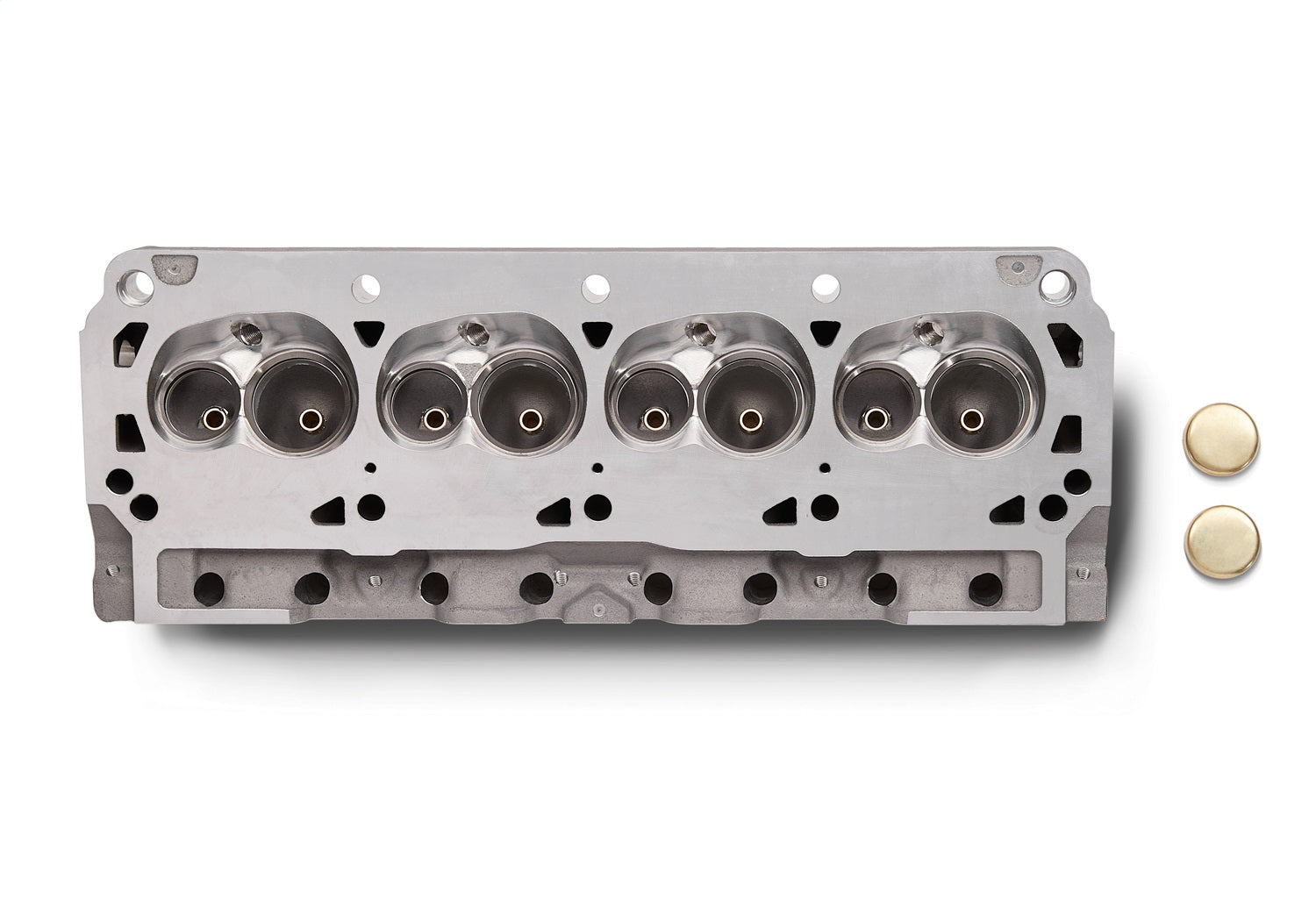

Ford Performance 302/351W "Z-Head" Aluminum Head-Bare 63CC — additional view (FRPM-6049-Z304D)

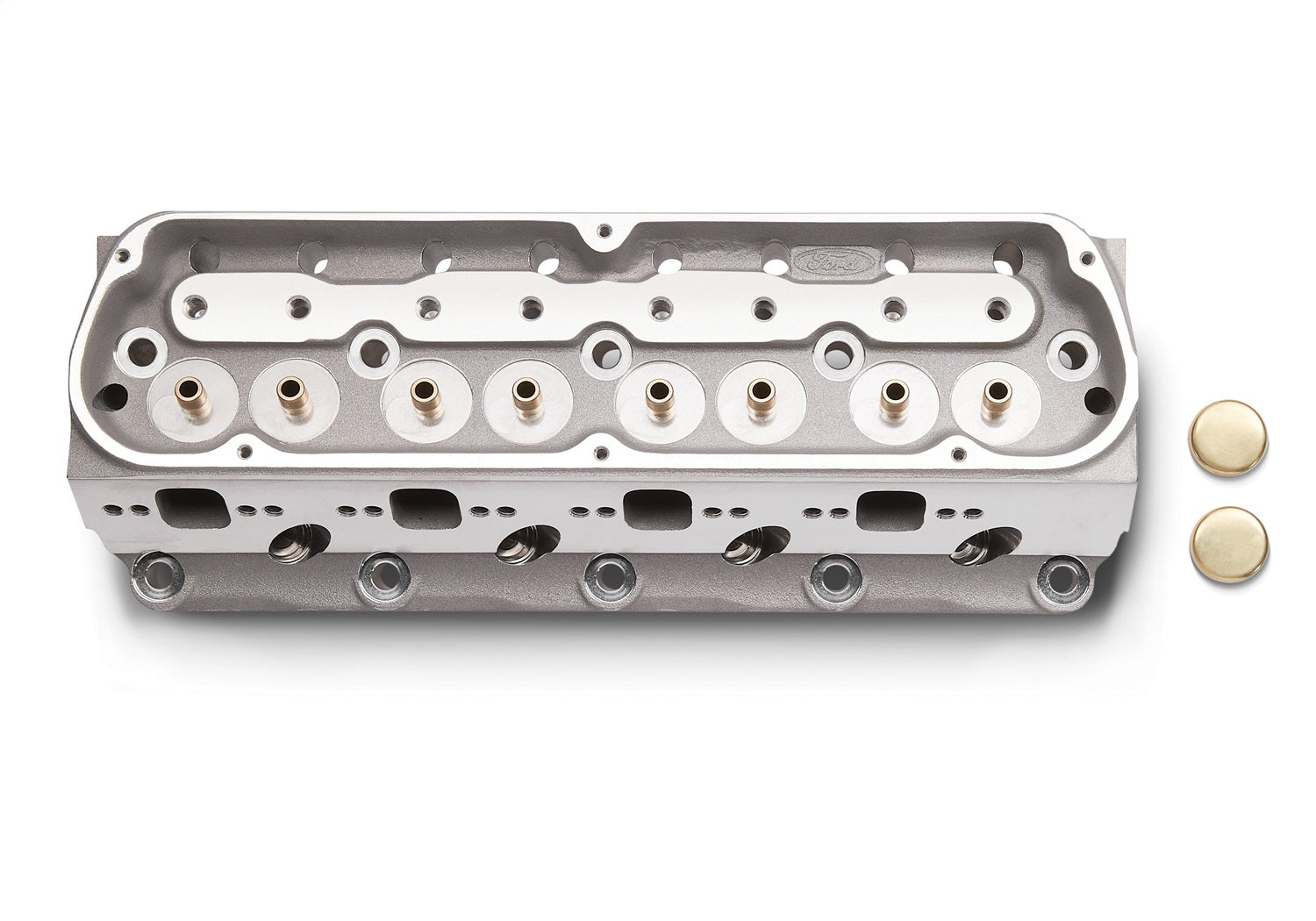

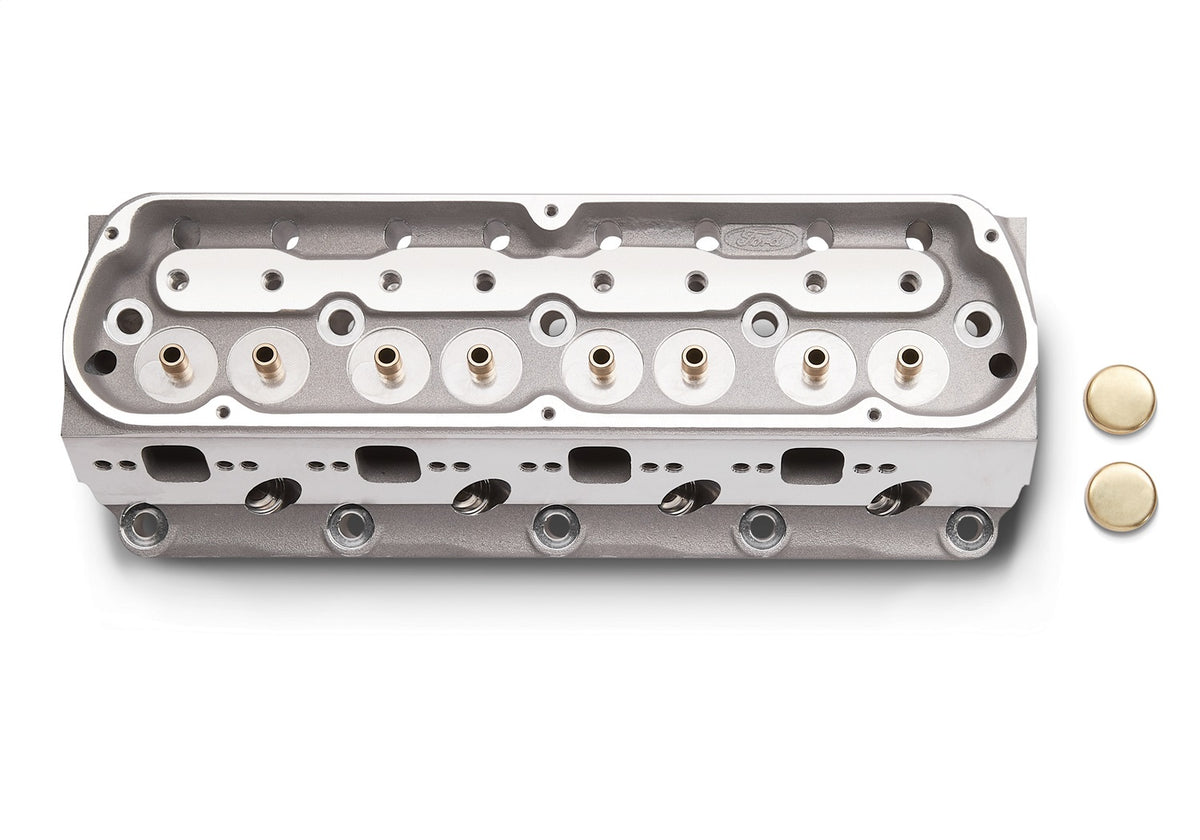

Ford Performance 302/351W "Z-Head" Aluminum Head-Bare 63CC — in use (FRPM-6049-Z304D)
Sale

Ford Racing Part # FRPM-6049-Z304D

Ford Racing 302/351W Z-Head Aluminum Head - Bare 63CC - M-6049-Z304D

$2,000.38 CAD $2,100.40 CAD
Earn 2,000 Dino Dollars on this order. How it works

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

302/351W "z-Head" Aluminum Head - Bare 63CC — manufactured by Ford Performance Parts (Ford Motor Company).

    Bare Head Features
    For assembled head see M-6049-Z304DA
  • Fits 302/351 Windsor engines
  • This cylinder head was designed using Solid Modeling Technology
  • Cast from prime A356 T6 aluminum
  • Heads are cast with high-flow ports
  • 20 degree inline valves
  • Suggested valve sizes: 2.02" intake and 1.60" exhaust
  • Requires competition valve job and bowl blending
  • Steel alloy intake and exhaust valve seats installed (no valve job)
  • Manganese-bronze valve guides installed with semi-finished ID
  • 63cc CNC'd combustion chamber
  • Intake port volume as cast: 204cc
  • Exhaust port volume as cast: 85cc
  • Bare head weighs 27 lbs.
  • Accepts both tapered seat and gasket style 14mm spark plugs (Motorcraft AGSP-32-PP, Autolite 3924, 3925)
  • Requires guide plate M-6566-Z304D (not included)
  • Requires 7/16" screw-in studs (not included). Requires 1.65:1 or 1.5:1 ratio roller rocker arms with .150" offset intake pushrod cup (not included)
  • Uses M-6505-B304 exhaust valve and M-6507-A304 intake valve (not included)
  • Raised exhaust port exit, custom headers may be required
  • Check your intake manifold for port match; not all intakes are compatible due to the tall high-flow ports. Does not fit M-9424-Z51/-Z51P
  • Uses Felpro® exhaust gasket part number 1487
  • Felpro® VS13264T valve cover gasket recommended

Specifications

Part Type Engine: Cylinder Heads
Instruction Sheet Available (PDF)
Warranty Availability Available
Package Dimensions 8" x 24" x 8"
Package Weight 24 lb(s)
UPC Code 756122089316
Country of Origin United States

Genuine Ford Racing Parts — backed by Ford Motor Company's factory engineering and warranty.
