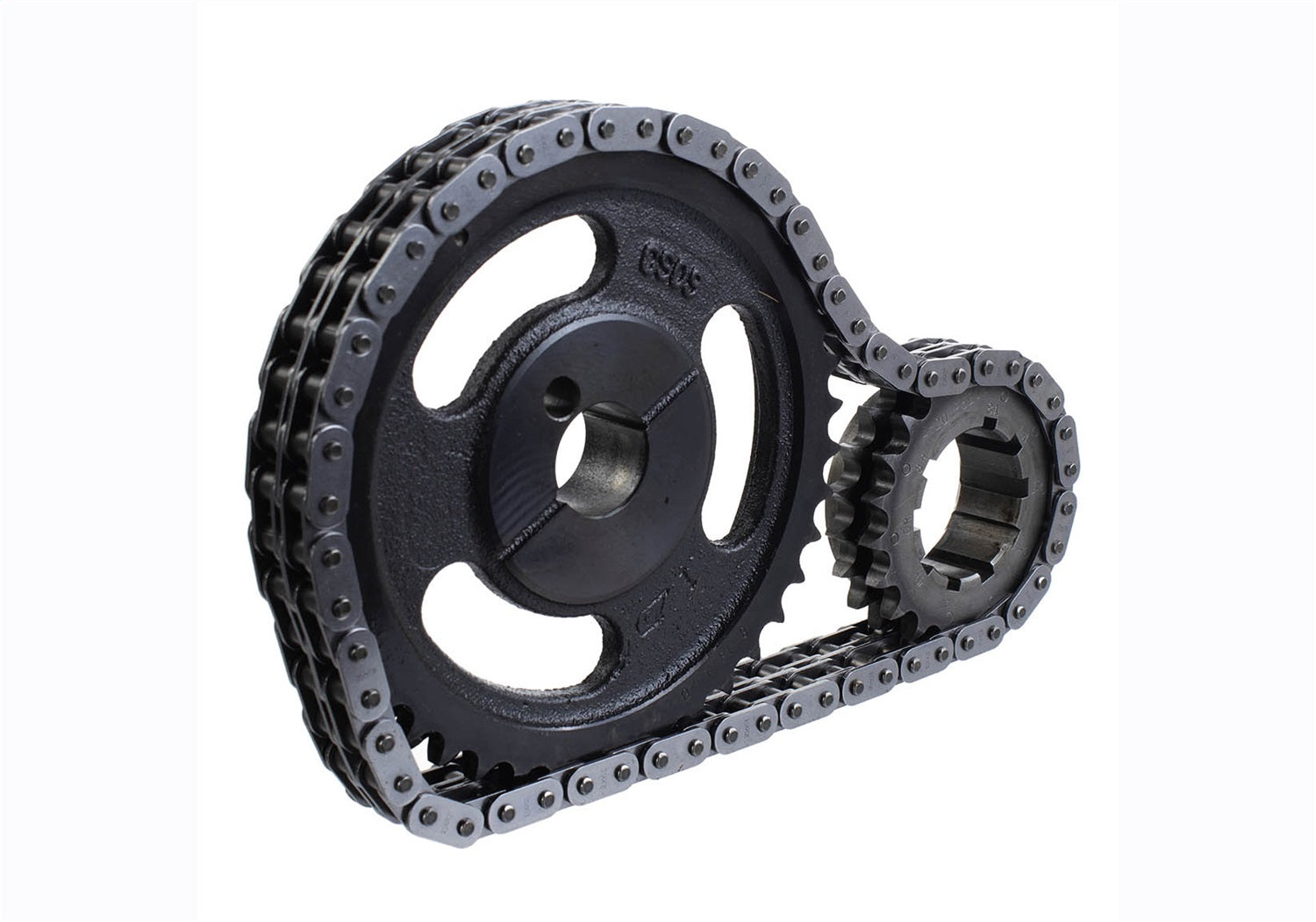

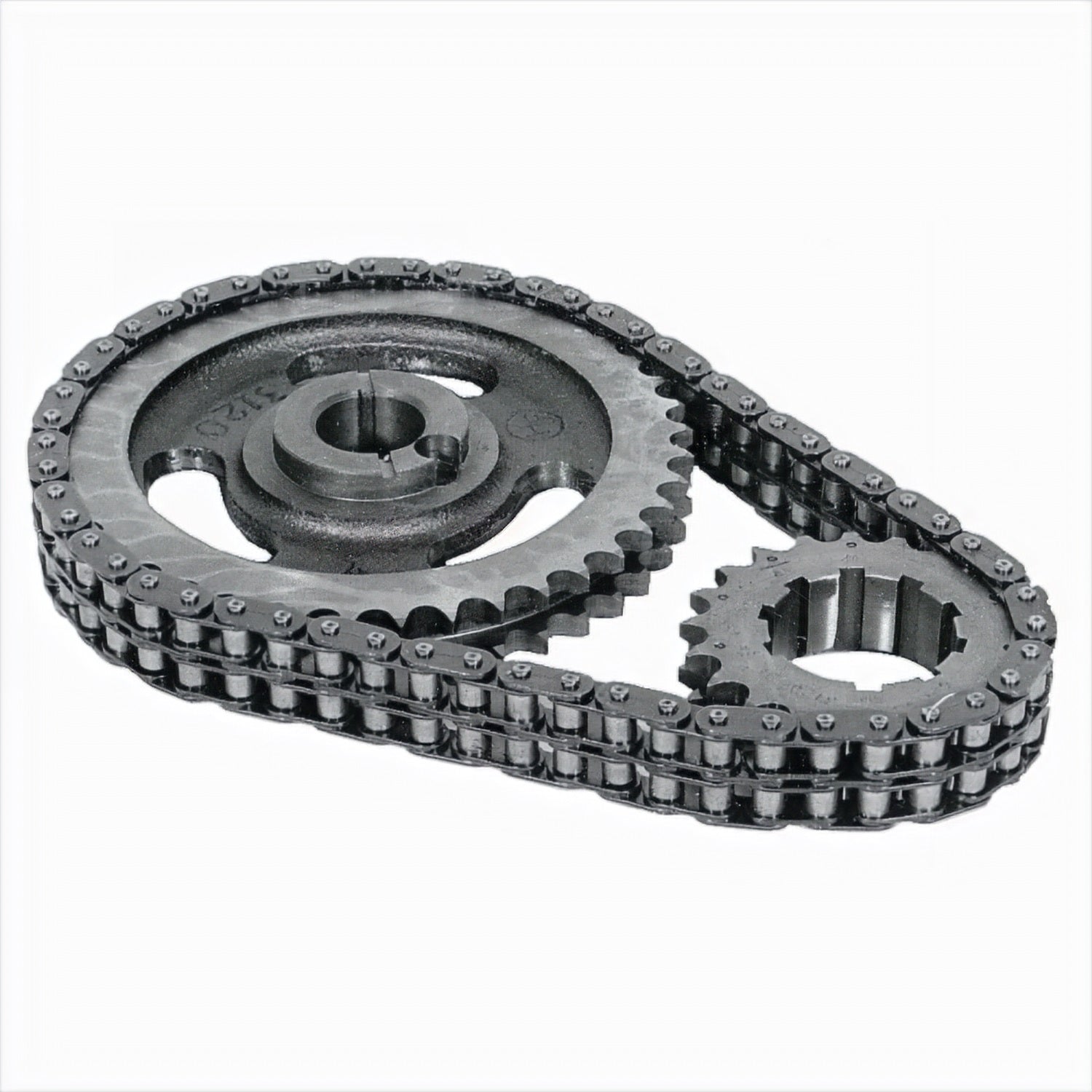

Ford Performance 302/351W Double Roller Timing Chain Set-Cast Iron Gear (FRPM-6268-A302)

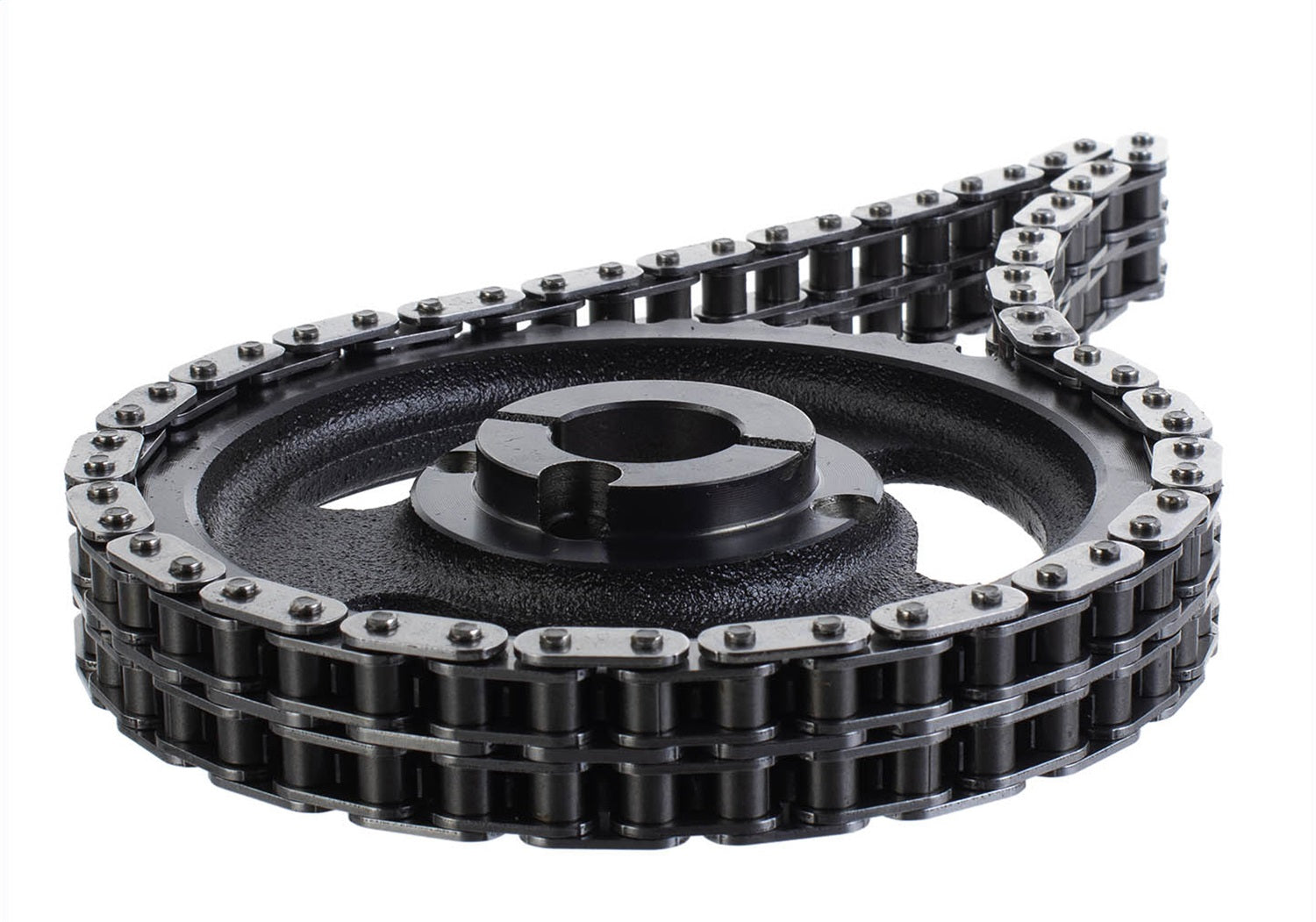

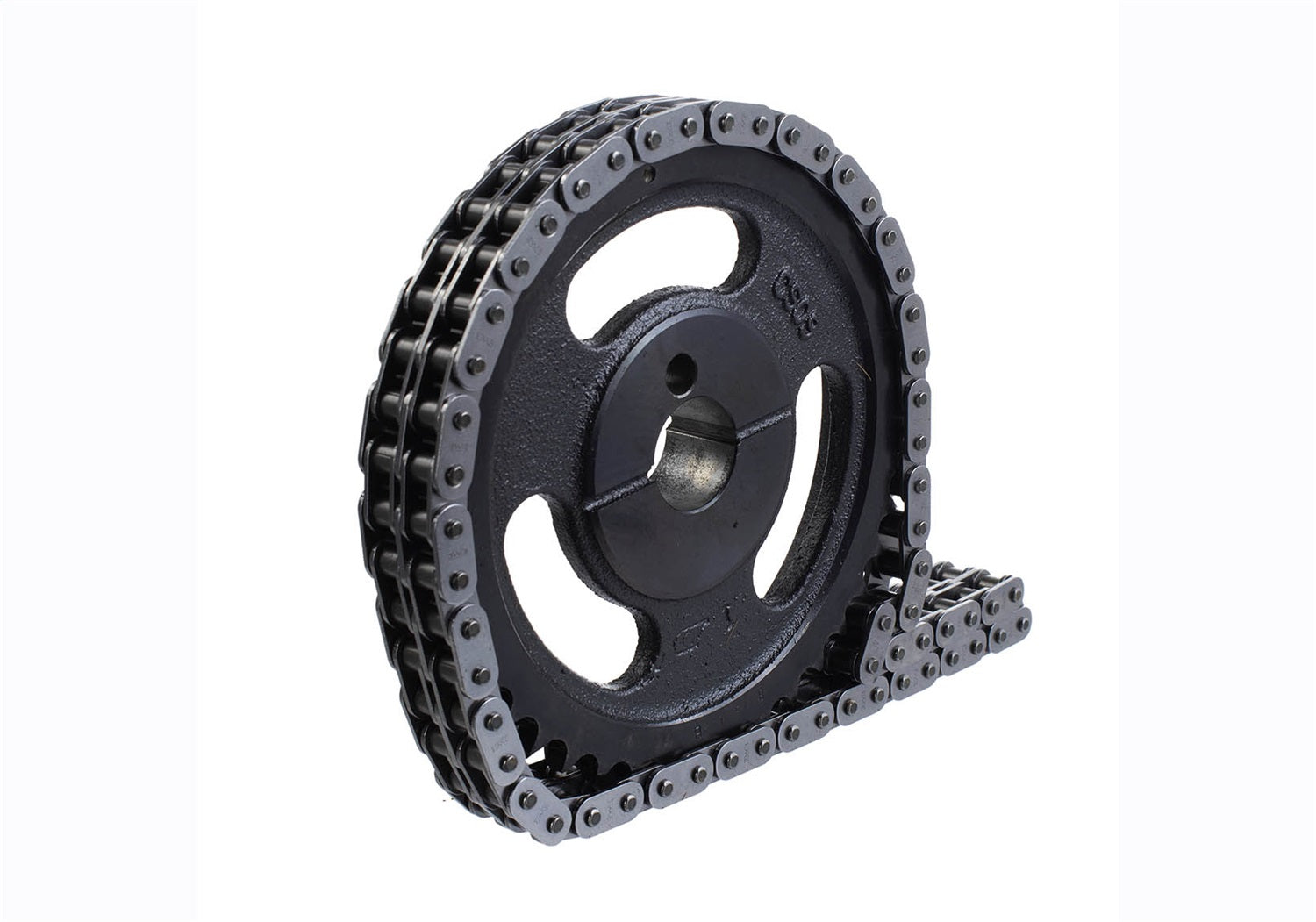

Ford Performance 302/351W Double Roller Timing Chain Set-Cast Iron Gear — alternate view (FRPM-6268-A302)
Ford Performance 302/351W Double Roller Timing Chain Set-Cast Iron Gear — detail (FRPM-6268-A302)
Ford Performance 302/351W Double Roller Timing Chain Set-Cast Iron Gear — additional view (FRPM-6268-A302)
Ford Performance 302/351W Double Roller Timing Chain Set-Cast Iron Gear — in use (FRPM-6268-A302)
Ford Performance 302/351W Double Roller Timing Chain Set-Cast Iron Gear — additional view (FRPM-6268-A302)
Ford Performance 302/351W Double Roller Timing Chain Set-Cast Iron Gear — additional view (FRPM-6268-A302)

Ford Racing

Ford Racing - 302/351w Double Roller Timing Chain Set - Cast Iron Gear - M-6268-A302

SKU: SKU: FRPM-6268-A302

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

302/351W Double Roller Timing Chain Set - Cast Iron Gear — manufactured by Ford Performance Parts (Ford Motor Company).


  • Fits:289/302/351W
  • Full roller chain with 9-position multi-index crank sprocket.  The crank sprocket has 2 degree increments for timing adjustment of up to 8 degrees retarded, 8 degrees advanced, or straight-up (no advance or retard).

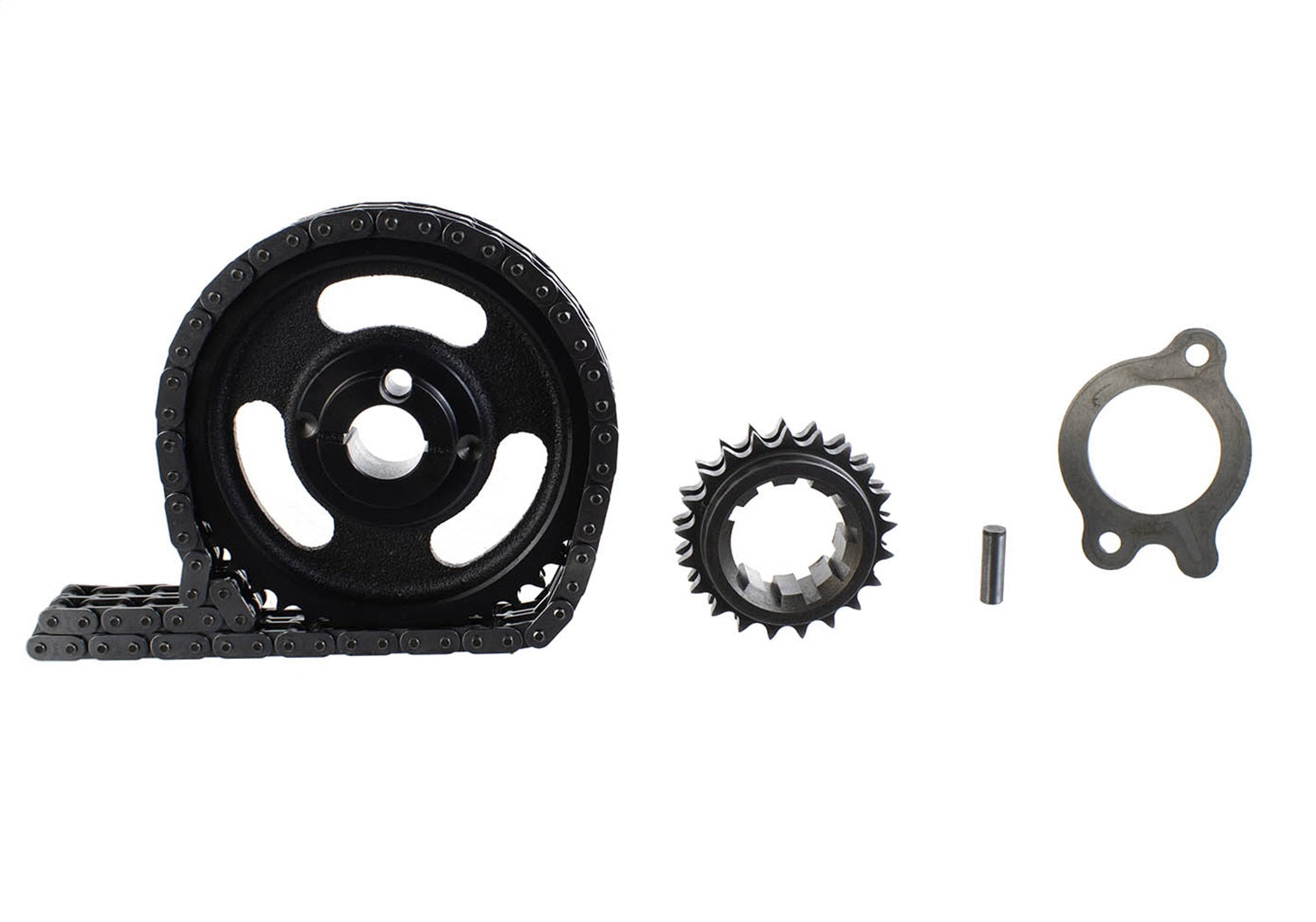

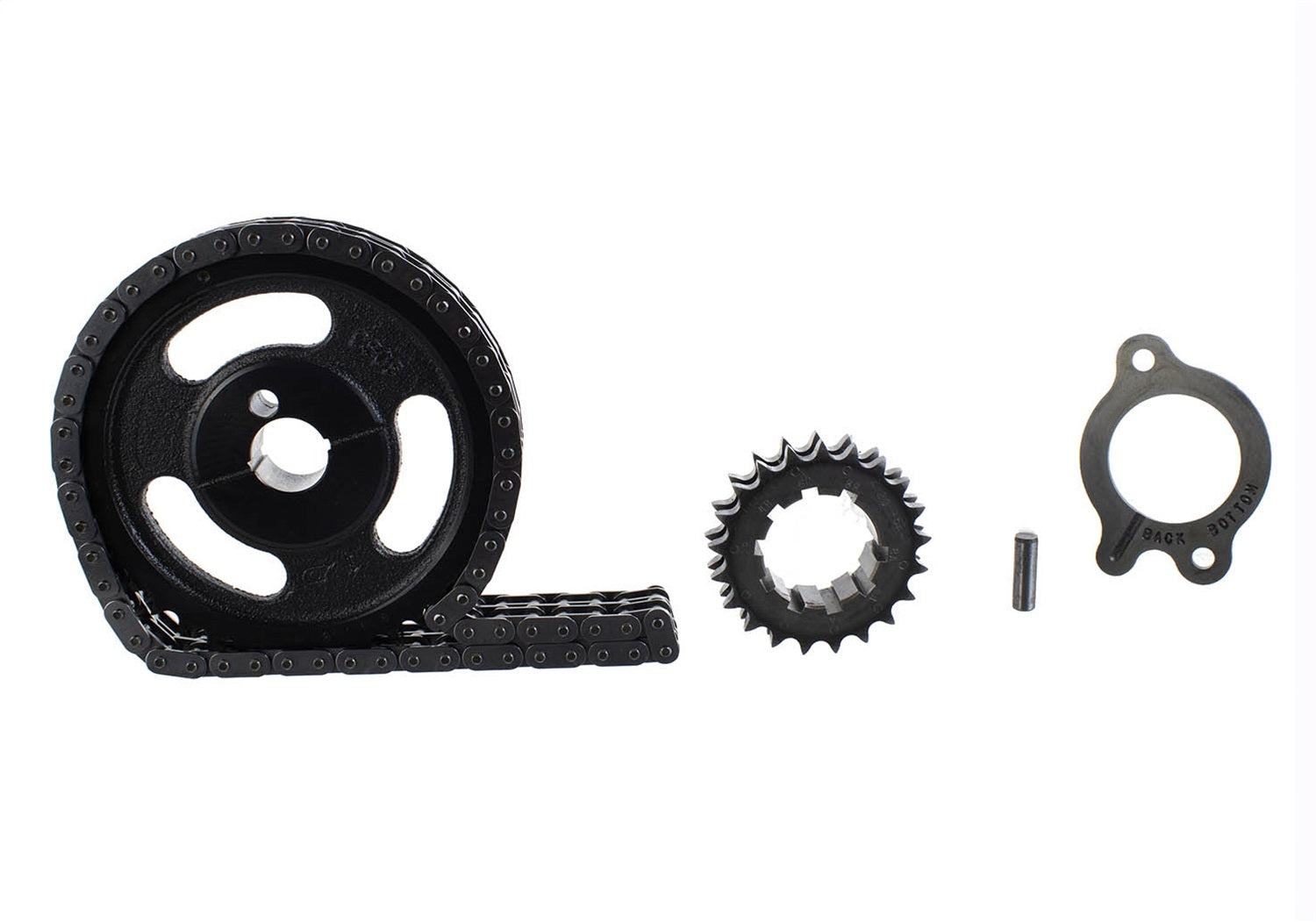

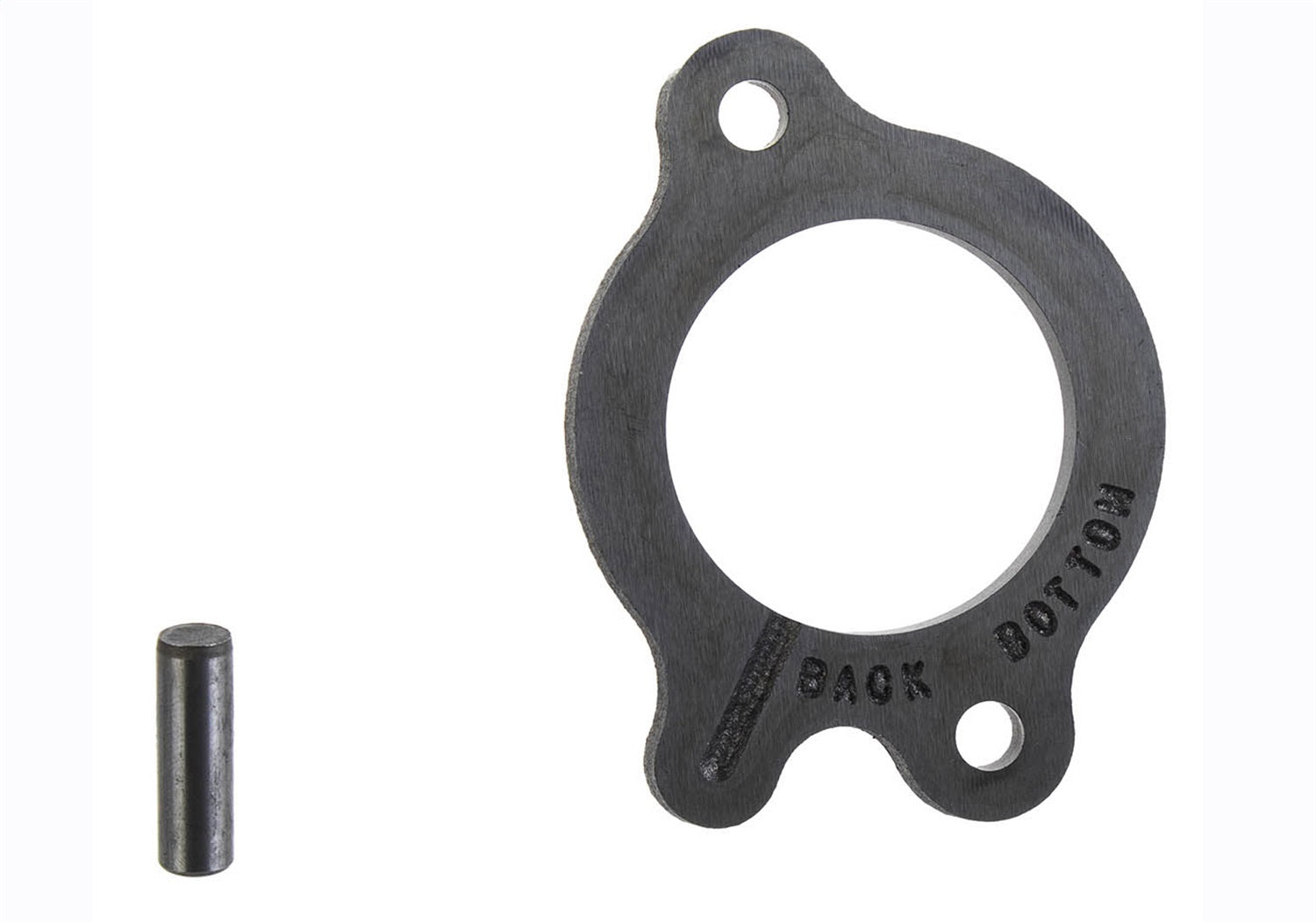

  • Includes thrust plate M-6269-A302 and 1 inch camshaft dowel pin.
  • Cam sprocket is made from cast iron. Crank sprocket is made from induction-hardened, billet steel
  • Chain is rugged, double-row type with oversized 0.250 inch rollers that deliver long life and reliability
  • Compatible with one-piece fuel pump eccentric M-6287-B302. Depending on camshaft manufacturer and application, other dowel pin length may be required. Not compatible with two-piece fuel pump eccentric

Specifications

Part Type Engine: Timing Drive Related
Instruction Sheet Available (PDF)
Warranty Availability Available
Package Dimensions 7.75" x 2" x 7.75"
Package Weight 3.8 lb(s)
UPC Code 756122626016
Country of Origin United States
