McLeod RST Twin Steel 8 Bolt MOD Motor Ford 1-1/8 x 26 Spline Organic Facing - 6432807

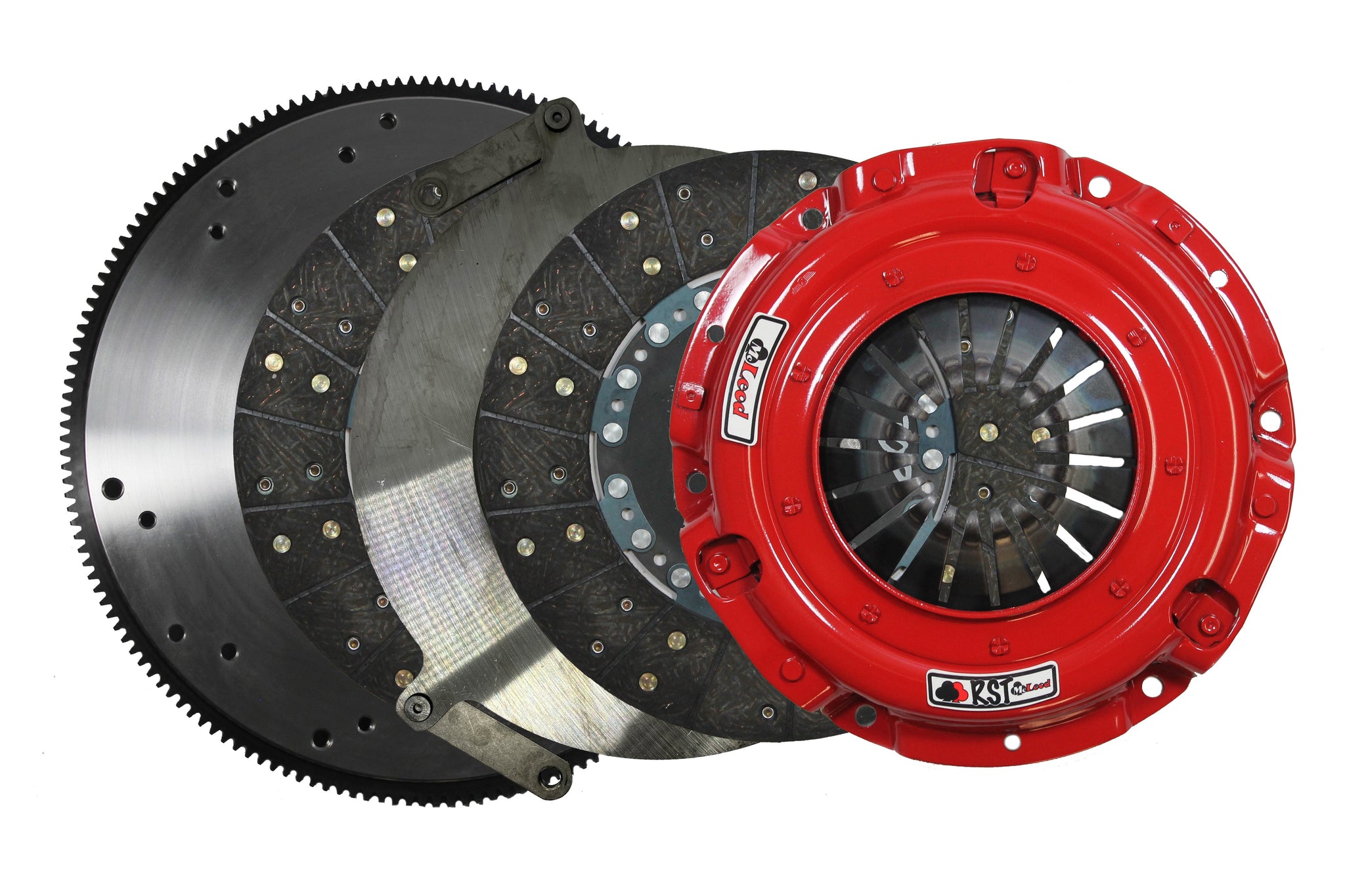

McLeod RST 800HP Street Twin Clutch Kit, Steel Flywheel, 1996-2004 Ford Mustang 4.6L 8 Bolt Crank, 1-1/8 x 26 Spline, 164T, Cable Linkage to T-56 Magnum - 6432807

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT HD for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

• Tremec changed the ball stud location on the T-56 Magnums for the Ford application. This ball stud change effects the fork angle and TO bearing clearance, causing a pre-load issue on the fingers of the pressure plate. This clutch kit eliminates this issue by giving the customer more clearance with a shorter crank to finger stack height. This kit is specific to 1996-2004 4.6L/5.0L Mod Motors with 8 bolt cranks and Tremec T-56 Magnums using cable linkage.
• • Lighter than Stock Pedal Feel. • Organic Facings for Smooth Engagement. • Excellent Release Qualities. • Bolts to Most Flywheels. • Available with Aluminum or Steel Flywheel.

Specifications

Note: Intended for 1996-2004 Mustang with 8 bolt crank, Cable Linkage and a T-56 Magnum Transmission.

Installation

• BearingTravelTip_McLeod.pdf
• BoltTorqueSpecs_McLeod(11_2024).pdf
• BreakInProcedure_McLeod.pdf
• I00125 PowerPack Instructions.pdf
• Important_Clutch_Installation_Hints.pdf
• RSTwFlywheel_Instructions.pdf
