Clutch Kit — manufactured by Ford Performance Parts (Ford Motor Company).
Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions.

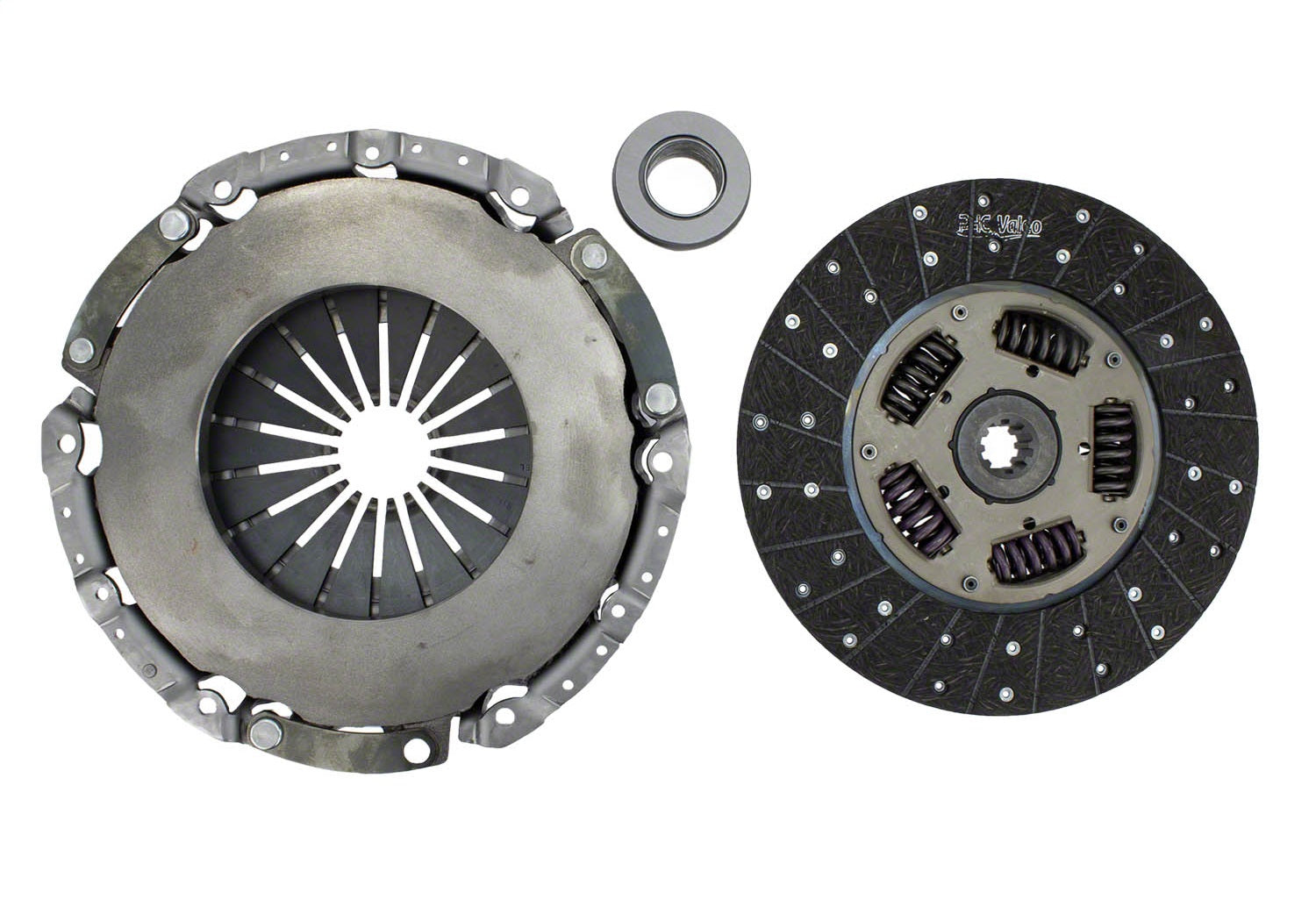

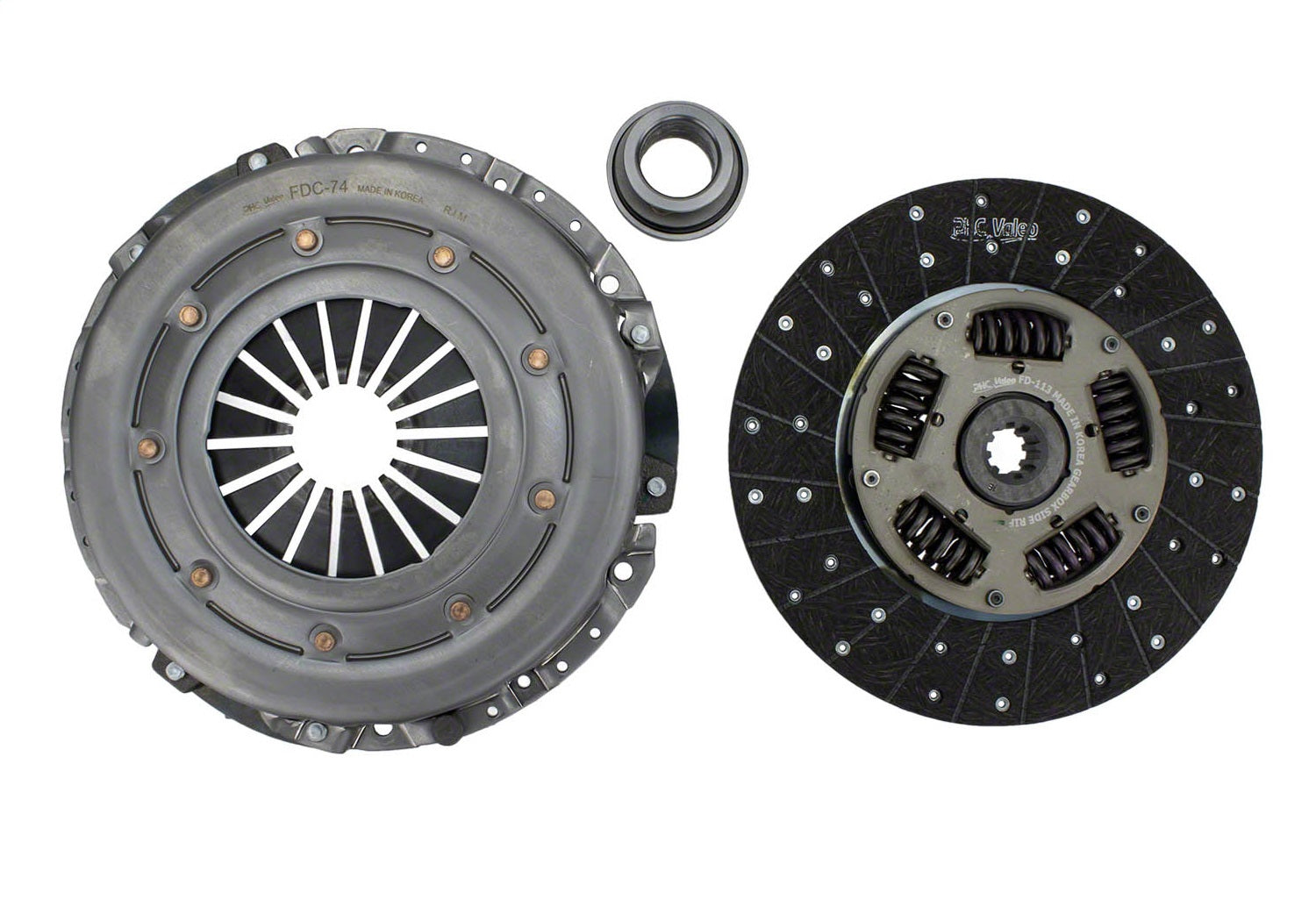

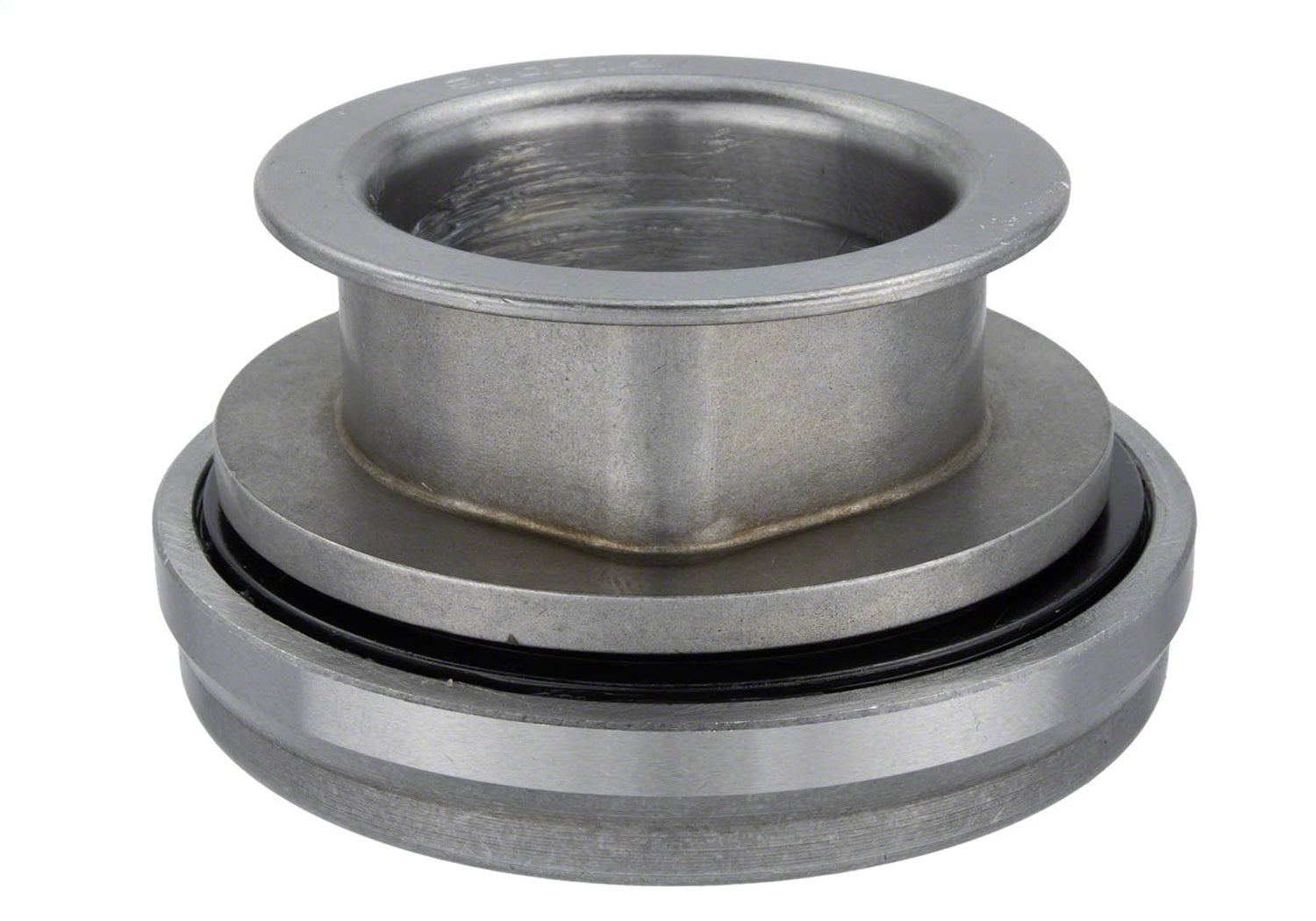

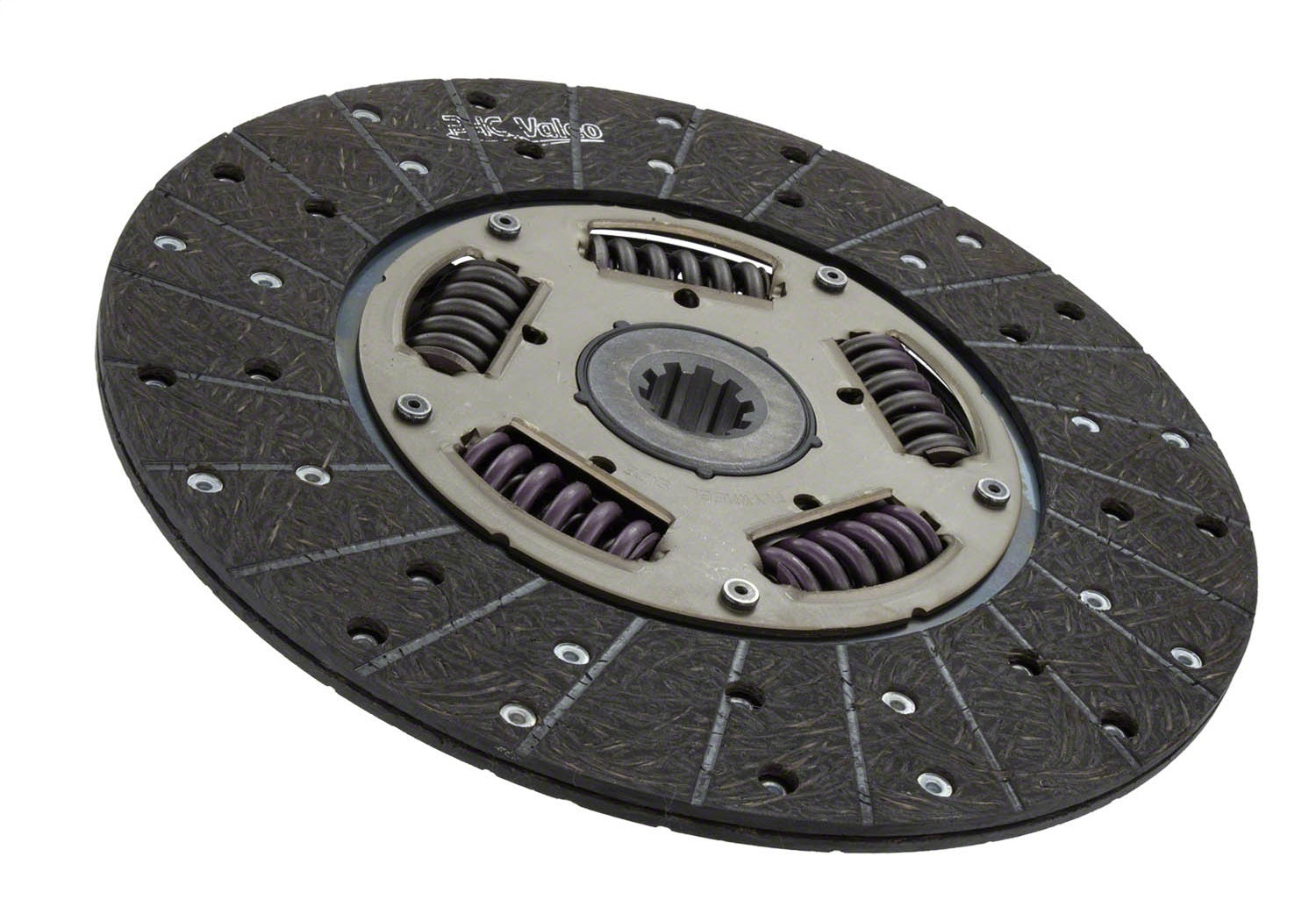

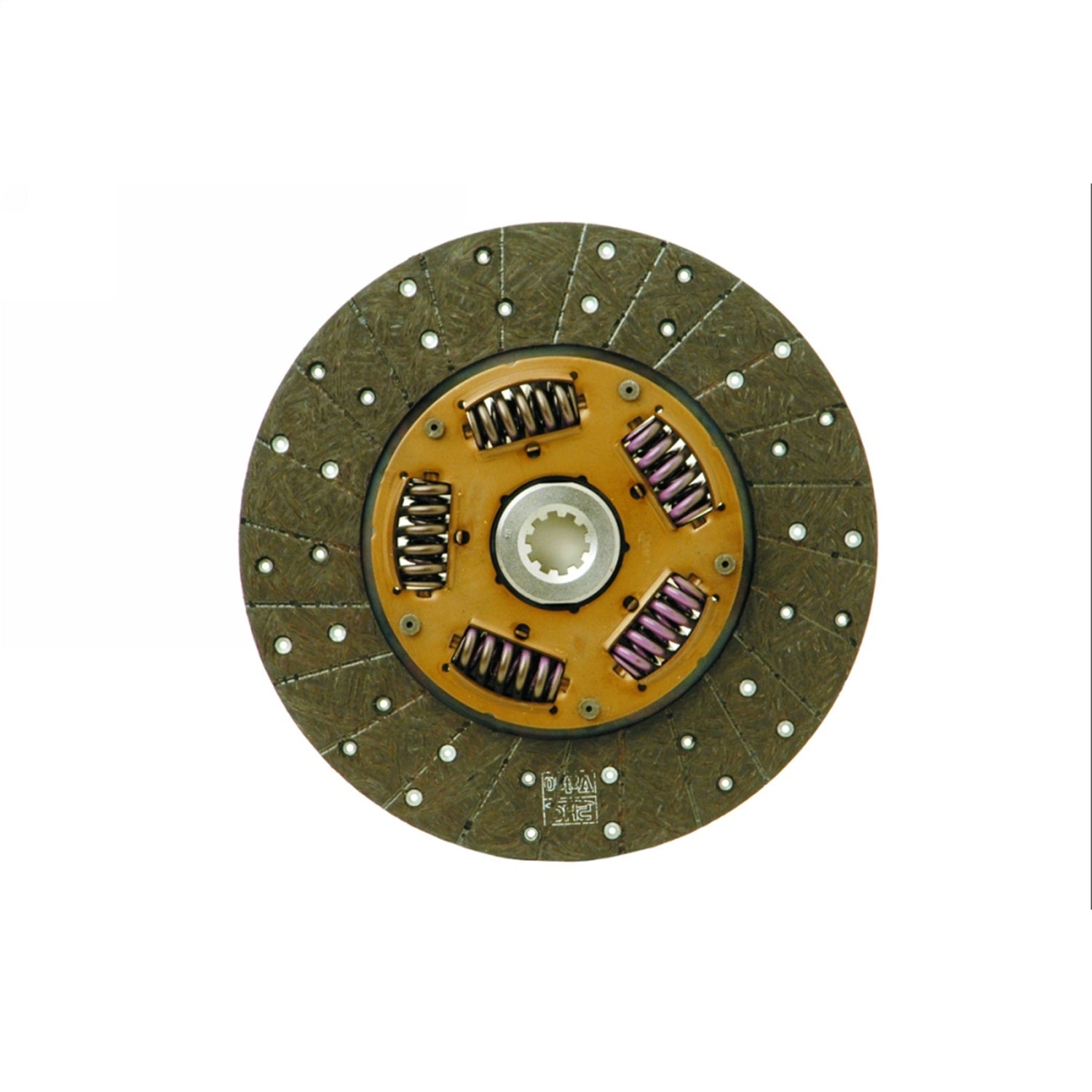

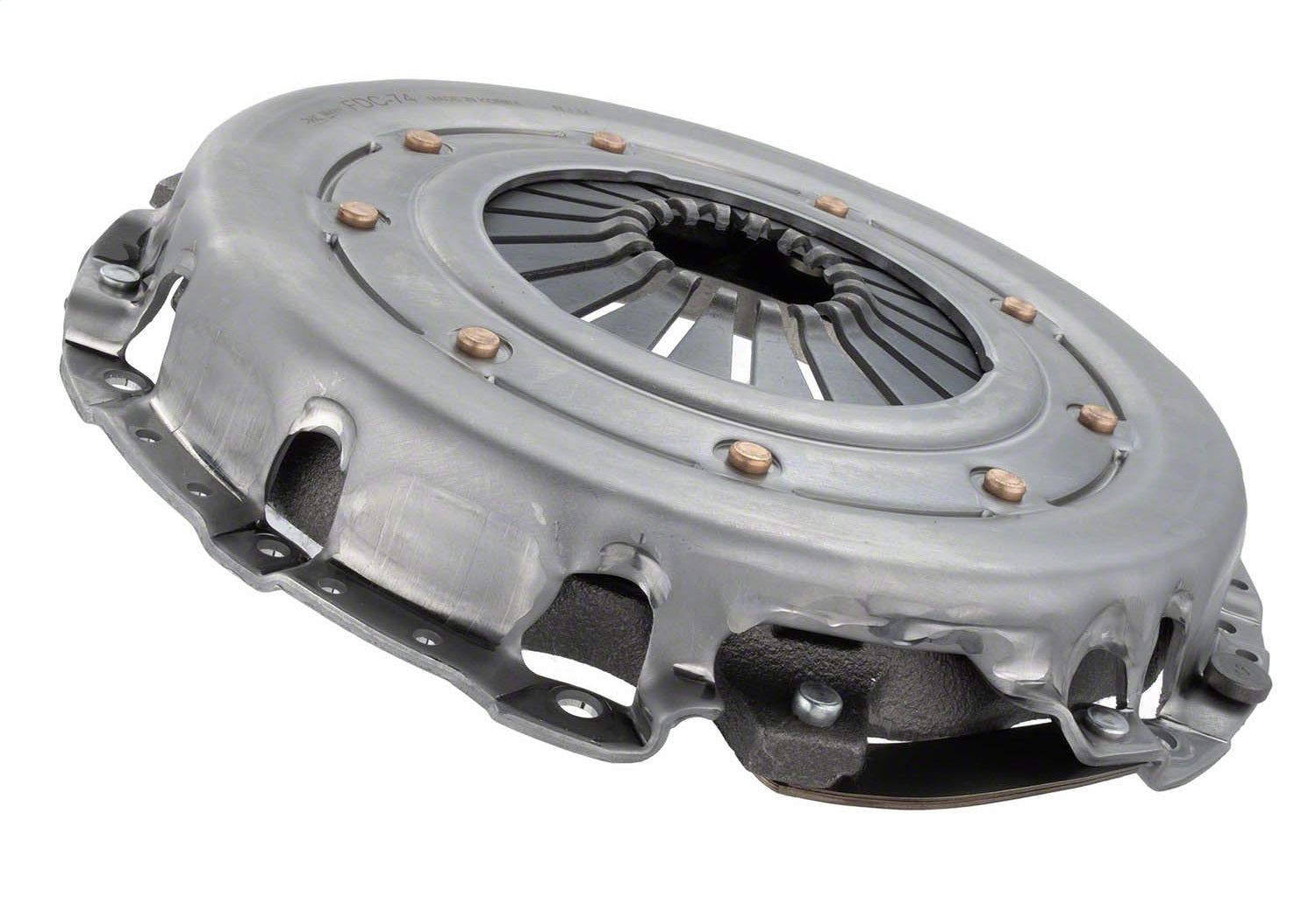

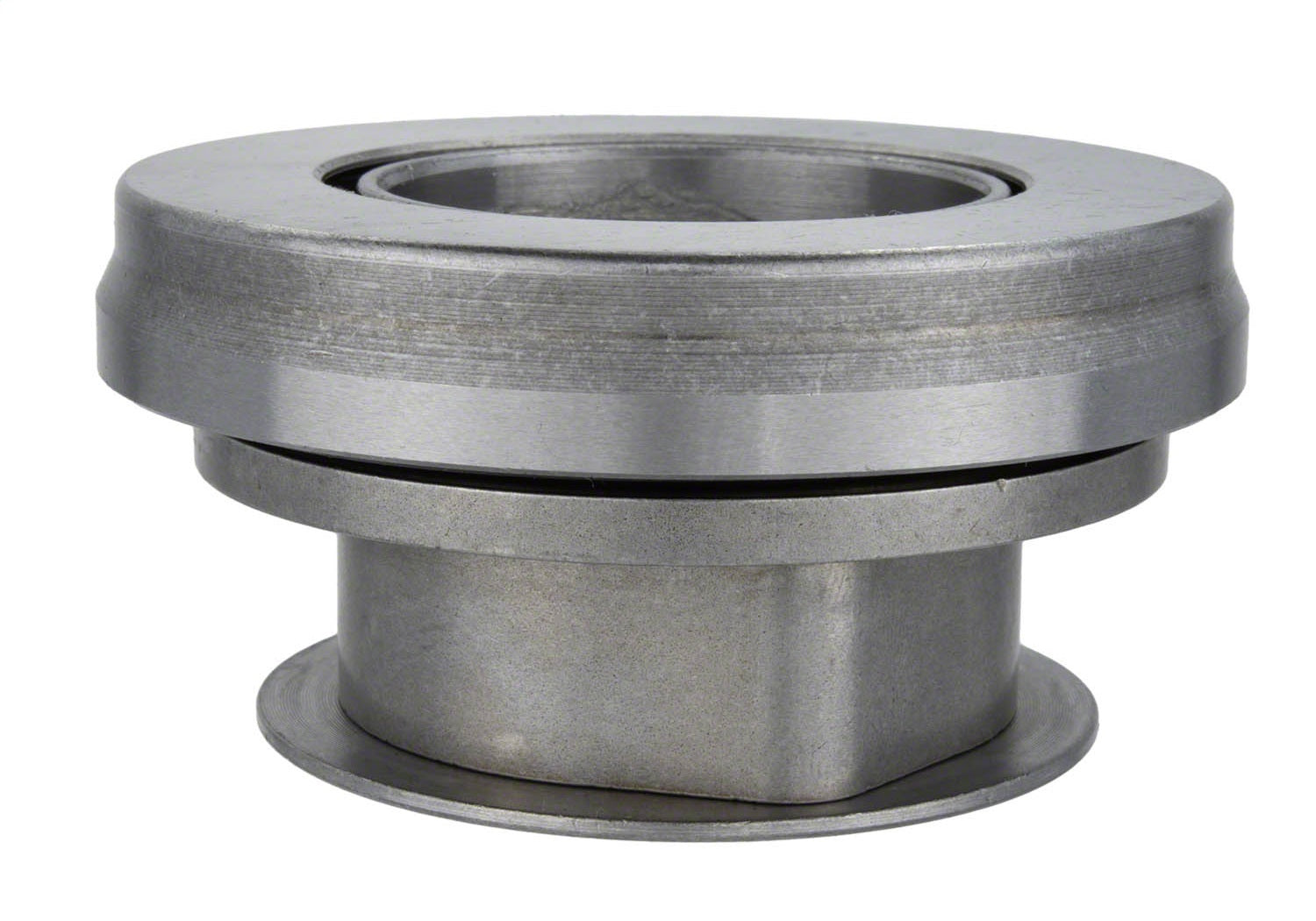

Consists of clutch disc, pressure plate and throwout bearing

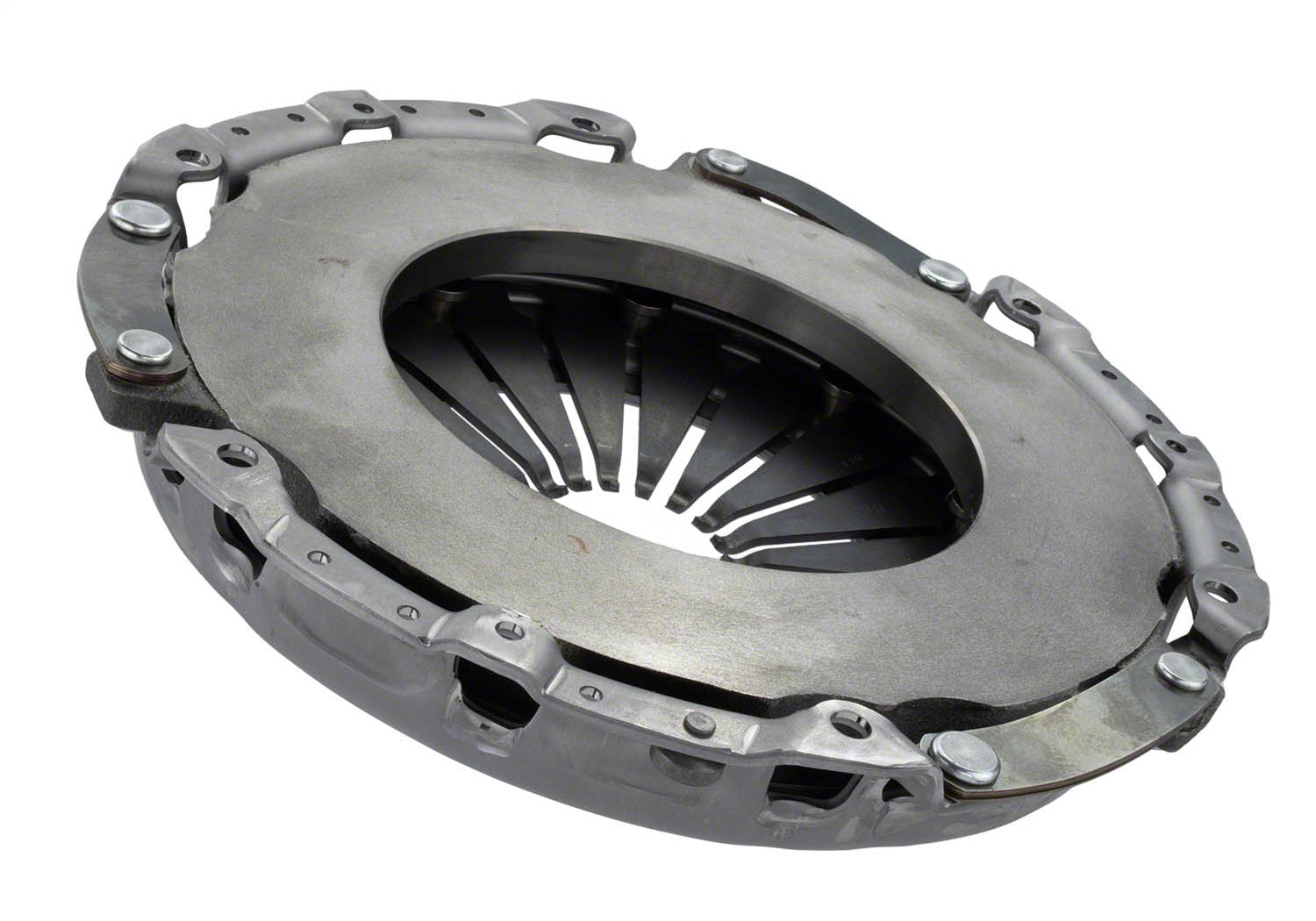

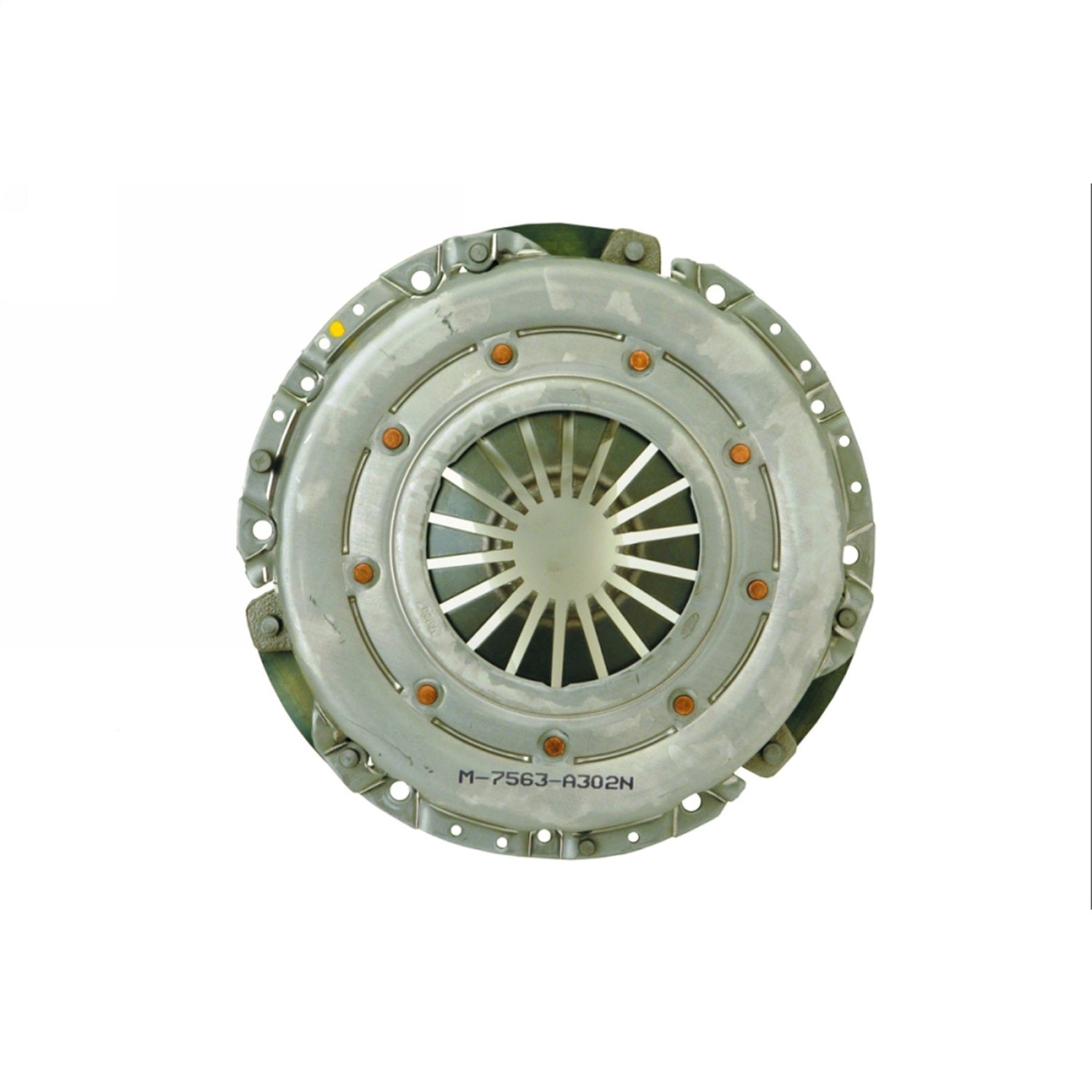

Heavy duty diaphragm type clutch assembly with approximately 40 % more capacity than stock Mustang clutch.

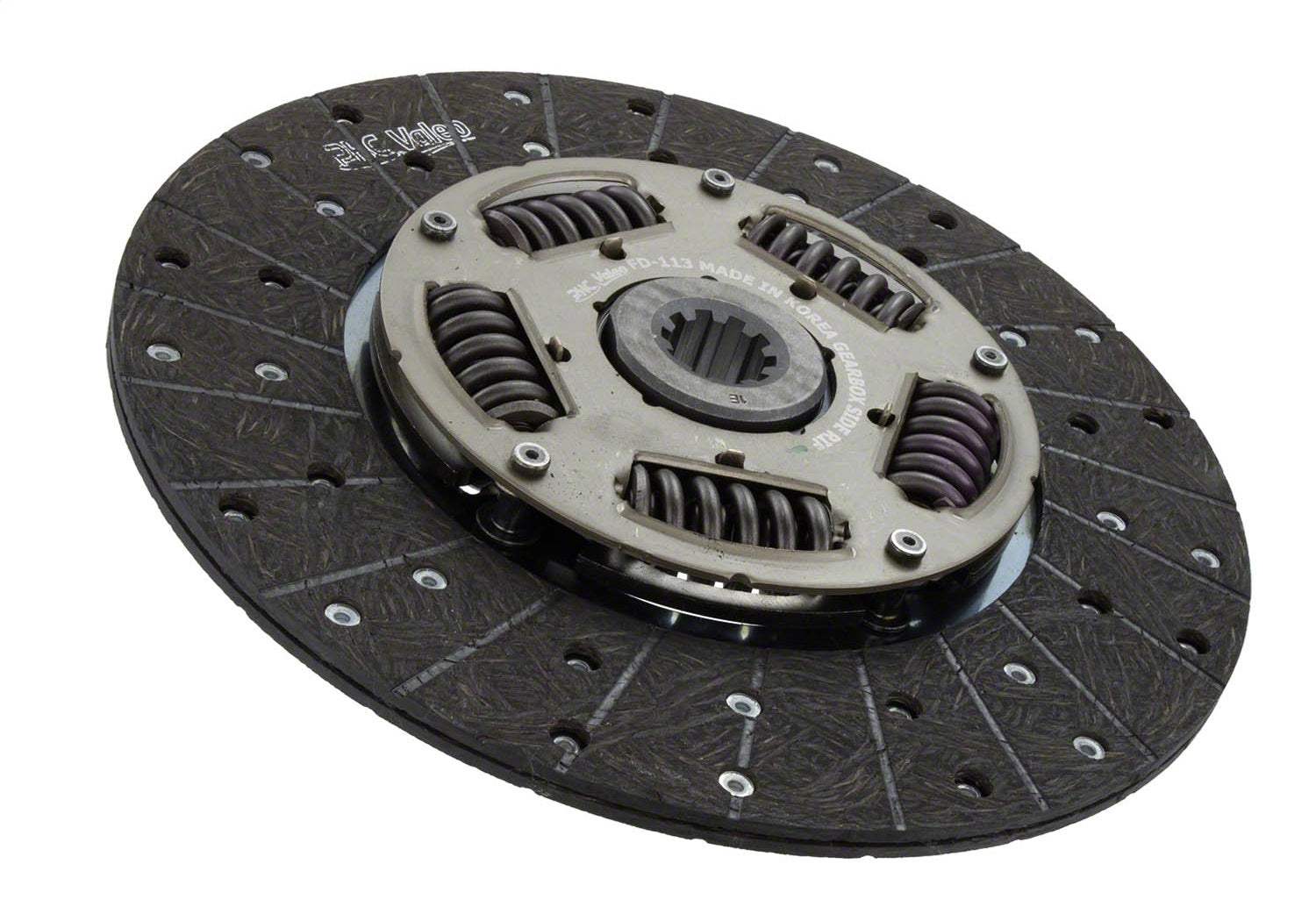

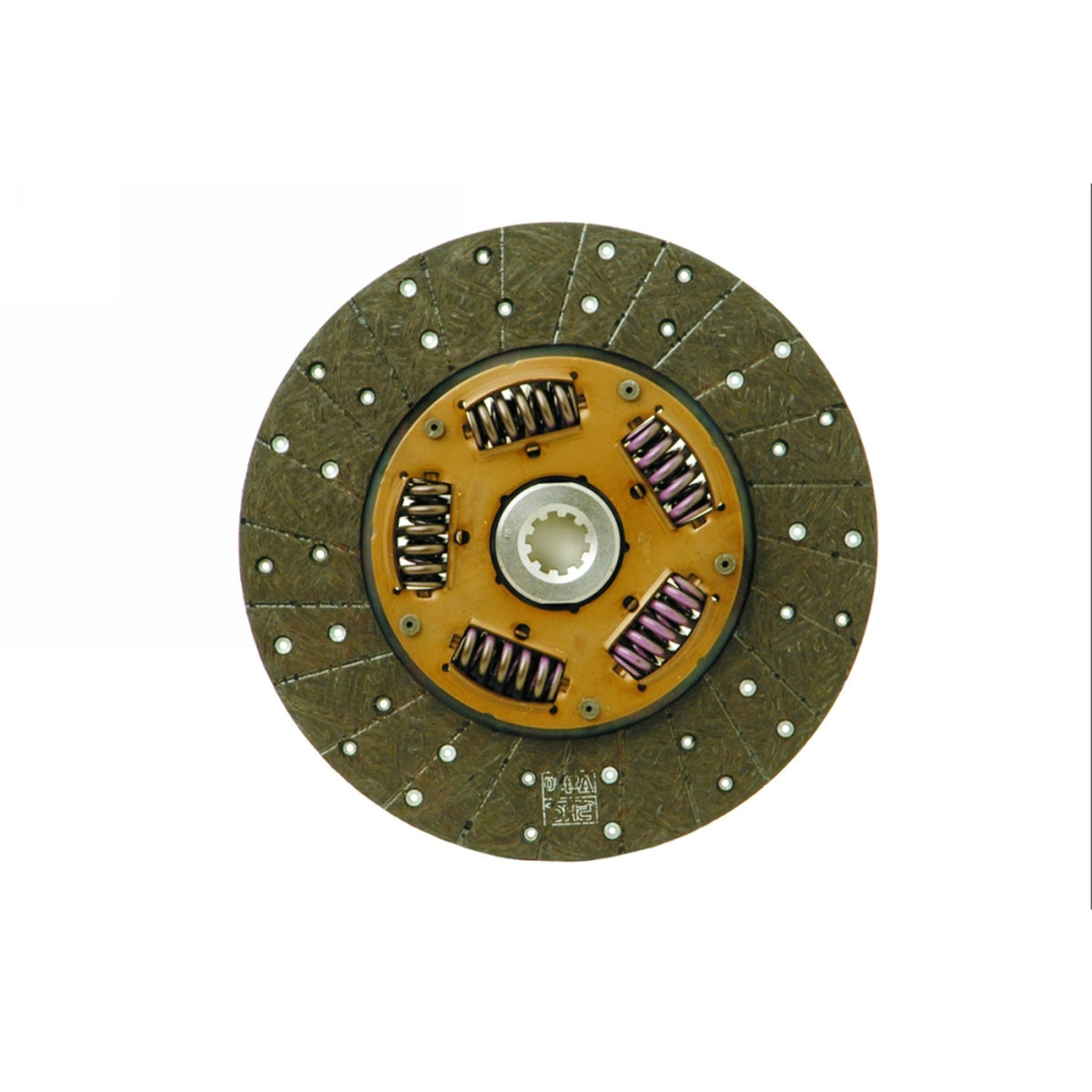

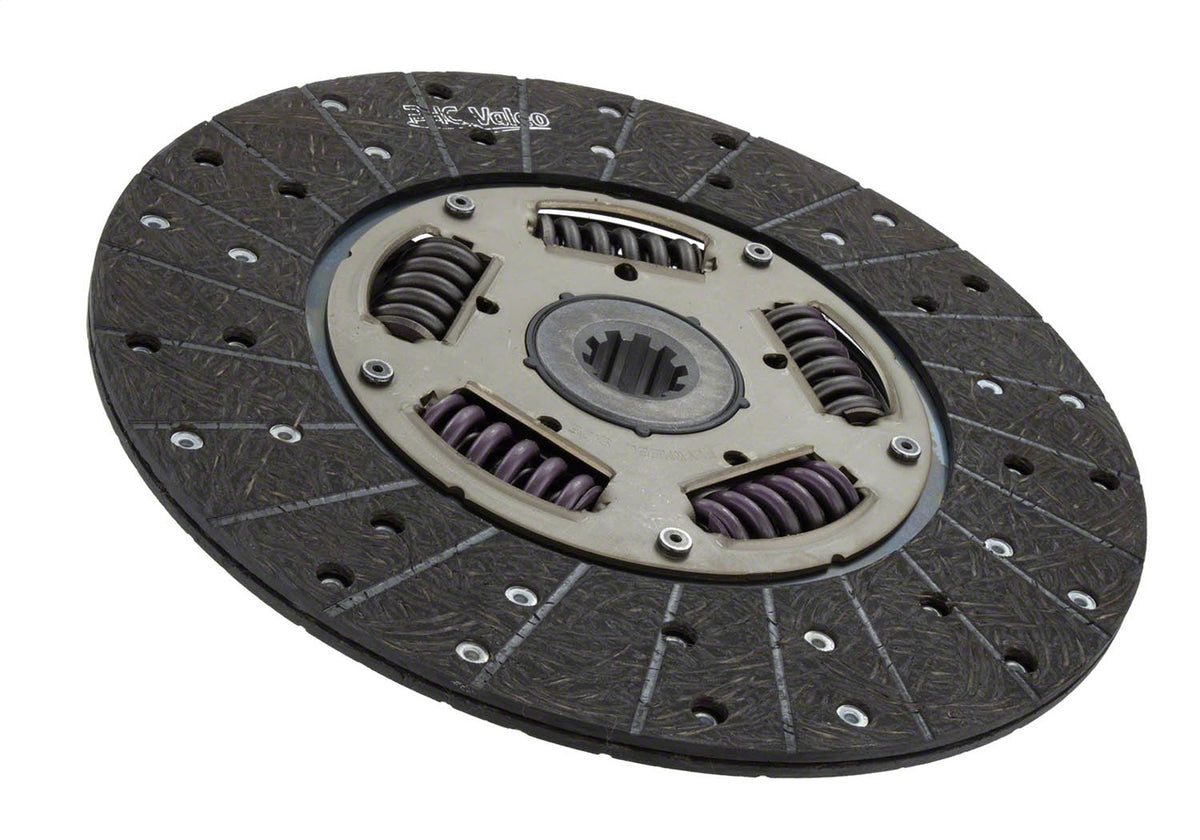

Clutch disc has 1-1/16-inch - 10 spline hub.
OK to mix and match Ford Racing clutch discs and pressure plates but do NOT install a FRPP pressure plate with a stock disc or vice-versa as disengagement problems may occur.
Metric fasteners and dowel pins must be used with 10.5" clutches M-6397-A302
Clutches have NO warranty!
Also recommended Roller Pilot Bearing M-7600-A or M-7600-B.
| CLUTCHES
|
| PART NUMBER | DESCRIPTION | ENGINE | DIAMETER | TECHNICAL INFORMATION |
M-7550-X302
(1)(2)(3)
| Disc | V-8 | 10.5" | HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. |
M-7550-T302
(1)3
| Disc | V-8 | 10.5" | HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Designed for 26 spline shaft on M-7003-R58C, and M-7003-R58H transmissions. Will work with M-7563-A302N/B302/C302N/D302 pressure plates. |
M-7563-B302
(1)(3)(4)
| Pressure Plate | V-8 | 10.5" | HD diaphragm type with centrifugal assist. Has approx. 25% more capacity than stock Mustang unit. Cast iron plate. |
M-7560-A302N
(1)(2)(3)(4)
| Mustang HD Kit | V-8 | 10.5" | Consists of M-7550-A302N disc, M-7563-A302N pressure plate and D9ZZ-7548-A throwout bearing. |
M-7560-C302N
(1)(2)(3)(4)
| Mustang HD "King Cobra" Kit | V-8 | 10.5" | Consists of M-7550-A302N disc, M-7563-C302N pressure plate and D9ZZ-7548-A throwout bearing. |
M-7560-T46
(1)
| 11" Clutch Kit | 4.6L | 11" | Kit contains 11" clutch disc with 26 spline hub and pressure plate. Clutch disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Centrifugal assist design pressure plate with 25% more torque capacity then production Cobra. Used when installing M-7003-R58C and M-7003-R58H transmissions into 1996-04 4.6L Mustangs with production 11" flywheel or Ford Racing flywheels M-6375-F46, M-6375-G46 or M-6375-R00. |
NOTES:
(1) Clutches have NO warranty!
(2) All clutch discs have 1.0625"-10 spline hub.
(3) Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions.
2001-04 Mustang GT with 3650 transmission and 1999-03 Cobra uses an 11" clutch.
OK to mix and match Ford Performance Parts clutch discs and pressure plates but do NOT install a FPP pressure plate with a stock disc or vice-versa as disengagement problems may occur. Installation of 10.5" clutch assemblies on 1979-85 vehicles equipped with 10" clutch requires new flywheel (see page 116). Metric fasteners and dowel pins must be used with 10.5" clutches. 4 Requires metric pressure plate bolts N602549-S51M and alignment dowel pins D1FZ-6397-B. Ford Performance Parts kit M-6397-A302 (see page 116).
Specifications
| Part Type |
Driveline: Clutch Related |
| Instruction Sheet |
Available (PDF) |
| Warranty Availability |
Available |
| Package Dimensions |
14.75" x 4.75" x 14.75" |
| Package Weight |
24 lb(s) |
| UPC Code |
756122084595 |
| Country of Origin |
Korea, South (Republic of) |
Genuine Ford Racing Parts — backed by Ford Motor Company's factory engineering and warranty.
