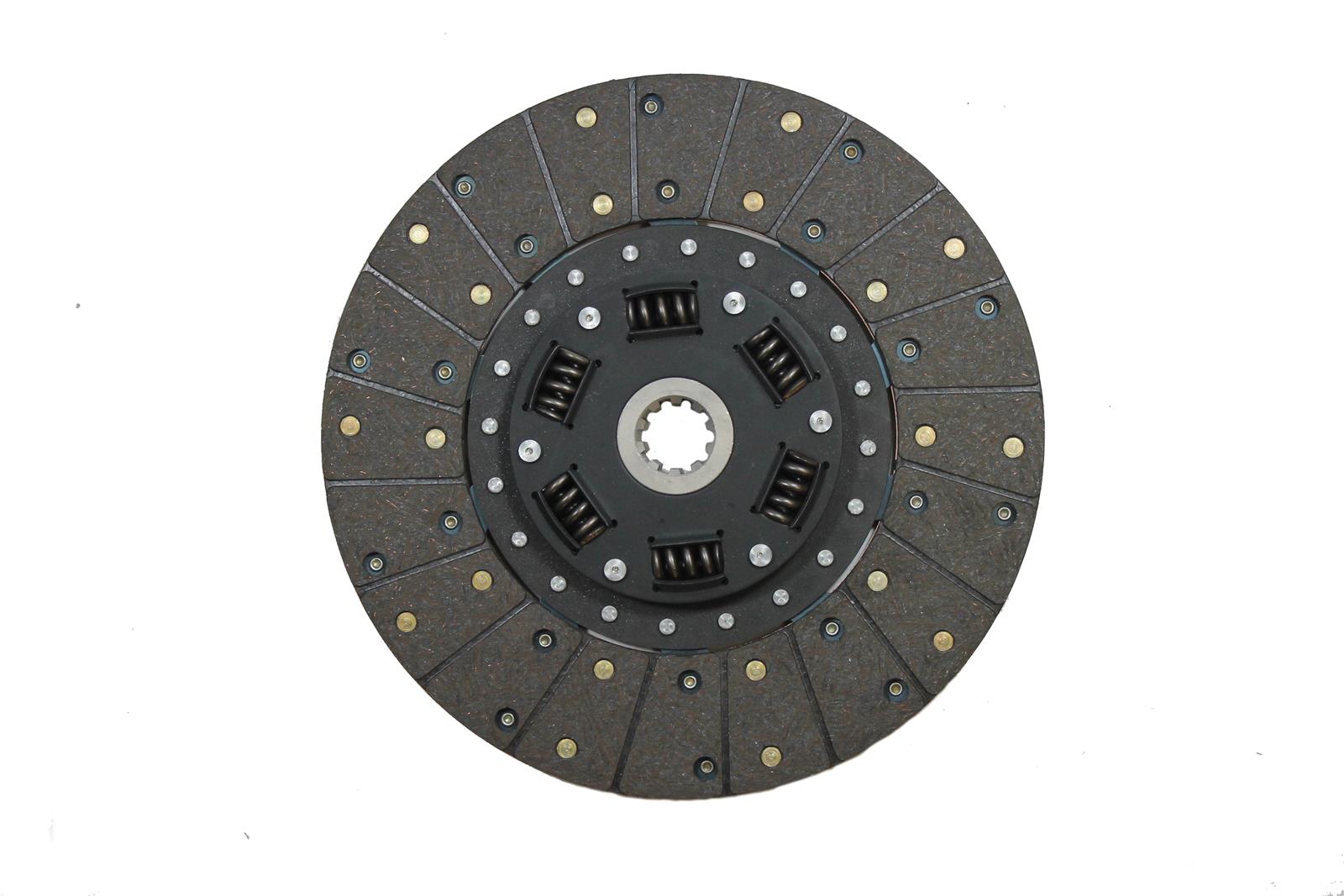

Disc: 100 Series 11 X 1-1/16 X 10 Spline: Organic/Organic Facing
The 100 series is McLeod Racings premier organic/organic disc. Made with a steel backed facing and a marcel drive plate along with a 6 spring 6 rivet hub, the 100 series disc is a robust disc at a economical price point. The 100 series is offered in several different diameters and inputshaft splines to meet your needs. The 100 series has a smooth engagement for those hot rodders that just want to cruise the boulevard.
- For use with McLeod Racing components.
- • Organic facings.
• Steel backed facings.
• Multiple applications.
Specifications
| Clutch Usage |
Performance |
| Disc Diameter (in.) |
11.000 |
| Hub Style |
Sprung |
| Disc Material |
Organic |
| Input Shaft Diameter (in.) |
1.063 |
| Input Spline Quantity |
10 |
| Quantity |
Sold individually. |
