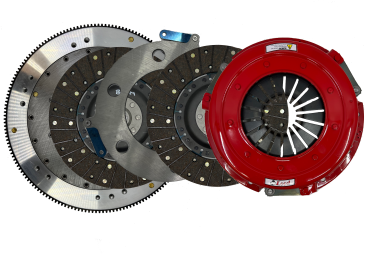

Original Street Twin: Aluminum: Ford 1969-98 BBF 429/460: 1-3/16 x 18 Spline: 176T: Aftermarket Transmission
Original Street Twin - Rated up to 1200 HP, this clutch system is perfect for high horsepower street cars applications. Designed for vehicles with superchargers, turbochargers, NOS or big cubic inch engines. Available with either organic or ceramic discs. Performance aluminum or steel flywheel included with the Original Street Twin system.
- • Street Twin.
• Street Friendly.
• Ceramic or Organic Discs.
• Strap Drive.
• Flywheel Included.
Specifications
| Disc Diameter (in.) |
10.500 |
| Input Shaft Diameter (in.) |
1.188 |
| Input Spline Quantity |
18 |
| Disc Material |
Organic |
| Hub Style |
Solid |
| Disc Style |
Full face |
| Pressure Plate Style |
Diaphragm |
| Counterweight Assist |
No |
| Alignment Tool Included |
Yes |
| Hardware Included |
Yes |
| Clutch Disc Quantity |
2 |
| Clutch Usage |
Performance |
| Pilot Bushing Included |
No |
| Throwout Bearing Included |
No |
| Flywheel Included |
Yes |
| Flywheel Material |
Billet aluminum |
| Crankshaft to Flywheel Bolt Quantity |
6-bolt |
| Ring Gear Tooth Quantity |
176-tooth |
| Engine Balance |
Internal |
| Quantity |
Sold as a kit. |
| Horsepower Rating |
1200 |
Note: Aftermarket Transmission
