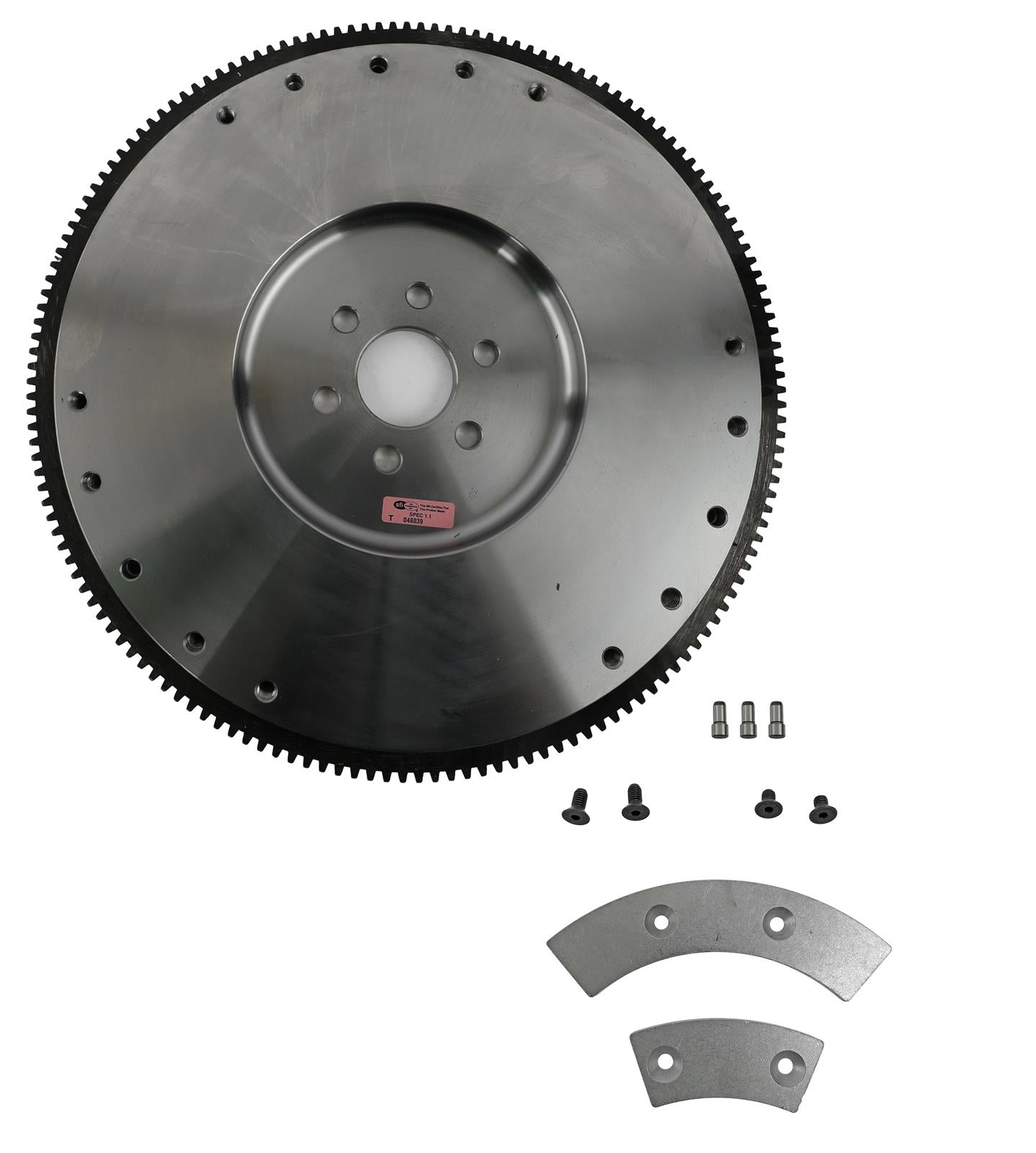

Flywheel: Steel: Ford 1958-76 BBF Fe 332-428: 184T: 28 Lbs
McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.
- Counter Weight Kit Included
- • Billet Steel.
• 1045 Steel Hardened Ring Gear.
• SFI rated.
Specifications
| Flywheel Material |
Billet steel |
| Marine Use |
No |
| Replaceable Friction Surface |
No |
| Engine Balance |
Internal/External |
| Quantity |
Sold individually. |
| Ring Gear Tooth Quantity |
184-tooth |
| SFI 1.1 Approved |
Yes |
| Counter Weight Kit Included |
Yes |
| Disc Diameter (in.) |
11.000/11.500/12.000 in. |
| Pressure Plate Style |
Borg & Beck/Diaphragm/Long |
| Weight |
28.000 lbs. |
| Crankshaft to Flywheel Bolt Quantity |
6-bolt |
Note: 1986-Up 10.5In. Mustang Diaphragm w/Dowel Pins clutch pattern.
