SKU: SKU: FOX883-06-182

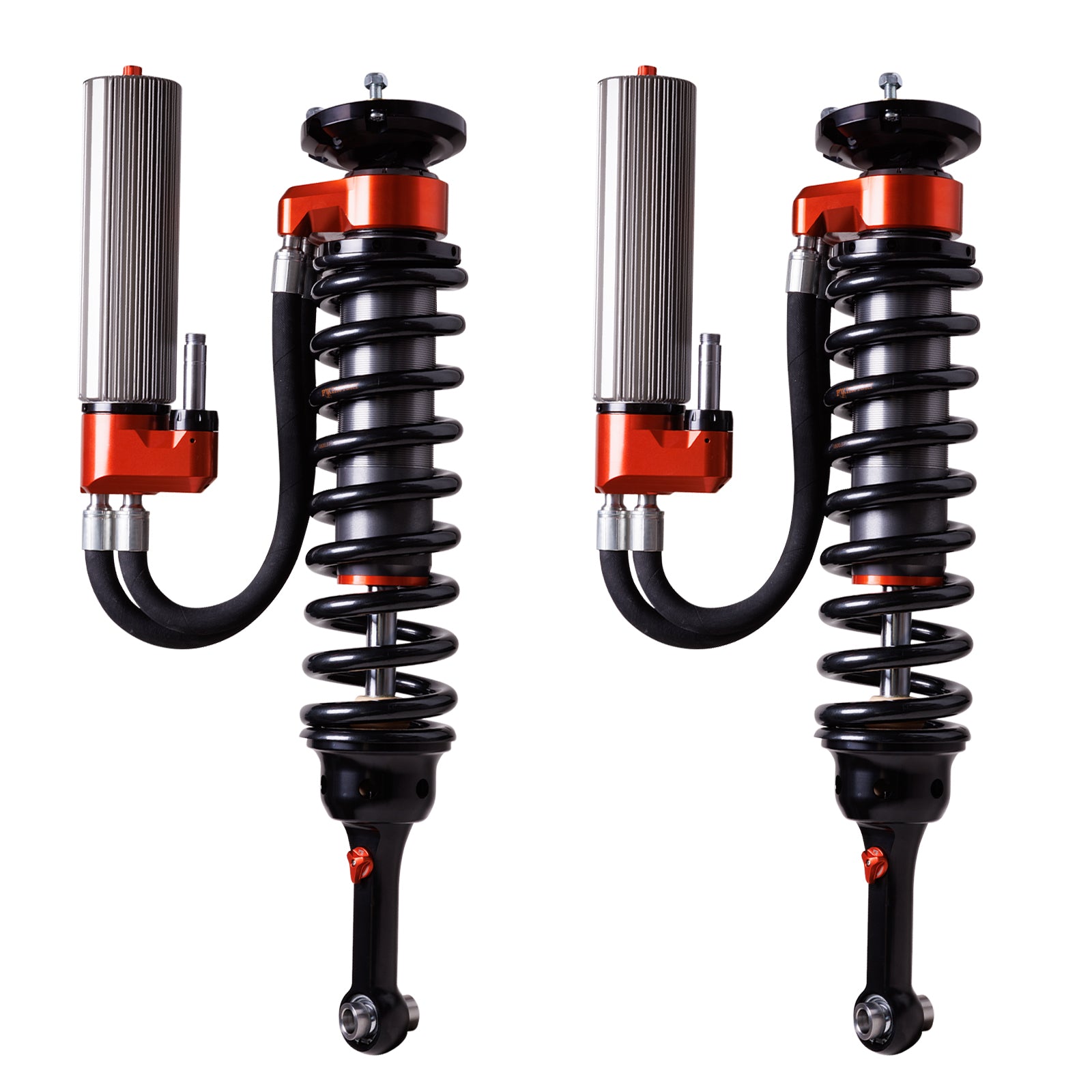

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Application specific valving to maximize performance.
Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.
Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.
Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
| Body Material | Aluminum |
| Type | Coil-Over Internal Bypass |
| Series | Factory Race |
| Reservoir Type | Remote |
| Body Diameter (in) | 3.0 |
| Compressed Length (in) | 22.36 IN |
| Extended Length (in) | 29.21 IN |
| Travel (in) | 6.85 IN |
| Bottom Mount | Eyelet |
| Top Mount | OEM |
| Adjuster Type | Live Valve |
