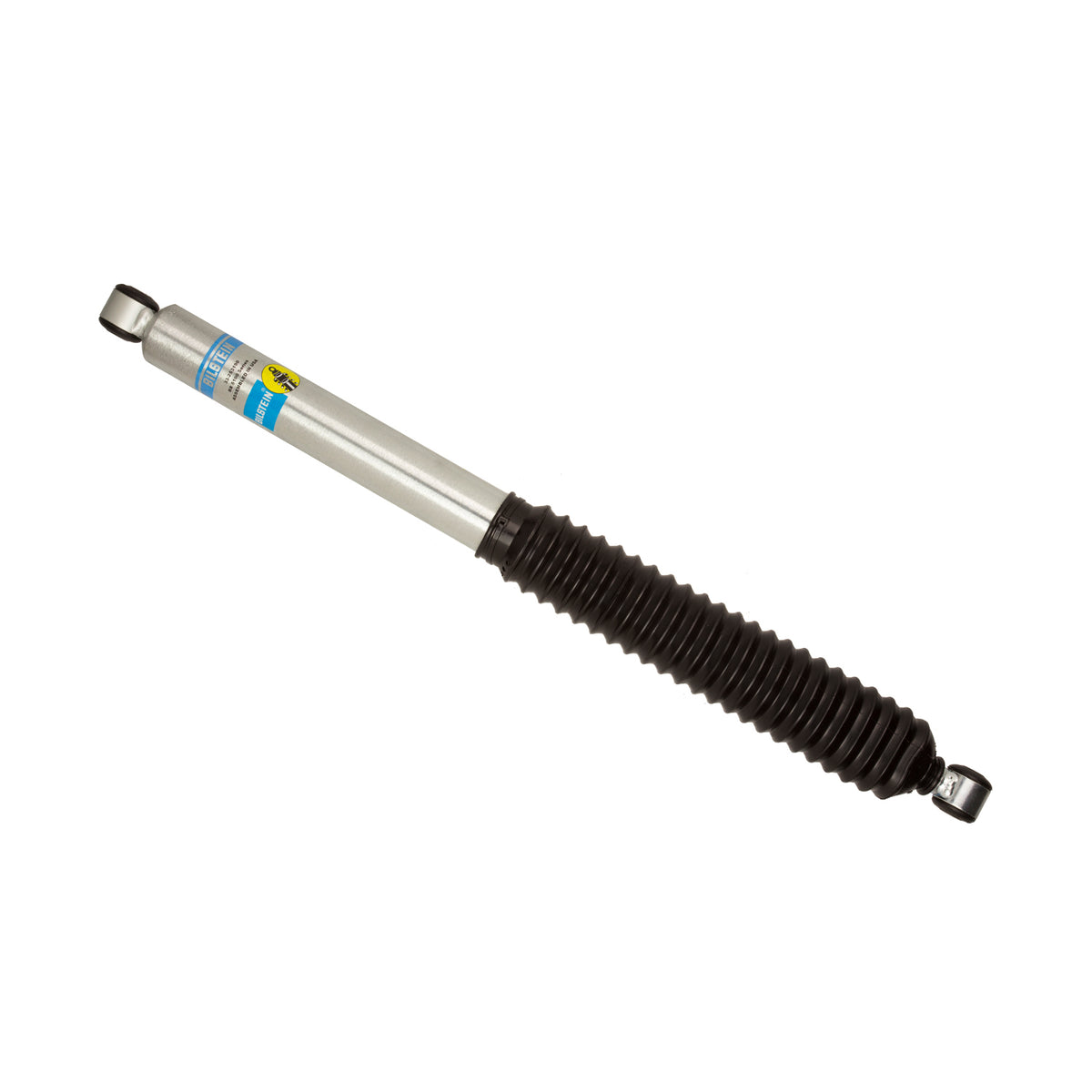

Bilstein 5100 Series 2015-2016 Ford F-150 XL/XLT V6 3.5L Rear 46mm Monotube Shock Absorber - 33-253190

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Finish: Zinc Plated
• Boot Included: Black Bellows
• Upper Mount Type: Eye 12mm
• Extended Length (mm): 730.0
• Internal Design: Monotube
• Collapsed Length (in): 17.52
• Lower Mount Type: Eye 12mm
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Series: B8 5100
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Collapsed Length (mm): 445.0
• Stroke/Travel Length (in): 11.22
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 285.0
• Extended Length (in): 28.74

Application

• Ford F-150 2015-2026
