GReddy Toyota Soarer JDM Model TRUST INTERCOOLER T-24F JZZ30 - 12010207

Specification

• Core Type: TYPE24F
• Core size: H184/L600/W66
• Mounting position: in front of radiator

Compatible model: Soarer

• Applicable model: JZZ30
• Year:91.05~00.12
• CODE：12010207


Remarks

• Genuine Turbine &G Reddy
• Compatible with turbine kits (TD06/T78).
• VVTi can be installed on the vehicle.
• * O/C kit can be installed at the same time

GReddy Intercooler Kits
The addition of an efficient, light-weight tube and fin GReddy intercooler is one of the best ways to safely increase horsepower in a turbocharged engine. By reducing the engine's inlet temperatures, a denser air charge will enter the engine; this can make more horsepower at the same boost level and even more power at higher boost levels. Even if there is a factory-installed intercooler, generally these stock units are not ideal even for factory boost levels. They are usually mounted in awkward locations and become very susceptible to heat saturation. They are not ideal for increased boost levels.

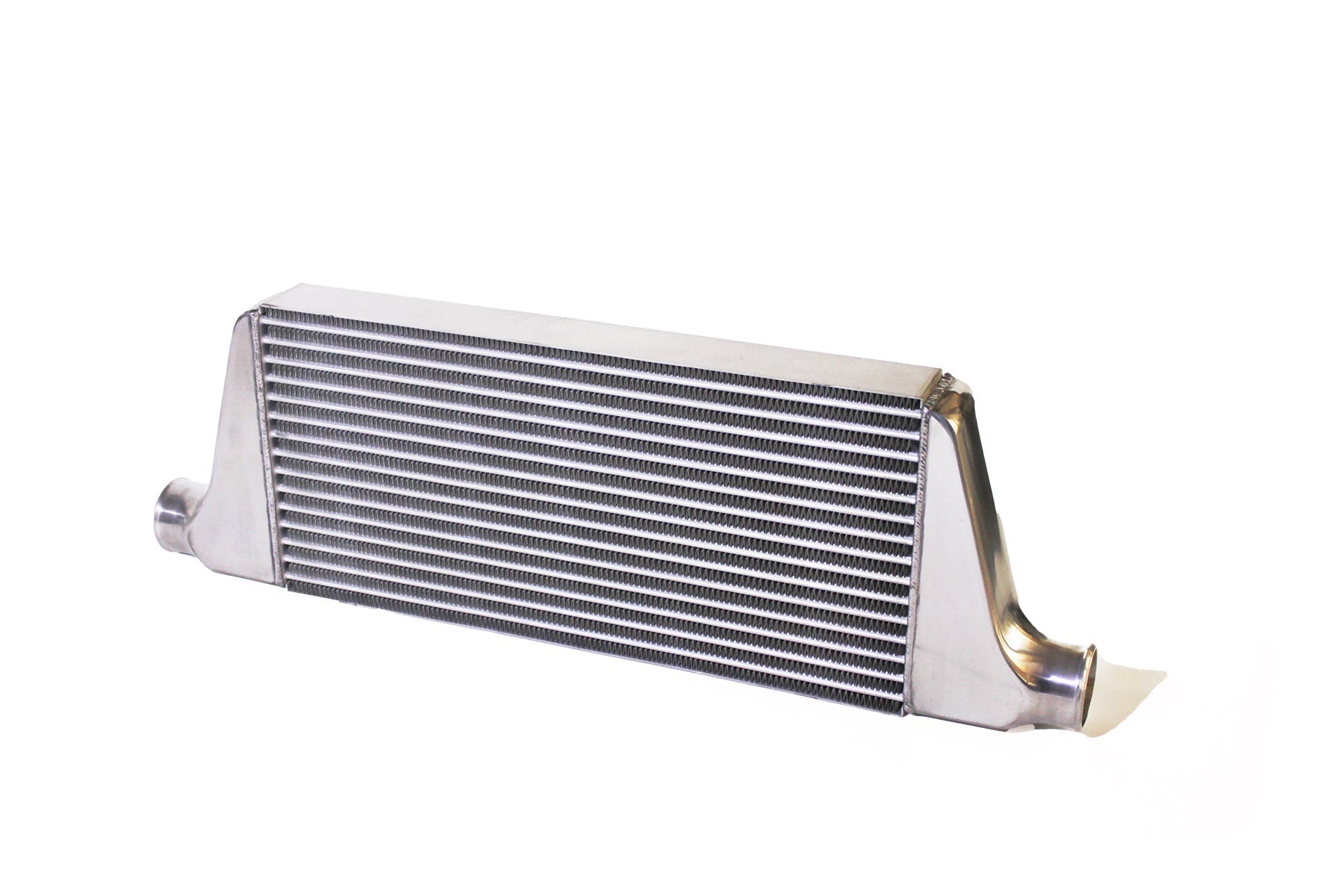

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.

*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
