Manley Kit - Ford 4.6L 3V 3.572in Bore 3.543in Stroke -6.5cc Dish Pistons Rotating Assembly - 28320UB

Manley Rotating Assemblies are engineered as complete, matched systems to deliver maximum strength, balance, and performance in high-demand engines. Featuring precision-forged crankshafts, high-strength connecting rods, and premium pistons, each component is designed to work together seamlessly for optimal durability and efficiency. Tight tolerances and careful material selection ensure excellent load handling, reduced friction, and consistent performance under extreme RPM and cylinder pressure. By combining Manley’s proven rod, piston, and crank technologies into a unified package, these assemblies provide the reliability and confidence engine builders demand when pushing the limits of power.

Features

• Lightweight 4340 forged steel crankshaft
• 4340 Forged steel H-Beam connecting rods with 3/8 ARP 8740 cap screws or optional ARP 2000 cap screws

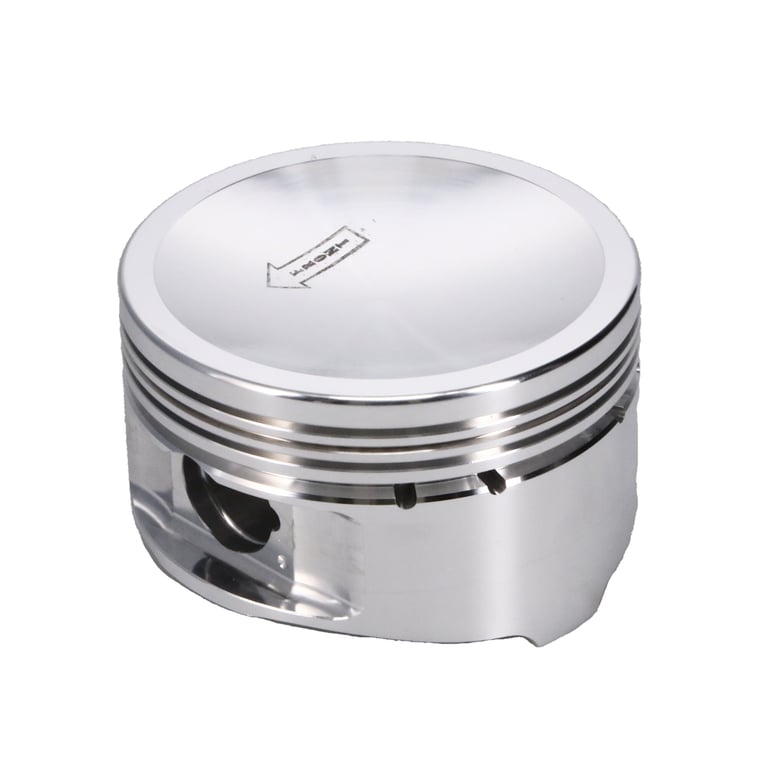

• 2618 Forged aluminum Platinum Series pistons with Premium Chrome Moly wrist pins
• High Performance piston rings & high performance Clevite H Series rod bearings (narrowed)

Specs

• Manley Rotaing Assembly, FORD 4.6L 3.543 STROKE/3.572/-6.5cc DISH
• Product Market: Domestic
• Piston Volume: -6.50
• Additional Info: Main bearings not included with kit. Ford block M-6010-BOSS50 uses main bearing 33130. Order part number 33120 (Romeo Iron), 33130 (Windsor Iron) or 33140 (Windsor Aluminum)
• Cylinder Head: 3 Valve Cylinder Head
• Product Type: Engine Crankshaft Rotating Assembly
• Rod Bolt Material: ARP 8740
• Engine Stroke: 3.543
• Piston Head Type: Dish
• Displacement: 284
• Piston Bore Diameter: 3.572
• Crankshaft Part Number: 190350
• Connecting Rod Length: 5.933
• Piston Part Number: 594320C
• Connecting Rod Part Number: 14042
• Piston Ring Part Number: 46620
• Compression Ratio with Head: 9.95:1 with 51.00 CC Head
• Crankshaft Balance Type: Unbalanced
• Industry: Automotive
• Out of Stock Message: Call for Availability
• Title: Manley Rotaing Assembly, FORD 4.6L 3.543 STROKE/3.572/-6.5cc DISH
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
