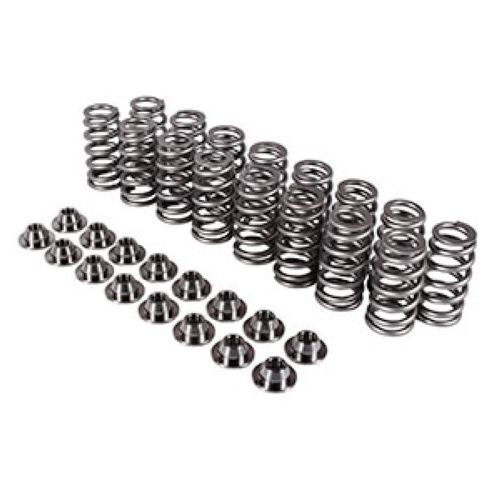

Manley Ford / Mazda 2.3L Valve Spring and Retainer Kit (w/o Valve Locks) - 26200

Manley Performance Valve spring and Retainer Kits take the guess work out of making your valvetrain race-ready. Engineered for maximum durability, stability, and precision in high-performance and racing applications, these chrome-silicon alloy springs provide exceptional fatigue resistance and high-tensile strength, ensuring consistent valve control at extreme RPMs. Save time and money with these kits, featuring premium springs, retainers, designed to handle aggressive aftermarket camshafts.

Features

• Includes matched Valve Springs, Retainers, and Locks (if part number ends in "K"). Spring Locators included in some applications.
• Designed to handle aftermarket camshafts and up to 10,000 RPM
• Heat treated aerospace grade titanium retainers CNC machined to exacting tolerances
• Includes 7 Machined Valve Locks manufactured from the premium quality heat treated steel

Specs

• Max Lift: 0.500"
• Spring: 22200-16
• Titanium Retainer: 23200-16
• Manley Sport Compatct Valve Spring and Retainer Kit
• Stem Diameter: 5.45 / 5.48
• Valve Stem Diameter: 5.45 / 5.48
• Product Type: Valve Spring Kit
• Valve Spring Outer Diameter - Top: 0.855
• Valve Spring Inner Diameter - Top: 0.572
• Valve Spring Outer Diameter - Bottom: 0.995
• Valve Spring Inner Diameter - Bottom: 0.712
• Valve Spring Quantity: 16
• Valve Spring Coil Bind Height: 0.935
• Valve Spring Rate: 230
• Valve Lift - Stock: 0.325
• Valve Lift - Maximum: 0.500
• Installed Pressure and Height: 85 @ 1.480
• Open Pressure and Height: 200 @ 0.980
• Valve Spring Retainer Step Height: 0.120
• Valve Lock Angle: 7
• Industry: Automotive
• Out of Stock Message: Call for Availability
• Title: Manley Valve Spring & Retainer Kit - Ford Duratec 2.0, 2.3L, Ford EcoBoost 2.0L, Mazda MZR 2.0, 2.3, 2.5L, Mazda DISI MZR 2.3L - Valve Locks NOT Included
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
