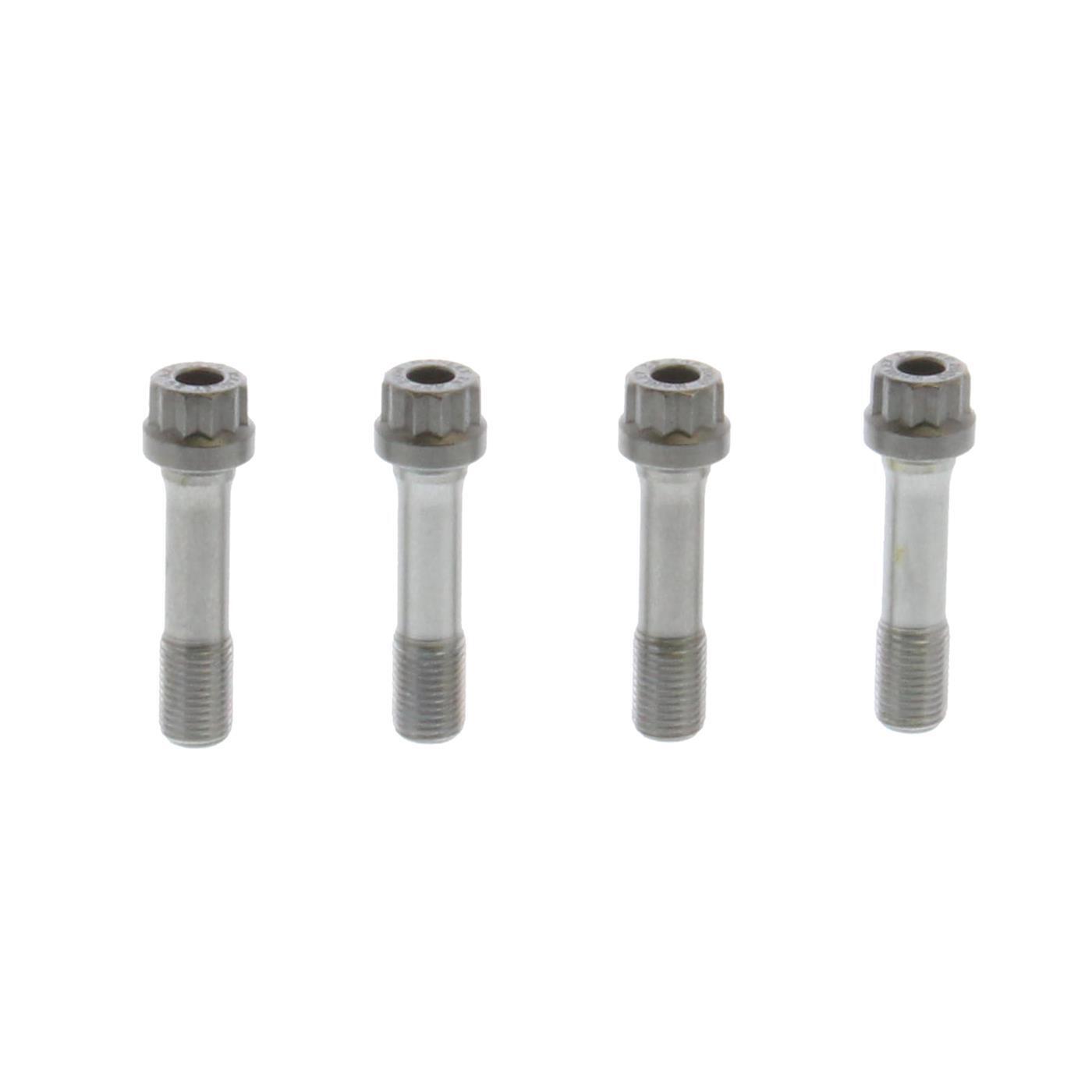

Manley Bolt 3/8 2000 Material 1.600 Length Under Head-Pack of 4 (Campatible with Manley Rod 14033) - 42351-4

Important excerpt from the ARP catalog regarding proper fastener installation: “The importance of tightening fasteners to their required preload cannot be emphasized enough. If a fastener is not preload cannot be emphasized enough. If a fastener is not tightened properly, the fastener will not apply the required preload on the application it is being used for and may become susceptible to failure. Conversely, if a fastener is over tightened and stretched too much, it becomes susceptible to failure by exceeding it’s maximum yield point.”

Features

• Premium ARP-manufactured rod bolts engineered for high clamp load and reliability
• Precision thread rolling and heat treatment for maximum tensile strength
• Provides consistent preload when installed using recommended stretch method
• Ideal for high-horsepower, high-RPM street and racing applications

Specs

• Underhead Length: 1.600 in
• Recommended Stretch (w/ ARP Lube): .0058-.0062 in
• For I-Beam Rods
• Qty: 4
• Manley Connecting Rod Bolt
• Replacement Parts
• Cap Screws 3/8" ARP 2000
• 1.600" UHL. For SB Chevy Tour Lite I-Beam and NHRA Legal Super Stock Pro Series I-Beam. Stretch .0058" to .0062" 60-70 w/oil 45-55 w/lube of threads .600" +/-.010"
• Industry: Automotive
• Out of Stock Message: Estimated Ship Date 1-2 Weeks
• Engine Type: ICE
• Prop 65 Yes/No: Yes
• 10: ARP 2000
• 3078: 1.600
• 8935: 3/8" - 16
• Head Drive Type: 12-point
• Connecting Rod Bolt Diameter: 3/8 in.
• Prop 65 - Short Label: prop65_warning.jpg
• Prop 65 (C, R or CR): CR
