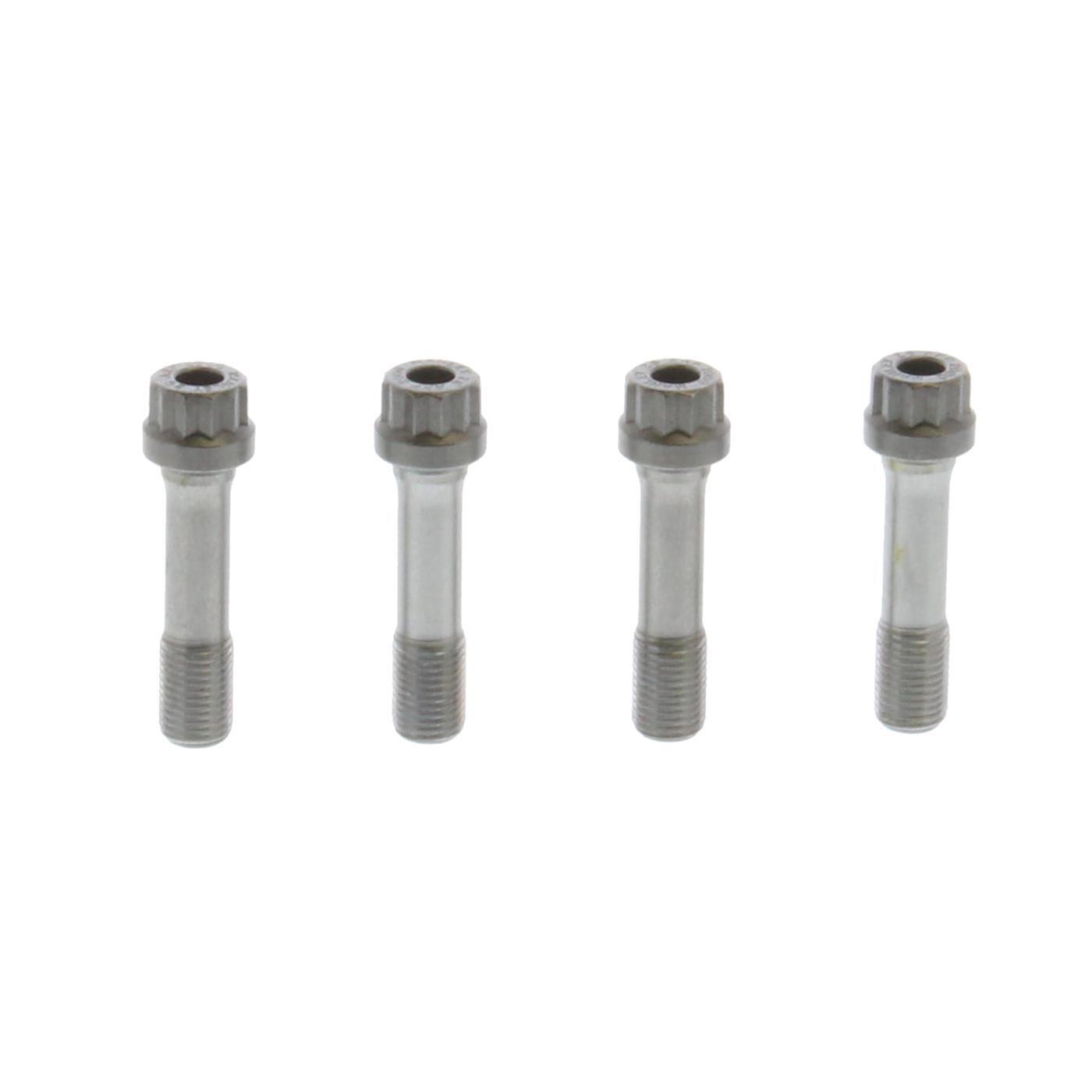

Manley Bolt 3/8 2000 Material 1.500 Length Under Head-Pack of 4 (Compatible with Manley Rod 14024) - 42350-4

Important excerpt from the ARP catalog regarding proper fastener installation: “The importance of tightening fasteners to their required preload cannot be emphasized enough. If a fastener is not preload cannot be emphasized enough. If a fastener is not tightened properly, the fastener will not apply the required preload on the application it is being used for and may become susceptible to failure. Conversely, if a fastener is over tightened and stretched too much, it becomes susceptible to failure by exceeding it’s maximum yield point.”

Features

• Premium ARP-manufactured rod bolts engineered for high clamp load and reliability
• Precision thread rolling and heat treatment for maximum tensile strength
• Provides consistent preload when installed using recommended stretch method
• Ideal for high-horsepower, high-RPM street and racing applications

Specs

• Underhead Length: 1.500 in
• Recommended Stretch (w/ ARP Lube): .0058-.0062 in
• Qty: 4
• Manley Connecting Rod Bolt
• Replacement Parts
• Cap Screws 3/8" ARP 2000
• 1.500" UHL. For H-Beam Standard Weight, H-Lite Series and Pro Series I-Beam. Stretch .0058" to .0062" ARP2000 mat'l 55-65 w/oil 45-55 w/lube
