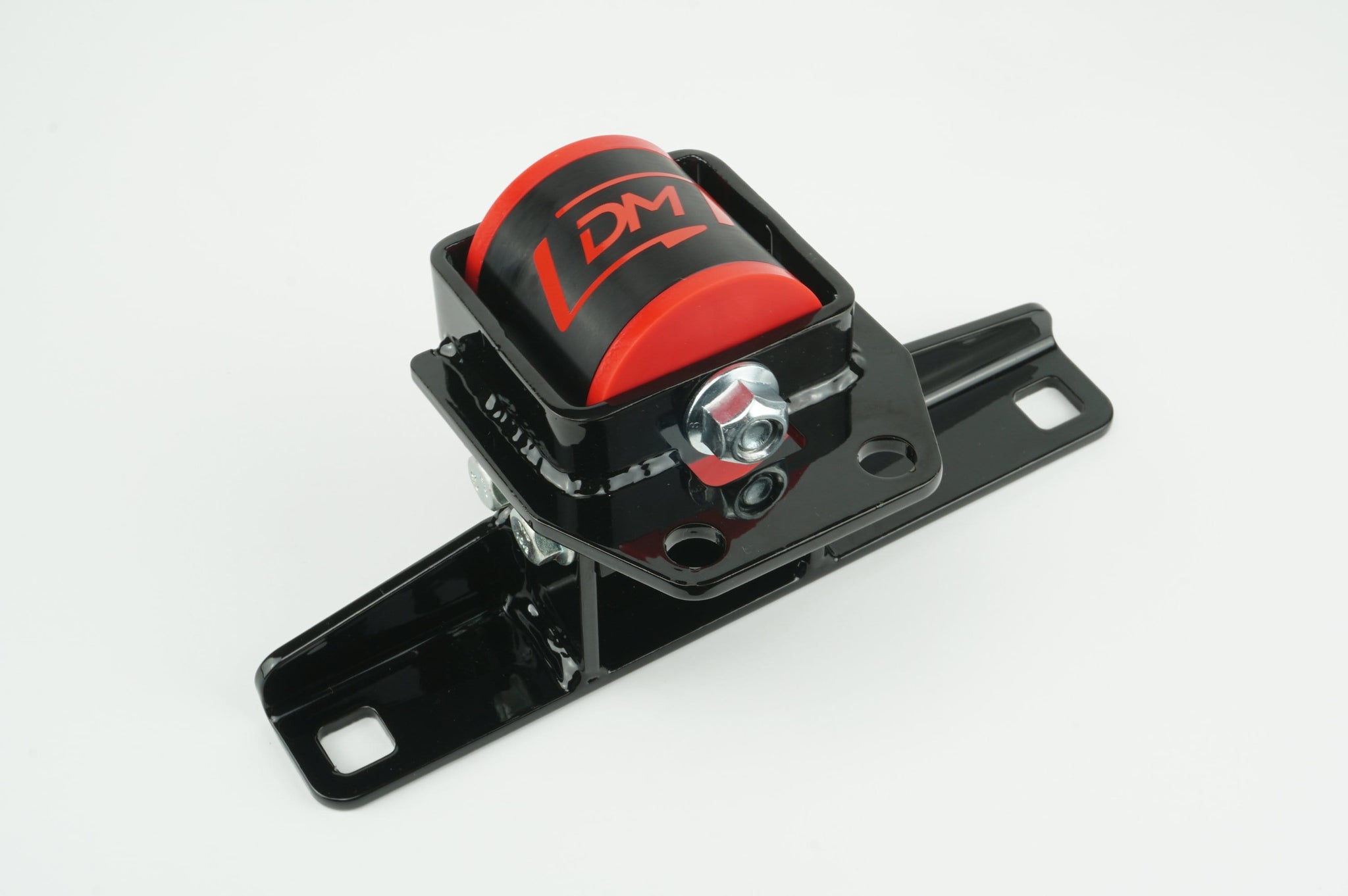

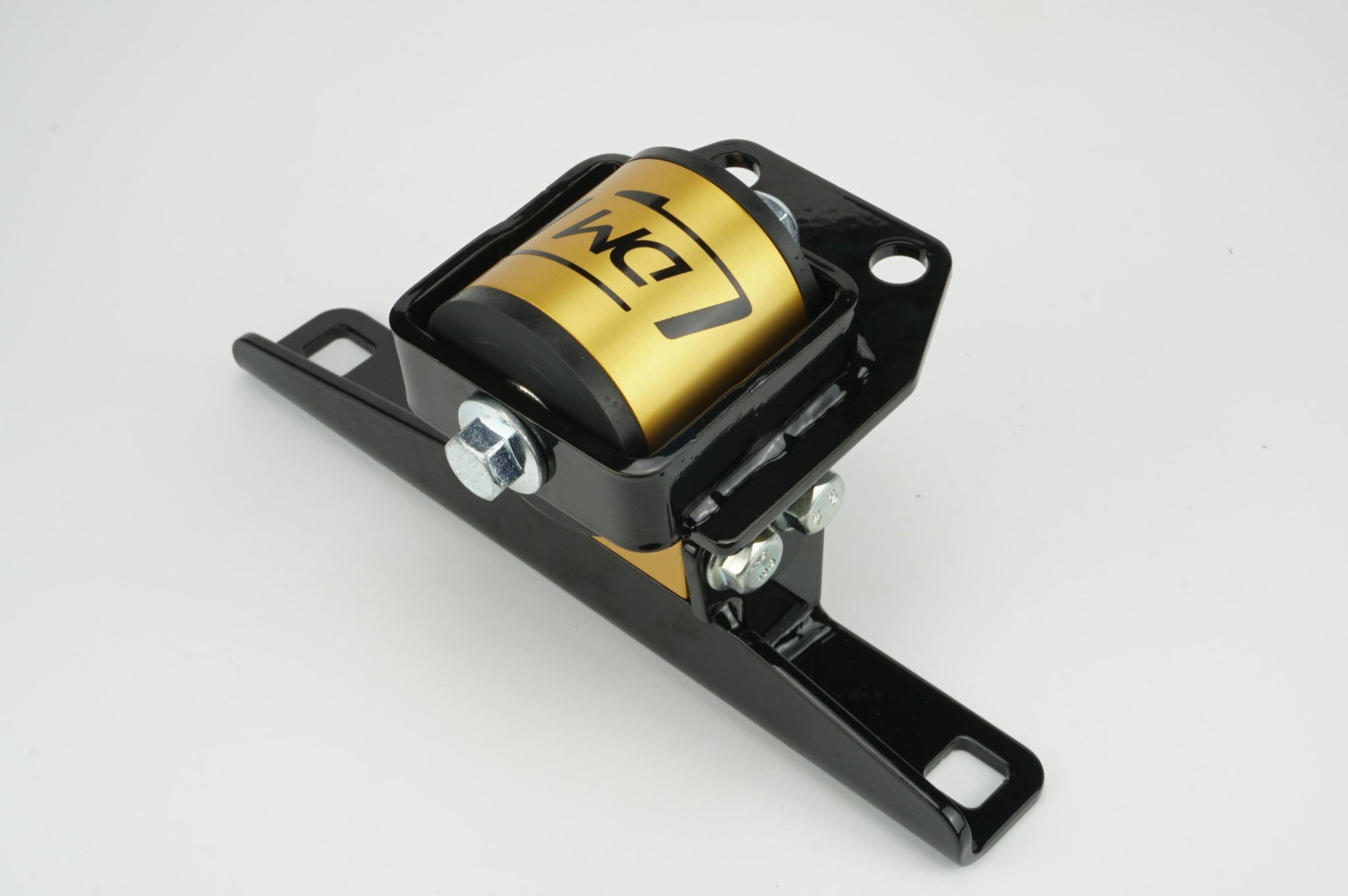

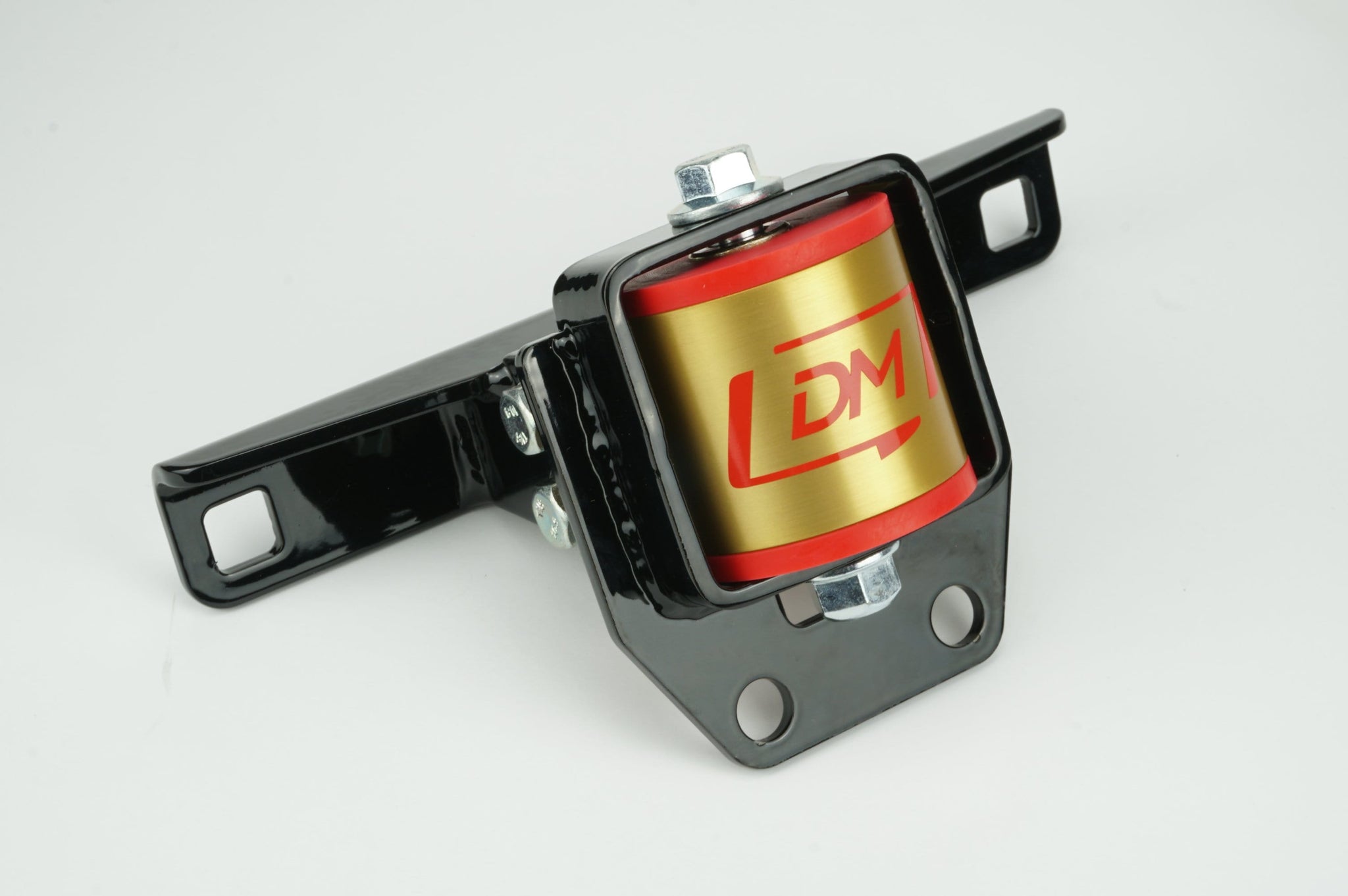

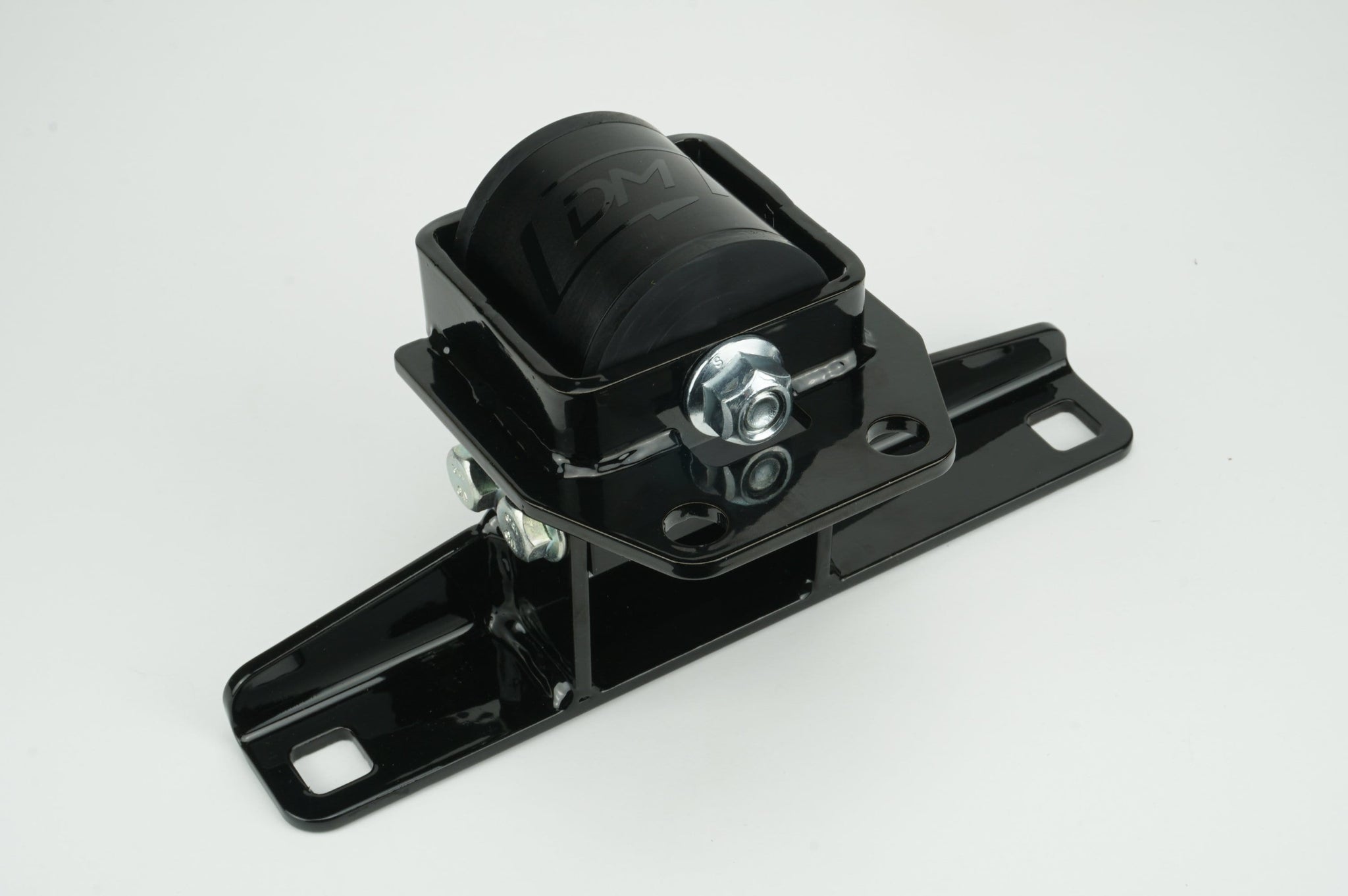

Damond Motorsports Mazda3 & Mazda5 Passenger Side Motor Mount

Looking to plant power to the ground, reduce drivetrain slop, drastically lessen wheel hop, all while adding minimal NVH? Look no further, Damond Motorsports has the answer in the DM PMM for the 2004-2013 Mazda3 2.3L & 2.5L, and 2006-2015 Mazda5 2.3L & 2.5L.

The Damond Motorsports PMM design:

• The bushings are orientated properly to support the motor and absorb vibrations across the whole bushing
• This allows us to use stiff bushings without increasing NVH to unbearable levels. Orientating the bushing carrier in a transverse manner further reduces NVH, as less stress is put on bushing flanges
• Full length welded steel base and top piece
• Top piece can be flipped to fit both 2.3L and 2.5L engines
• CAD designed, and FEA, and street tested.  You can't make enough power to break this thing

The Damond Motorsports PMM specs:

• Made in the U.S.A.
• Machined aluminum bushing carrier, anodized gold or black
• Lower mount base and top base are high strength steel welded, and powder coated black
• All high grade fasteners, and nylon lock nuts
• OTS Energy poly bushings
• Minimal added vibes, along with lots of tire spinning instead of wheel hop

NEW! Bushing stiffness options!

• Street 70a or Race 88a bushing stiffness now available
• Street bushings are for those looking to keep added NVH to a minimum
• Race bushings are for those wanting the best performance and least engine movement
• Bushing selection currently only applies to the side mounts. In full mount sets, the rear mount uses the "race" bushings
