Damond Motorsports - Mazdaspeed Electronic Boost Control Solenoid EBCS

The Damond Motorsports Electronic Boost Control Solenoid kit (EBCS for short) is the perfect solution for managing boost on your turbo setup. Every turbo aplocation can benefit from running a 3 port. Benefits include faster turbo response, and potentially higher boost at high load.

We utilize a genuine 3-port MAC valve straight from the source, so you don't have to worry about a knock-off valve. It comes pre-wired to a factory style Mazdaspeed connector, allowing for a no-wiring-needed install with a quality valve that won't let you down.

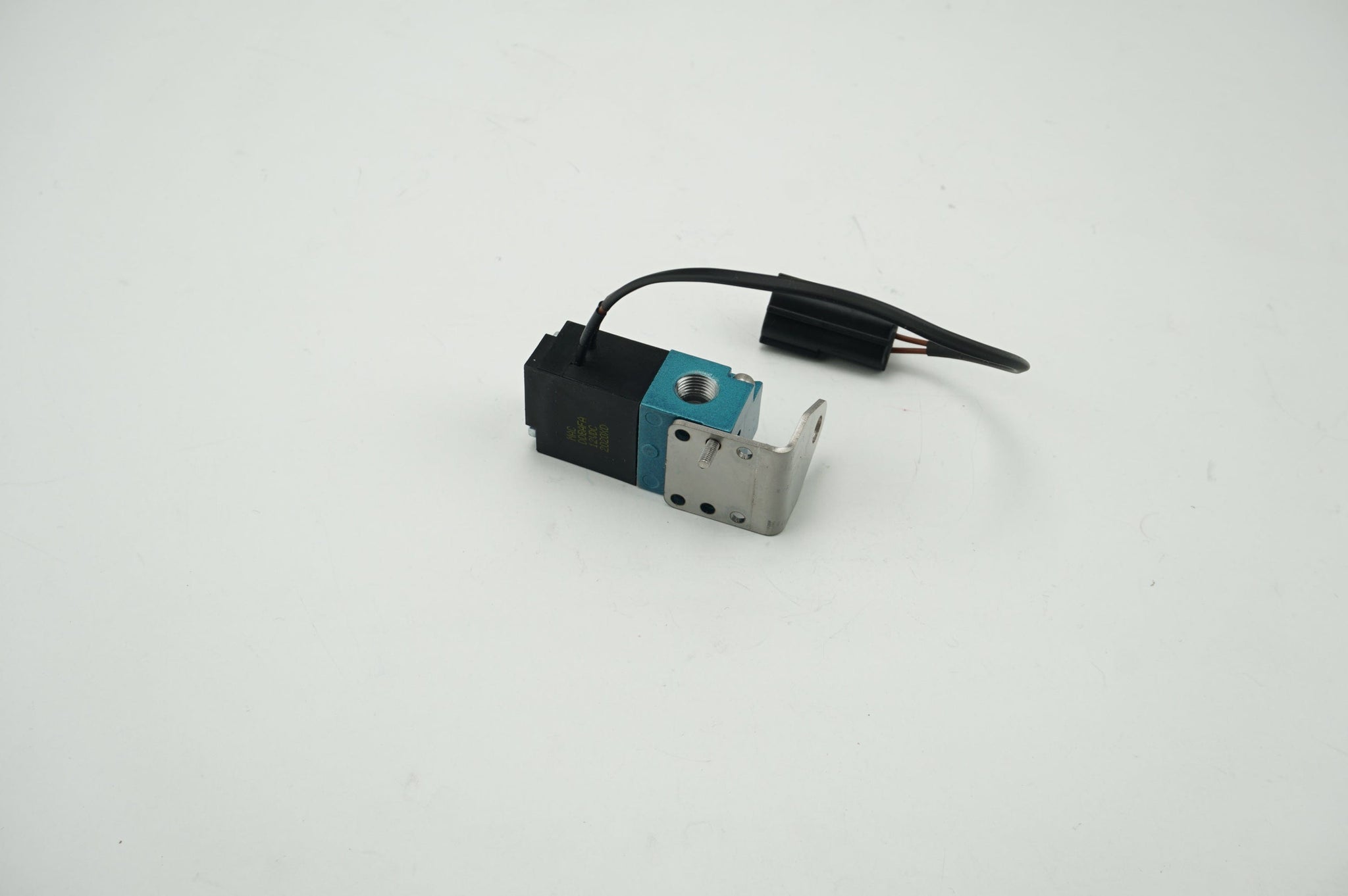

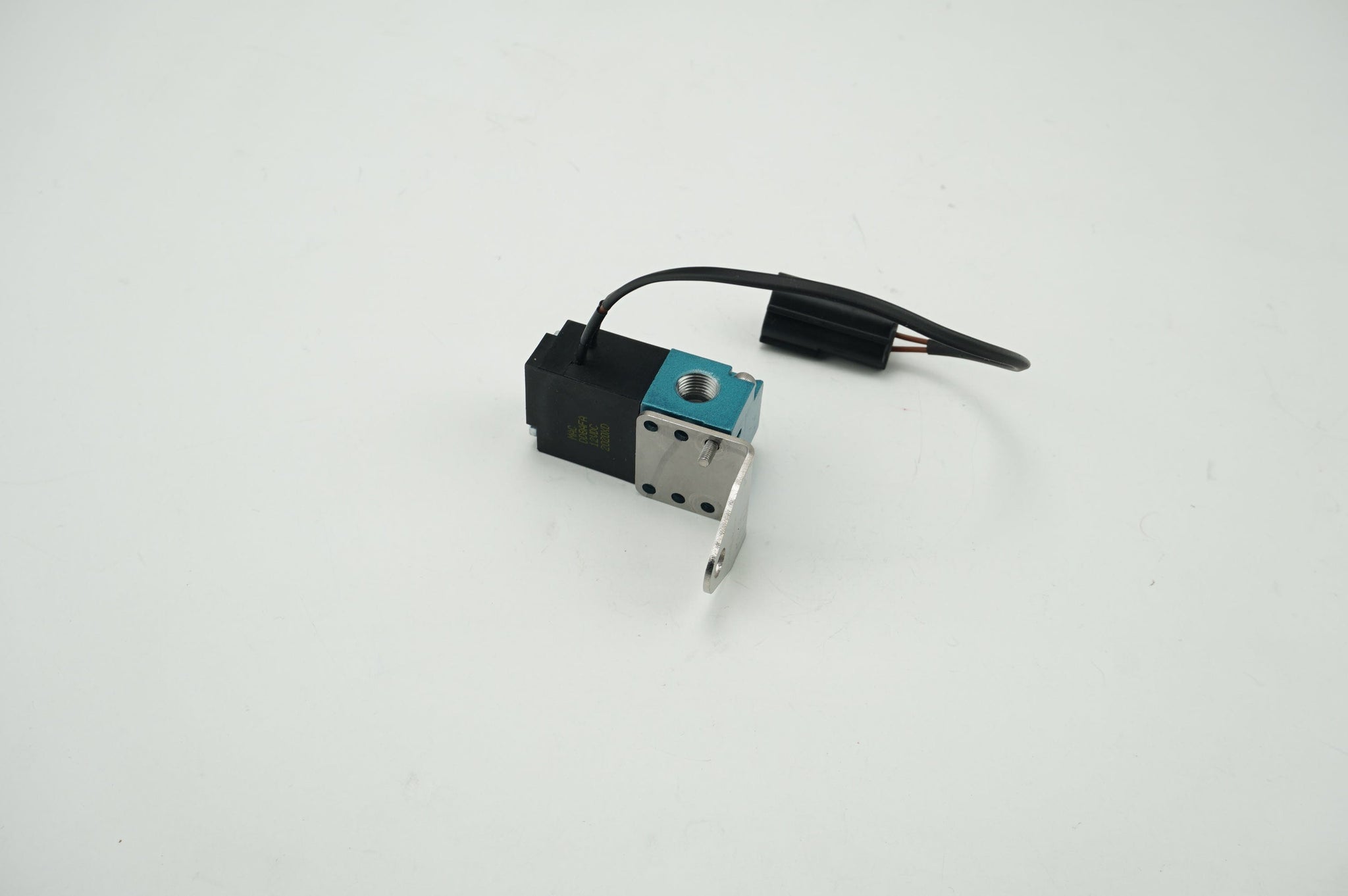

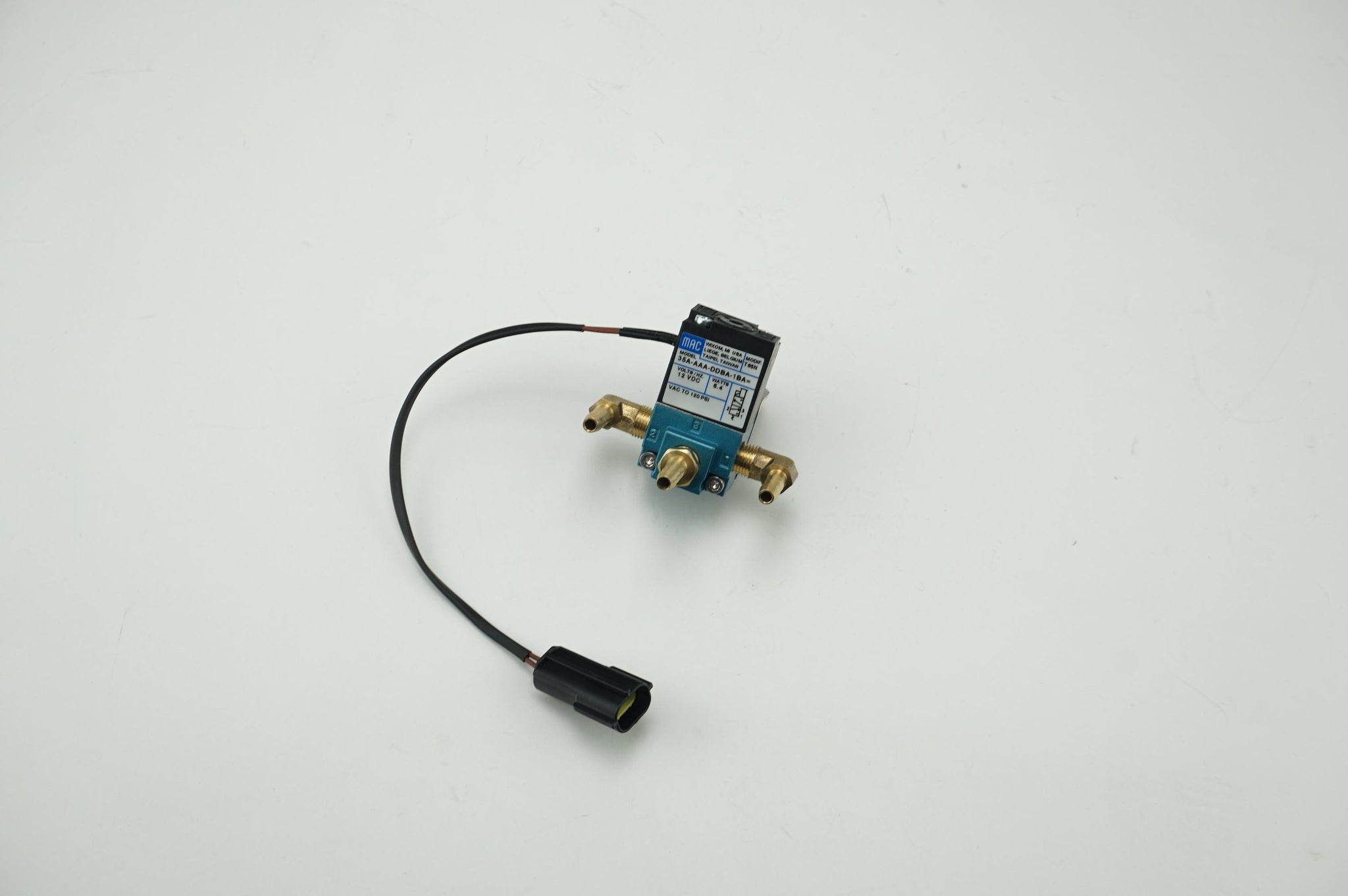

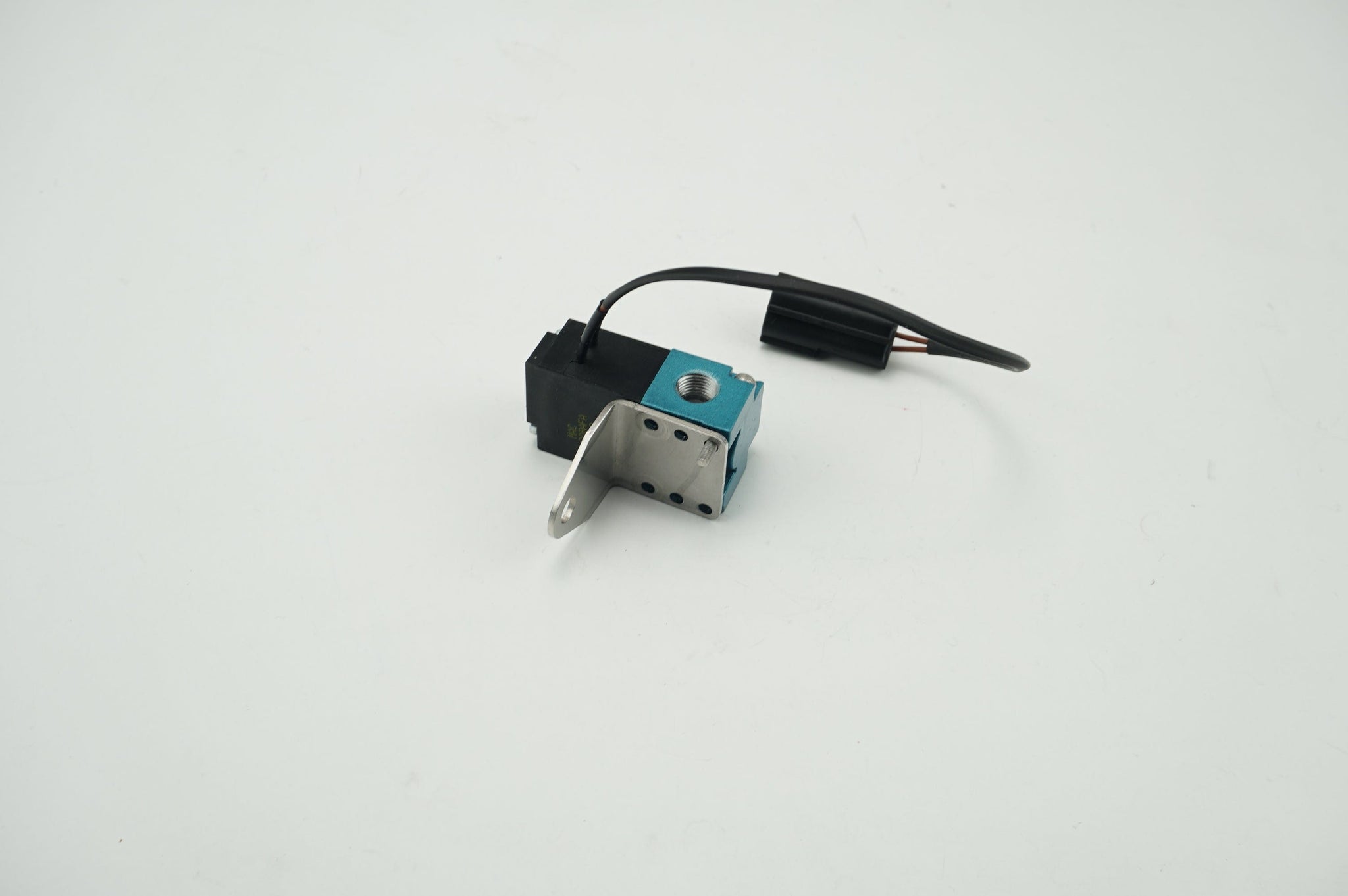

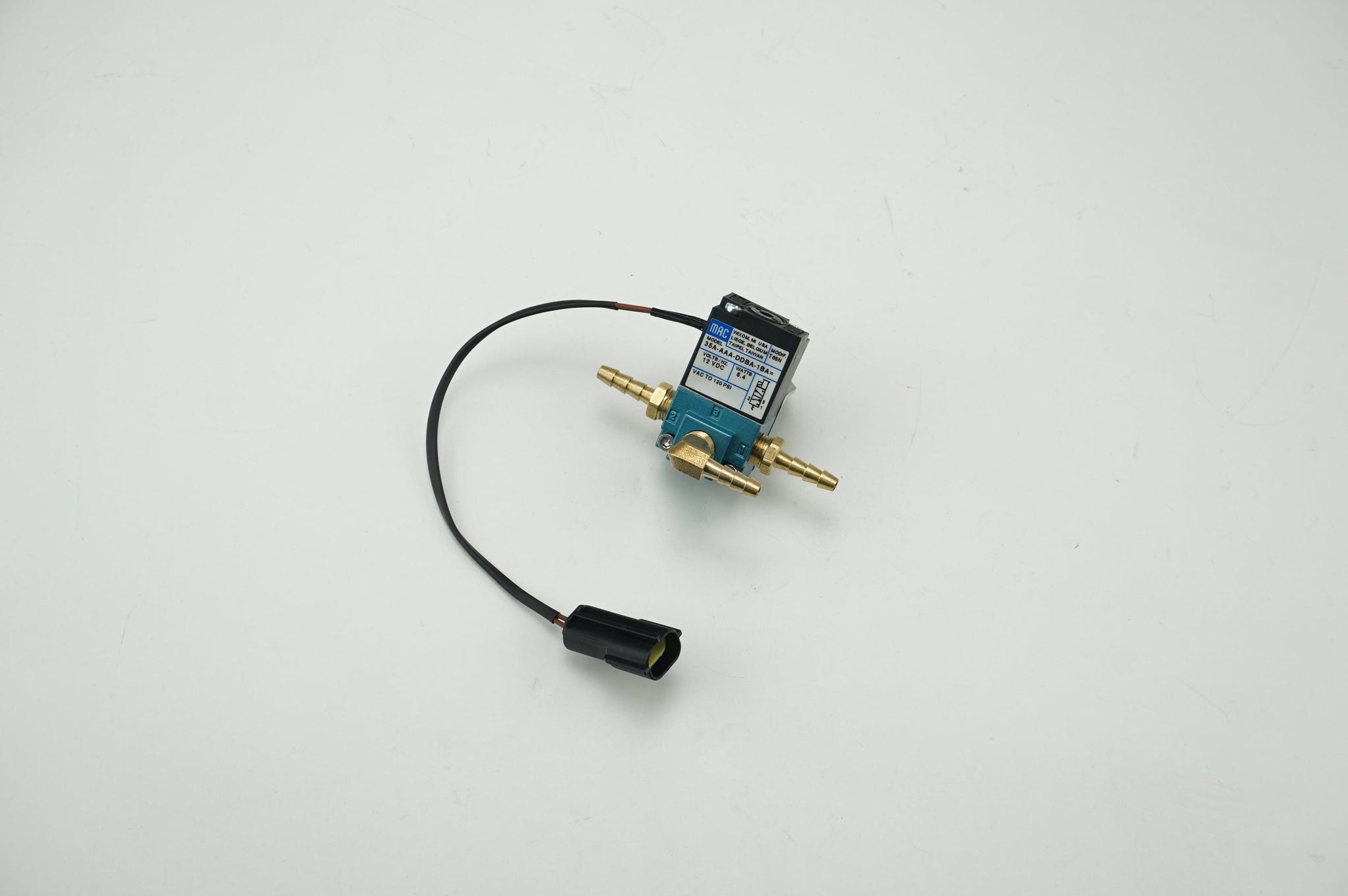

The 3-port EBCS can be used with internal or external wastegates, and can even be setup like the OEM EBCS in 2-port operation. We include 2 straight fittings and 2 90° fittings, to allow you more flexibility with mounting and hose routing. We also include a bracket that features multiple mounting holes, and fits in multiple directions to allow you to mount the EBCS as you see fit.

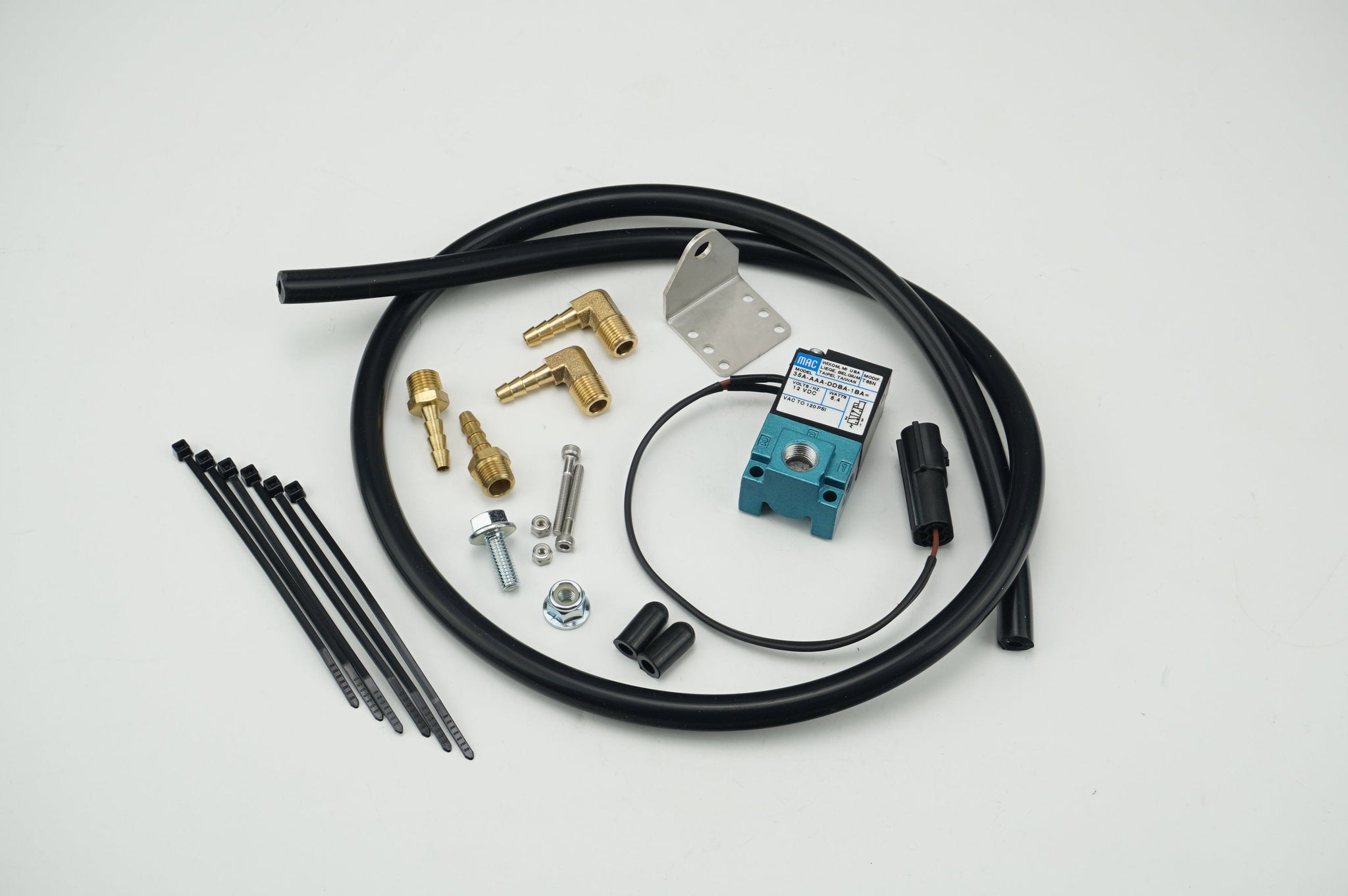

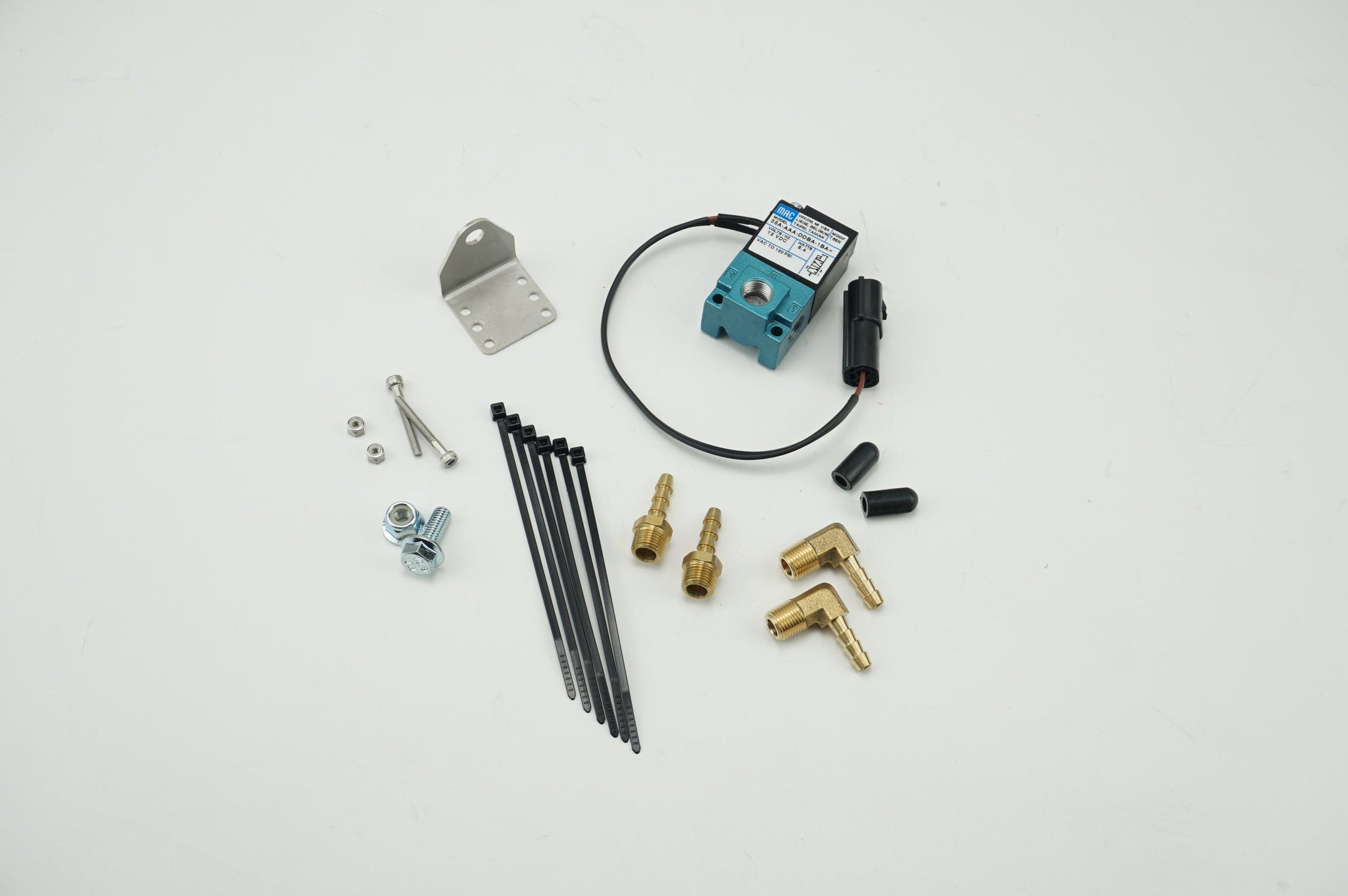

Included:

• 1 x 3-port MAC valve with OEM Mazda style connector
• 1 x stainless steel mounting bracket (some of the first kits may be supplied with an aluminum bracket)
• 2 x 3/16" straight barb fittings
• 2 x 3/16" 90° barb fittings
• 2 x vacuum caps
• 3ft of 4mm silicone vacuum line
• 6 x zip ties
• mounting bolts and nuts

Note: This product is intended for off-road use only.
