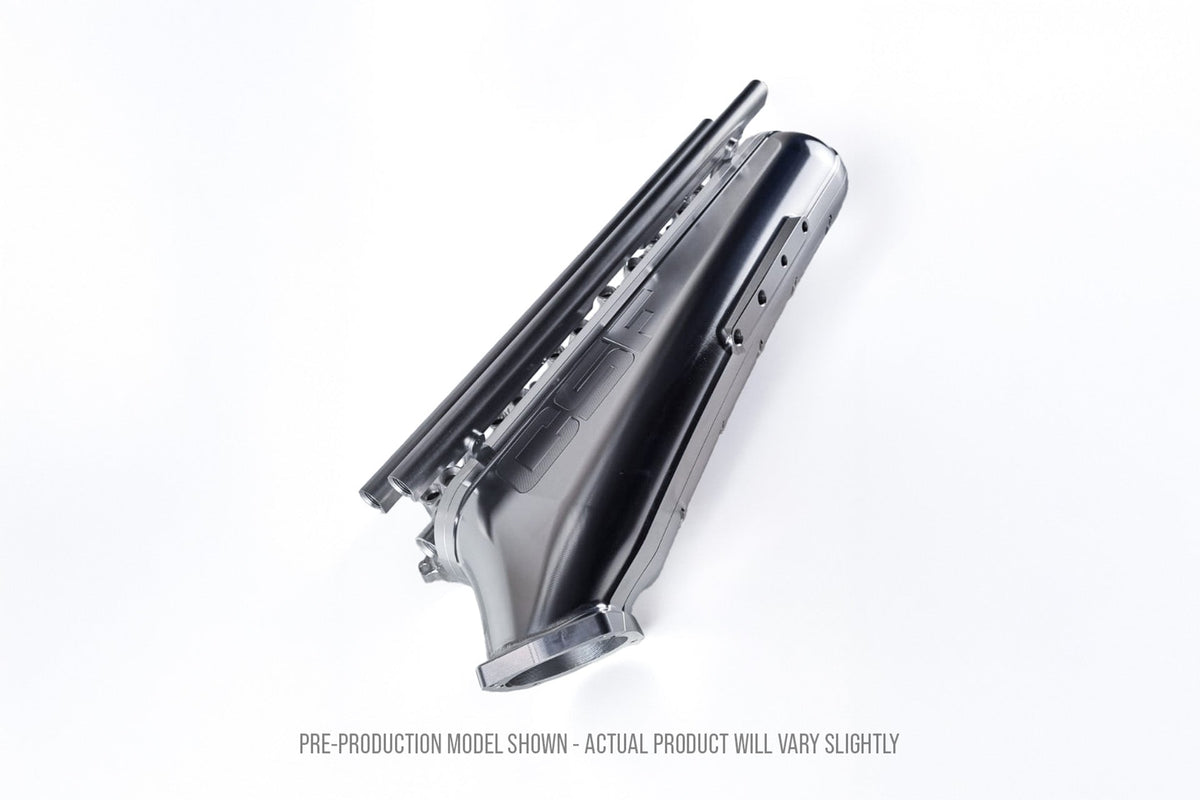

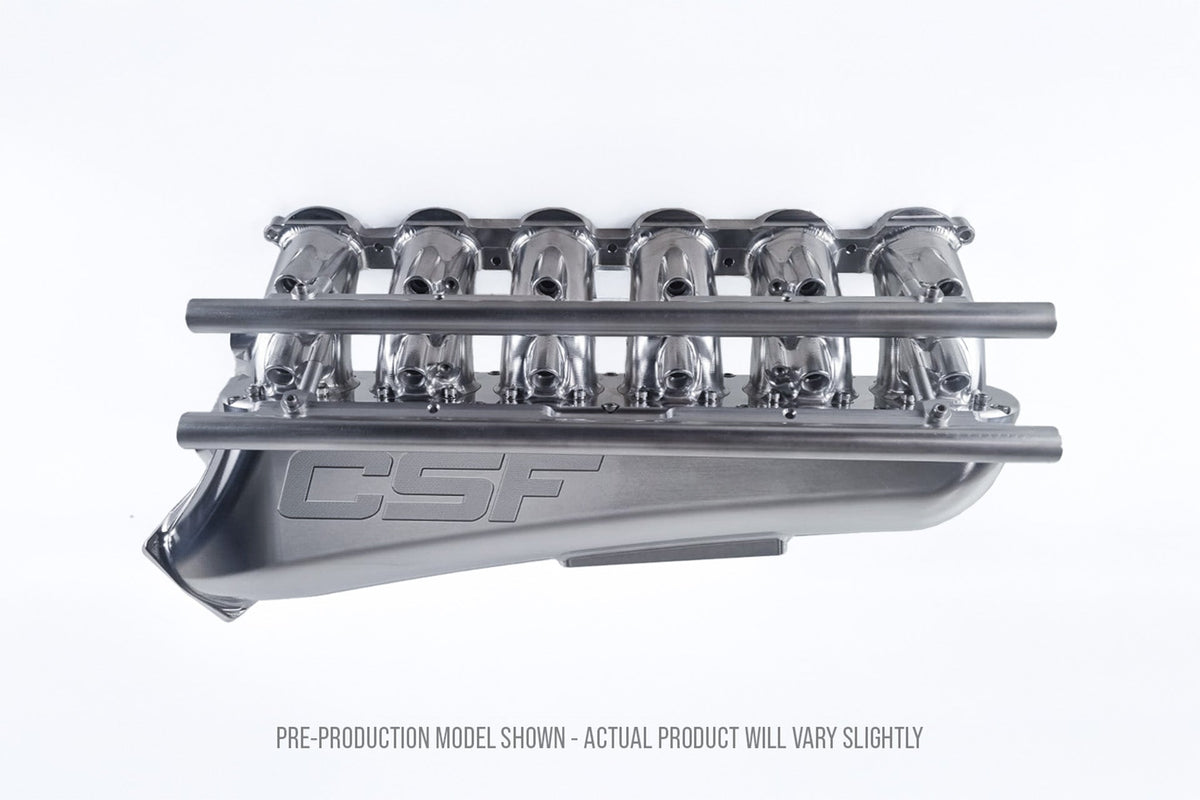

CSF S58 No Limit Billet Air-To-Air Competition Manifold - 8402

Click Here for the Full Press Release & Additional Product Details

This is an early pre-order release – more details and information will be added for the official product release on approximately April 15th.

CSF has done it again… Coming off the heels of a winning weekend at TX2K 2026, CSF is proud to announce the official release of its new "No Limit" S58 & B58 Air-To-Air Competition Manifolds. Another innovative solution from the perennial leaders in BMW Cooling.

CSF's new manifold is now available for pre-sale for the BMW X58 engine (S58 & B58 Gen-1 & Gen-2) with orders starting to be filled in the order received on ~April 15th 2026.

Track proven and tested in the extreme Texas heat with ambient temperature consistently over 90°F (32°C) at TX2K by three S58 vehicles. All three posted times of 7-seconds, including new world record holder of the "Fastest BMW in the World" Tom Wrigley Performance in his G80 M3 race car (7.67 seconds at 183mph). The street driven GTP Motorsport G87 xDrive M2 also set the M2 World Record with a time of 7.84 seconds at 178mph.

Key Features:

• Proven Results: Used on the world's fastest BMWs at TX2K 2026
• Solid 6061 Billet Aluminium: CNC-machined for strength, consistency, and performance at extremely high power levels (1500+ HP).
• Internal Velocity Stacks: Results in smooth airflow into each cylinder, improving efficiency and top-end power.
• O-ring Sealed Surfaces: Ensures airtight sealing, no leaks, even under extreme boost and potential backfires.
• Large Throttle Body: Throttle Body Bolt Pattern is for an S55 throttle Body (77mm) which has a larger ID than the B58 and S58 (67-68mm).
• Integrated Sensor Pads: Two Integrated Sensor Pads to Measure Additional Parameters or Extra Sources of Vacuum.
• Race-Ready Package: Supplied with Billet Fuel Rail and features Modular Ports on the Top of Each Cylinder Runner that can be used for secondary port injection (requires optional 2nd rail), Nitrous, or Methanol Injection.
• Thermal Rejection Competition Spacer: Thermal Rejection Spacer reduces manifold temperatures which helps lower Intake Air Temperatures (IATs), improve charge air cooler efficiency, and combats heat soak.

Product Details

This is an early pre-order release – more details and information will be added for the official product release on approximately April 15th.

Track proven and tested in the extreme Texas heat with ambient temperature consistently over 90°F (32°C) at TX2K by three S58 vehicles. All three posted times of 7-seconds, including new world record holder of the "Fastest BMW in the World" Tom Wrigley Performance in his G80 M3 race car (7.67 seconds at 183mph). The street driven GTP Motorsport G87 xDrive M2 also set the M2 World Record with a time of 7.84 seconds at 178mph.

Design & Engineering

The new manifolds were designed and engineered in collaboration with CSF's long time strategic manufacturing partner Custom Plenum Creations (CPC). CPC has decades of experience manufacturing similar billet intake manifolds for the 2JZ and RB platforms supporting many vehicles making 2500+ HP. In regards to the X58 platforms, CSF's new competition intake manifold is purpose-built for serious drag racers wanting to push past the current 1500 WHP ceiling.

CSF's new manifold design, which removes the charge cooler from the intake manifold, resolves the core size limitation of all drop-in fit options available on the market. This allows for a much larger intercooler core to be mounted in the front of the vehicle. Both external Air-to-Water and Air-to-Air intercoolers can be used with the CSF "No Limit" Manifold. Each type of setup was proven at TX2K 2026 by Tom Wrigley Performance (A2W) and GTP Motorsport (A2A).

The design optimizes plenum volume and refines runner design with integrated velocity stacks. CFD analysis was used to ensure there was no airflow imbalance and cylinder scavenging issues that could limit top end performance. Milled from solid 6061 billet aluminum and precision CNC-machined, this manifold delivers the strength, flow, and consistency needed for extreme-boost & high-performance setups.

Key Features:

• Proven Results: Used on the world's fastest BMWs at TX2K 2026
• Solid 6061 Billet Aluminium: CNC-machined for strength, consistency, and performance at extremely high power levels (1500+ HP).
• Internal Velocity Stacks: Results in smooth airflow into each cylinder, improving efficiency and top-end power.
• O-ring Sealed Surfaces: Ensures airtight sealing, no leaks, even under extreme boost and potential backfires.
• Large Throttle Body: Throttle Body Bolt Pattern is for an S55 throttle Body (77mm) which has a larger ID than the B58 and S58 (67-68mm).
• Integrated Sensor Pads: Two Integrated Sensor Pads to Measure Additional Parameters or Extra Sources of Vacuum.
• Race-Ready Package: Supplied with Billet Fuel Rail and features Modular Ports on the Top of Each Cylinder Runner that can be used for secondary port injection (requires optional 2nd rail), Nitrous, or Methanol Injection.
• Thermal Rejection Competition Spacer: Thermal Rejection Spacer reduces manifold temperatures which helps lower Intake Air Temperatures (IATs), improve charge air cooler efficiency, and combats heat soak.

Proven Results

Prototype Air-to-Air Manifolds were delivered to three R&D Partners in December 2025 for the 2026 race season: Tom Wrigley's G80 M3, as well as two GTP Motorsport vehicles; their in house G87 M2 (xDrive) and long time customer @s58NYC's G82 M4. All 3 of these vehicles boast impressive power and 7 second 1/4 mile times. The feedback received from these S58 platform leaders has led to many improvements and refinements that CSF is proud to bring to the market with these new manifolds.

Tom Wrigley Performance - G80 M3

Tom Wrigley has been running CSF cooling on their G80 M3 for years. Their team won countless competitions running the CSF #8233 Level-Up Manifold. Now, they set a new BMW world record with the new CSF Air-to-Air manifold running the quarter mile at TX2K 2026 in 7.67 seconds at 183mph. They also took home 1st place in the X58 Class.

Their G80 is running a massive Precision Turbo through a custom intercooler featuring two CSF #8085 Air-to-Water Cores into the CSF #8402 Air-to-Air Billet Manifold. The S58's 1650 WHP is controlled with MHD Software and sent to the ground with a Pfitzner Performance Gearbox.

GTP Tuned G87 M2 & G82 M4

The GTP Tuned has been a long time customer and R&D partner of CSF. They run CSF on all their builds where possible and were thrilled to be one of the first to have CSF's new competition manifold on their two high horsepower street cars. Both of their cars also retain A/C with their custom set-ups.

At TX2K 2026, the GTP M2 set a new G87 record in the 1/4 mile with a time of 7.84 seconds at 178mph. This GTP Tuned G87 xDrive is equipped with a Precision Turbo run through a custom Air-to-Air Intercooler fed into the CSF #8402 Air-to-Air Billet Manifold.

GTP customer @s58NYC's G82 M4 also broke into the 7 second 1/4 mile time at TX2K with a time of 7.99 seconds at 180mph. The G82 is running a very similar setup as the G87 with a Precision Turbo run through a custom Air-to-Air Intercooler fed into the CSF #8402 Air-to-Air Billet Manifold.

⚠ Fitment Notes

This product is for motorsport use only and requires extensive modifications to install.

The throttle body flange is engineered to accommodate a larger 77mm S55 throttle body (BMW 13-54-7-597-871). CSF recommends using the VTT-FAB Extension Harnesses (B58/S58 to S55 TB Conversion) to simplify installation.

The manifolds are precision manufactured with the highest tolerances and attention to detail possible. They are designed and engineered to take the abuse of high boost pressure and competitive use. Each one is assembled in house and inspected prior to shipment. CSF offers a 2 year limited warranty on these manifolds. However, that warranty will be void if the manifold is disassembled without prior consent from CSF.

Features

• Fully CNC machined 6061 Billet Aluminum Made by CPC (Made in Australia)
• Internal Velocity Stacks
• Throttle Body Flange is engineered to accommodate a larger 77mm S55 throttle body (BMW 13-54-7-597-871)
• CSF recommends using VTT-FAB Extension Harnesses - B58/S58 to S55 TB Conversion
• Top Feed Port Injection - capable of running 6 or 12 injectors.
• Modular Ports on the Top of Each Cylinder Runner that can also be used for Nitrous or Methanol Injection
• Two Integrated Sensor Pads to Measure Additional Parameters or as Extra Sources of Vacuum
• Includes One OEM TMAP, Two 1/4 NPT, and Four 1/8th NPT Ports
• Includes CSF's proprietary Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
• High-pressure o-ring sealed construction designed to withstand 100+ psi (7+ Bar)
• Includes Hardware and Installation Kit with picture diagrams and BOM
• S58 version comes with billet oil filter housing adapter to make filter accessible without removing the manifold
• Plenum inlet angle optimally designed for easier intercooler pipe routing
• Comes Finished in Raw Billet Aluminum - Custom Finishes available (Powder Coat, Cerakote, or Anodizing)
• Includes:
• One Fuel Rail for Top Feed Port Injection (for 6 Injector setup)
• 6 Injector Block Off Plugs
• Optional Add-Ons (not included):
• 2nd Fuel Rail (for 12 Injector setup)
• Individual Runner Nitrous / Methanol adapter kit

Applications

⚠ Fitment Notes

This product is for motorsport use only and requires extensive modifications to install.

The throttle body flange is engineered to accommodate a larger 77mm S55 throttle body (BMW 13-54-7-597-871). CSF recommends using the VTT-FAB Extension Harnesses (B58/S58 to S55 TB Conversion) to simplify installation.

The manifolds are precision manufactured with the highest tolerances and attention to detail possible. They are designed and engineered to take the abuse of high boost pressure and competitive use. Each one is assembled in house and inspected prior to shipment. CSF offers a 2 year limited warranty on these manifolds. However, that warranty will be void if the manifold is disassembled without prior consent from CSF.

OEM Part Numbers

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 8402 Warranty Term: 2 years

The manifolds are precision manufactured with the highest tolerances and attention to detail possible. They are designed and engineered to take the abuse of high boost pressure and competitive use. Each one is assembled in house and inspected prior to shipment. CSF offers a 2 year limited warranty on these manifolds. However, that warranty will be void if the manifold is disassembled without prior consent from CSF.
