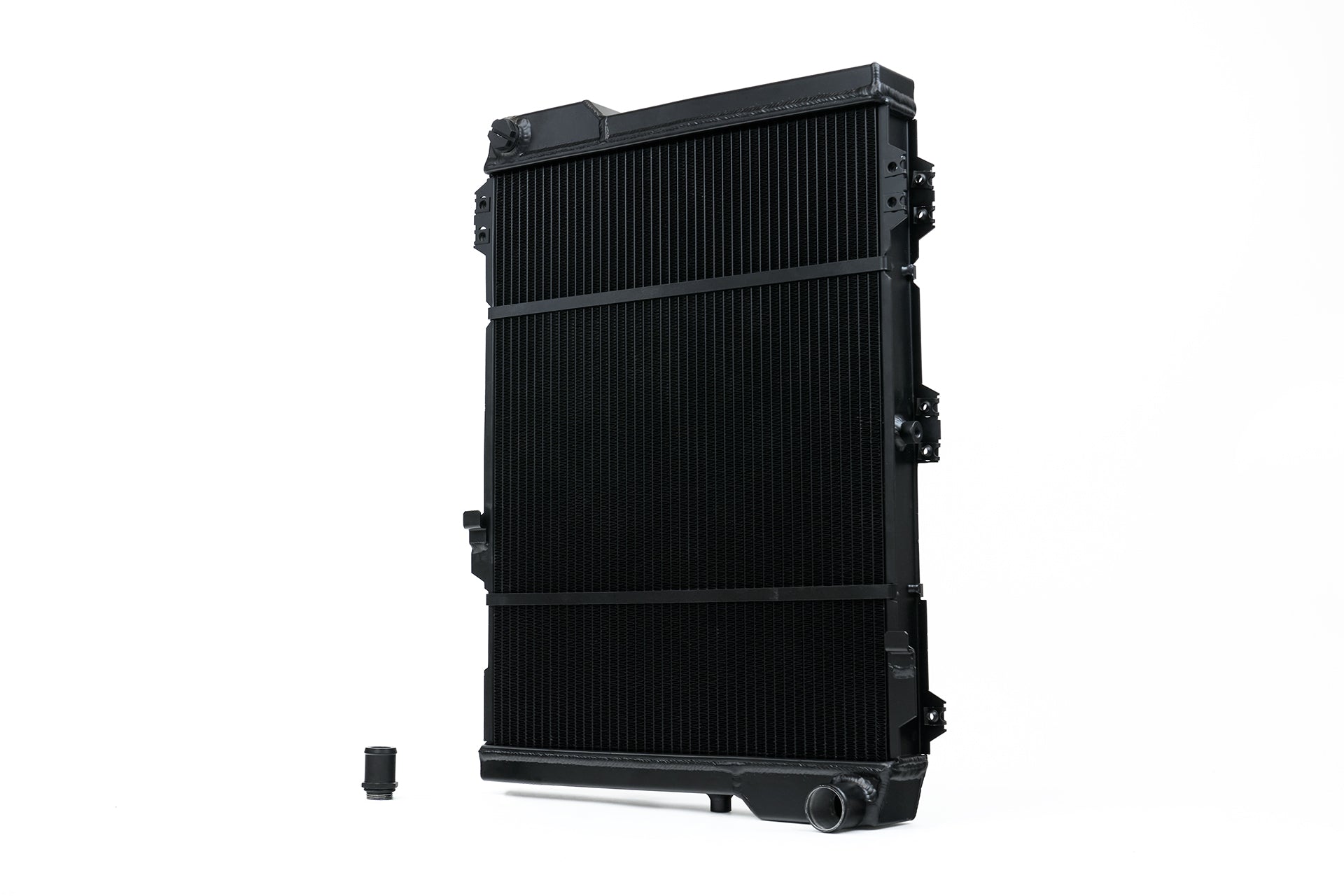

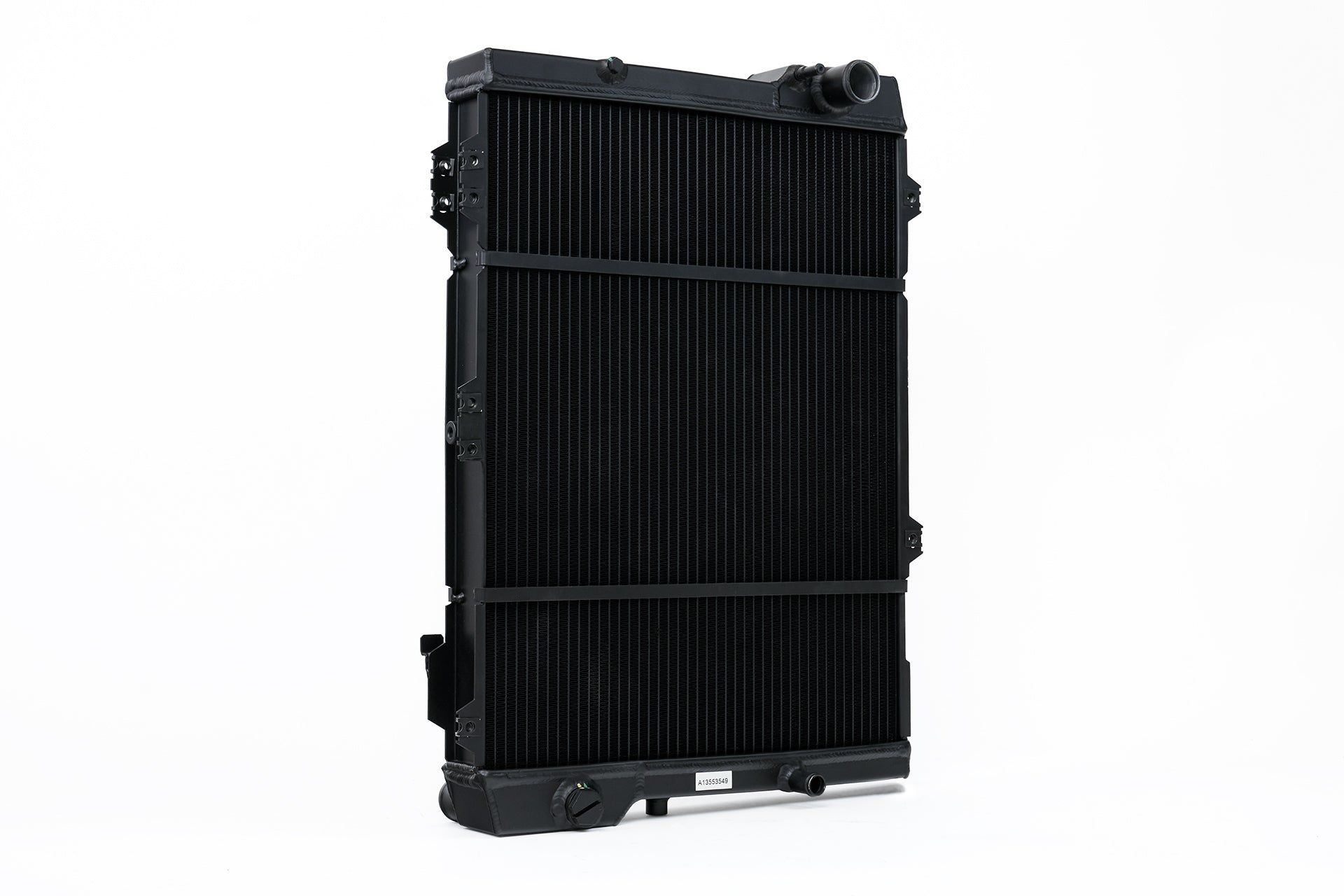

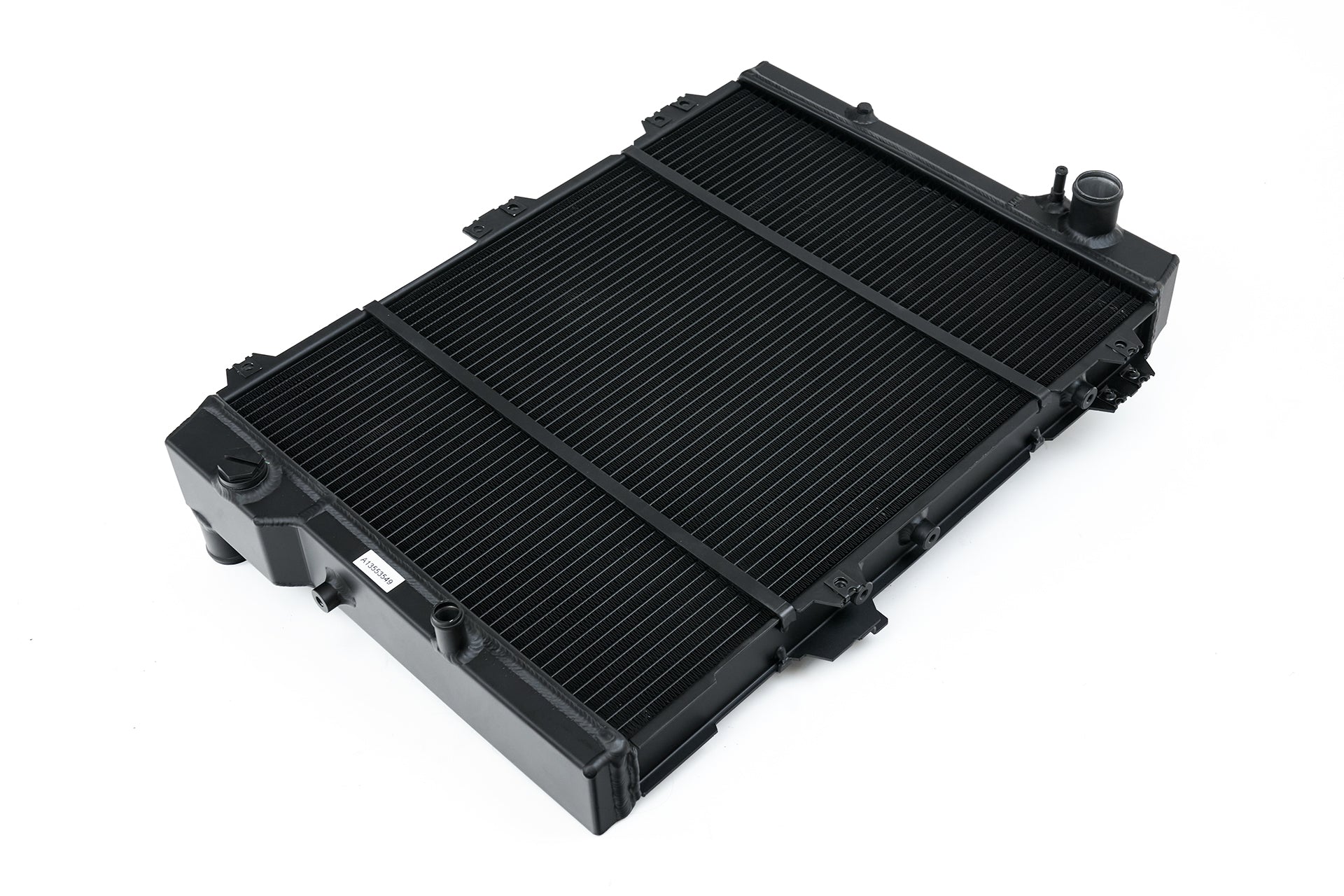

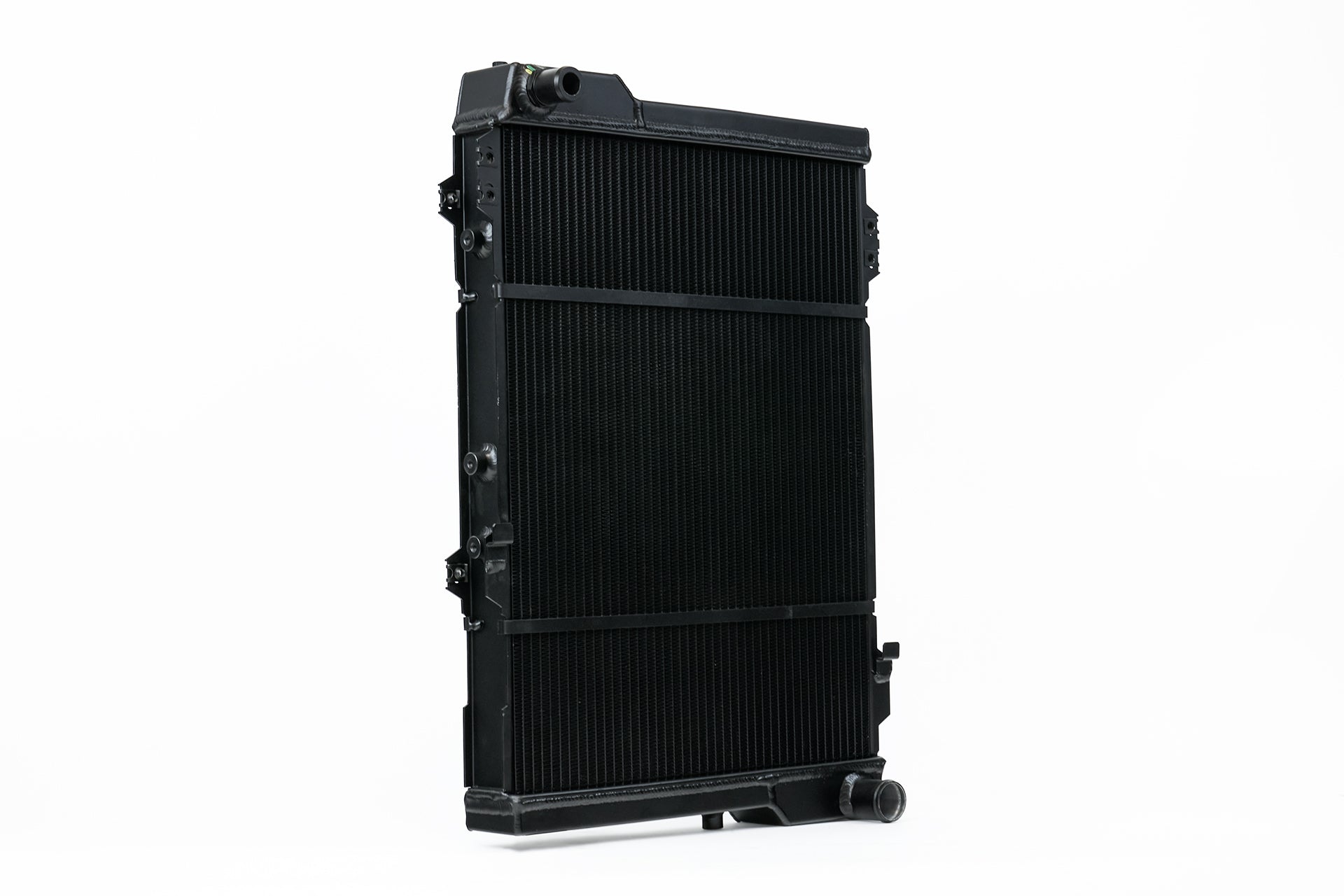

CSF Audi Classic and Small Chassis 5-Cylinder High-Performance All Aluminum Radiator - 7208

The CSF Audi Quattro/B1/B2/B3/B4 radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

Features

• 2-Row, 42mm Ultra-High-Performance Dual Pass Core

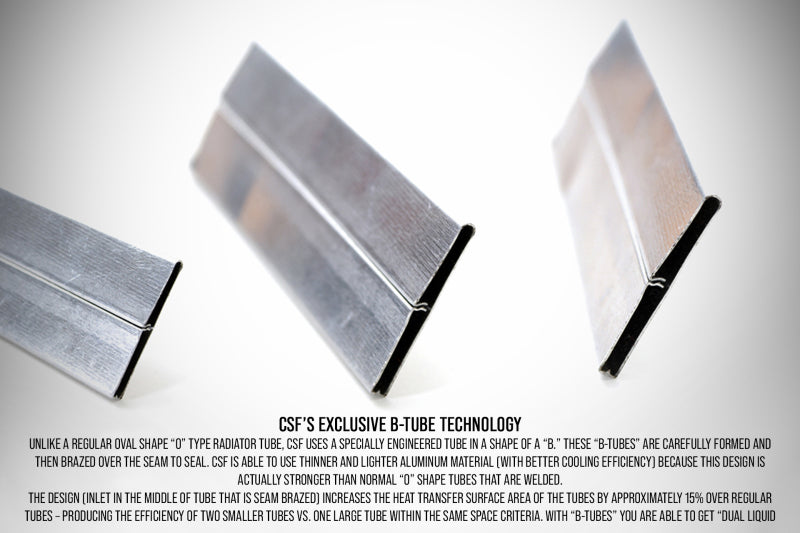

• Cooling Tubes with CSF's Exclusive B-Tube Technology

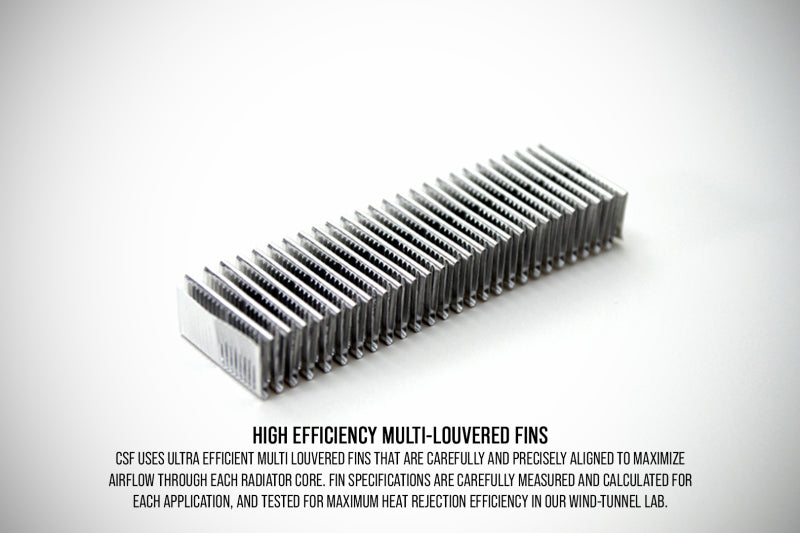

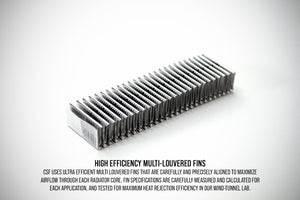

• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

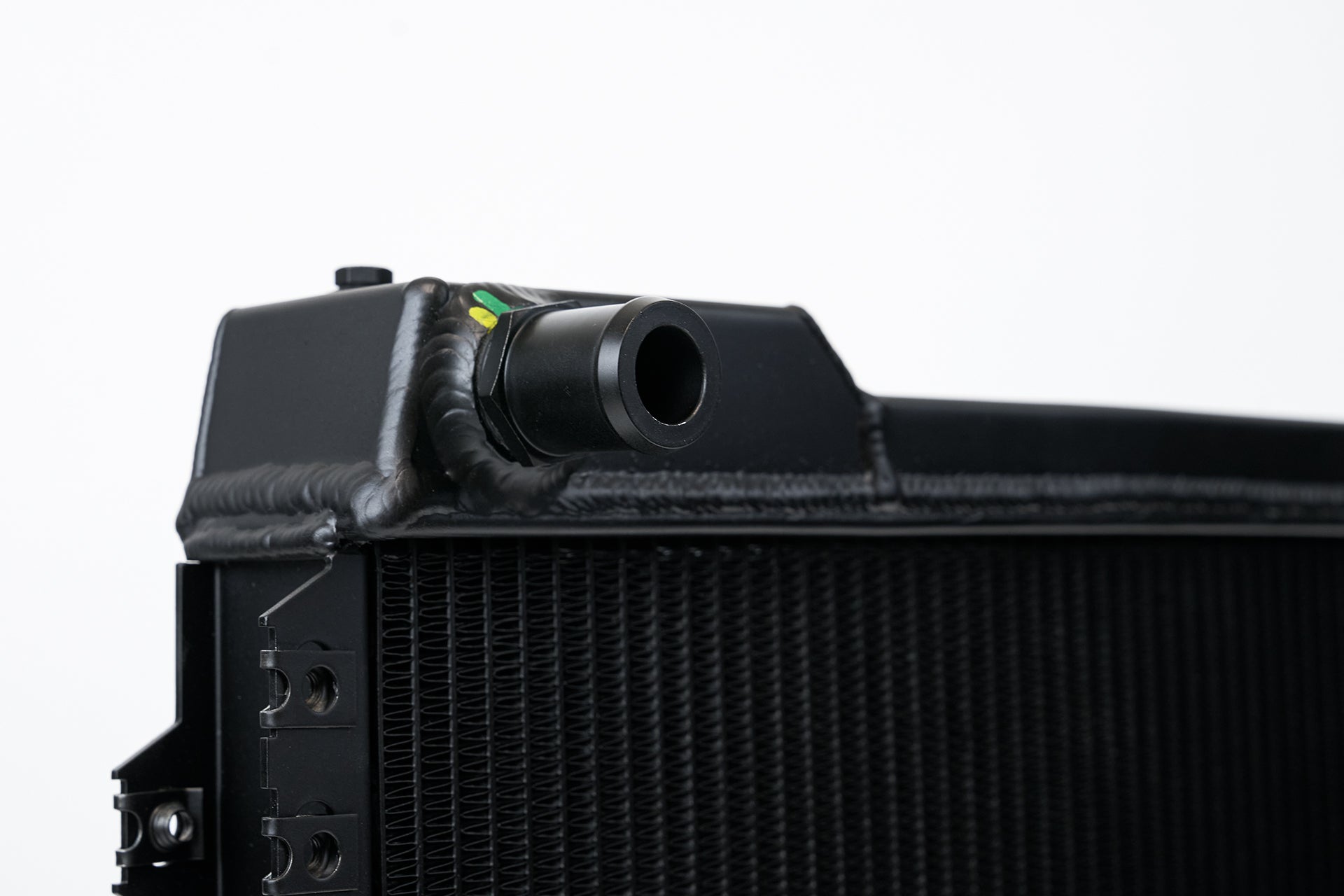

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

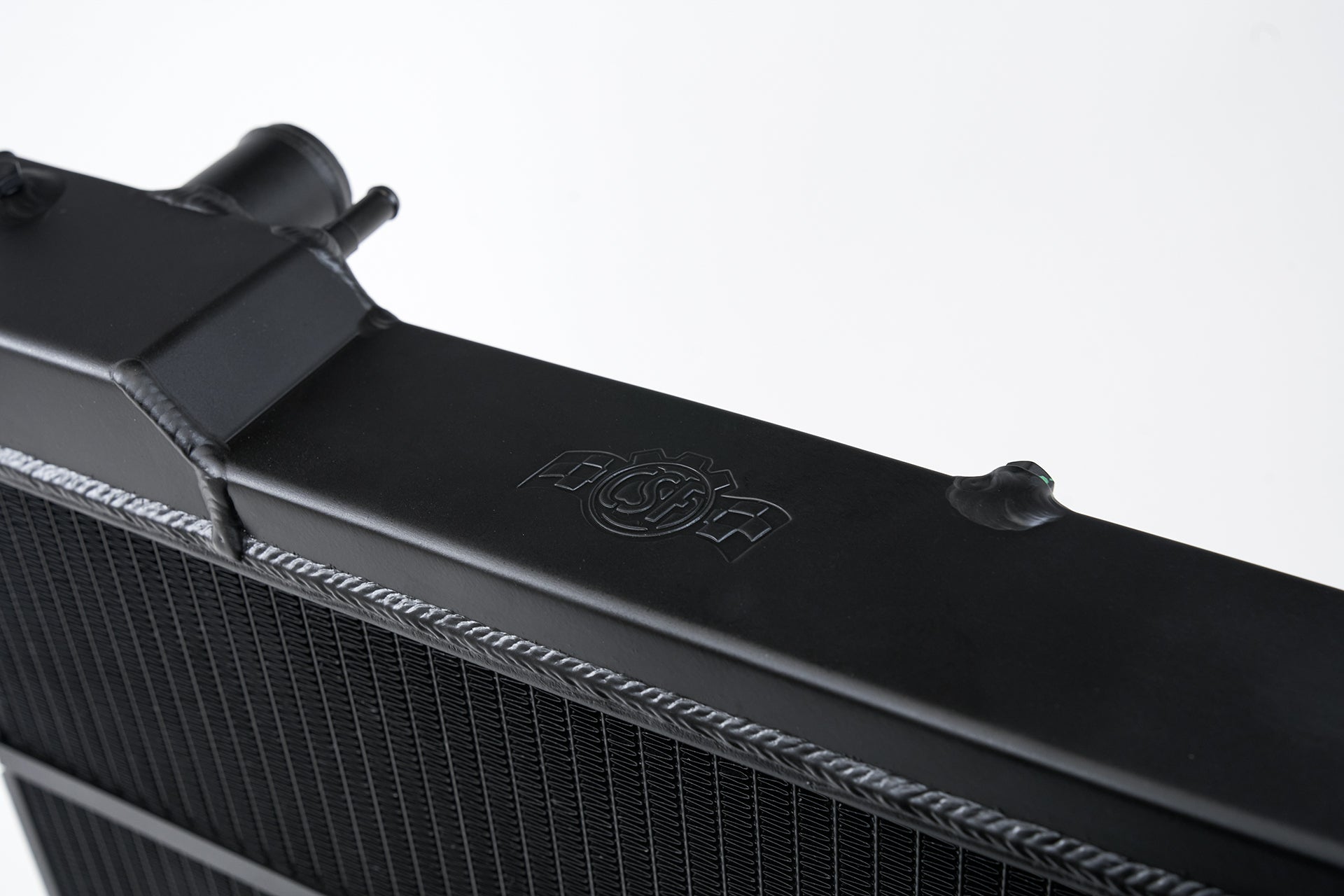

• 100% All Aluminum TIG-Welded Construction
• Satin Black Finish for OEM+ Look
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• Modular design for use with or without Auxiliary Radiator
• Multiple Fan Shroud Mounting Points for use with all Fans (incl. High Performance RS2 Model)

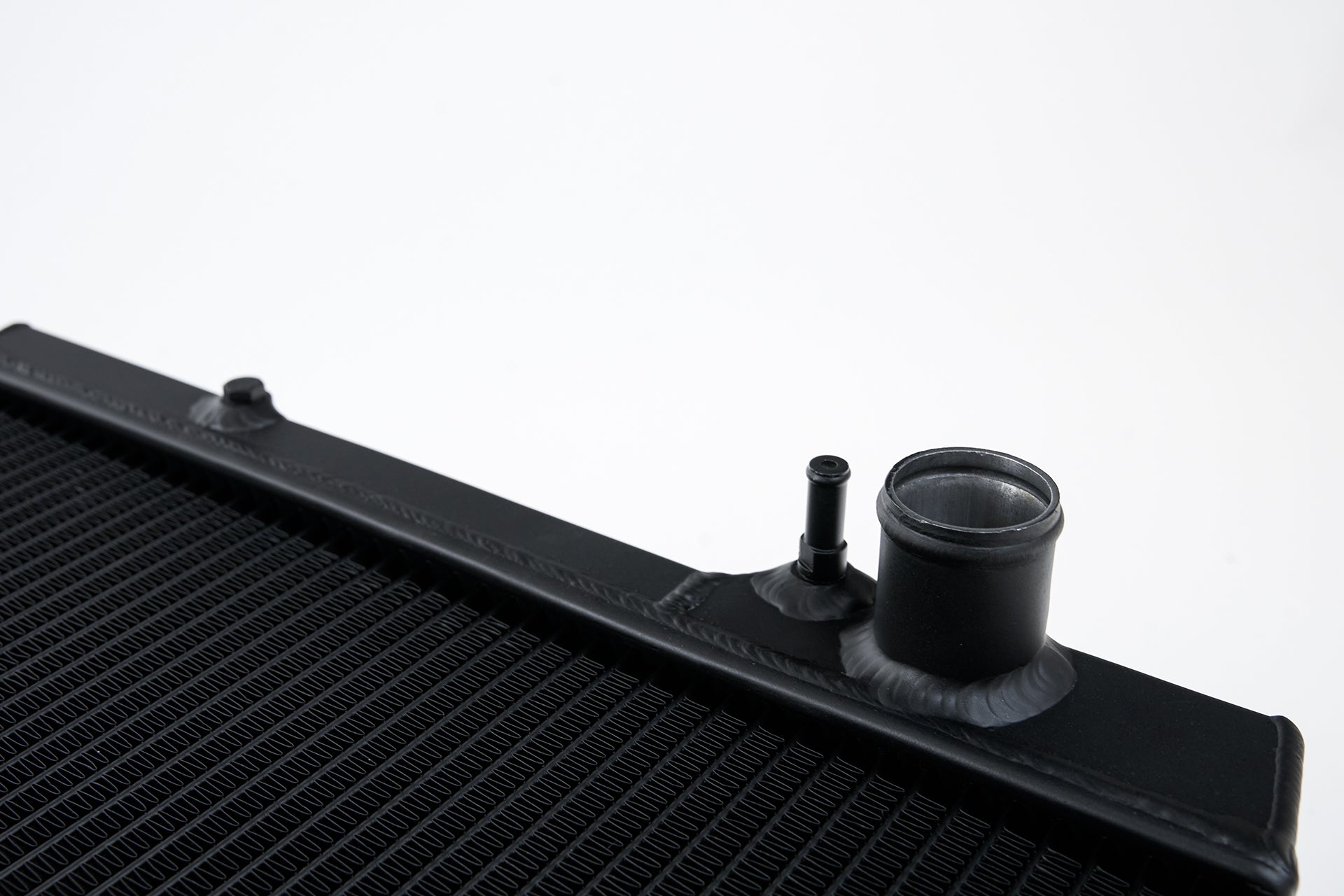

• Multiple overflow pipe locations on top end tank for different model variations
• Sensor ports are M22x1.5 (if your OEM Sensor is an early model M20x1.5 please be aware you will need an adapter)
• 2-Year Limited Warranty
