CAE Ultra Shifter FIAT 124 6-Speed

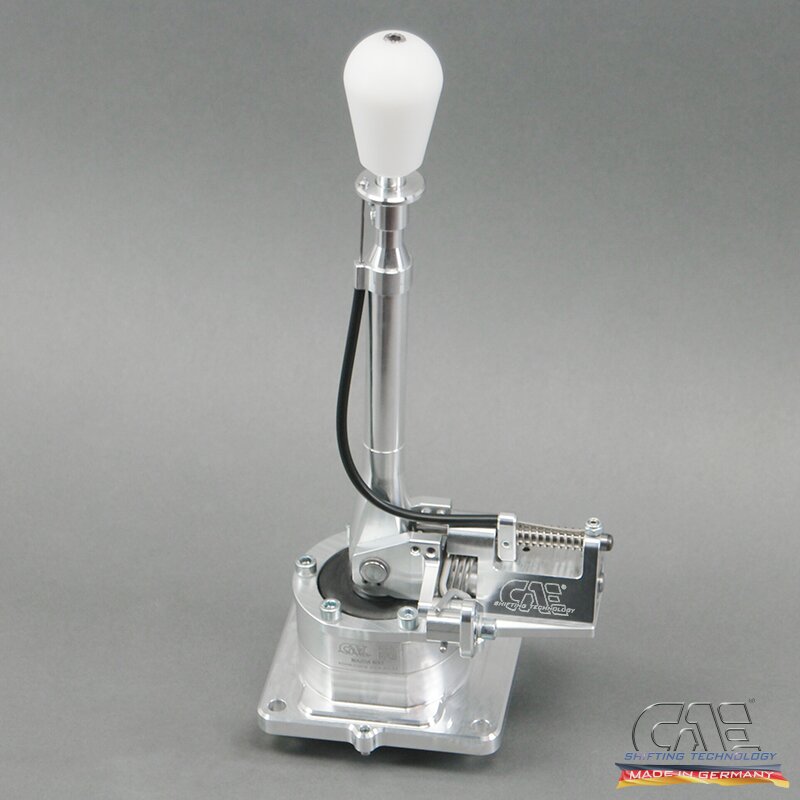

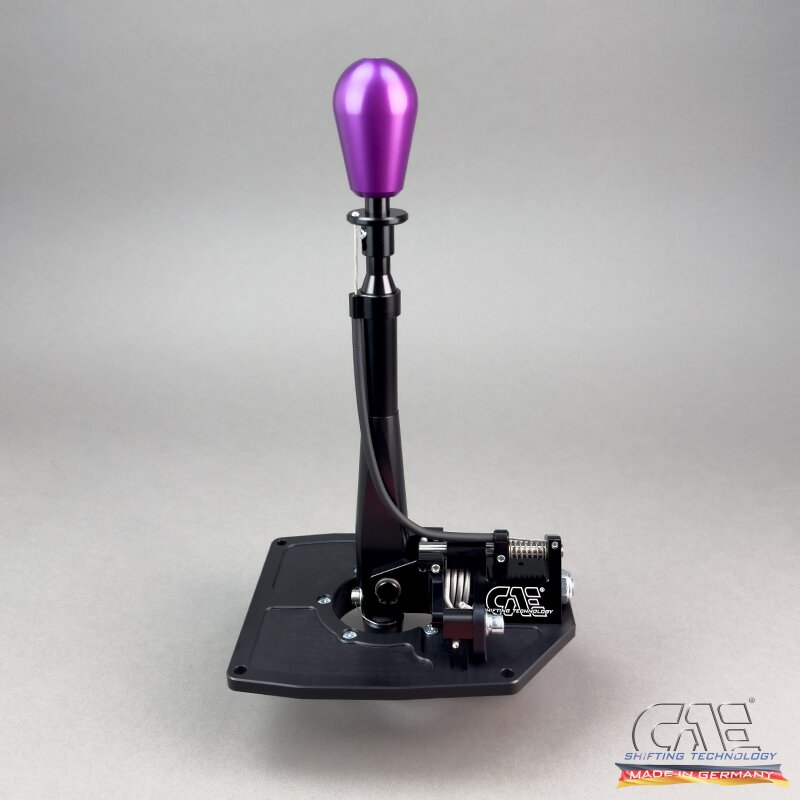

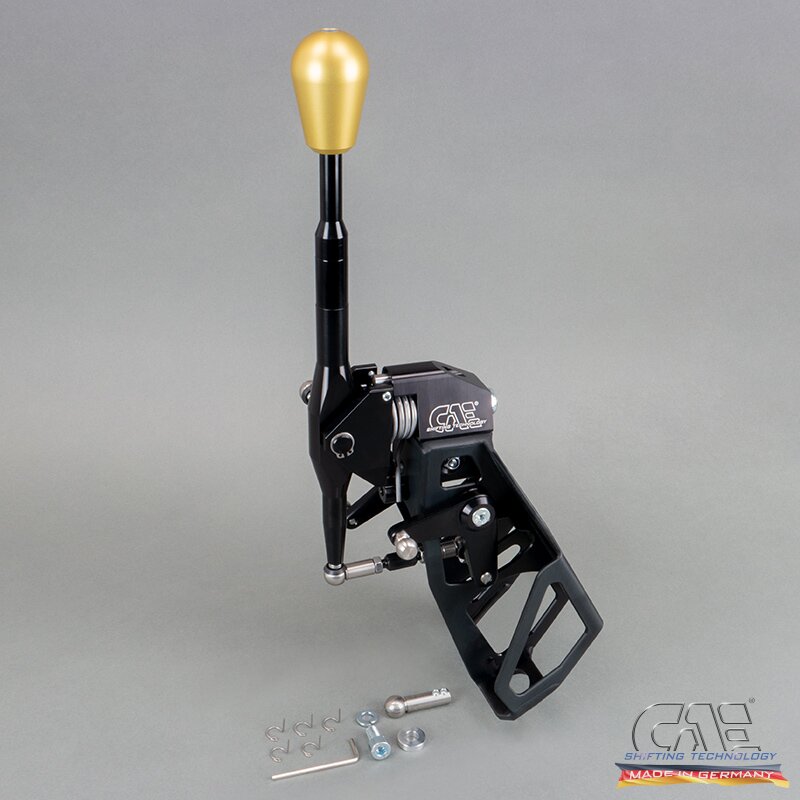

CAE Ultra Shifter for FIAT 124 Spider with 6-speed manual gearbox

• Short and ultra-precise shift throws H-pattern.
• The clutch system remains stock.

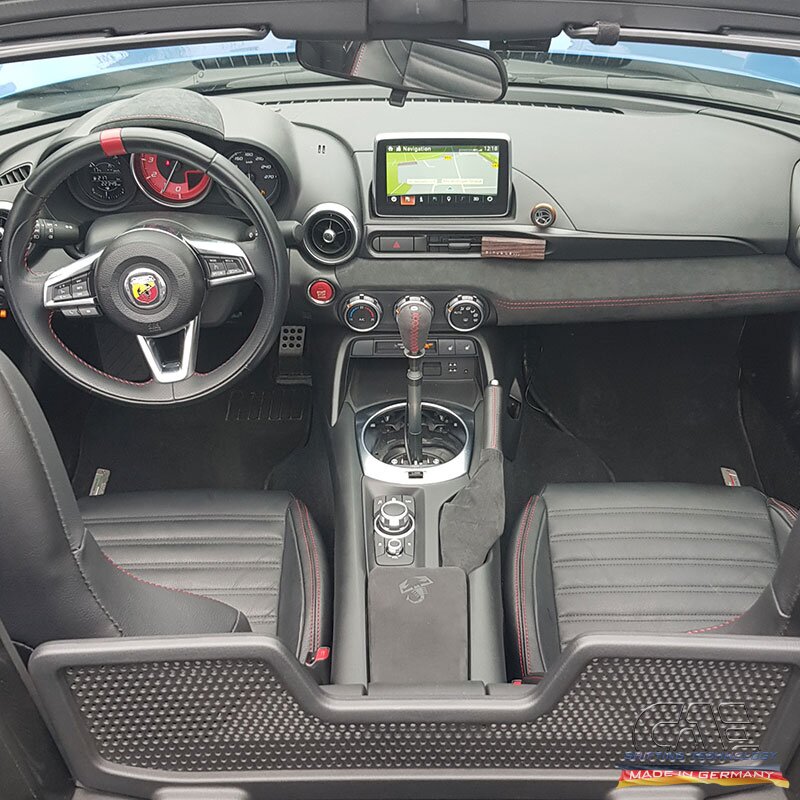

• Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 65 x 55 mm.
• Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.
• Low weight with high rigidity: Die milled and turned components are machined from 7075 aluminum.
• Smooth gear changes under load and during cornering.
• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.
• The shifter is supplied fully pre-assembled, including all small parts and fasteners.

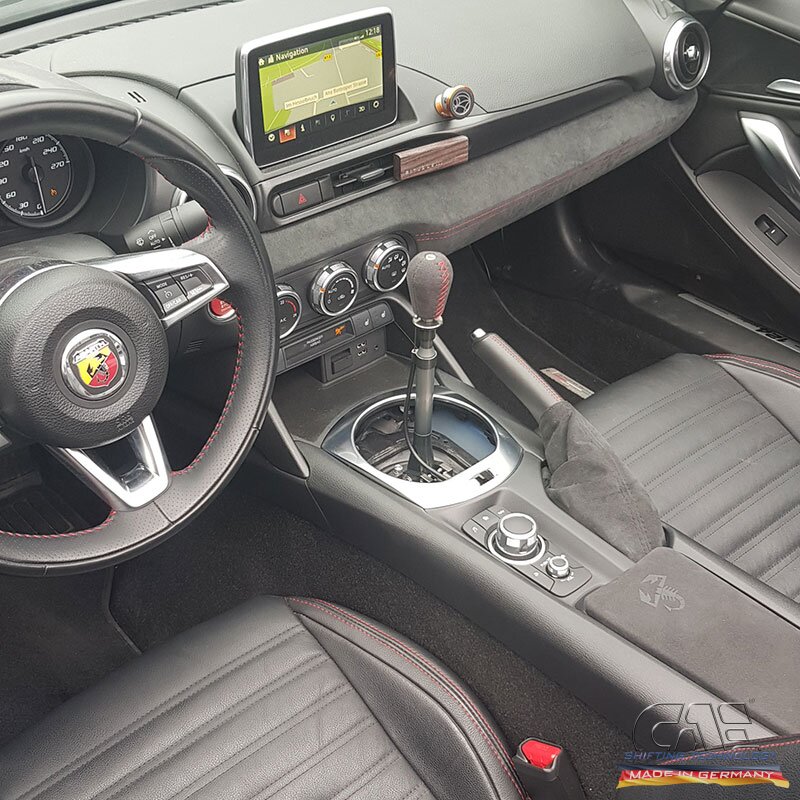

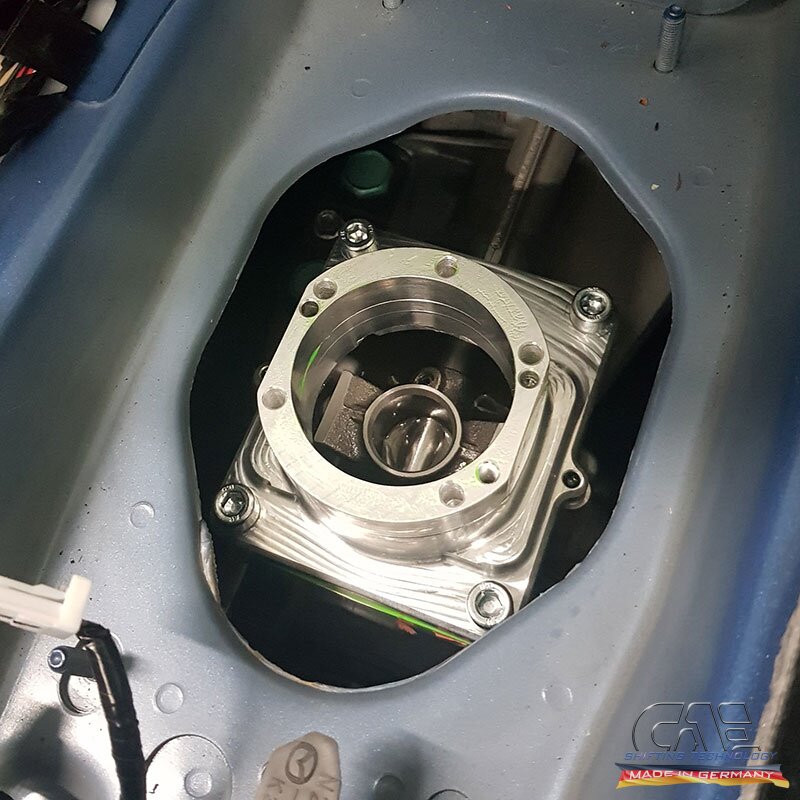

• The shifter is designed for vehicles with a center console, which must be slightly modified for installation.

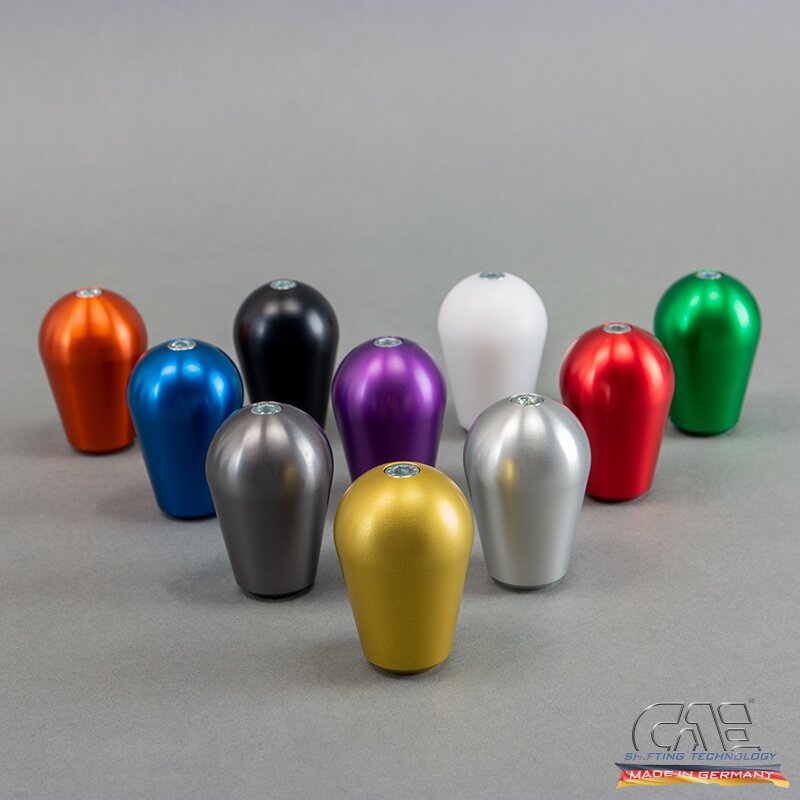

• Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch



  Overall height:	approx. 320 mm
  Overall length:	approx. 120 mm
  Base plate dimensions:	approx. 120 x 85 mm
  shift throw:	approx. 65 mm
  selector travel (transverse direction):	approx. 55 mm
  Weight (complete):	approx. 1,05 kg
  Gear lever offset (rearward / upward):	depending on vehicle type approx. 0 / 80 mm

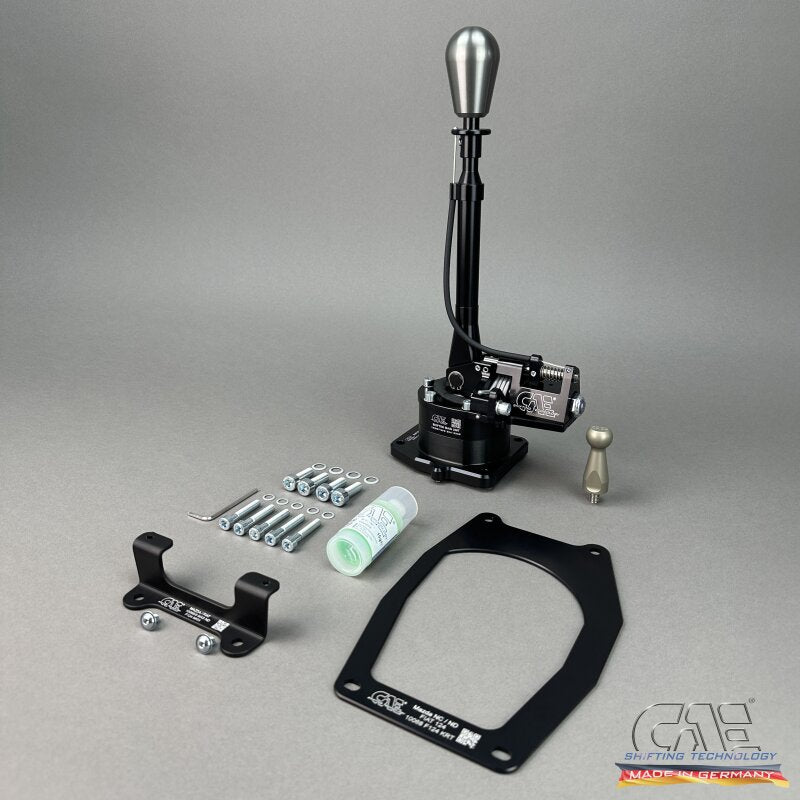

  Scope of delivery: Shifter fully assembled, all small parts and fasteners, Flachendichtung.

  The installation manual is available for download under the "PDF" tab on this page. (in preparation)



  A parts certificate (TÜV approval) is also available for this CAE Ultra Shifter.



  If you require a certificate for your shifter, please contact us alongside your purchase.
