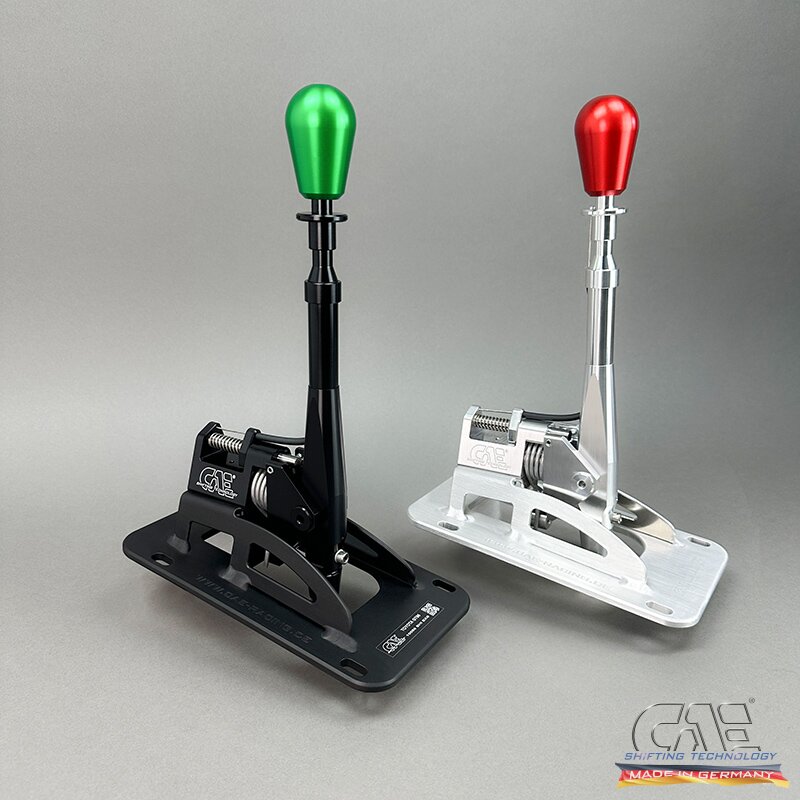

CAE Ultra Shifter for BRZ / GR86 2022+

CAE Shifter - optimized for the Motorsport

• CAE Shifter for BRZ and GR86 (2022+) vehicles with 6-speed gearbox
• Short and ultra-precise shift throws H-pattern.
• The clutch system remains stock.

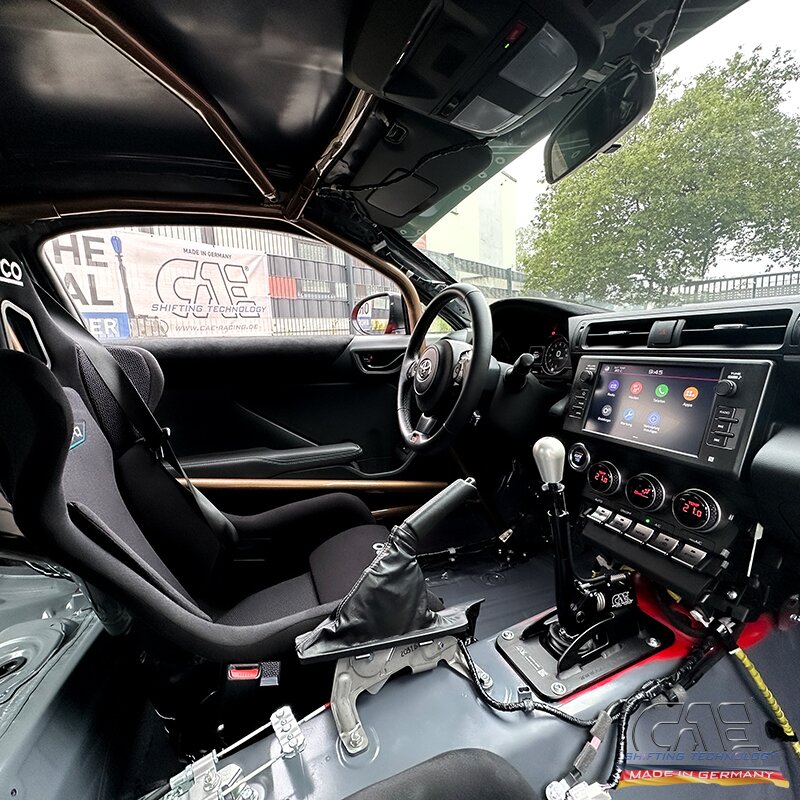

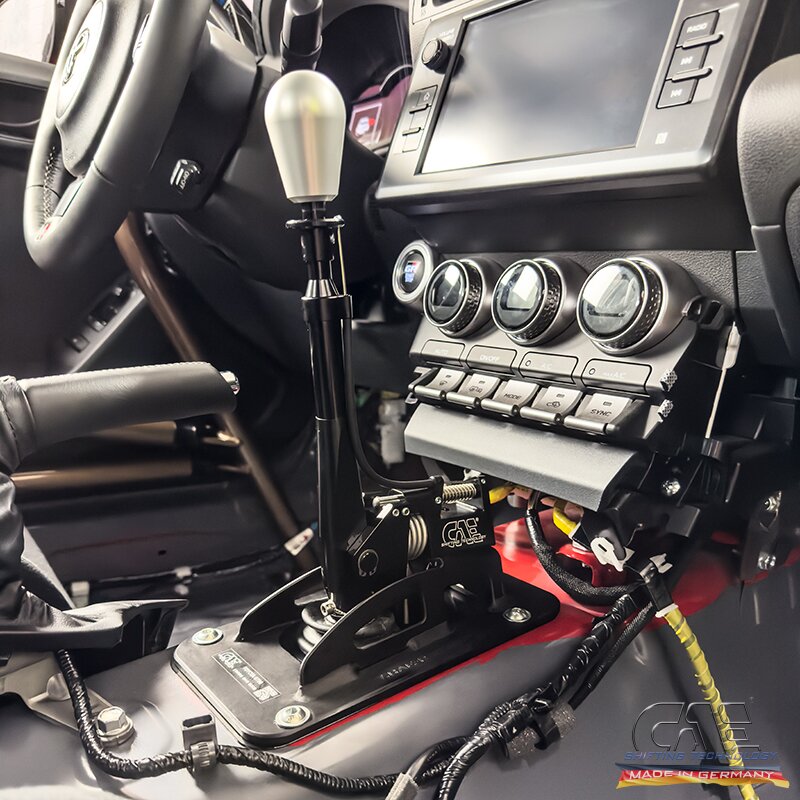

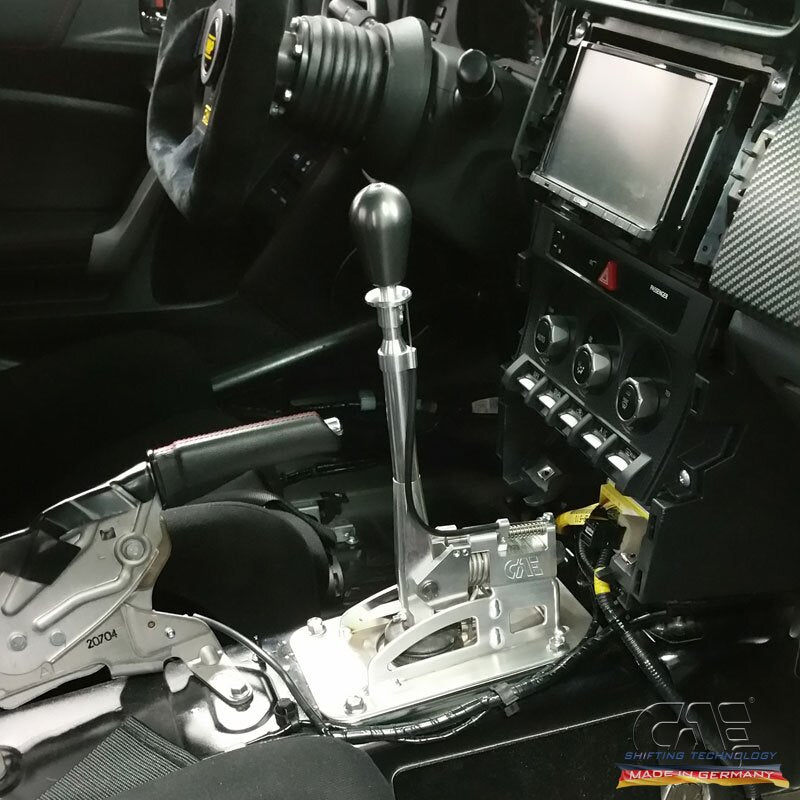

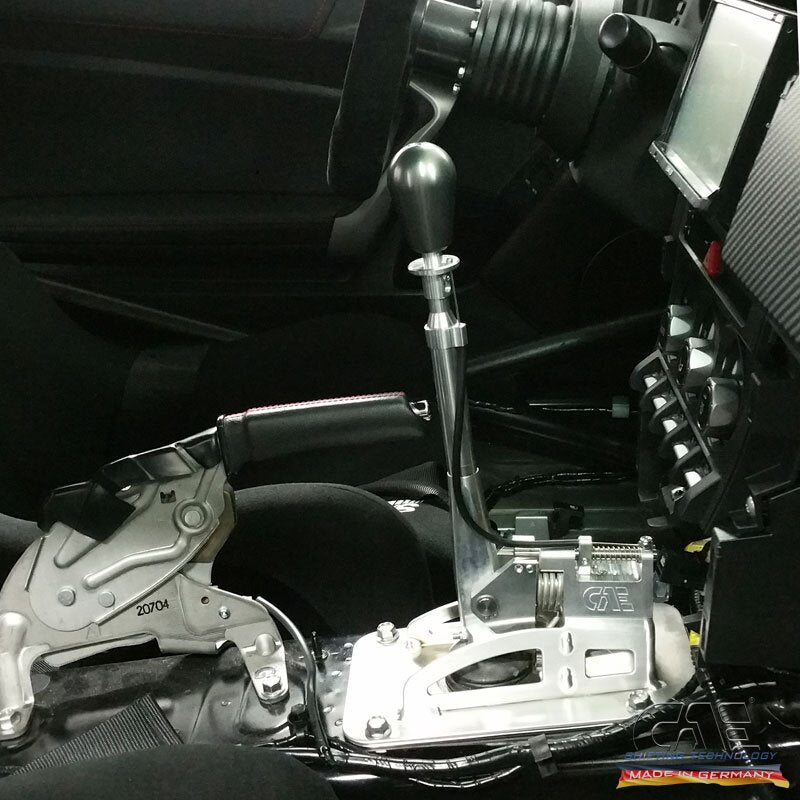

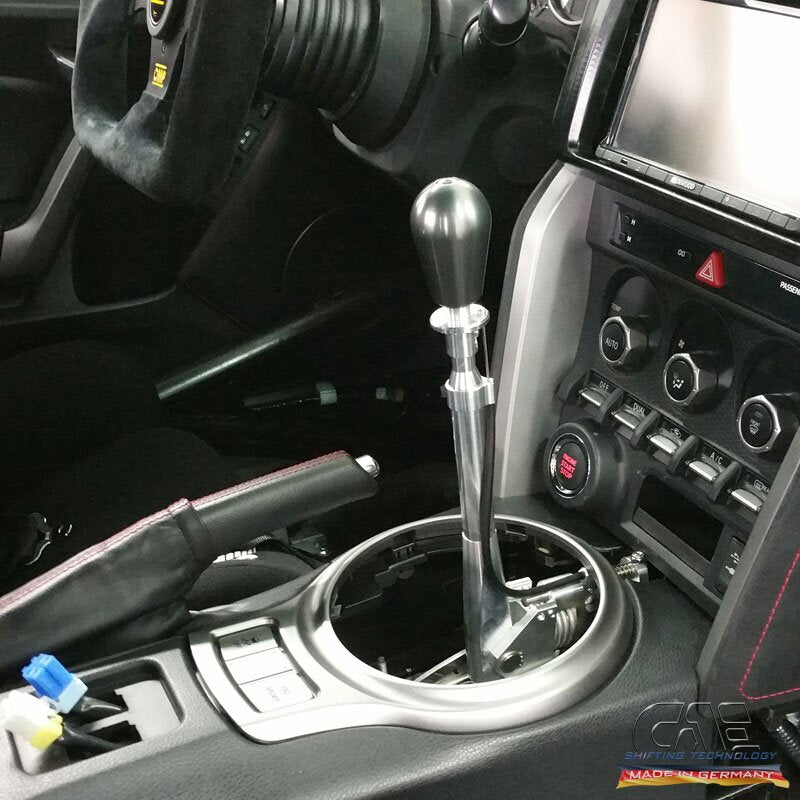

• Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 65 x 65 mm.
• Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.

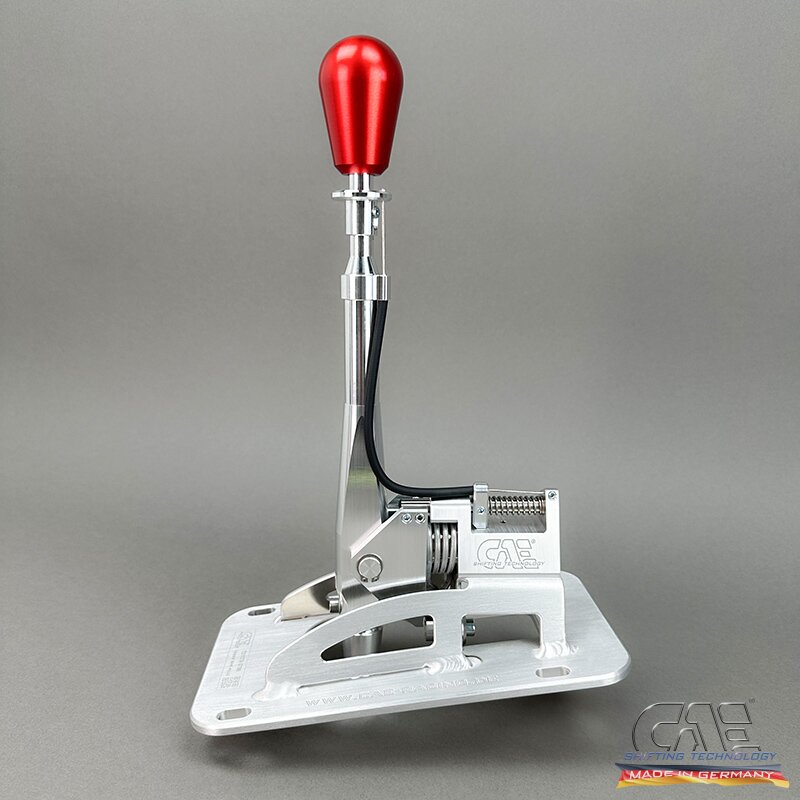

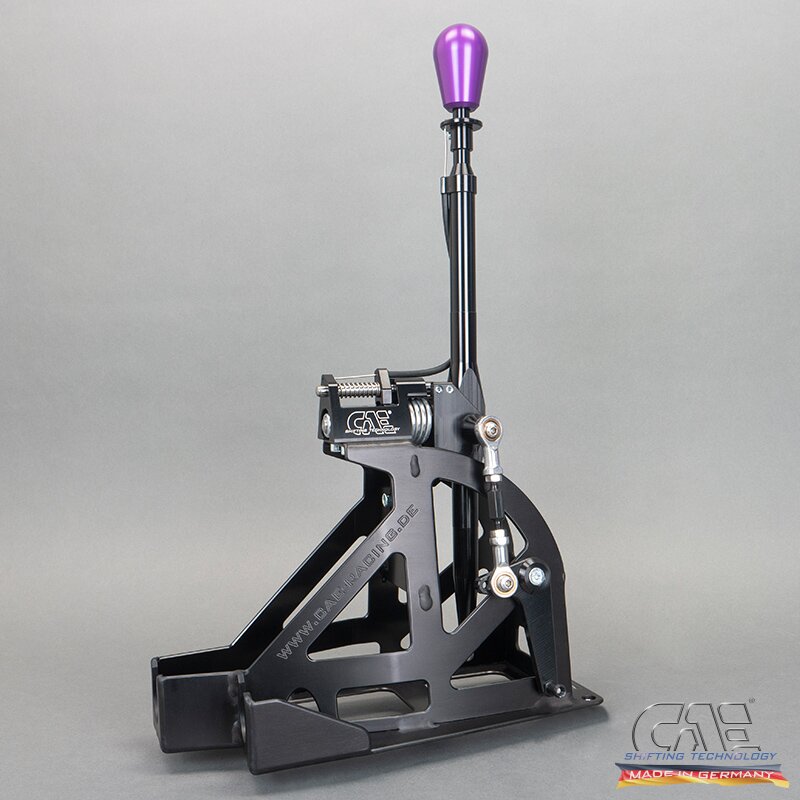

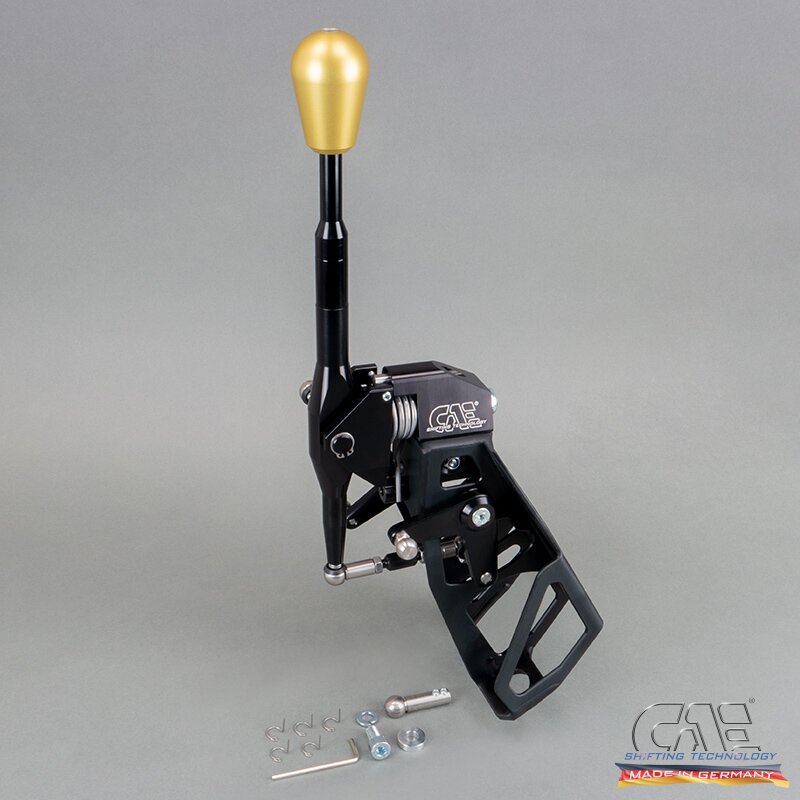

• Low weight with high rigidity: Die milled and turned components are machined from 7075 aluminum, the subframe structures from precision-milled 3/6 mm AlMg3 aluminum sheet. The parts are joined by TIG welding and brushed to a clean finish.
• Smooth gear changes in all driving situations

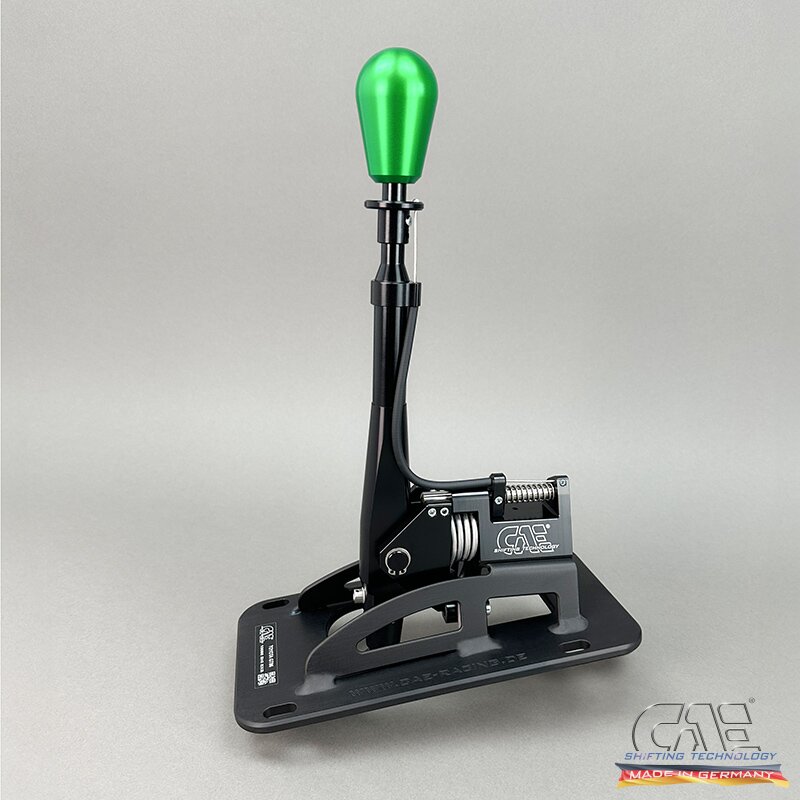

• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.

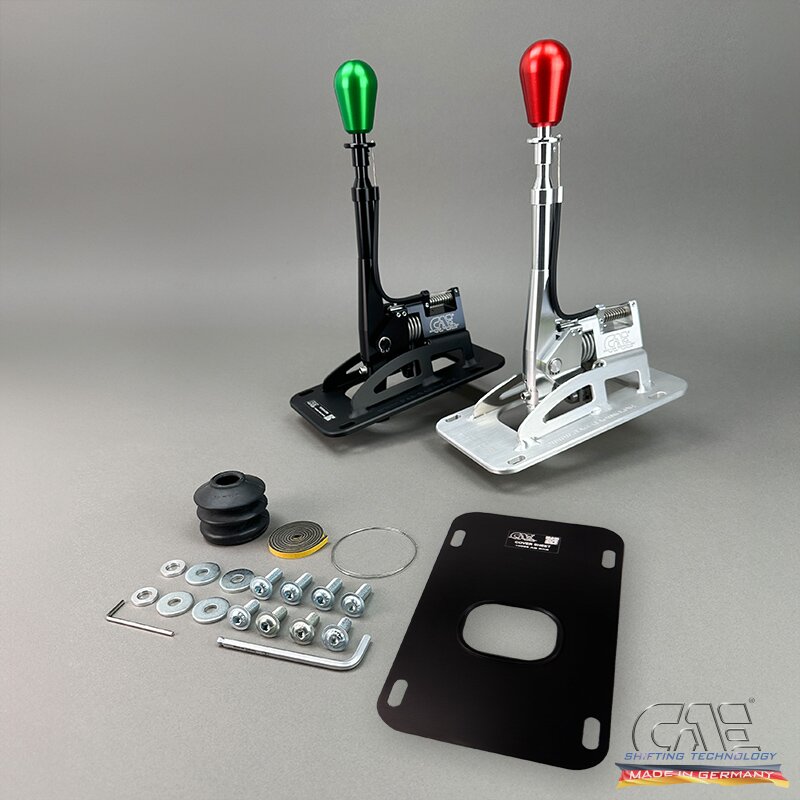

• The shifter is supplied as a complete kit for adaptation to the original shift rod, including all small parts, fasteners, and a detailed installation manual.

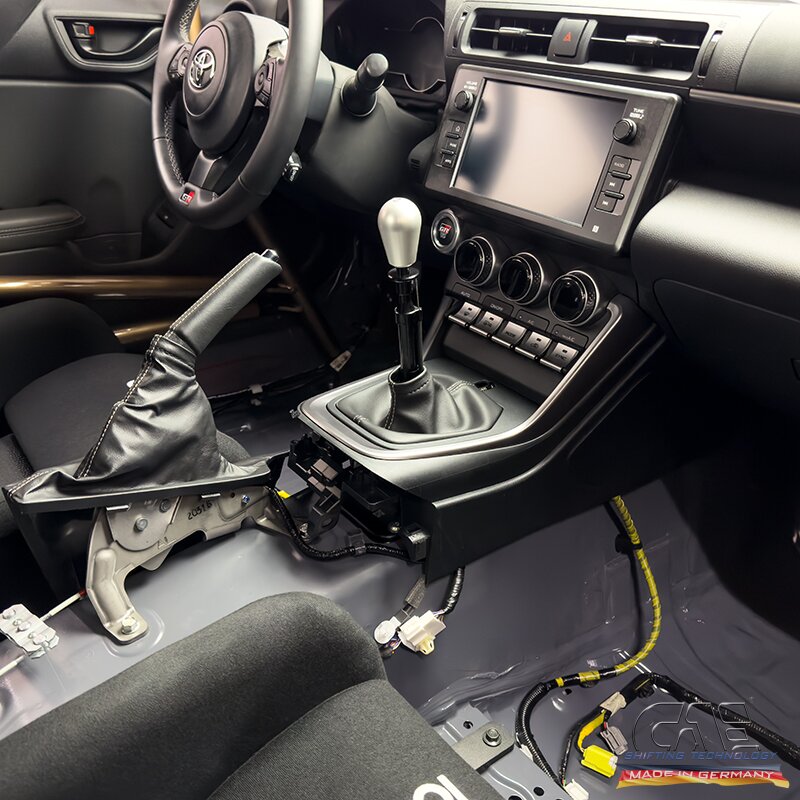

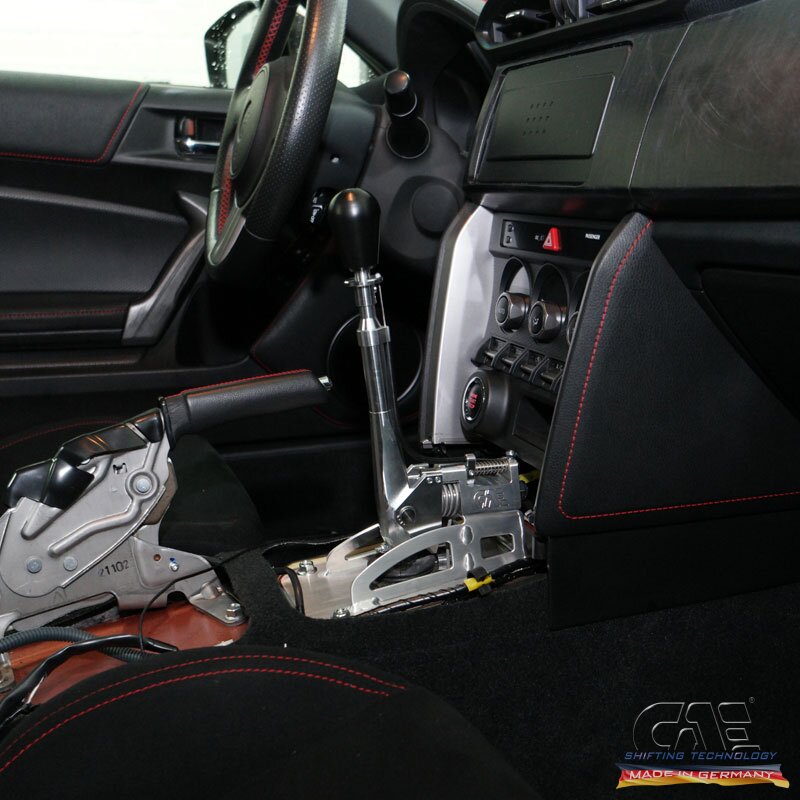

• The center console can continue to be used with minor modifications.

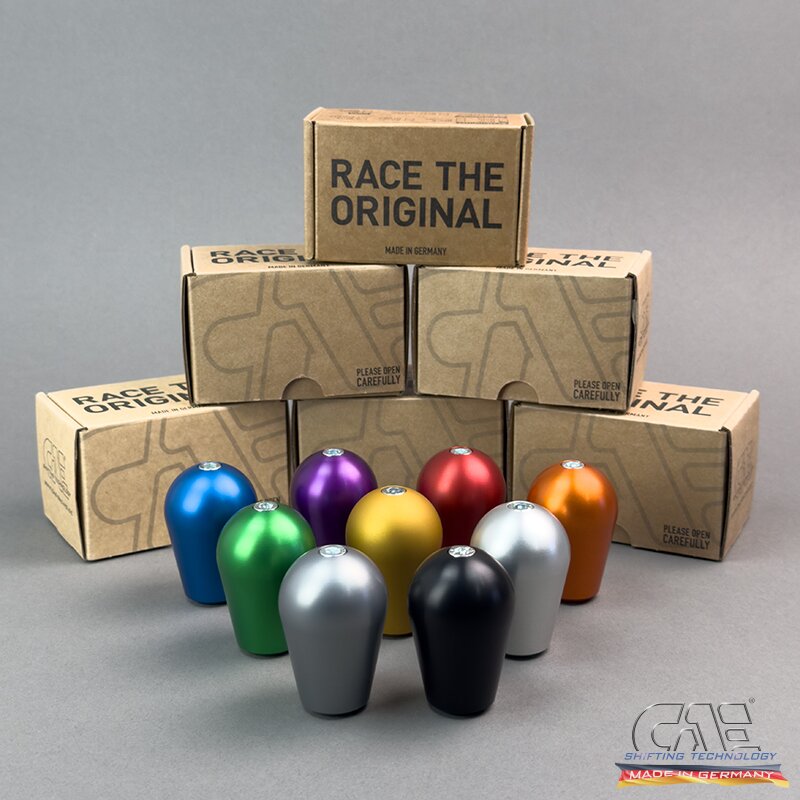

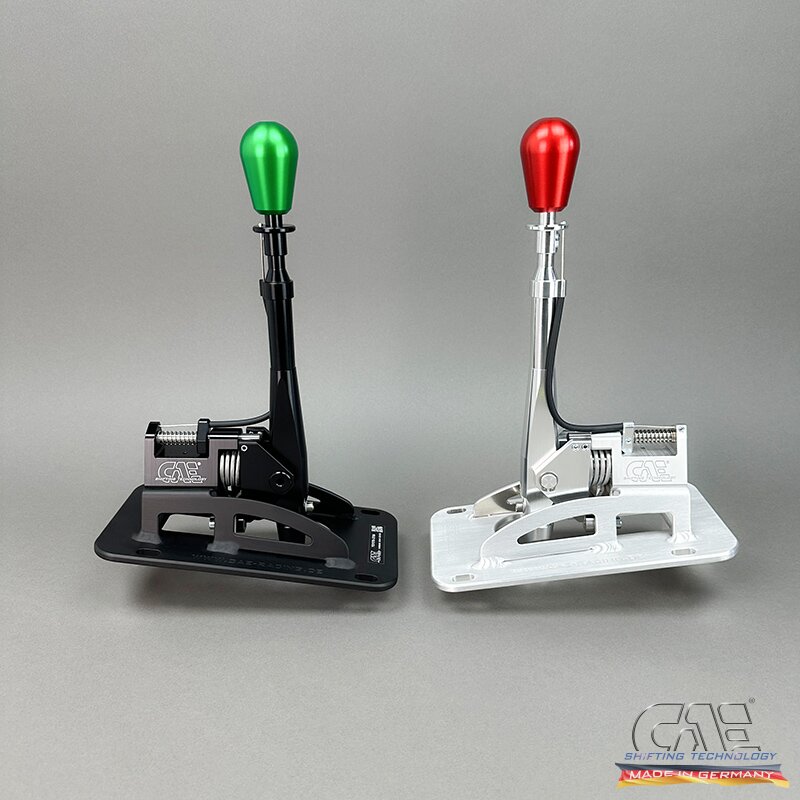

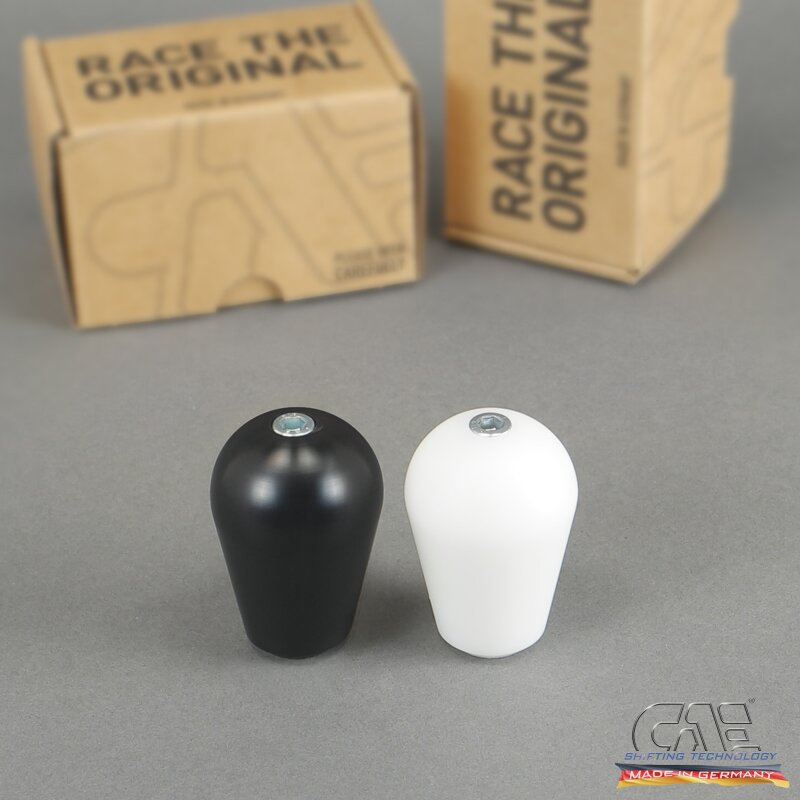

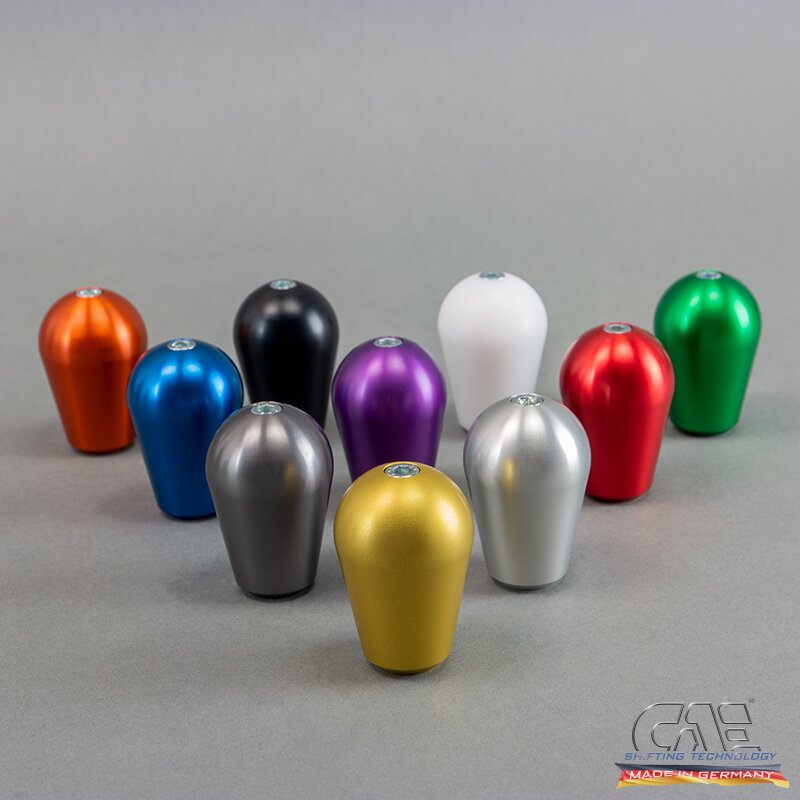

• Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch.

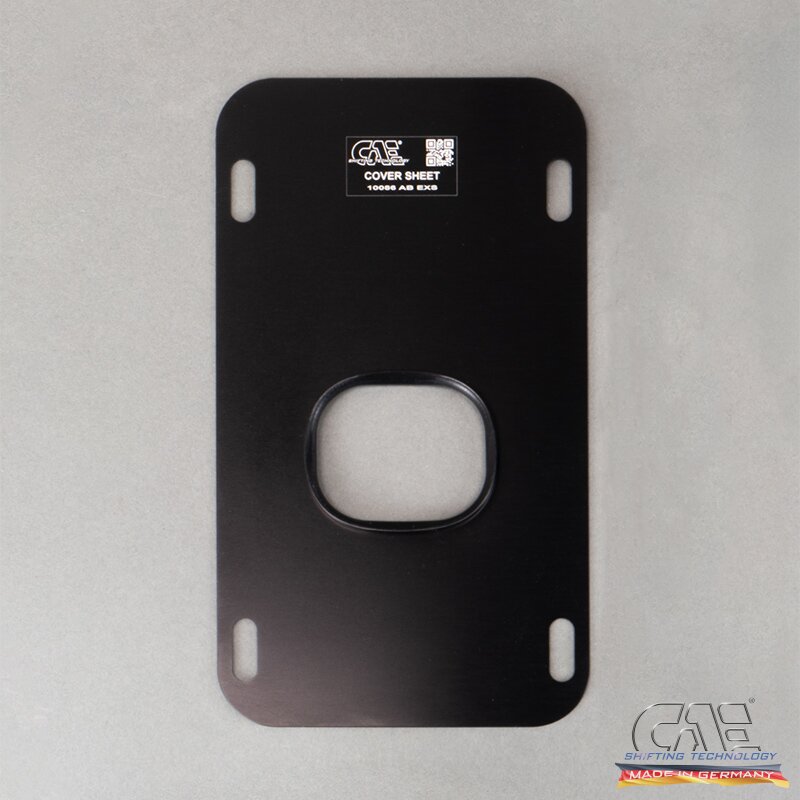

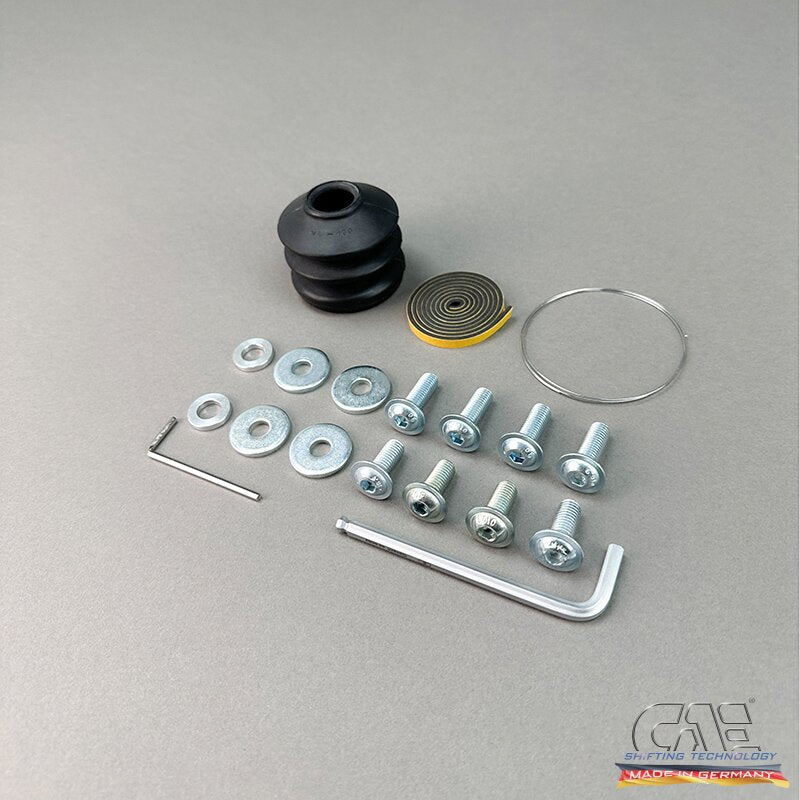

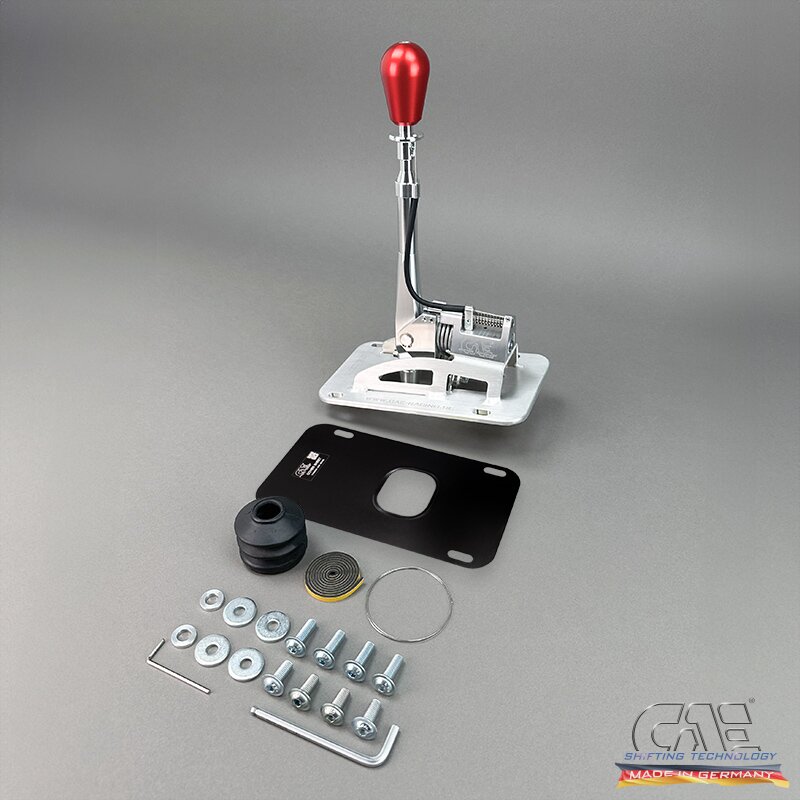

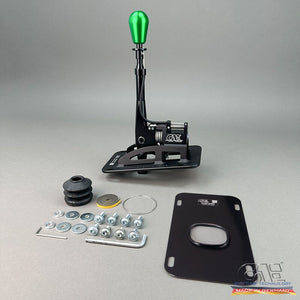

Scope of delivery: Shifter fully assembled, tunnel cover plate with Faltenbalg, all small parts and fasteners
