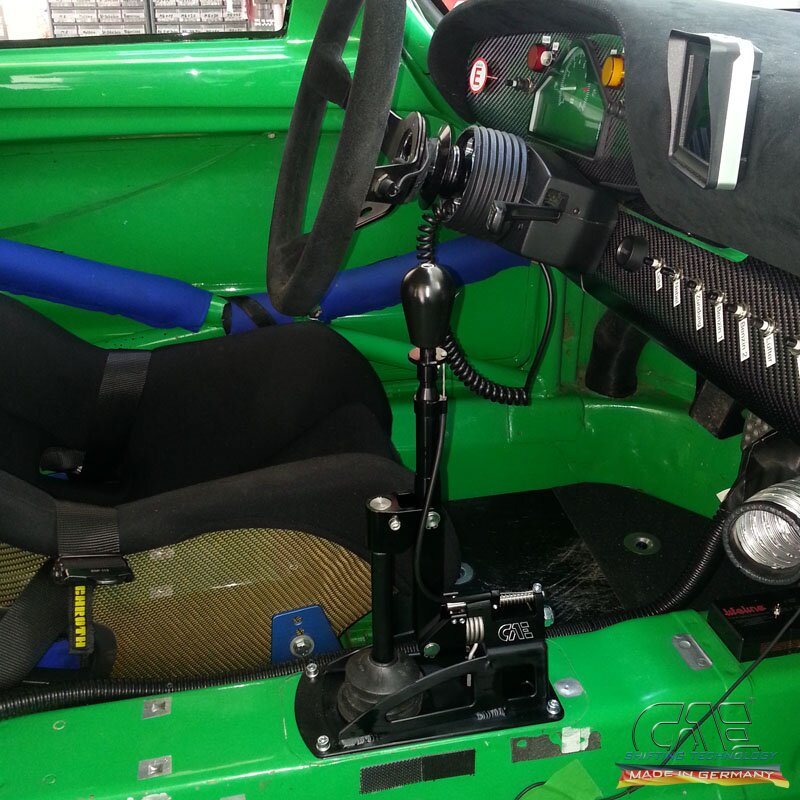

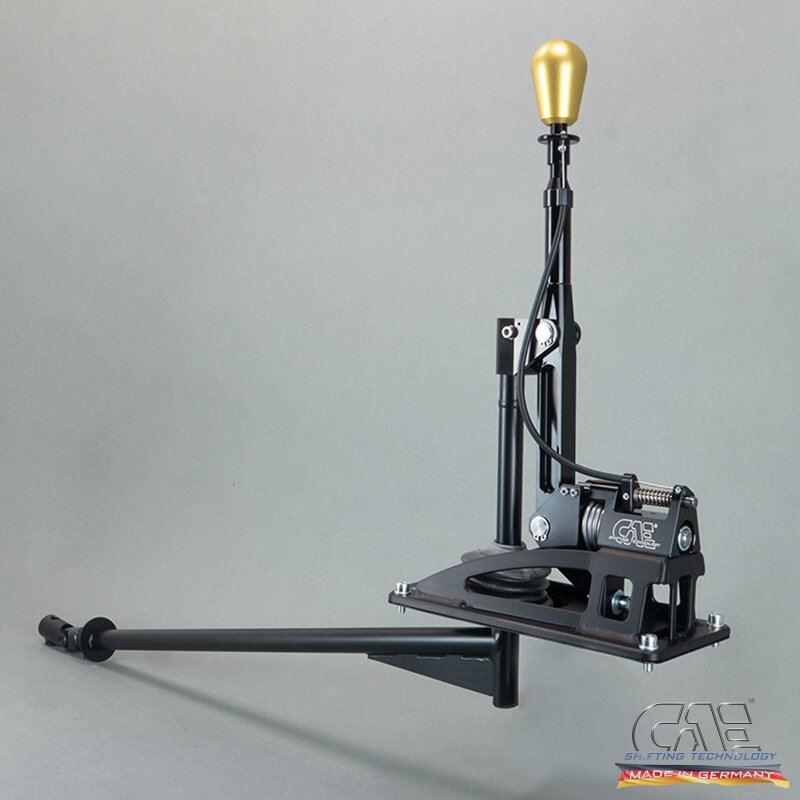

CAE Ultra Shifter Porsche 964 & 993

SKU: SKU: 10064-Anodized-POMBlack

CAE Ultra Shifter - PORSCHE 964 & 993

CAE Ultra Shifter for Porsche 964 & 993 C2 vehicles

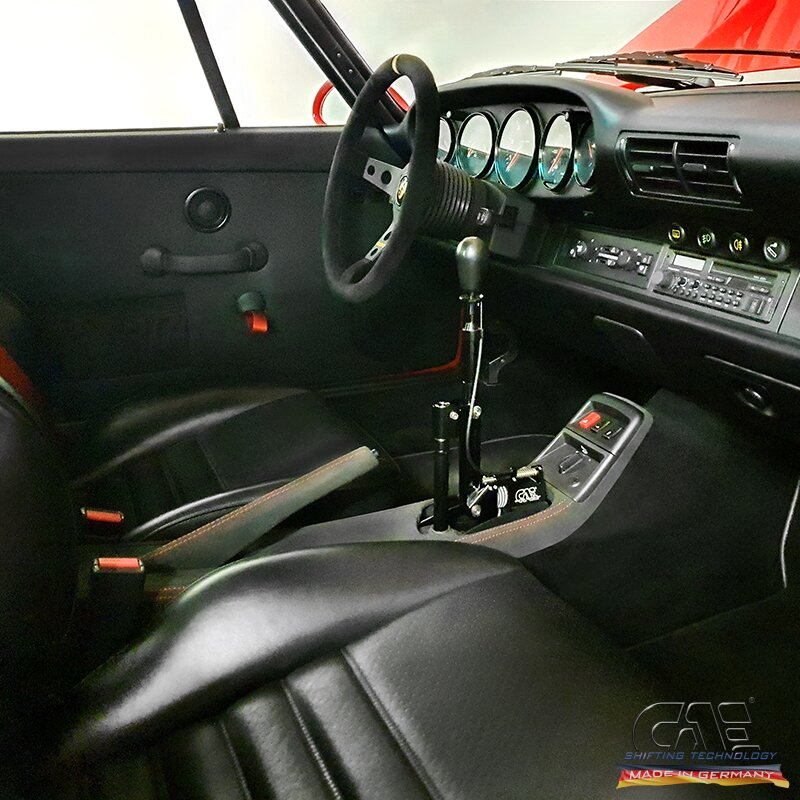

  • the center console can weiterverwendet be, muss aber be modified ( see photos)
  • only compatible with Porsche 964 C2 & 993 C2 !!! NOT compatible with C4 !!!
  • for 5 & 6 -speed gearbox compatible
  • Short and ultra-precise shift throws H-pattern.
  • The clutch system remains stock.
  • Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 78 x 78 mm.
  • Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.
  • Low weight with high rigidity: The milled and turned components are machined from 7075 aluminum; the subframe structures are made from laser-cut 3 mm AlMg3 aluminum sheet, joined by TIG welding and brushed to a clean finish.
  • Smooth gear changes under load and during cornering.

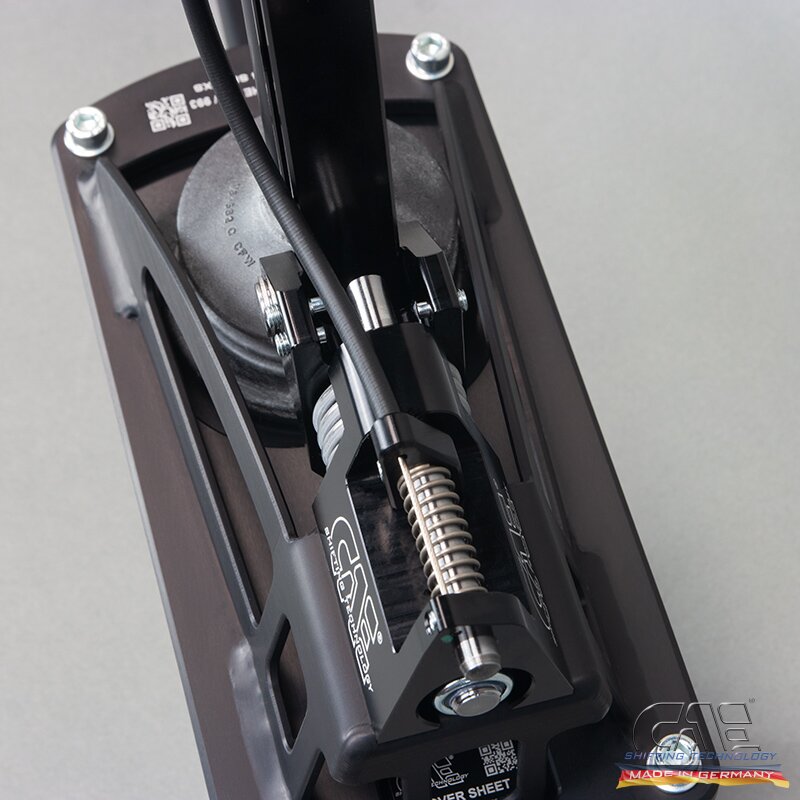

  • Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
  • Left/right stops and reverse stop are independently adjustable.
  • Easy installation with a complete conversion kit; delivery includes all small parts, fasteners, and a detailed installation manual.

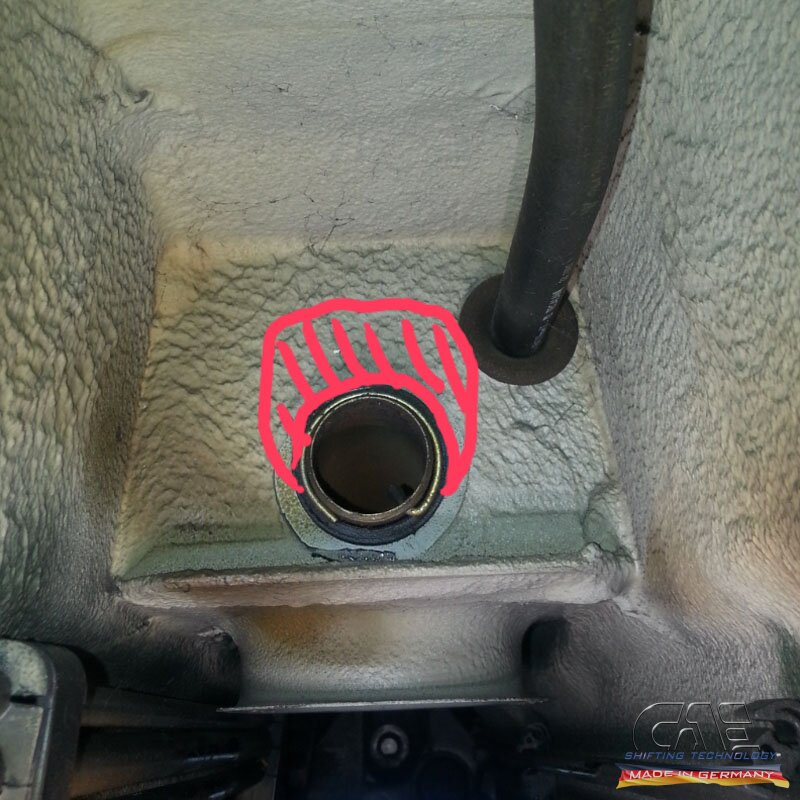

    The center tunnel reinforcement must be lightly milled for shift rod clearance — see photos.

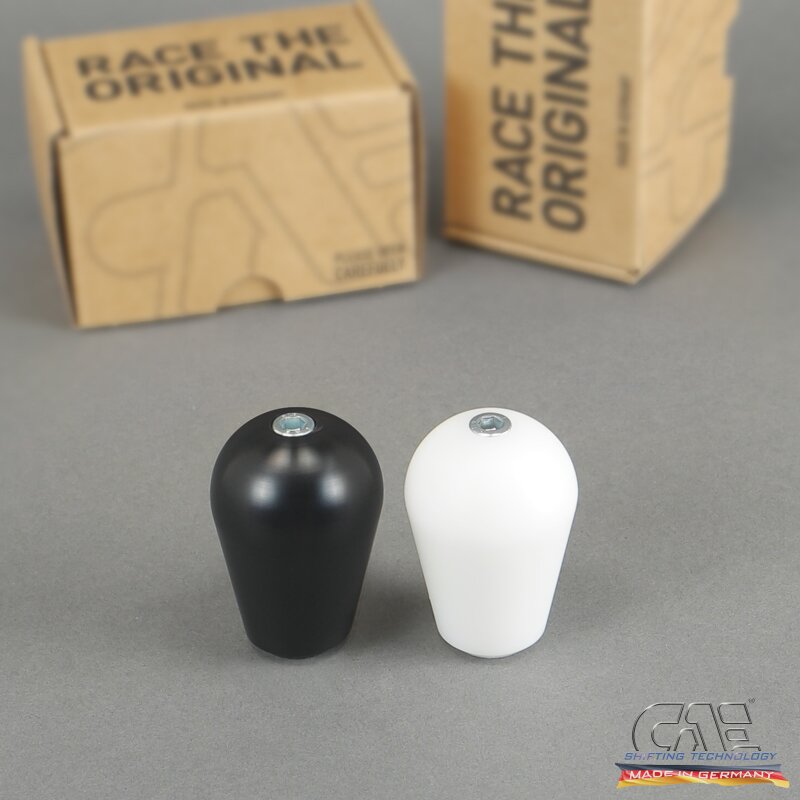

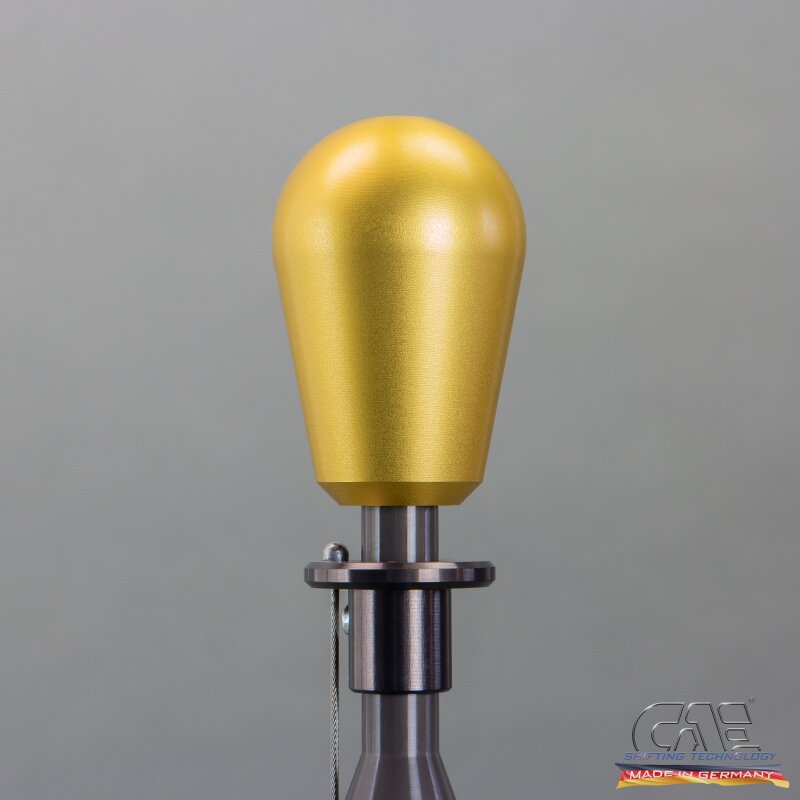

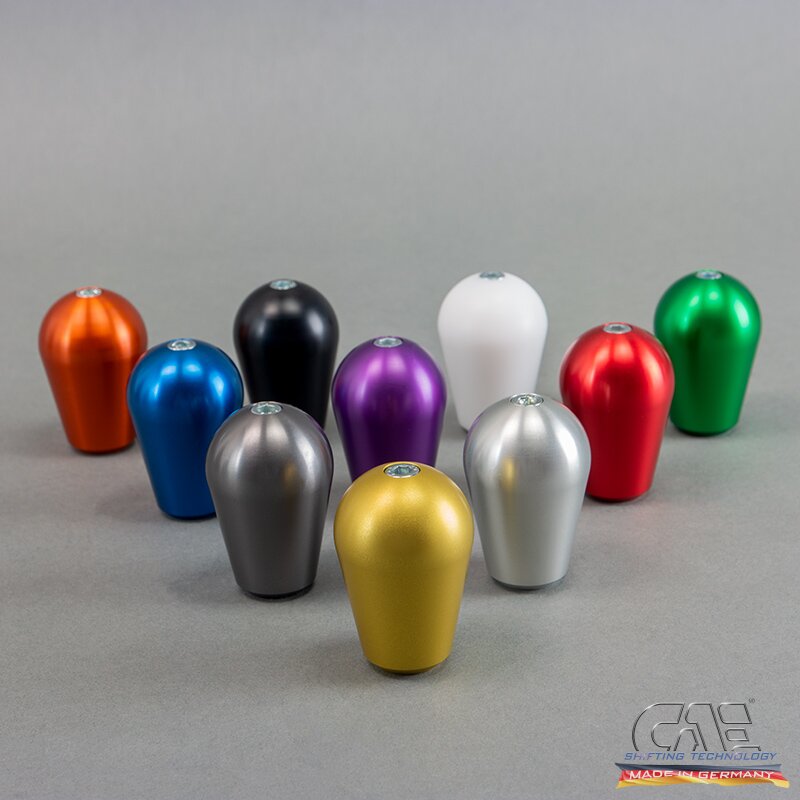

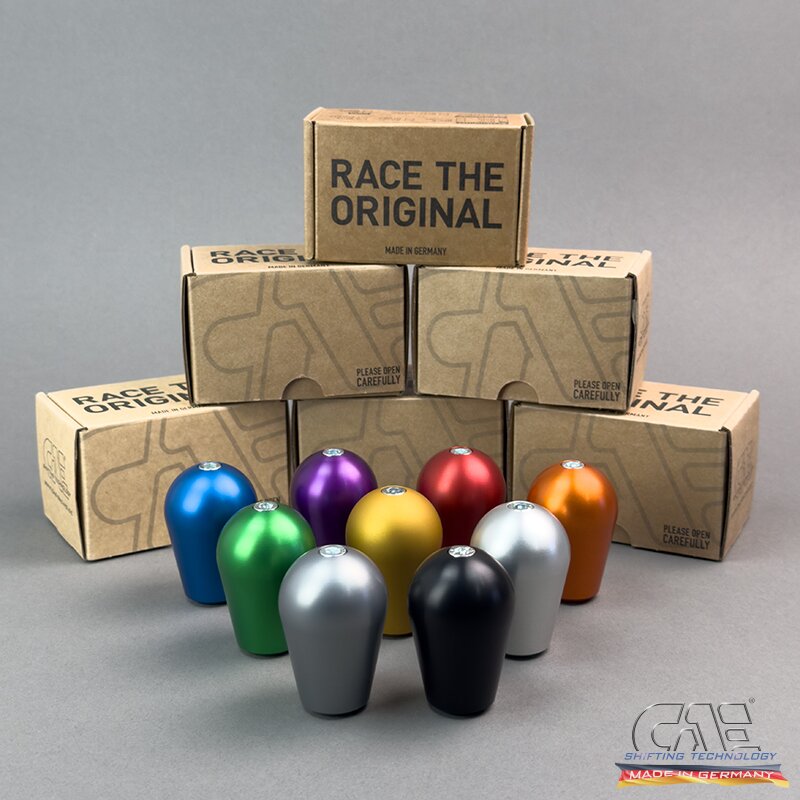

  • Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch.

Overall height: approx. 385 mm
Overall length: approx. 290 mm
Base plate dimensions: approx. 290 x 120 mm
shift throw: approx. 78 mm
selector travel (transverse direction): approx. 78 mm
Weight (complete): approx. 1,95 kg
Gear lever offset (rearward / upward): approx. 40 / 100 mm

Bei this Bauteil handelt es sich um a Rennsportteil !
Aufgrand the Motorsportlichen Auslegung and fehlender Gummi Dämpfungselemente can es zu erhöhter Übertragung of Motor and Getriebgeräuschen in the Innenraum kommen.

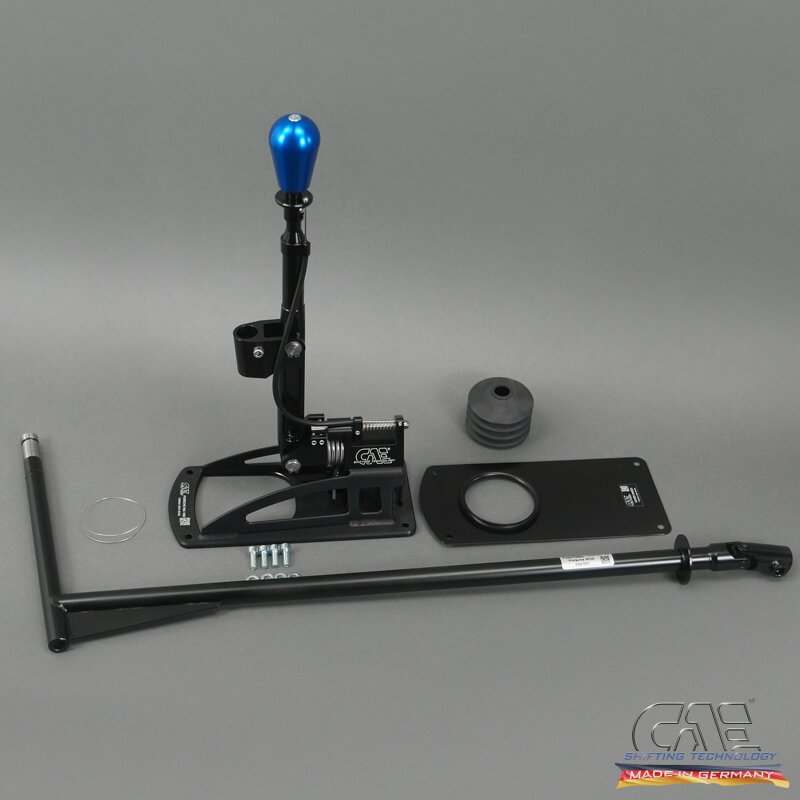

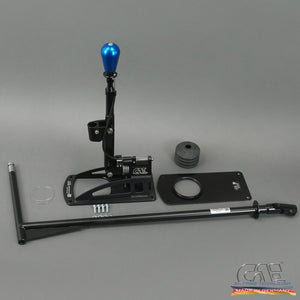

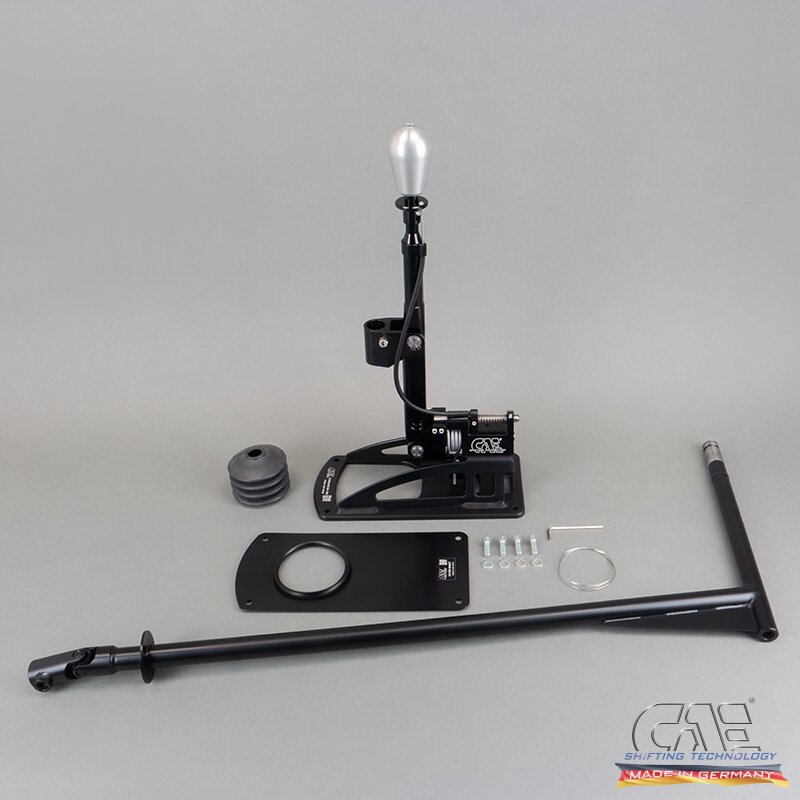

Scope of delivery:

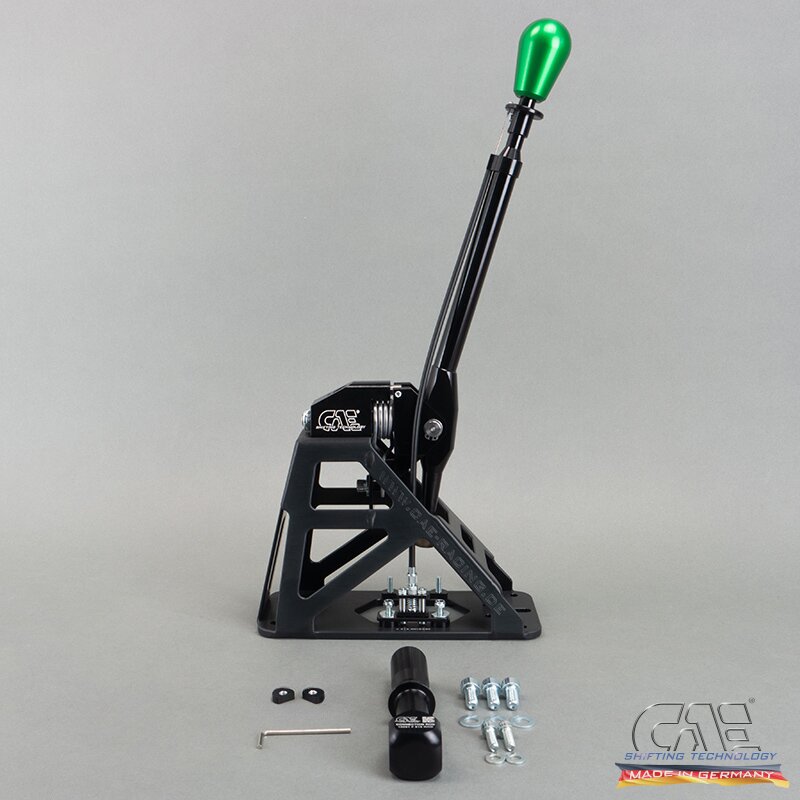

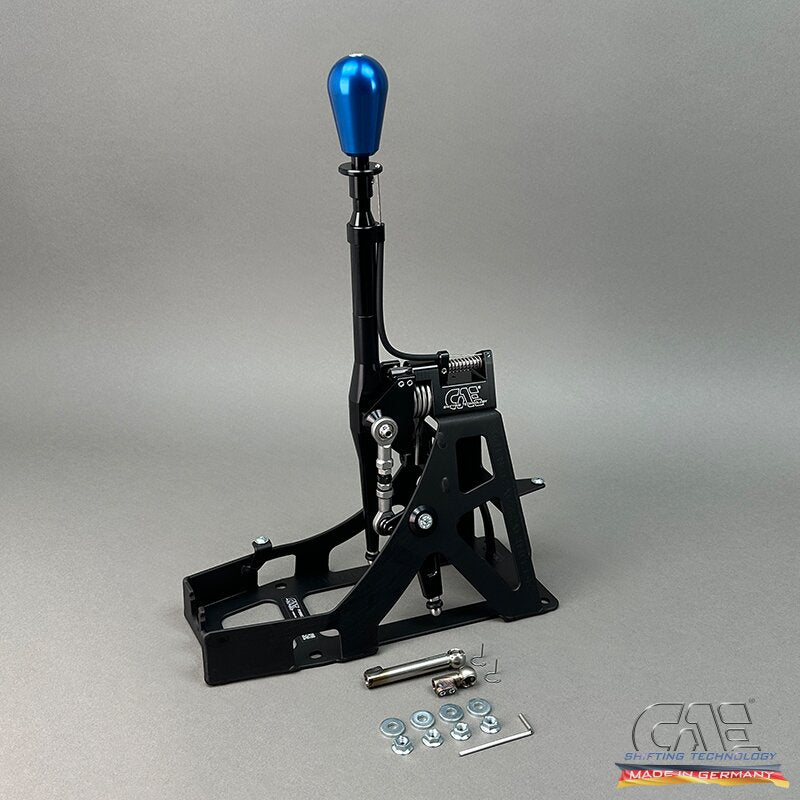

Shifter complete pre-assembled

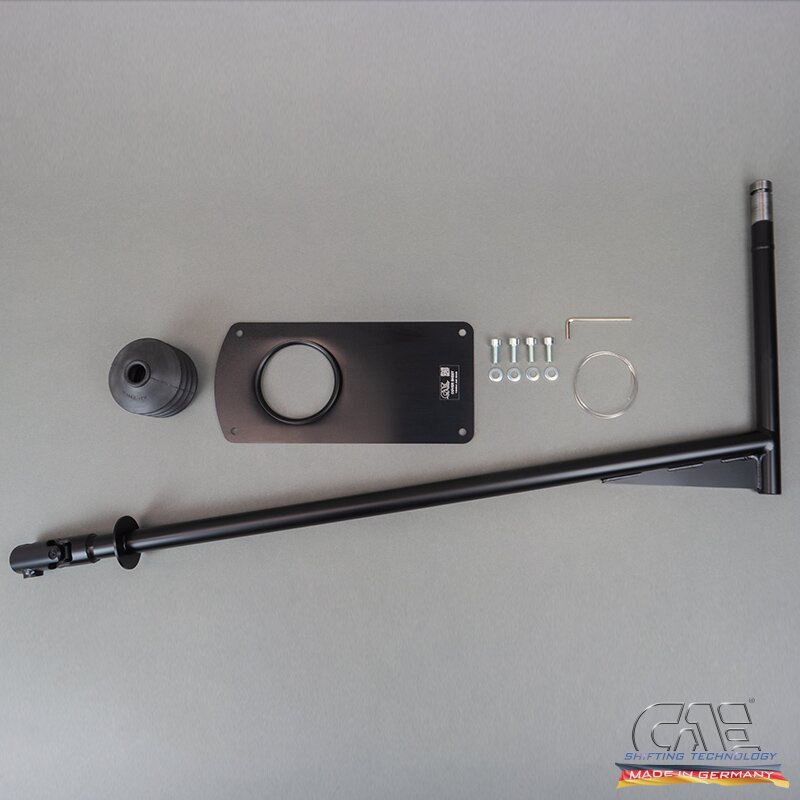

Shift rod with universal joint, cover plate, small parts.
Installation manual available for download (PDF tab). under the PDF tab

PDF

10064 Porsche 964_993_installation manual_12_2022_.pdf

10064 Porsche 964_993_Installation Manual_12_2022_.pdf
