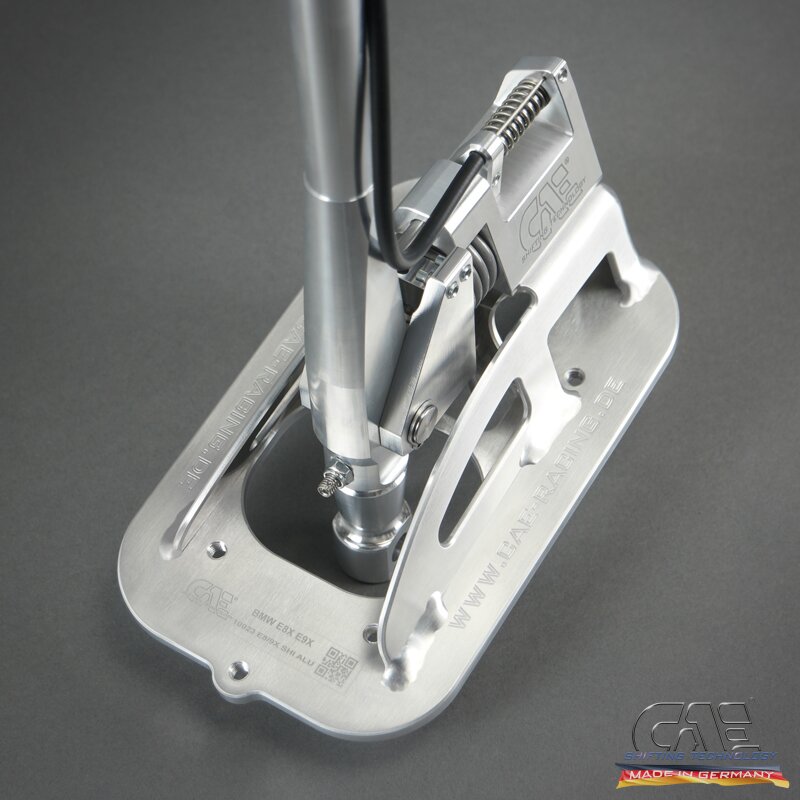

CAE Ultra Shifter BMW E8/9X "3XS"

• Vehicle-specific kit for BMW E8/9X with manual 6-speed gearbox, standard H-pattern. See vehicle assignment table above.
• Installation requires no drilling in the center tunnel.
• Short and ultra-precise shift throws H-pattern.
• The clutch system remains stock.

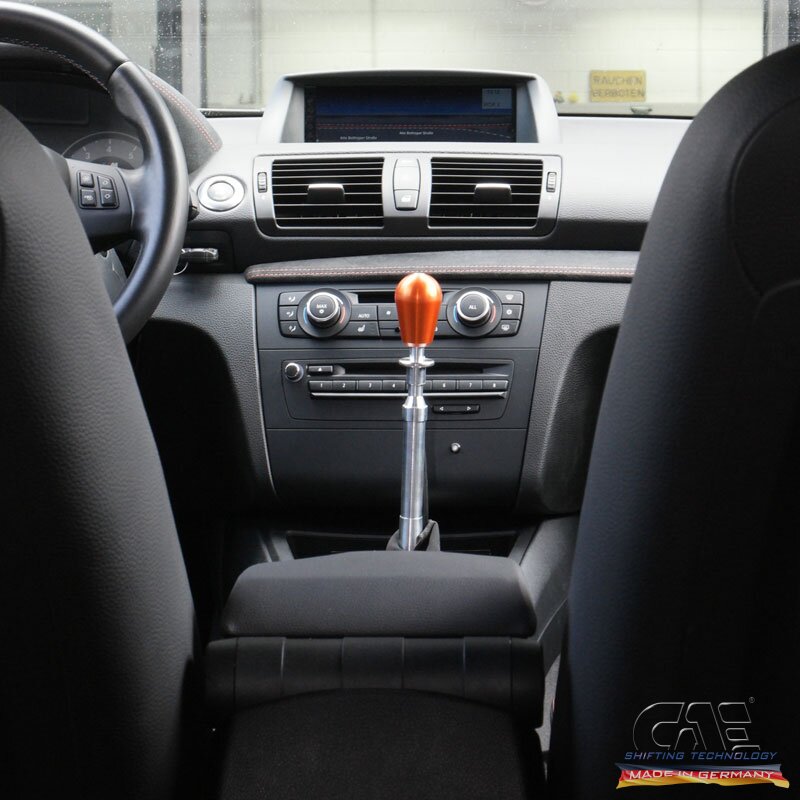

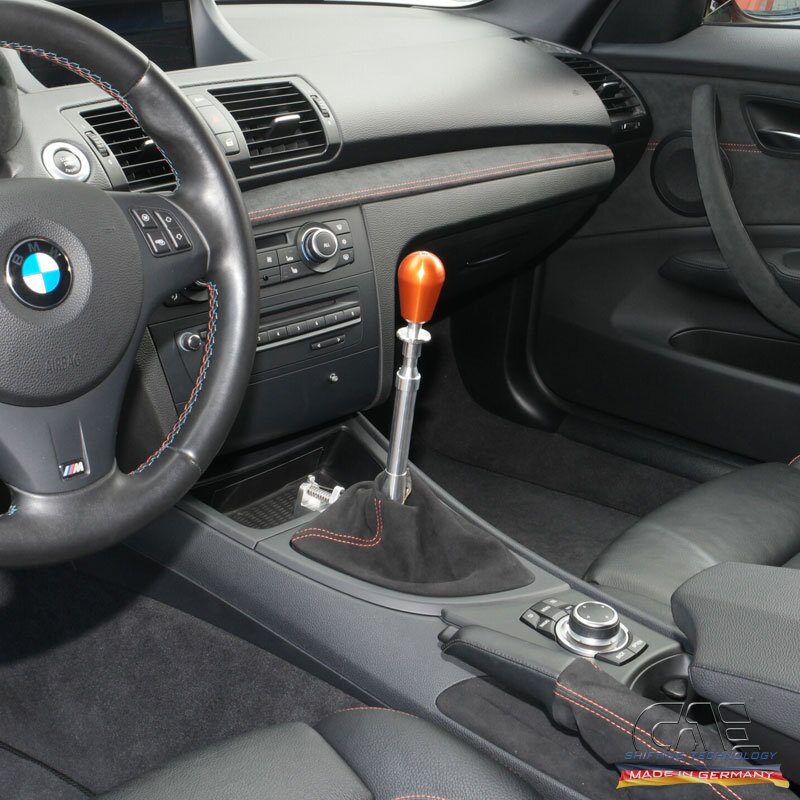

• Optimal ergonomics with a motorsport focus: Perfect positioning of the shift knob close to the steering wheel. The H-pattern gate spans approx. 75 x 75 mm.
• Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.

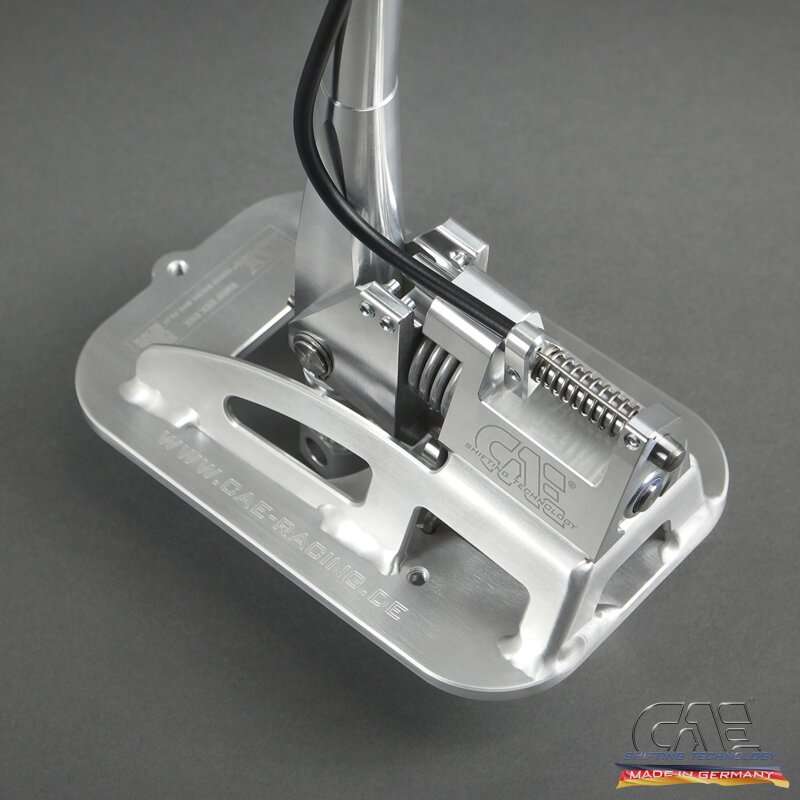

• Low weight with high rigidity: Die milled and turned components are machined from 7075 aluminum, the subframe structures from laser-cut 3/6 mm AlMg3 aluminum sheet. The parts are joined by TIG welding and brushed to a clean finish.
• Smooth gear changes under load and during cornering.
• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.

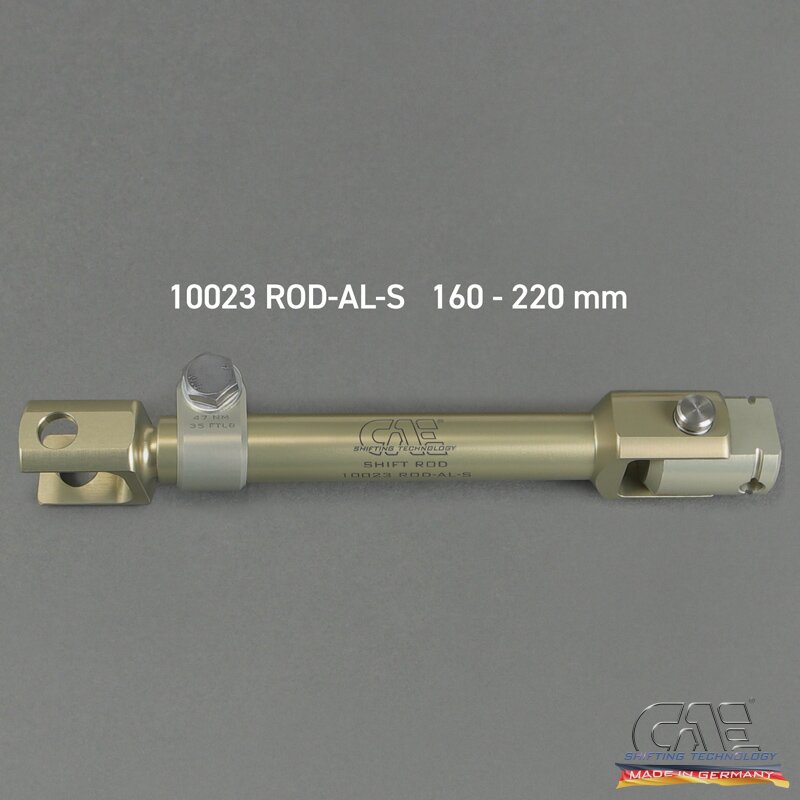

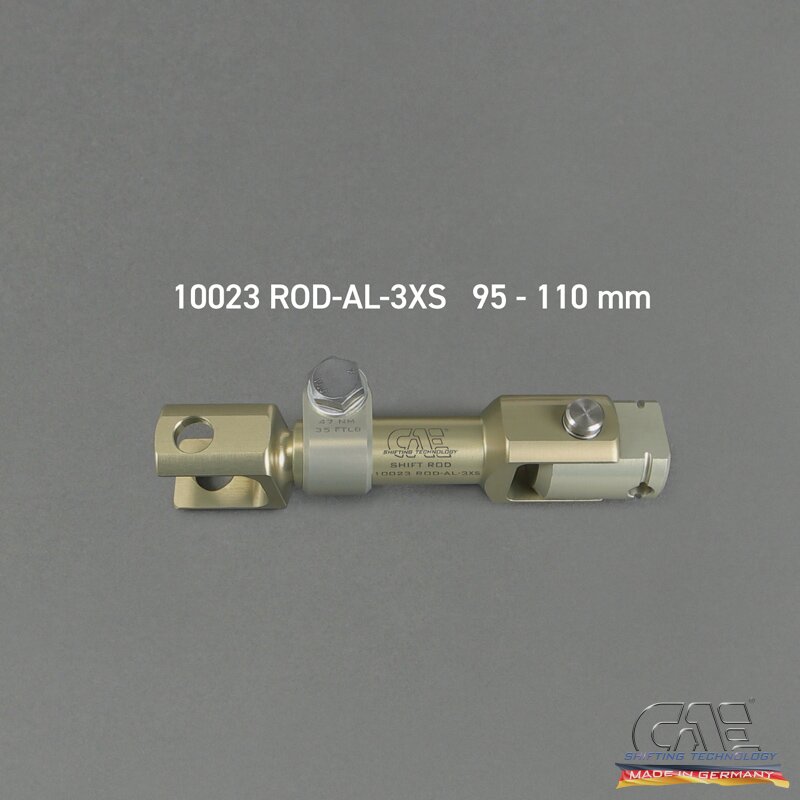

• The shifter is supplied as a complete kit with CAE “3XS” shift rod, including all small parts and fasteners.

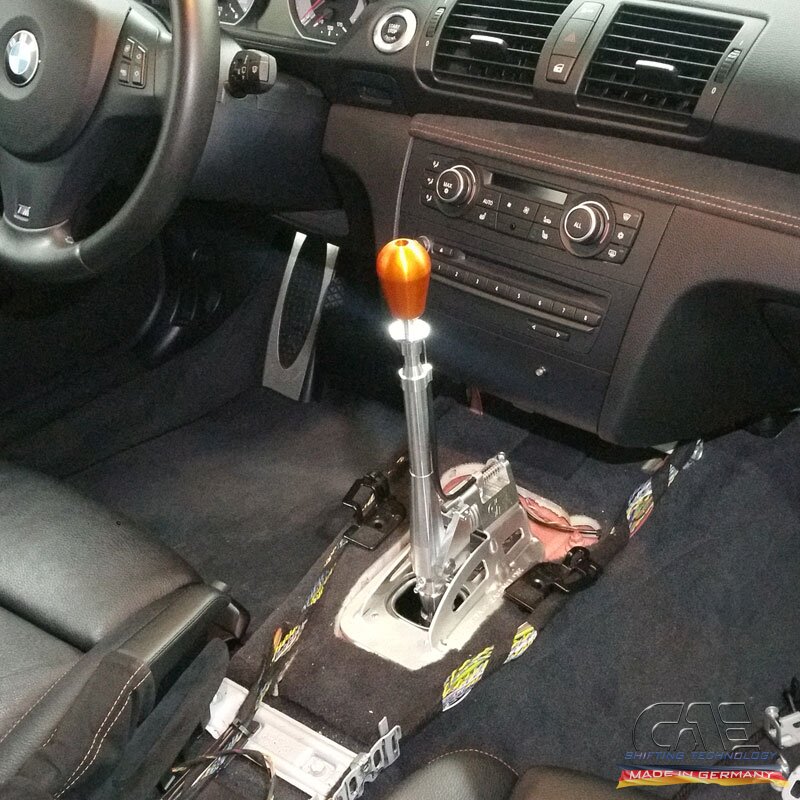

• The shifter is designed for vehicles with interior trim / center console, which must be modified for installation.

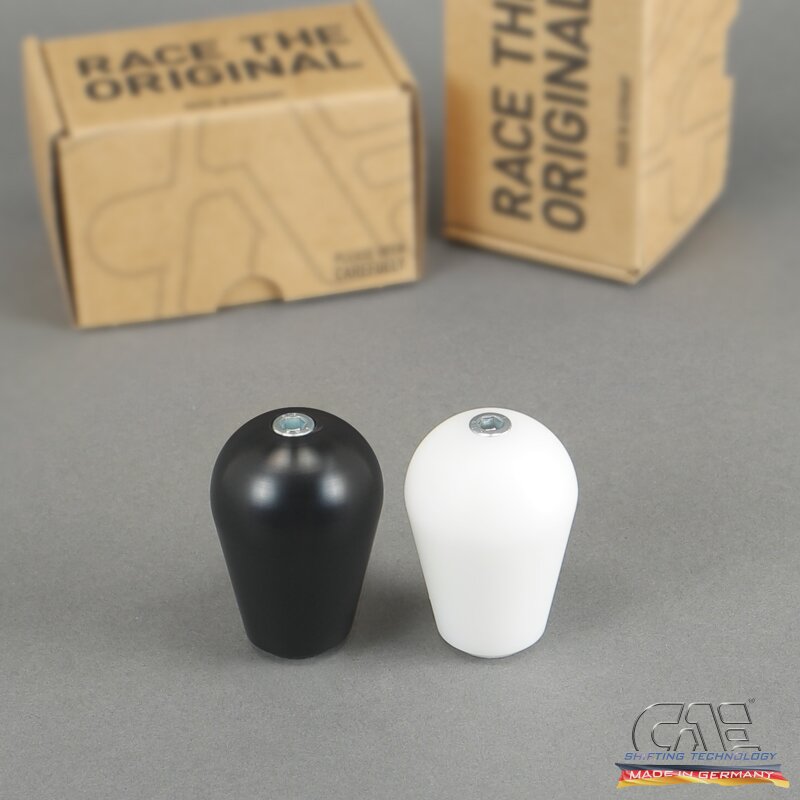

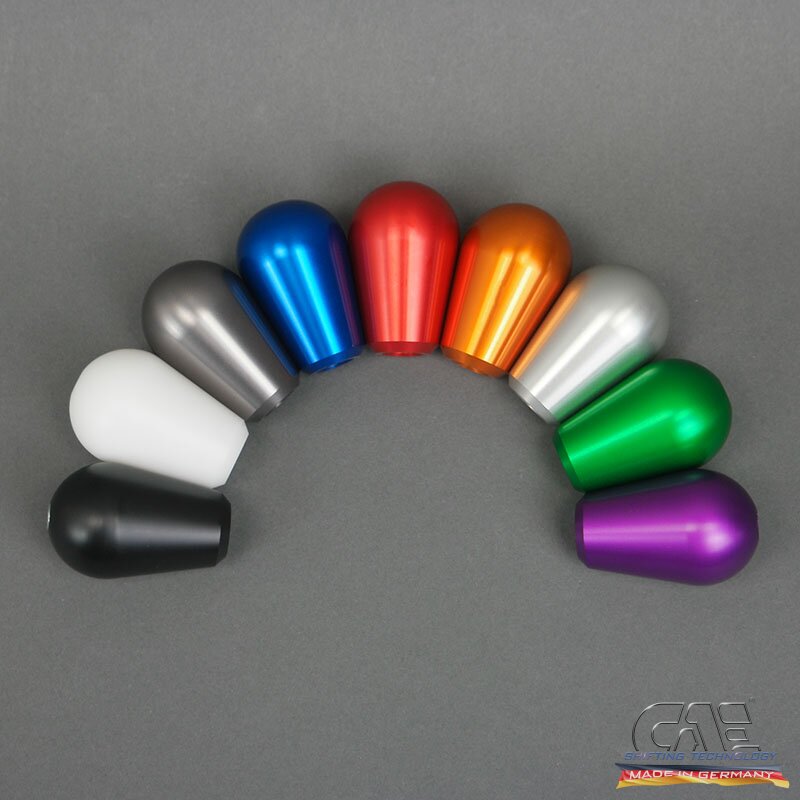

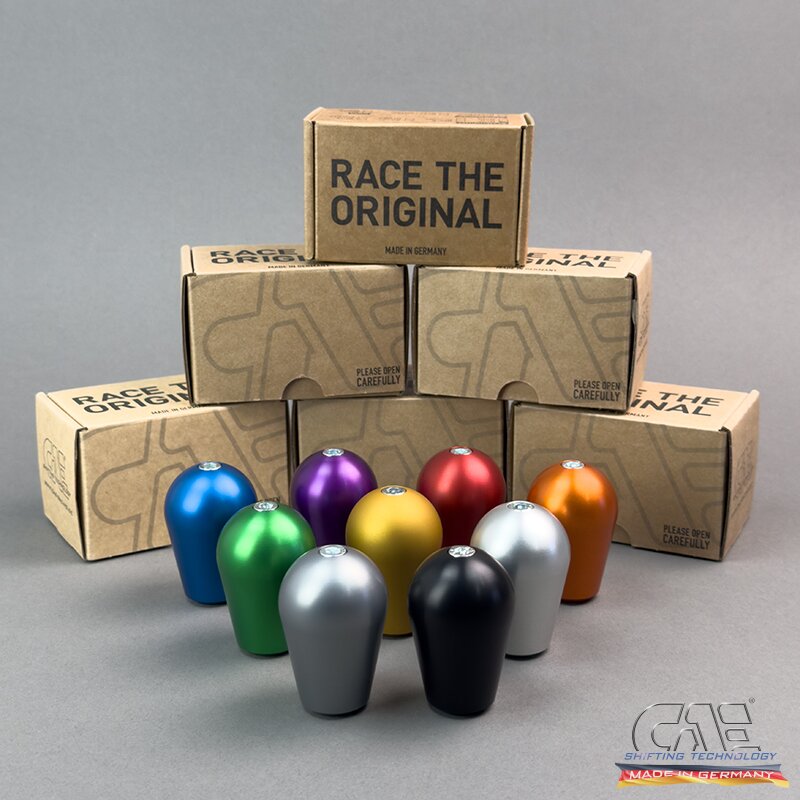

• Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch

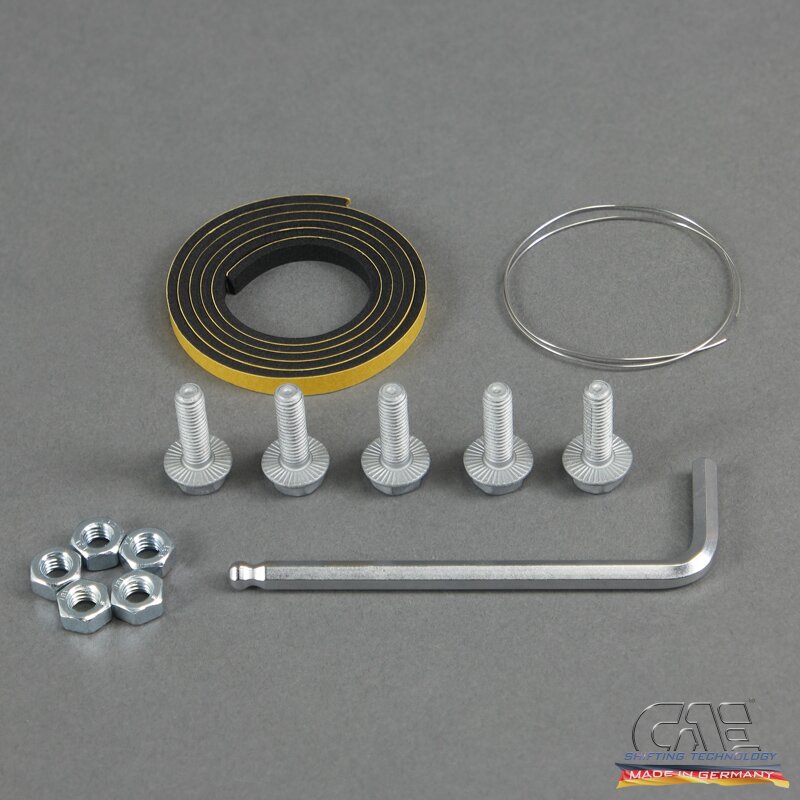

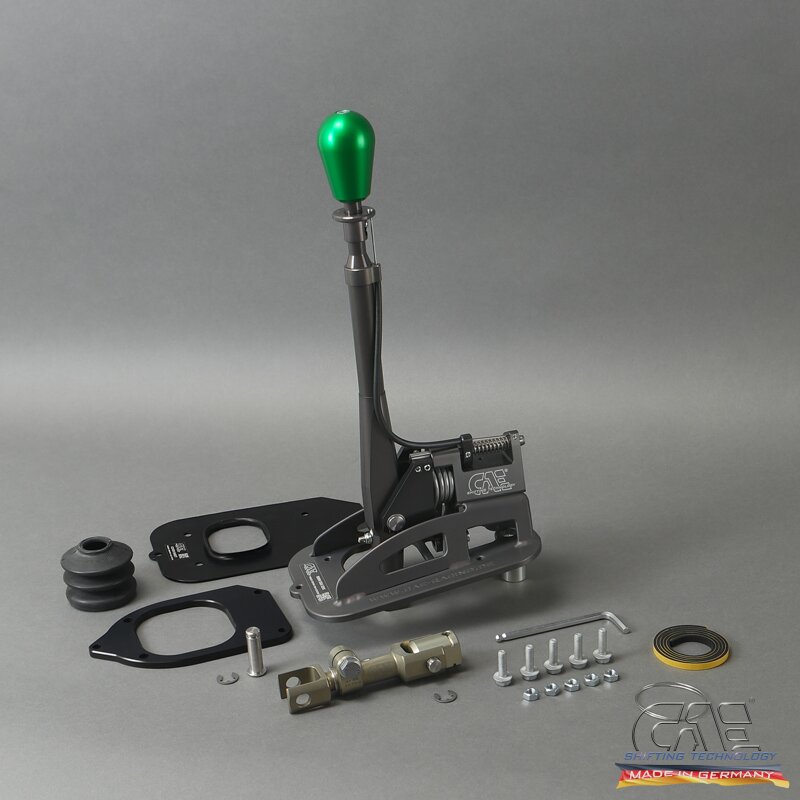

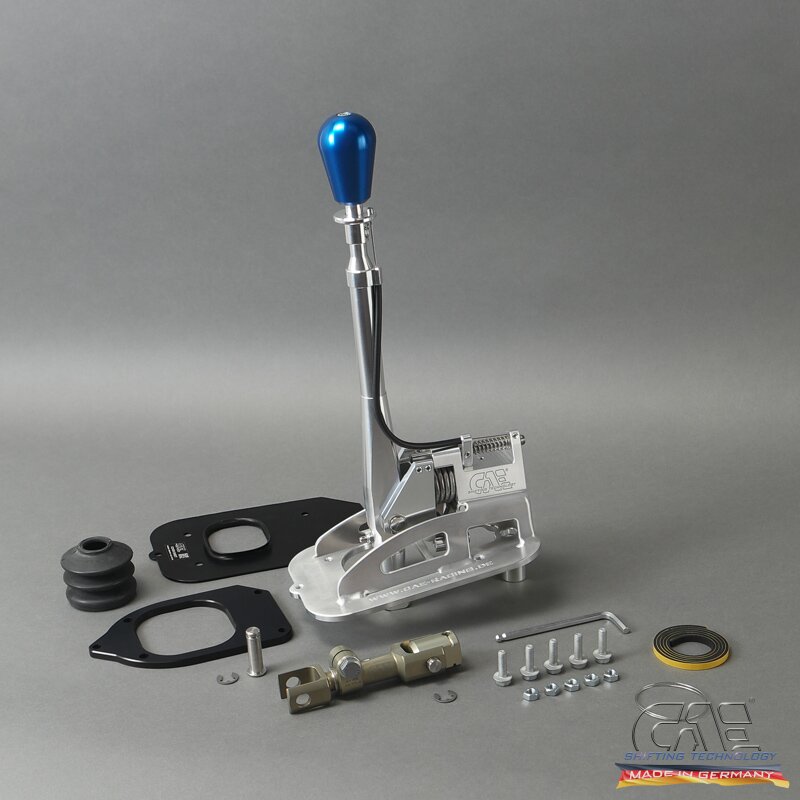

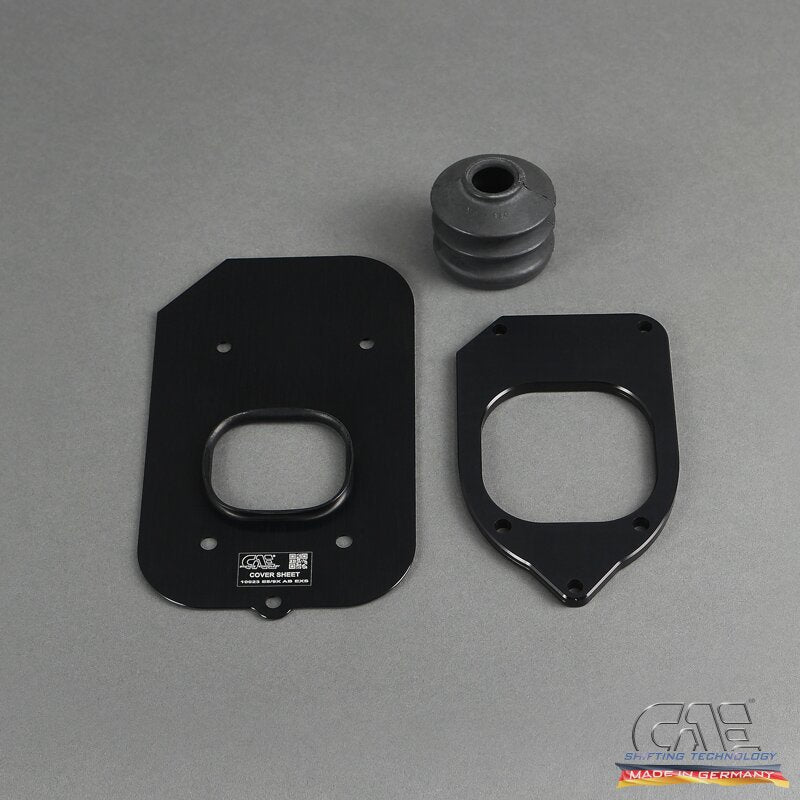

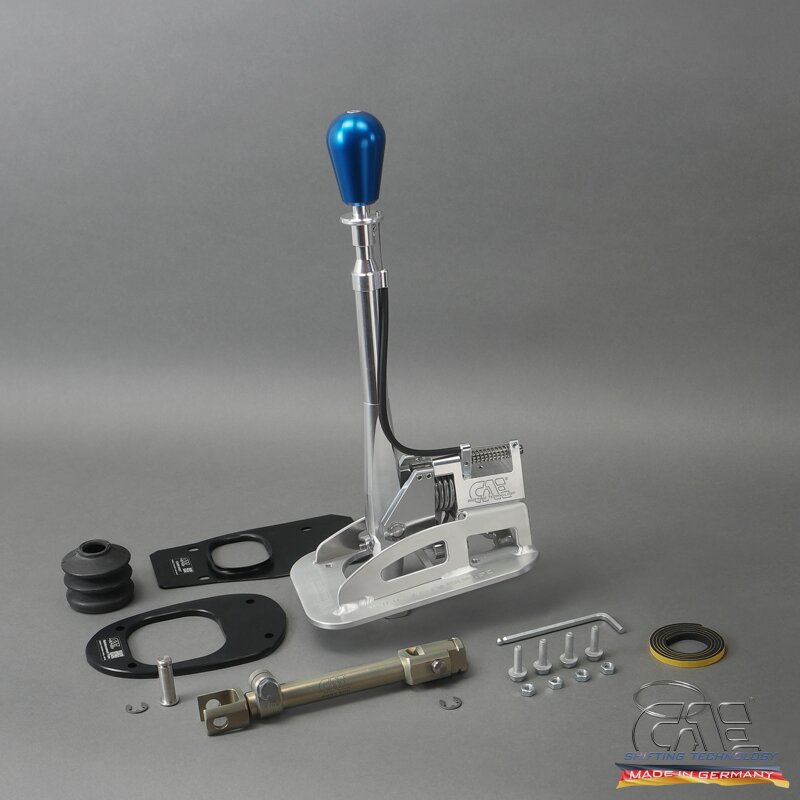

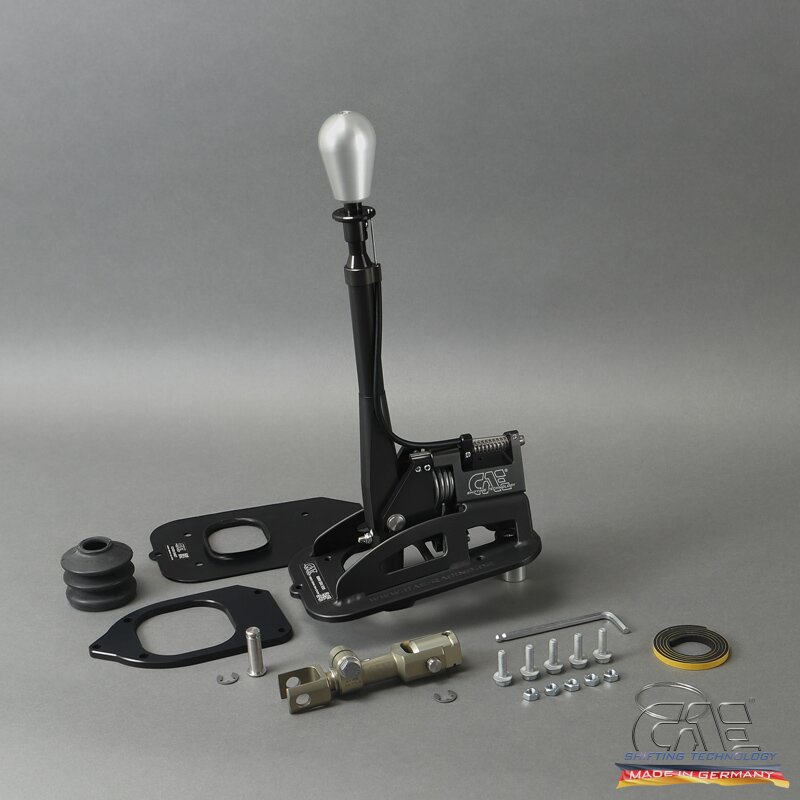

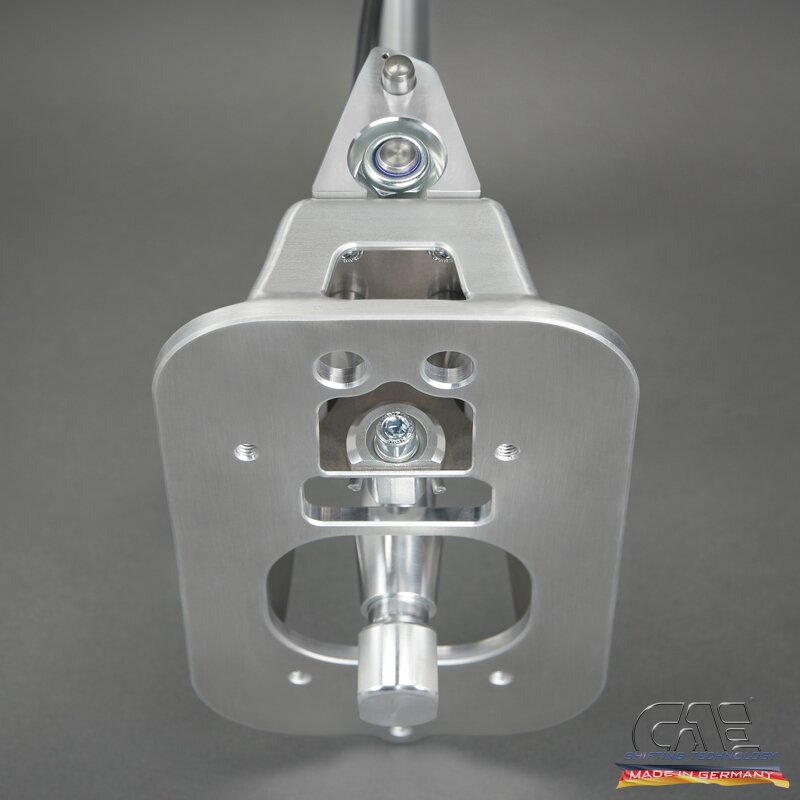

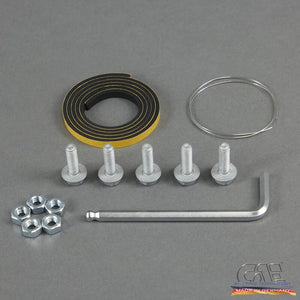

Scope of delivery: Shifter fully pre-assembled, sealing plate with rubber boot; CAE shift rod “3XS”; all small parts and fasteners.

The installation manual is available for download under the "PDF" tab on this page below.
