CAE Shifter BMW Z4

• Fahrzeugspezifischer Kit for BMW Z4 E85 / E86 with manuellem 6--speed gearbox, Standard H-pattern.
  Short and ultra-precise shift throws H-pattern.
• The clutch system remains stock..

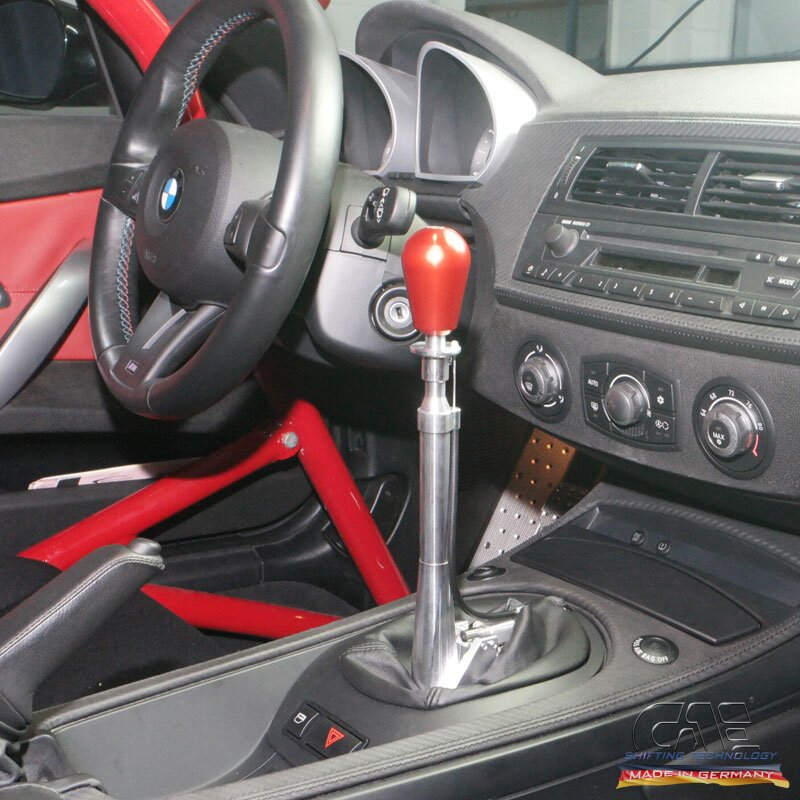

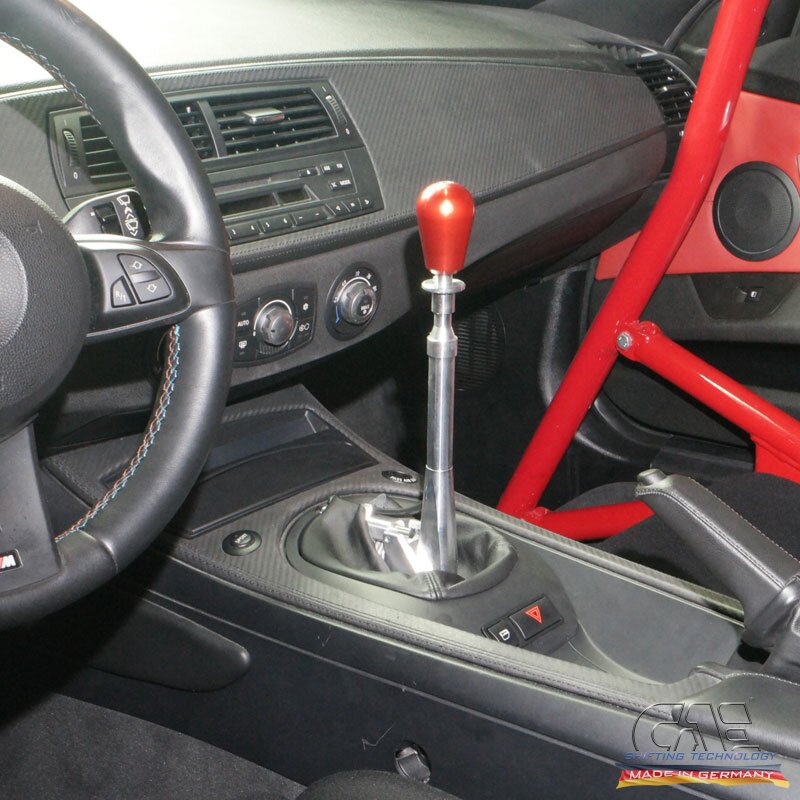

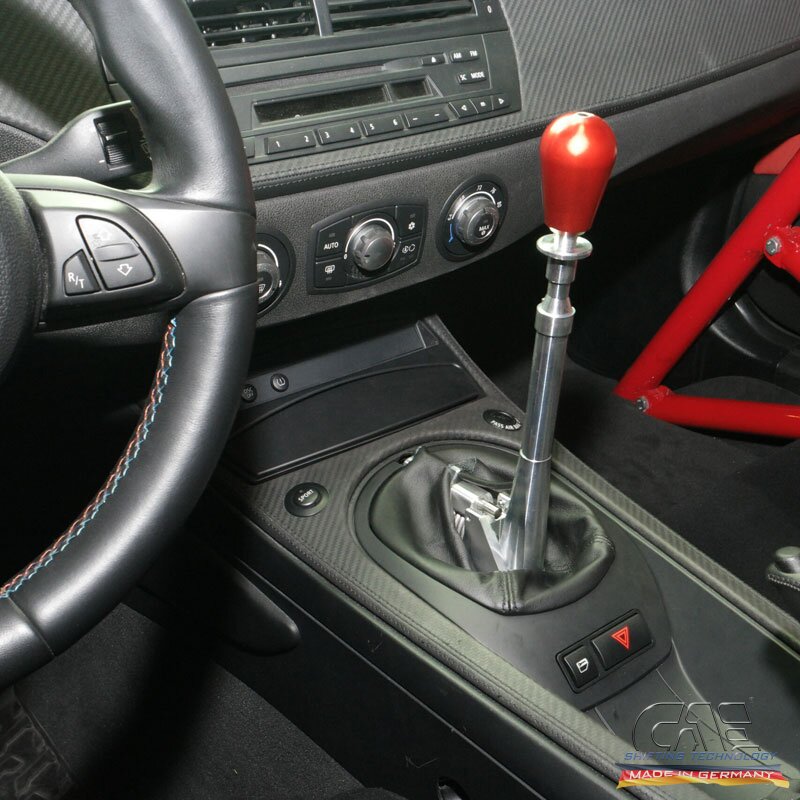

• Optimal ergonomics with a motorsport focus: Perfect positioning of the shift knob close to the steering wheel. The H-pattern gate spans approx. 75 x 75 mm.
• Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.

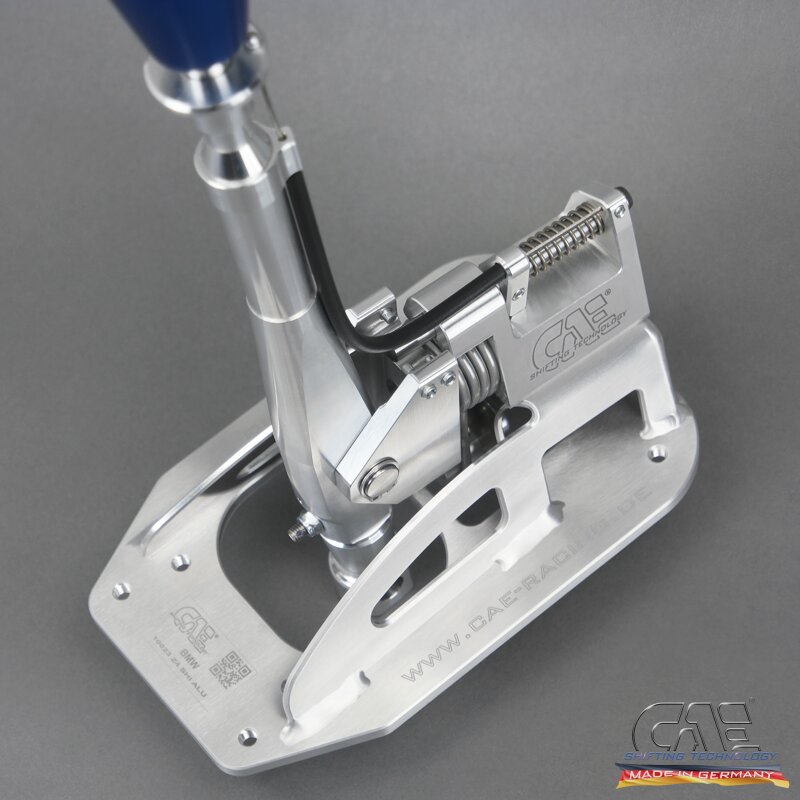

• Low weight with high rigidity: Die milled and turned components are machined from 7075 aluminum, the subframe structures from laser-cut 3/6 mm AlMg3 aluminum sheet. The parts are joined by TIG welding and brushed to a clean finish.
• Smooth gear changes under load and during cornering.

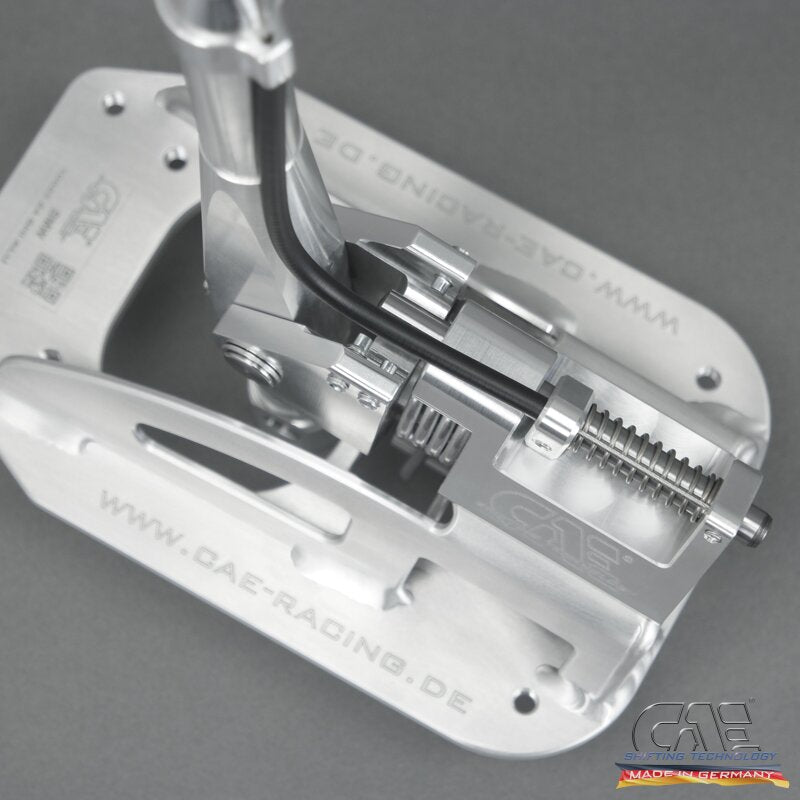

• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.

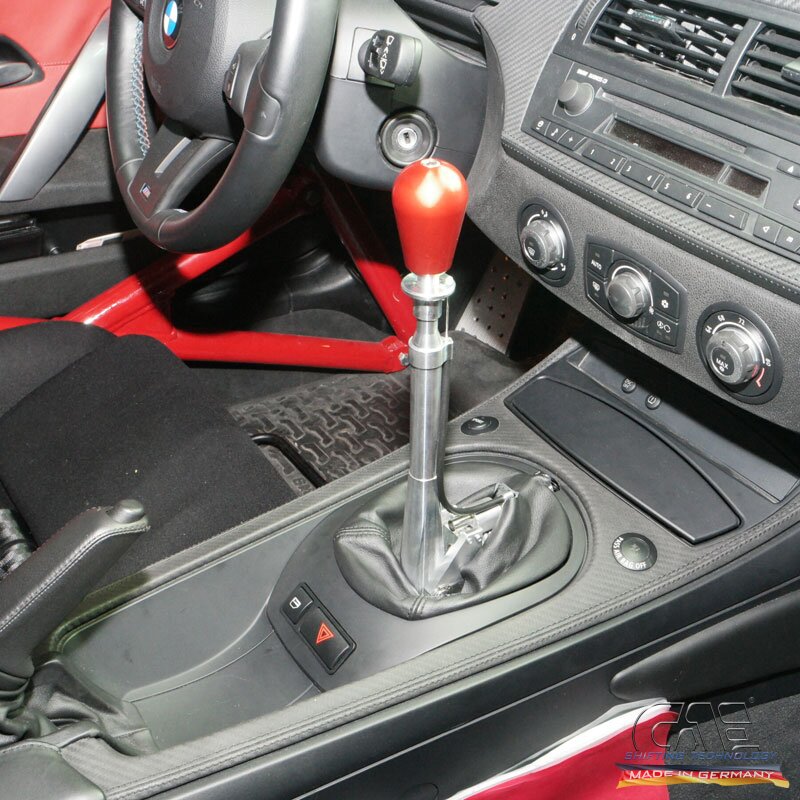

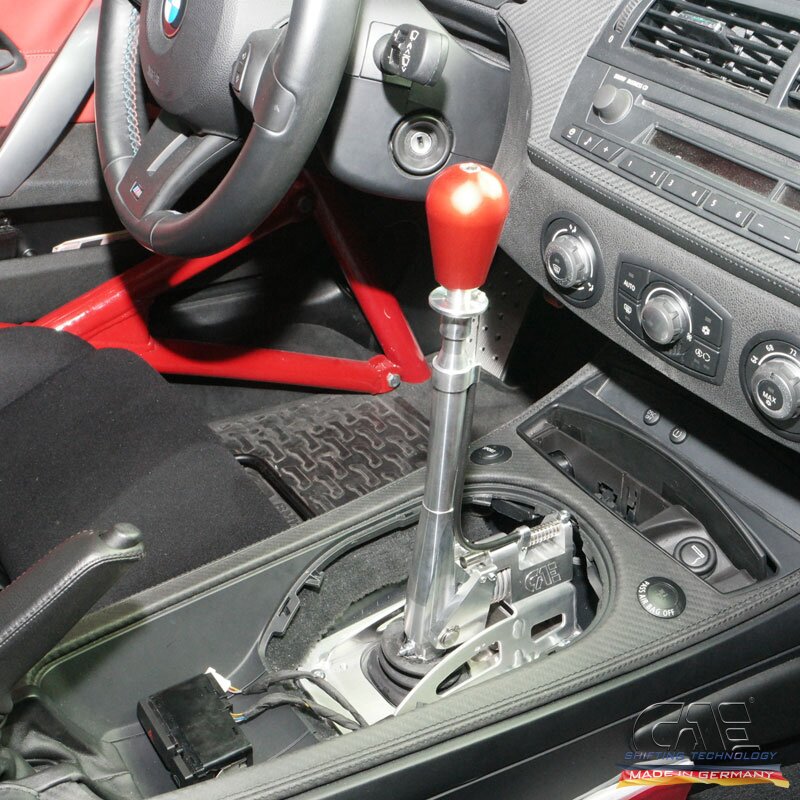

• The shifter is supplied as a complete kit for adaptation to the BMW shift rod, including all small parts and fasteners. Designed for vehicles with interior trim / center console.onsole, which must be modified for installation.

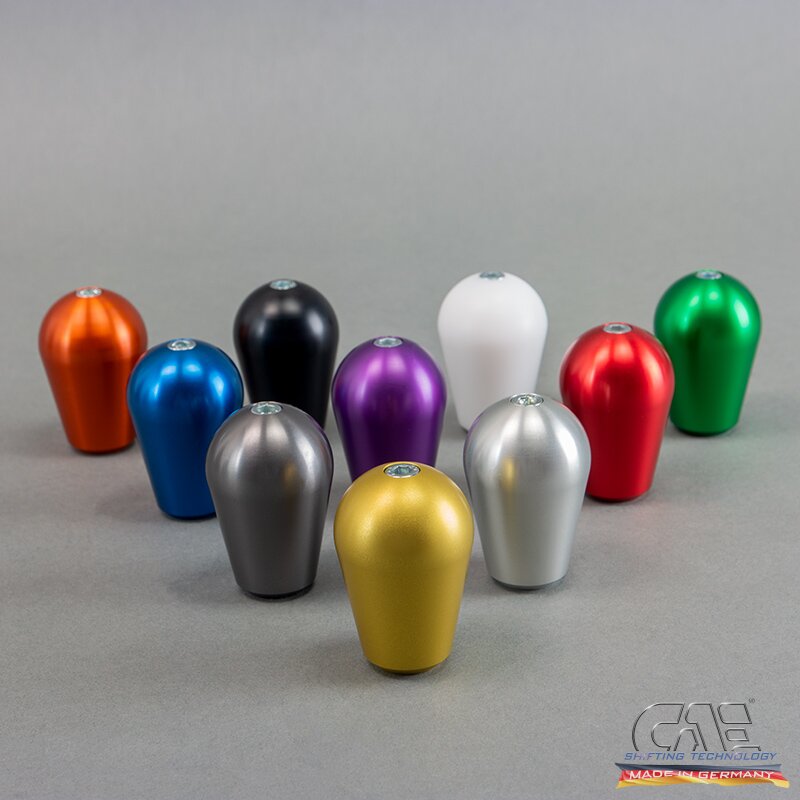

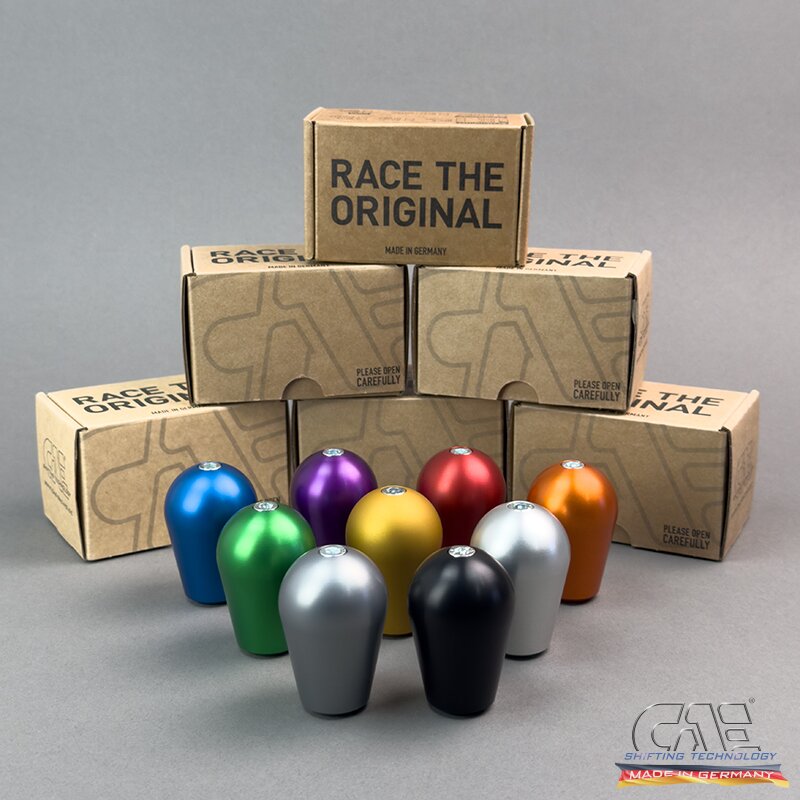

• Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch.

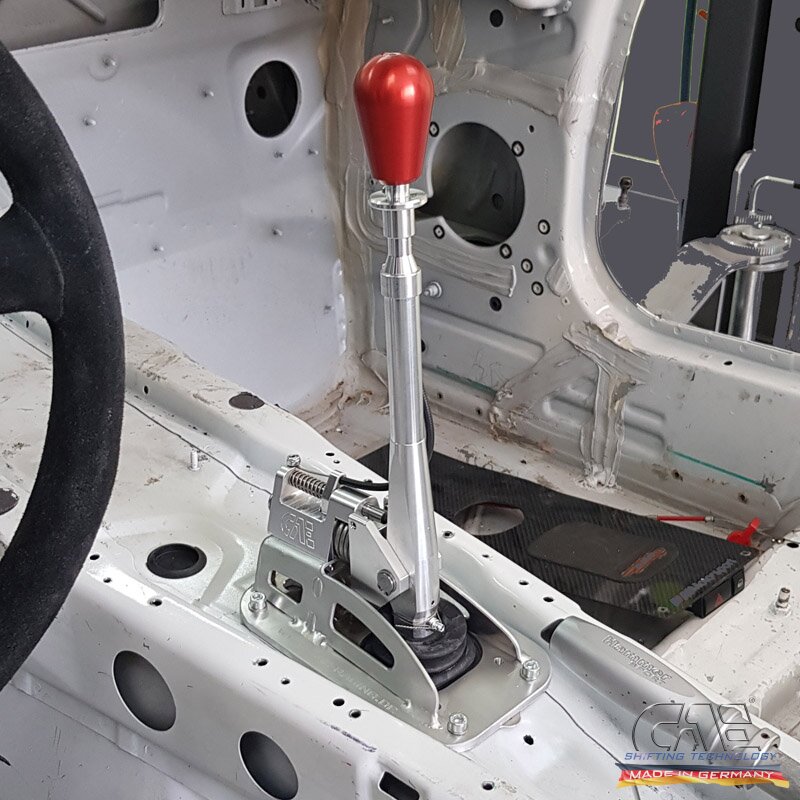

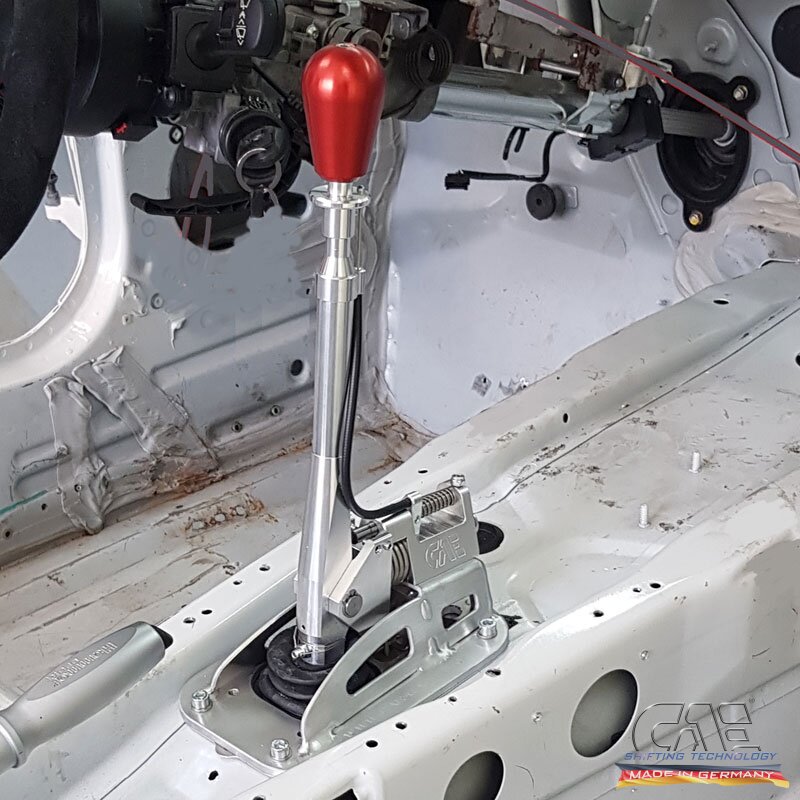

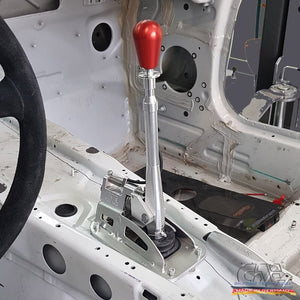

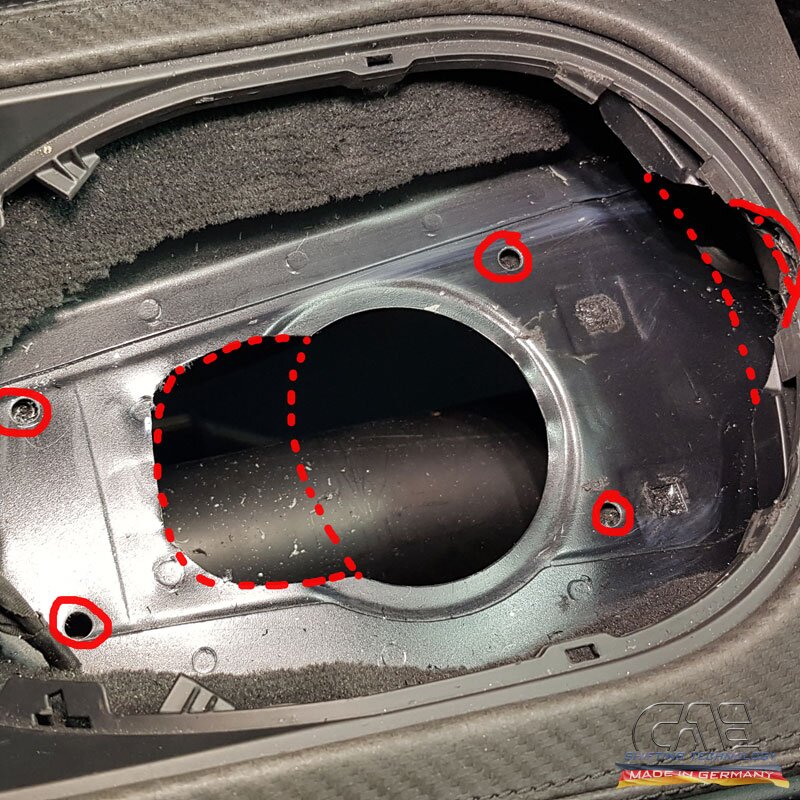

Four 6.5 mm holes must be drilled in the center tunnel for mounting; the tunnel cutout may need to be enlarged depending on shifter position.

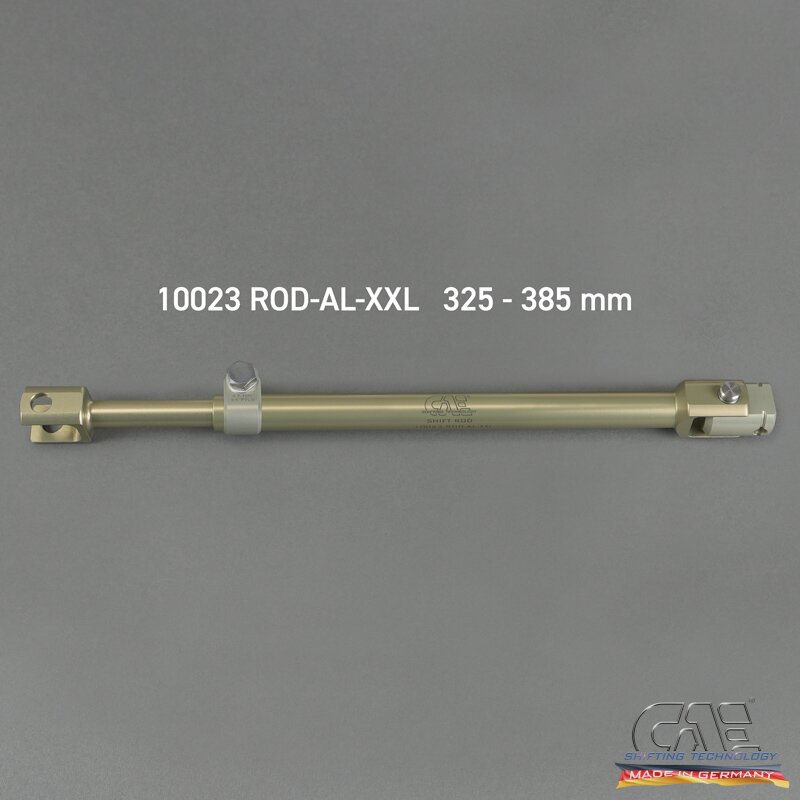

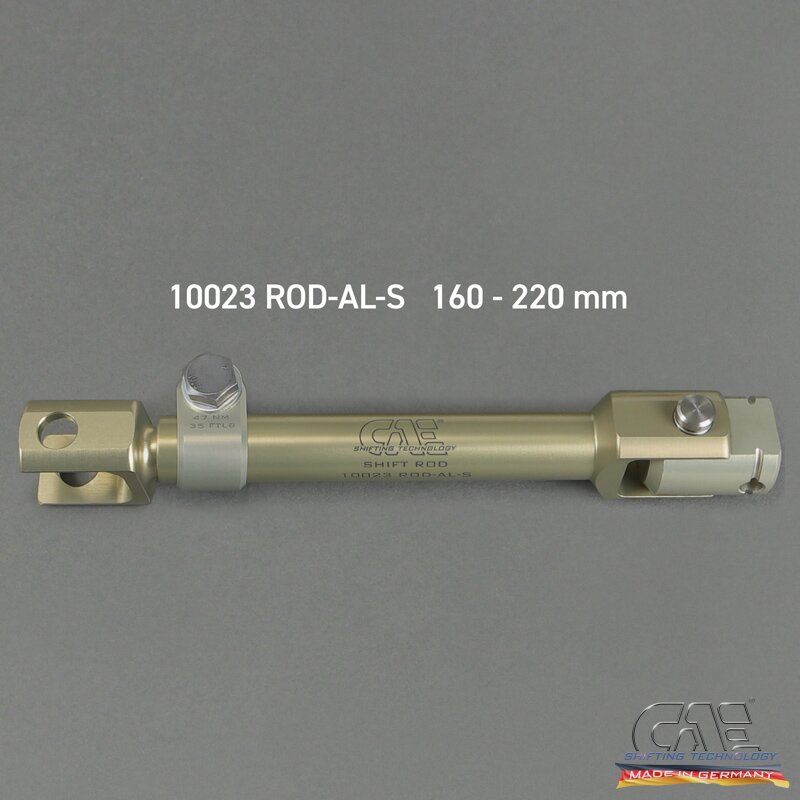

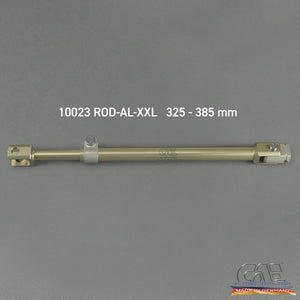

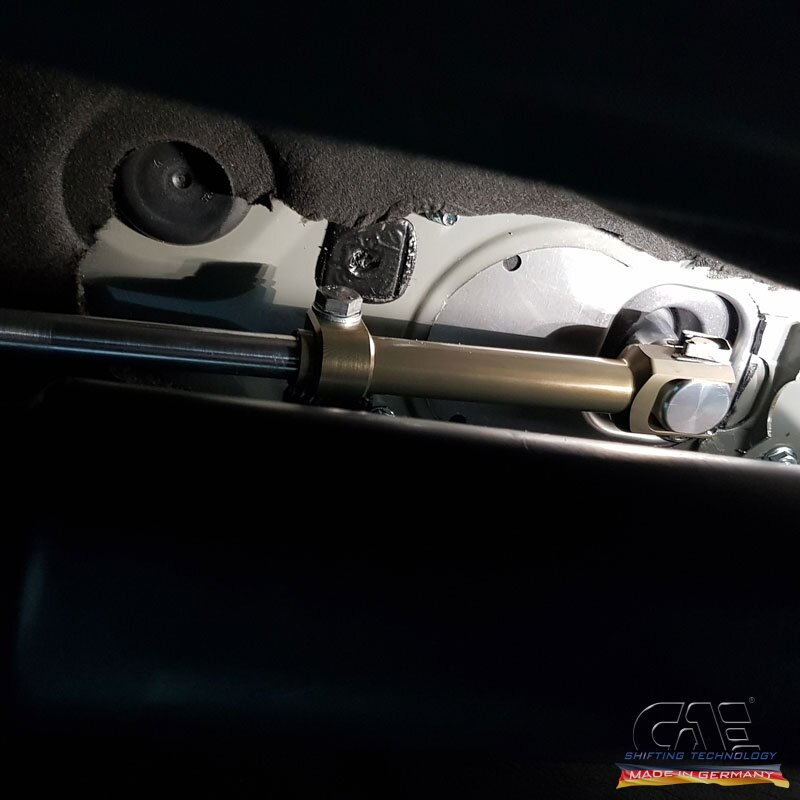

We strongly recommend our shift rod "XL or XXL" for perfect shift feel and shifter positioning relative to seat position. (Please measure the length of the OEM shift rod on the vehicle.))

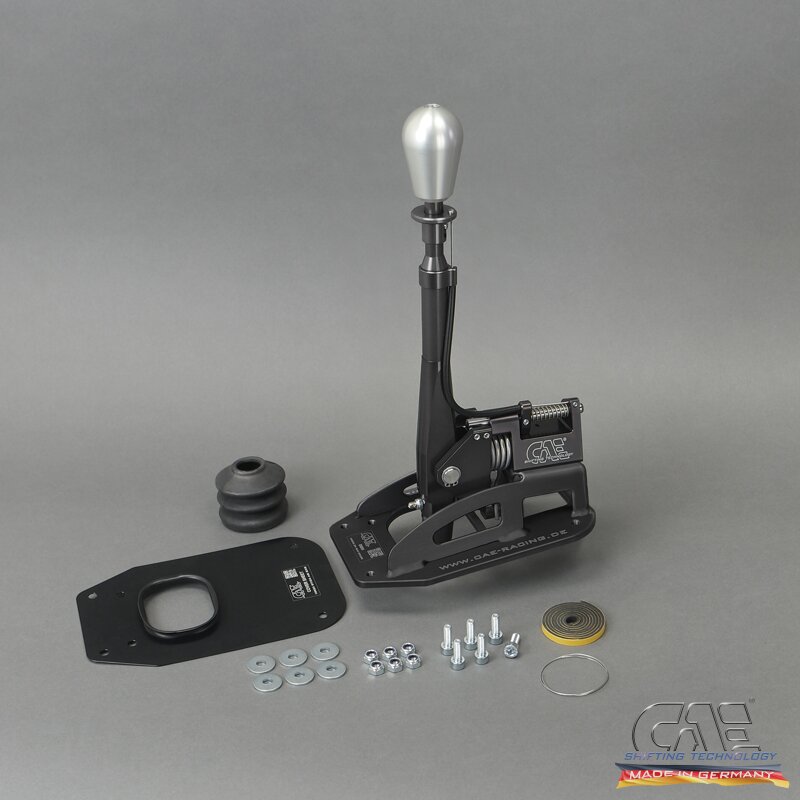

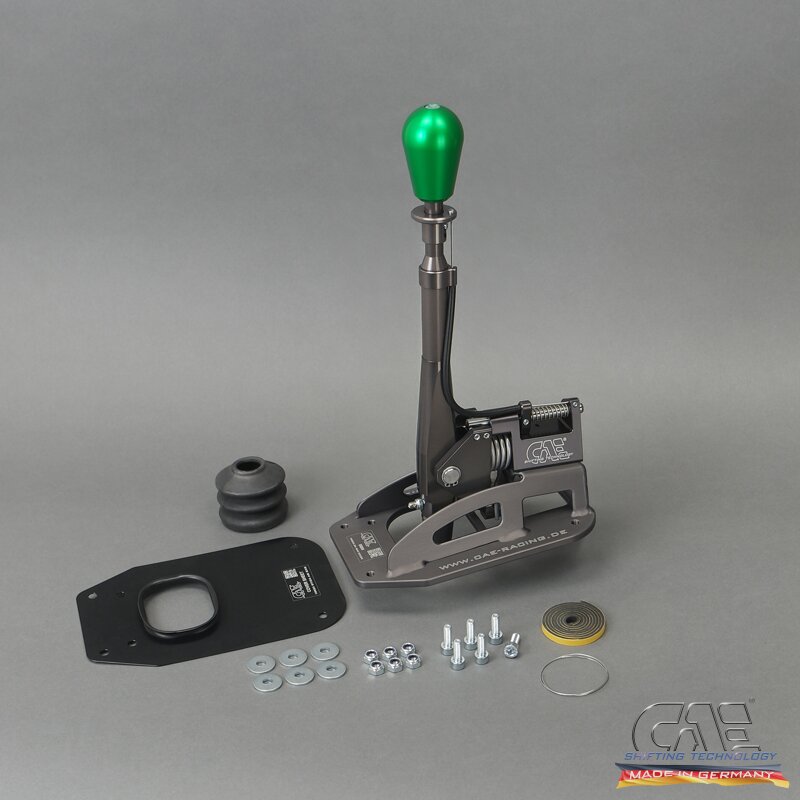

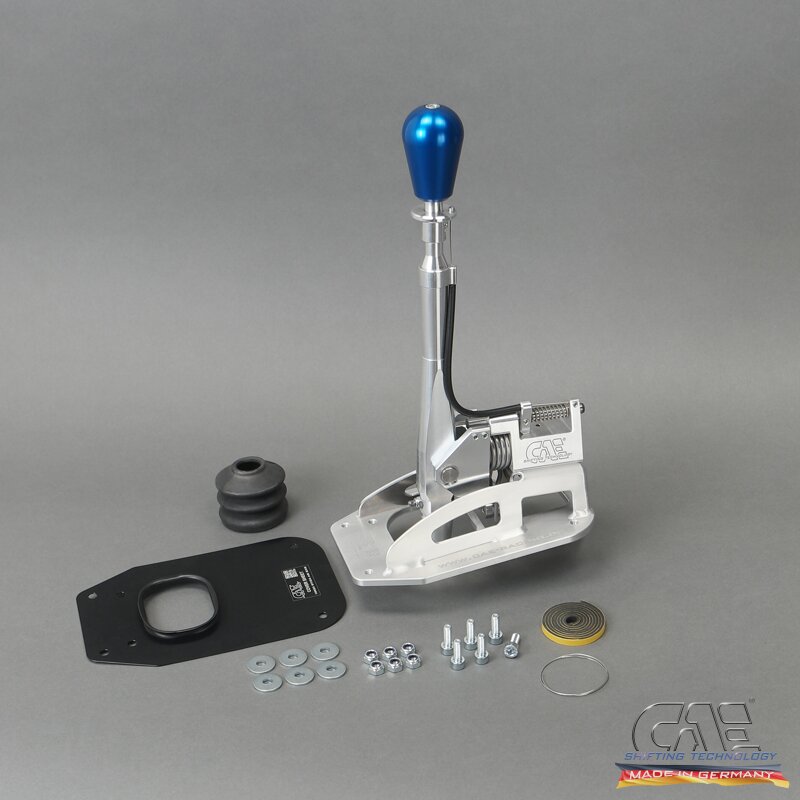

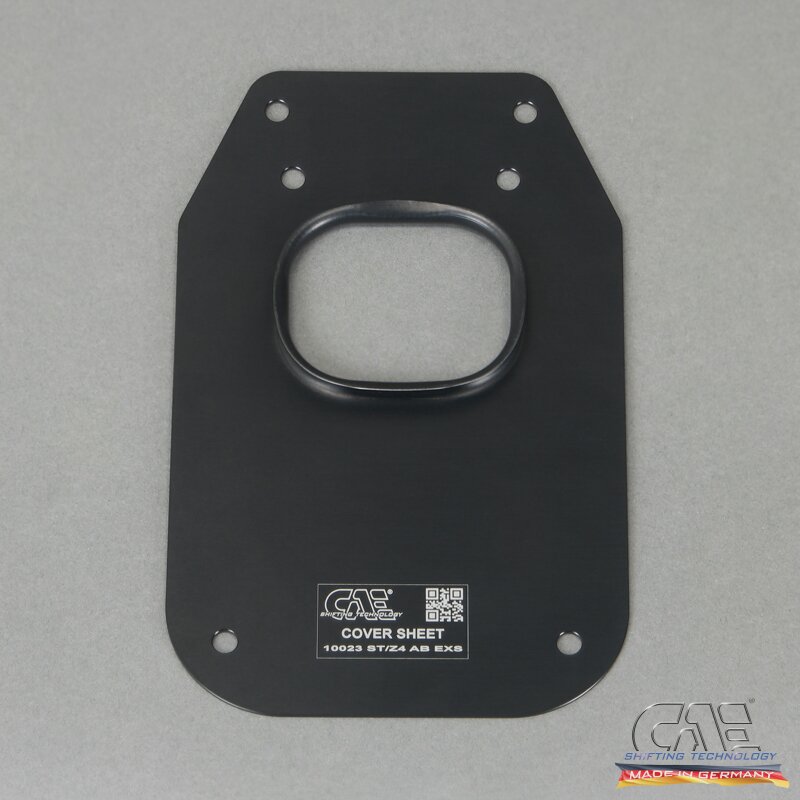

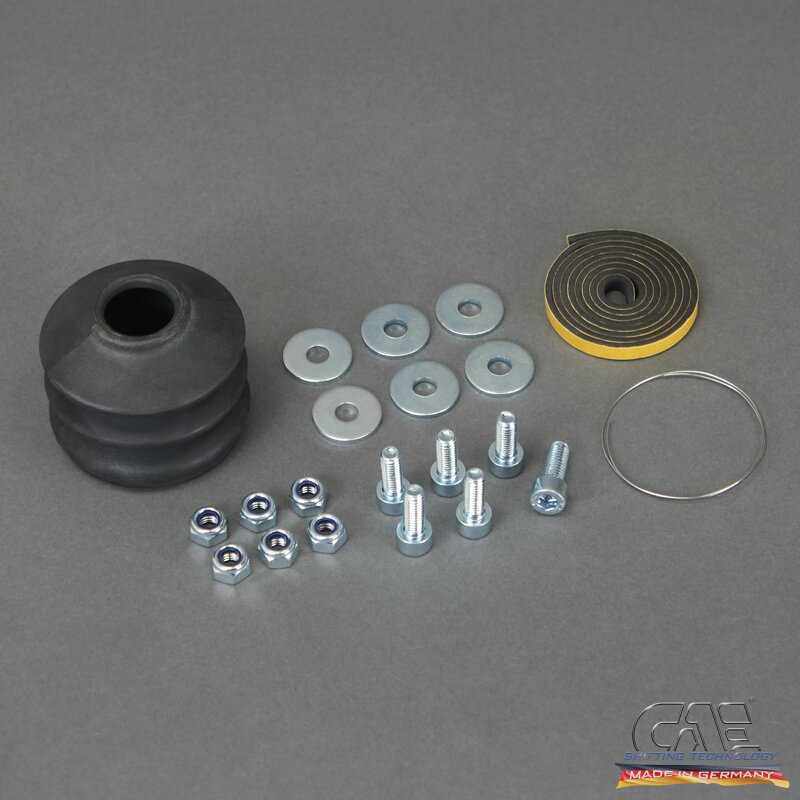

Scope of delivery: Shifter fully pre-assembled, sealing plate with rubber boot; all small parts and fasteners.

The installation manual is available for download under the "PDF" tab on this page below.

If you require a certificate for your shifter, please contact us alongside your purchase.
