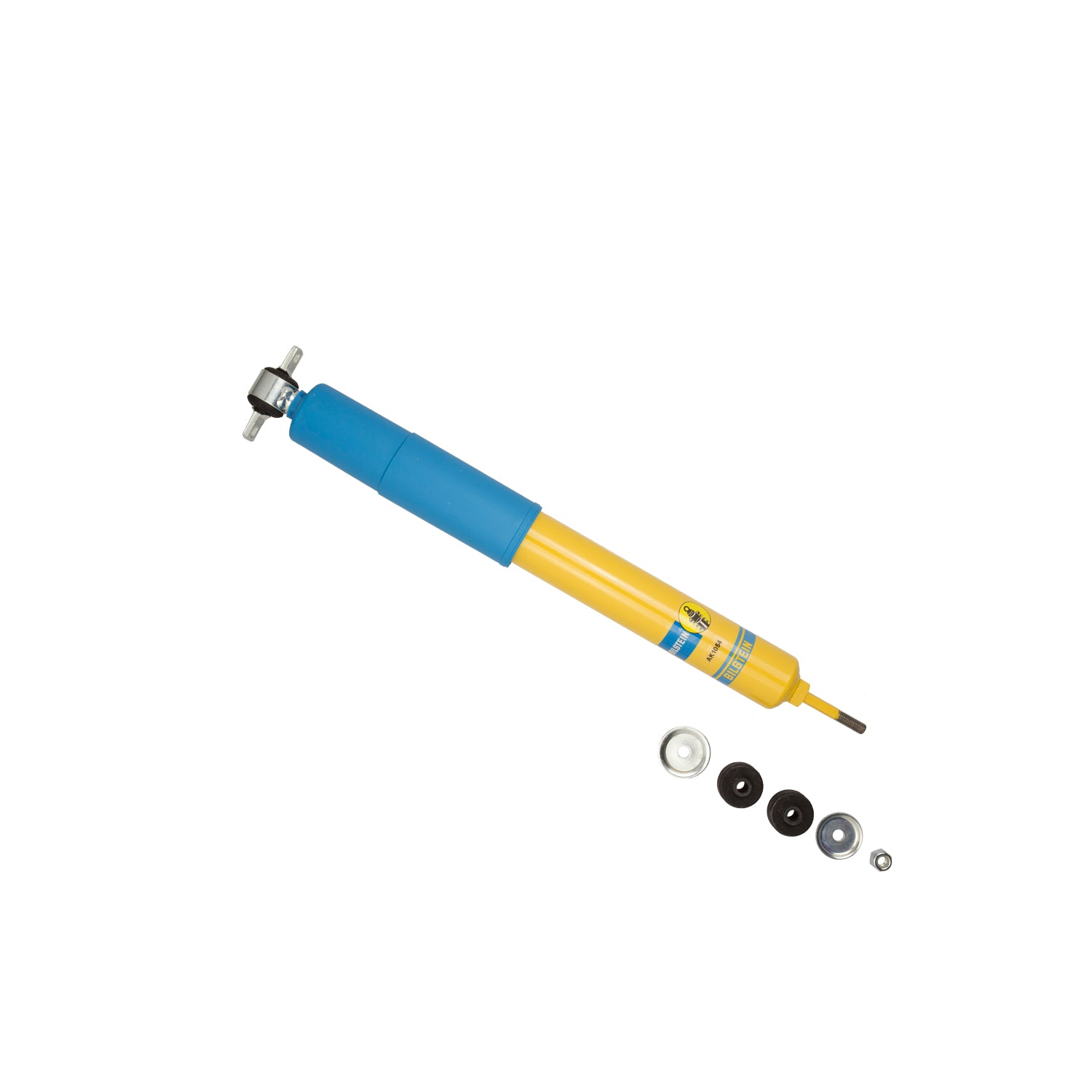

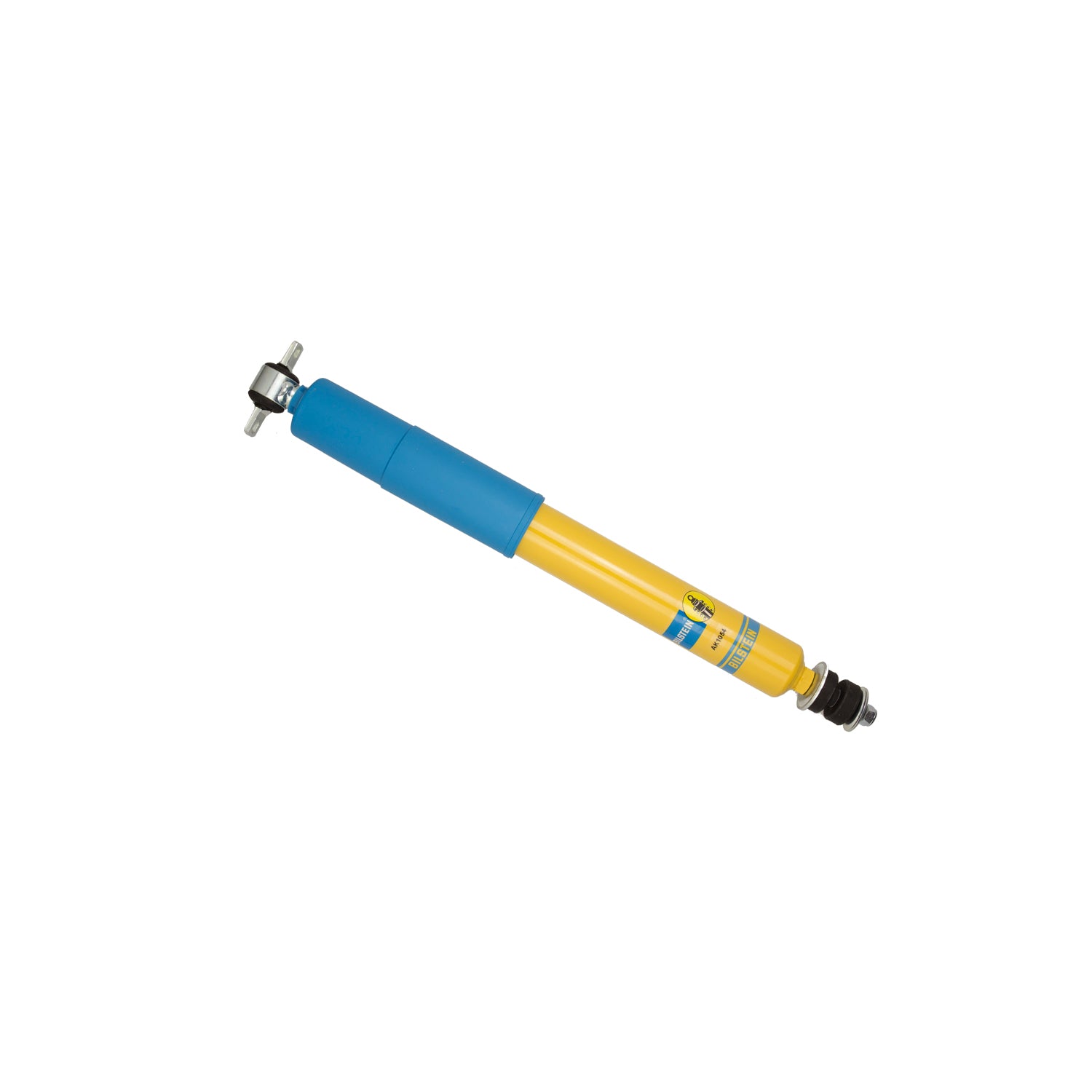

Bilstein Motorsport AK Series Monotube Shock Absorber - 46mm Diameter 20.47in Extended Length - AK1054

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Features

• Monotube design ensures consistent, fade-free performance in all conditions
• Direct fit (OE) mounting design
• Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions

Specifications

• Upper Mount Type: Bar Pin
• Adjustable Damping: Non-Adjustable
• Collapsed Length (mm): 328.1
• Boot Included: Blue Straight
• Body Design: Stock Mount Smooth Body
• Extended Length (in): 20.47
• Rebound @0.52m/S: 1365
• Compression @0.52m/S: 500
• Collapsed Length (in): 12.92
• Body Material: Steel
• Spring Seat Included: No
• Extended Length (mm): 520.0
• Piston Diameter: 46mm
• Shaft Diameter: 11mm
• Stroke/Travel Length (mm): 194.8
• Stroke/Travel Length (in): 7.67
• Lower Mount Type: Stem
• Finish: Yellow Paint
• Internal Design: Monotube
• Series: AK Series
• Piston Type: Linear

Application

• No Applications
