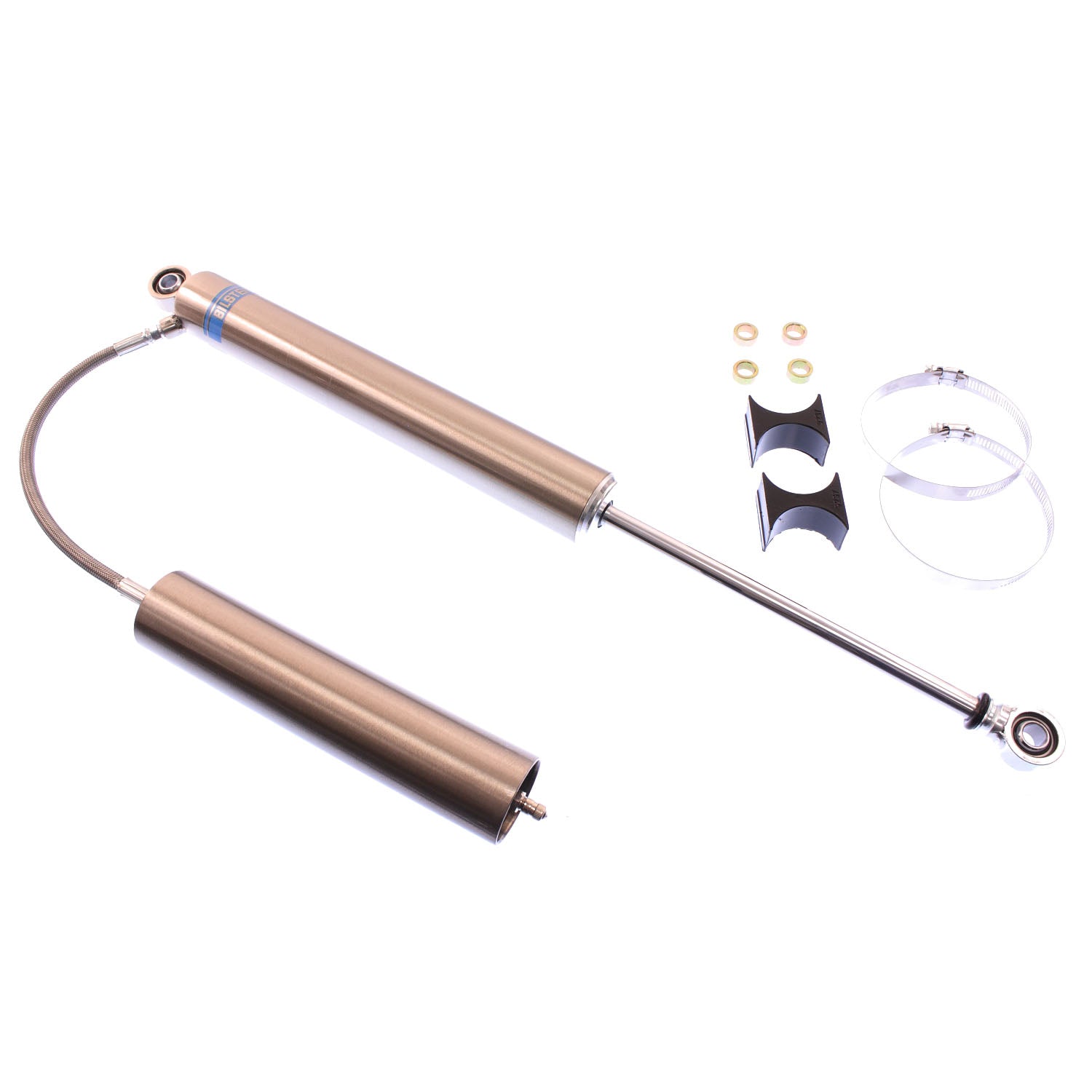

Bilstein Motorsport 10in. TRVL RSRVR SHK PLTD 275/78 46mm Monotube Shock Absorber - B46-0360R

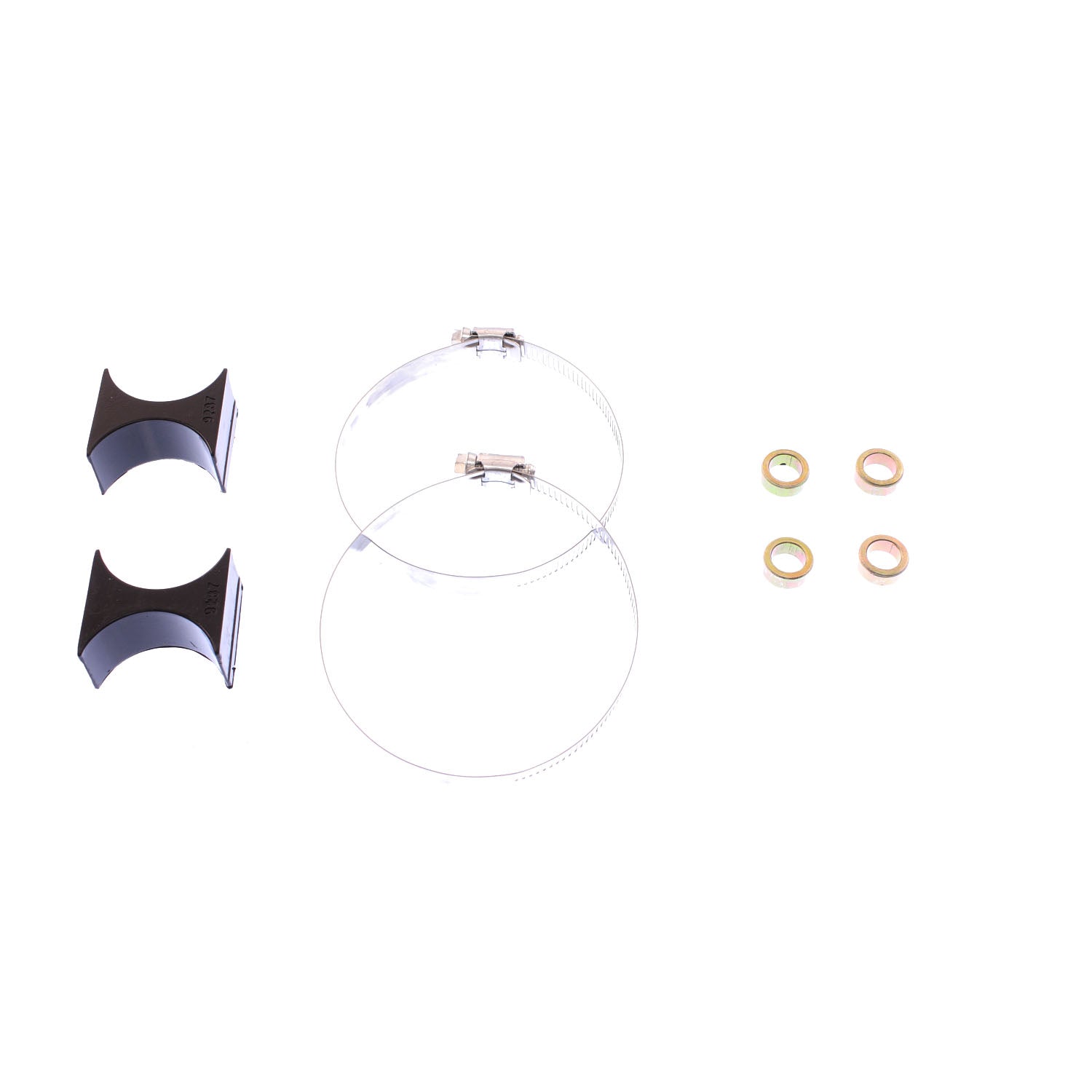

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• High-flow piston reduces harshness

Specifications

• Mount Type: Eye-to-Eye
• Collapsed Length (mm): 408.9
• Compression @0.52m/S: 780
• Extended Length (in): 25.77
• Lower Mount Type: 1/2in Heim
• Series: M 7100
• Extended Length (mm): 654.6
• Finish: Nickel Plated with Clear Powder Coat
• Body Design: Smooth Body (Non-Coilover)
• Upper Mount Type: 1/2in Heim
• Internal Design: Monotube
• Rebound @0.52m/S: 2750
• Reservoir: No
• Spring Seat Included: No
• Collapsed Length (in): 16.10
• Piston Diameter: 46mm
• Shaft Diameter (mm): 14.0
• Stroke/Travel Length (mm): 245.6
• Stroke/Travel Length (in): 9.67

Application

• No Applications
