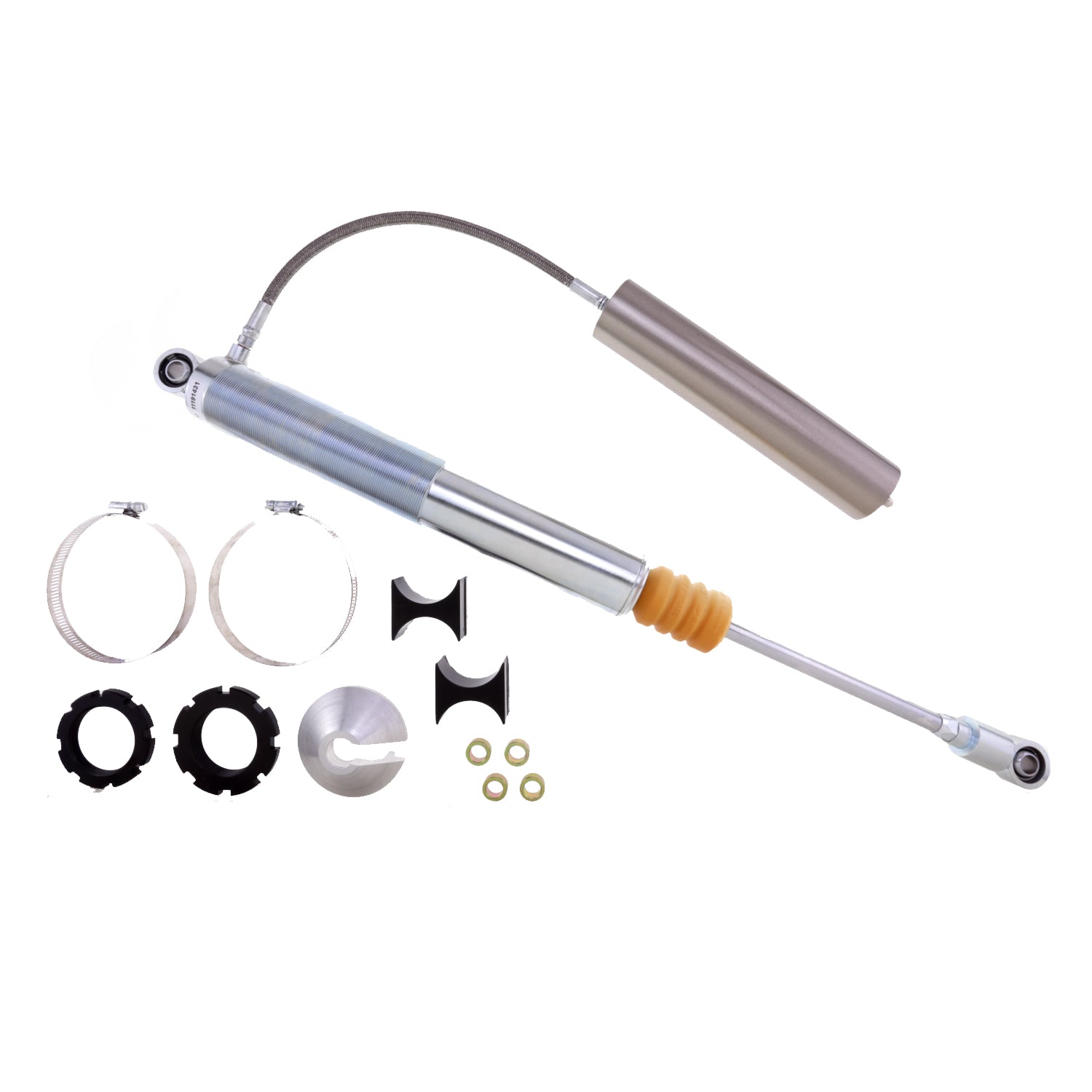

Bilstein Motorsport 10in. TRVL CL W/RESRVOIR 255/100 46mm Monotube Shock Absorber - B46-1103R

Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• High-flow piston reduces harshness

Specifications

• Upper Mount Type: 1/2in Heim
• Rebound @0.52m/S: 2550
• Reservoir: Yes
• Extended Length (mm): 676.9
• Series: M 7100 (Coilover)
• Mount Type: Eye-to-Eye
• Spring Seat Included: Yes
• Body Design: Threaded Body (Coilover)
• Lower Mount Type: 1/2in Heim
• Collapsed Length (mm): 443.0
• Piston Diameter: 46mm
• Collapsed Length (in): 17.44
• Finish: Nickel Plated with Clear Powder Coat
• Extended Length (in): 26.65
• Internal Design: Monotube
• Compression @0.52m/S: 1000
• Spring Hardware: Single Rate (2.5in)
• Shaft Diameter (mm): 14.0
• Stroke/Travel Length (mm): 233.9
• Stroke/Travel Length (in): 9.21

Application

• No Applications
