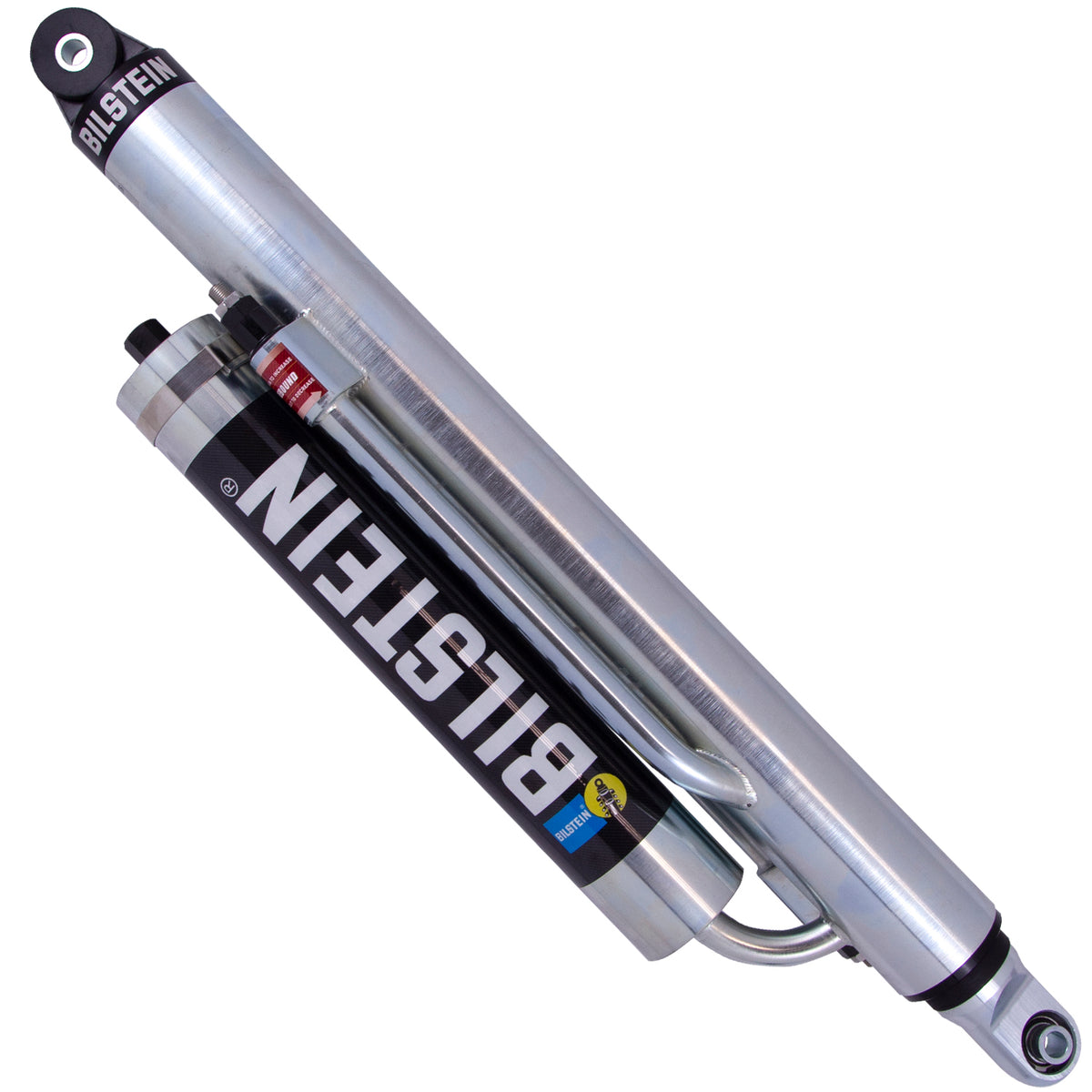

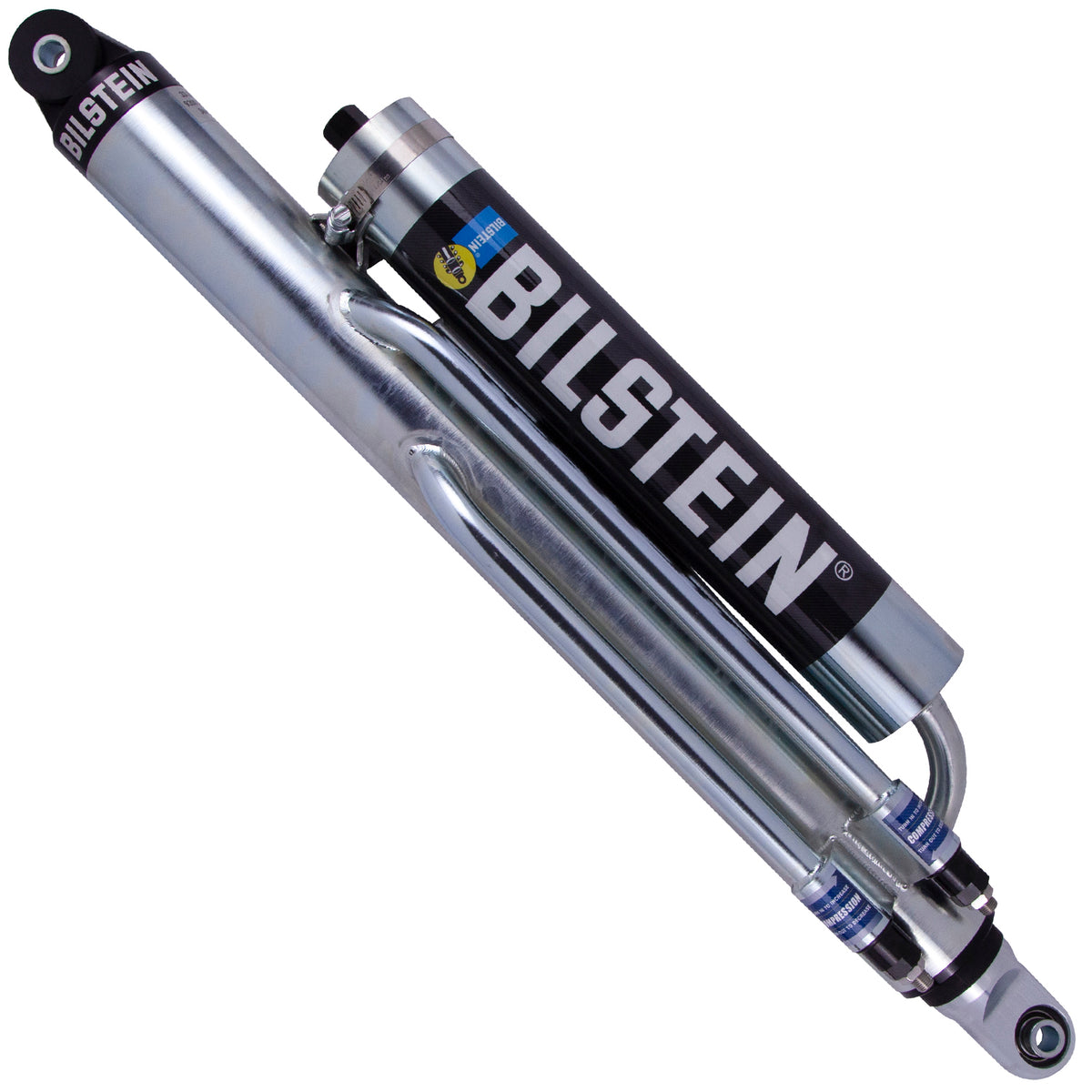

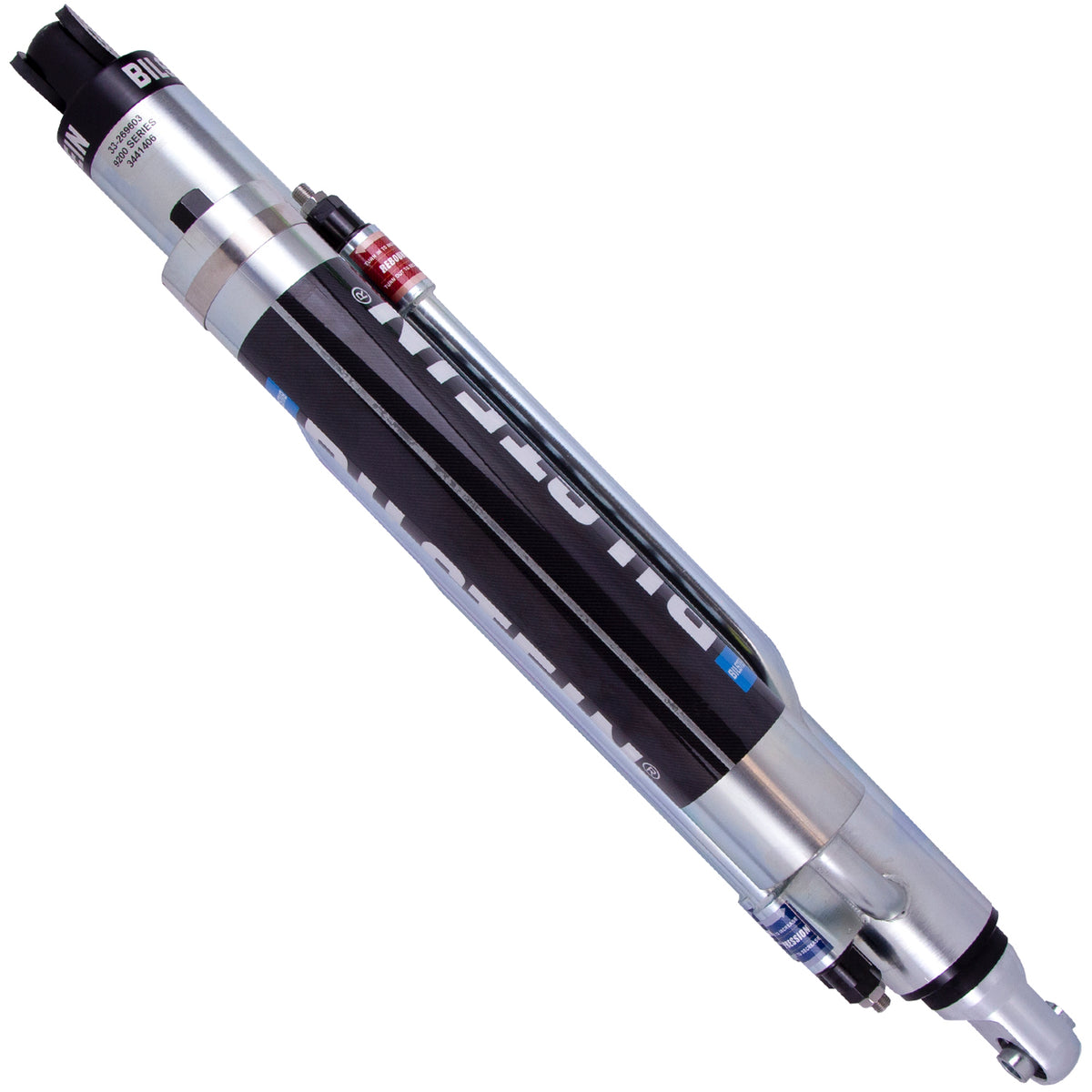

Bilstein M 9200 (Bypass) 3-Tube 14in Stroke Zinc Plated Left Side Monotube Shock Absorber - 33-269580

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Features

• Available in 60mm, 70mm and 83mm monotubes
• 4-tube, position sensitive with adjustable rebound and compression
• Multiple stroke lengths available ranging from 8" to 18"

Specifications

• Compression @0.52m/S: Custom
• Collapsed Length (mm): 622.3
• Body Design: 3-Tube Bypass Screw Top
• Extended Length (in): 38.50
• Upper Mount Type: Eye .5x1.5in
• Finish: Zinc Plated
• Mount Type: Eye-to-Eye
• Spring Seat Included: No
• Collapsed Length (in): 24.50
• Piston Diameter: 60mm
• Stroke/Travel Length (in): 14.00
• Shaft Diameter (mm): 22.0
• Stroke/Travel Length (mm): 355.6
• Position: Left
• Lower Mount Type: Eye .5x1.5in
• Rebound @0.52m/S: Custom
• Series: M 9200 (Bypass)
• Extended Length (mm): 977.9
• Reservoir: Yes
• Internal Design: Monotube

Application

• No Applications
