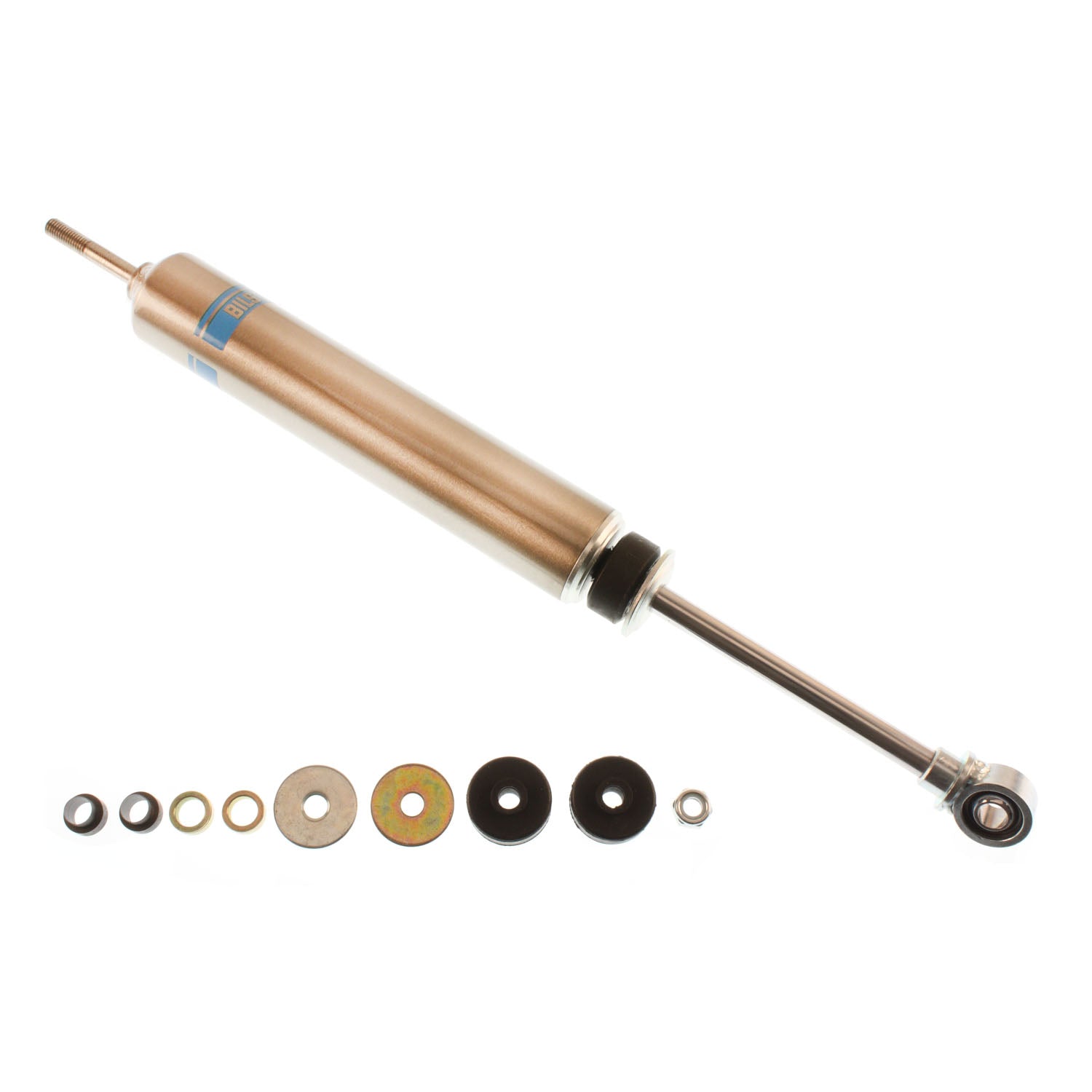

Bilstein 7100 Classic Series 46mm Collapsed L 12.15in Extended L 18.74in Monotube Shock Absorber - F4-BOA-0000304

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications in a wide variety of lengths
• Self-adjusting deflective disc valving

Specifications

• Series: M 7100 Classic
• Reservoir: No
• Collapsed Length (in): 12.15
• Extended Length (in): 18.74
• Lower Mount Type: 12mm Heim
• Extended Length (mm): 476.0
• Compression @0.52m/S: 1150
• Internal Design: Monotube
• Mount Type: Stem-to-Eye
• Upper Mount Type: Stem
• Rebound @0.52m/S: 2200
• Piston Diameter: 46mm
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (mm): 308.6
• Finish: Nickel Plated with Clear Powder Coat
• Spring Seat Included: No
• Shaft Diameter (mm): 11.0
• Stroke/Travel Length (mm): 167.4
• Stroke/Travel Length (in): 6.59

Application

• No Applications
