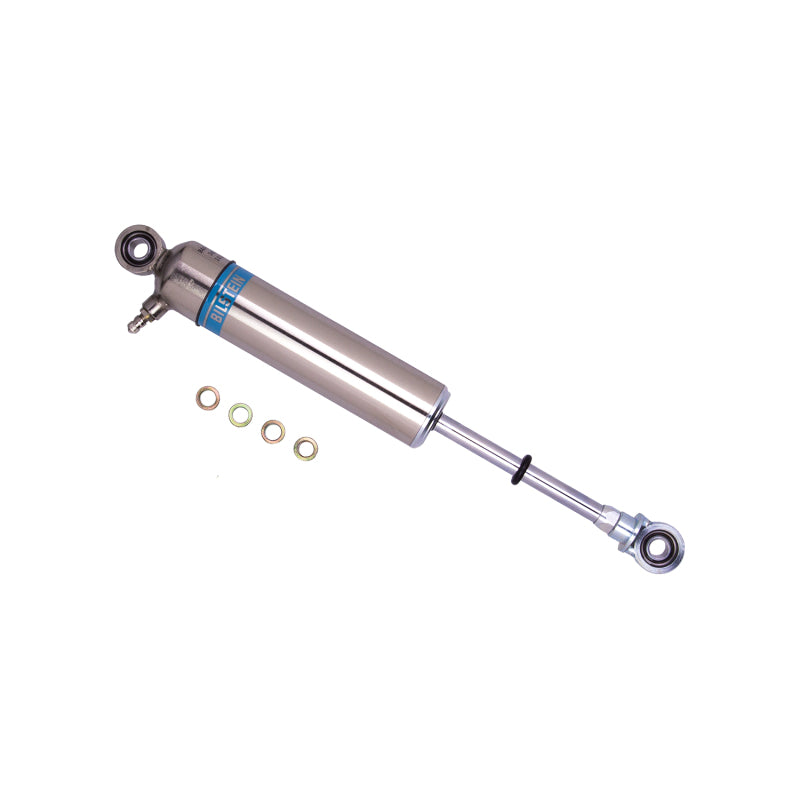

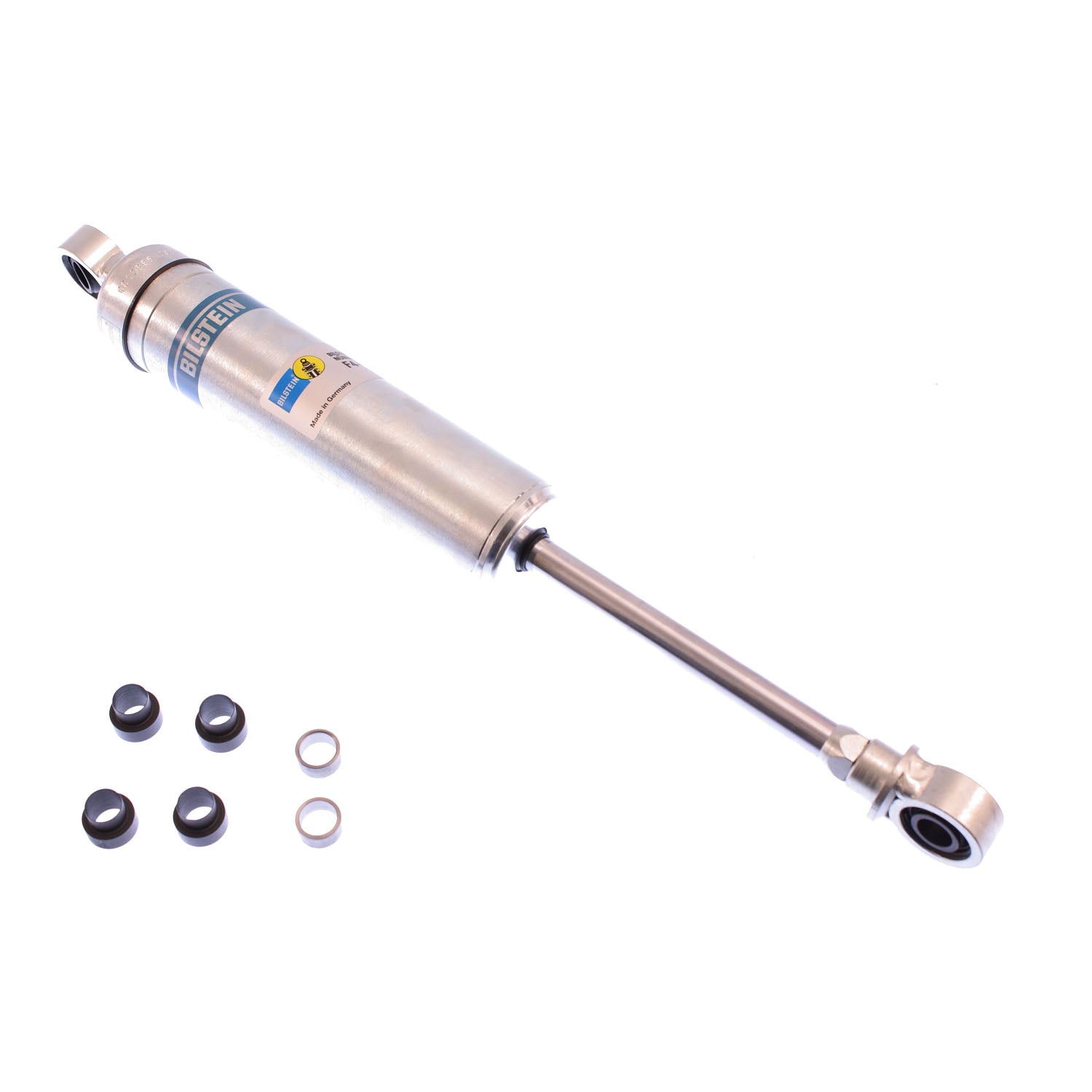

Bilstein 7100 Classic Series 46mm 16.24in Length Monotube Shock Absorber - F4-B46-0930-H0

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications in a wide variety of lengths
• Self-adjusting deflective disc valving

Specifications

• Compression @0.52m/S: 1600
• Series: M 7100 Classic
• Collapsed Length (mm): 285.5
• Upper Mount Type: 1/2in Heim
• Rebound @0.52m/S: 3500
• Reservoir: No
• Internal Design: Monotube
• Extended Length (in): 16.24
• Finish: Zinc Plated
• Mount Type: Eye-to-Eye
• Body Design: Smooth Body (Coilover)
• Collapsed Length (in): 11.24
• Lower Mount Type: 1/2in Heim
• Extended Length (mm): 412.5
• Spring Seat Included: No
• Stroke/Travel Length (mm): 127.0
• Piston Diameter: 46mm
• Shaft Diameter (mm): 14.0
• Stroke/Travel Length (in): 5.00

Application

• No Applications
