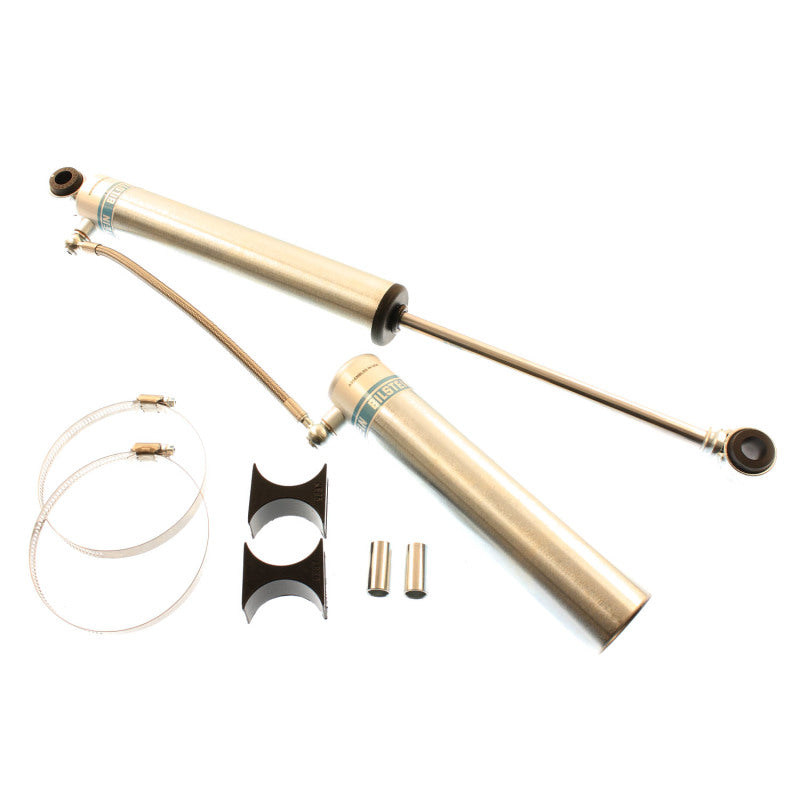

Bilstein 5160 Series 5165 Series 9.5in. Travel 170/60 46mm Monotube Shock Absorber - 25-176124

Bilstein B8 5165 Classic remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 Classic shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 Classic cremote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• Remote reservoir increases shock oil capacity for greater heat dissipation

Specifications

• Extended Length (in): 23.60
• Mount Type: Eye-to-Eye
• Internal Design: Monotube
• Compression @0.52m/S: 575
• Extended Length (mm): 599.5
• Series: B8 5165
• Collapsed Length (in): 14.21
• Boot Included: No
• Upper Mount Type: Eye 5/8in
• Reservoir: Yes
• Lower Mount Type: Eye 5/8in
• Body Design: Smooth Body (Non-Coilover)
• Rebound @0.52m/S: 1600
• Finish: Zinc Plated
• Optional Reservoir Clamp: 11-176015
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Collapsed Length (mm): 361.0
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 238.5
• Stroke/Travel Length (in): 9.39

Application

• No Applications
