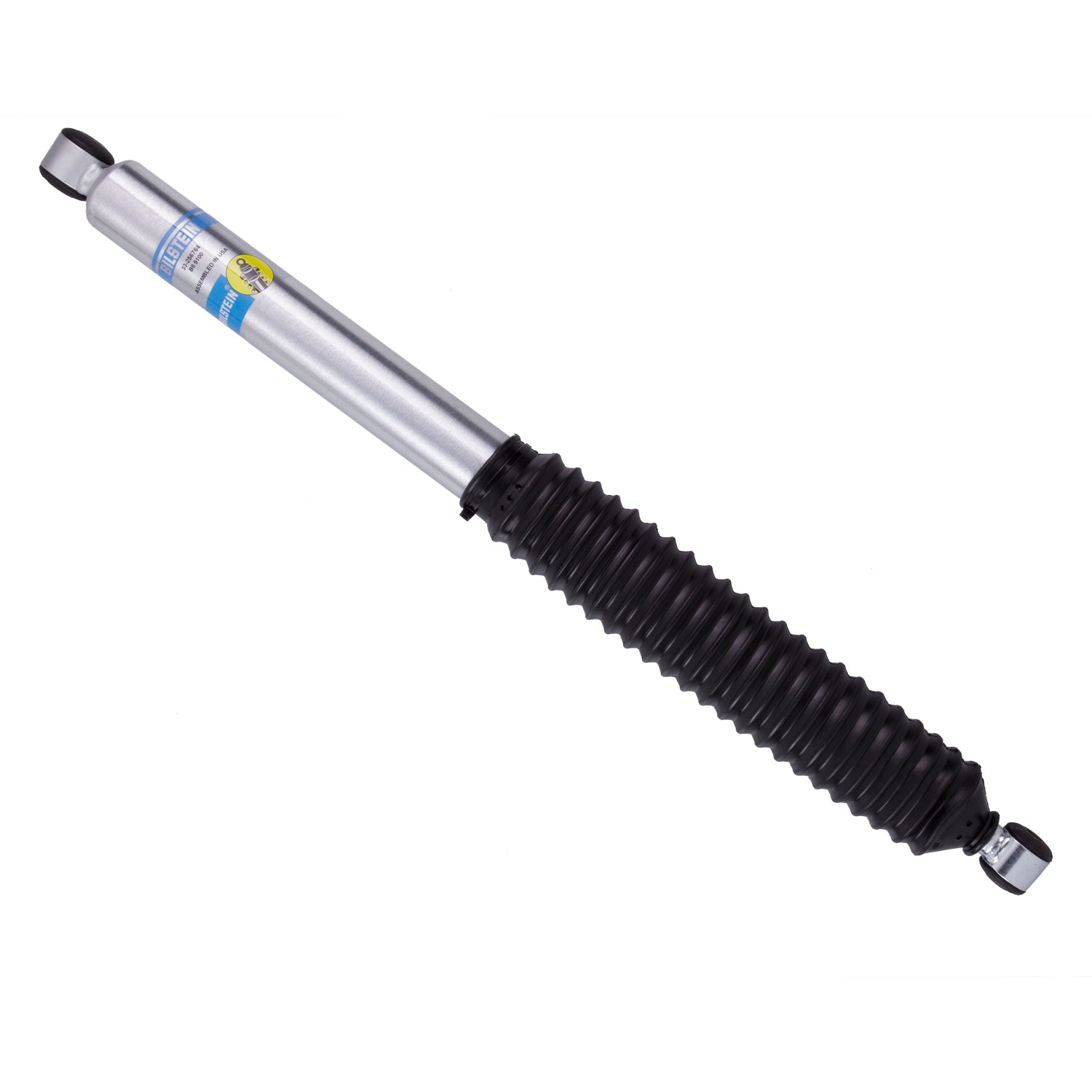

Bilstein 5100 Series 2014 Ford F-150 Rear 46mm Monotube Shock Absorber - 33-256764

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Boot Included: Black Bellows
• Series: B8 5100
• Finish: Zinc Plated
• Adjustable Damping: Non-Adjustable
• Lower Mount Type: Eye 12mm
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Internal Design: Monotube
• Upper Mount Type: Eye 12mm
• Extended Length (mm): 730.7
• Collapsed Length (in): 17.52
• Extended Length (in): 28.77
• Piston Diameter: 46mm
• Stroke/Travel Length (mm): 285.0
• Collapsed Length (mm): 445.0
• Spring Seat Included: No
• Stroke/Travel Length (in): 11.22
• Shaft Diameter: 14mm

Application

• Ford F-150 2014
