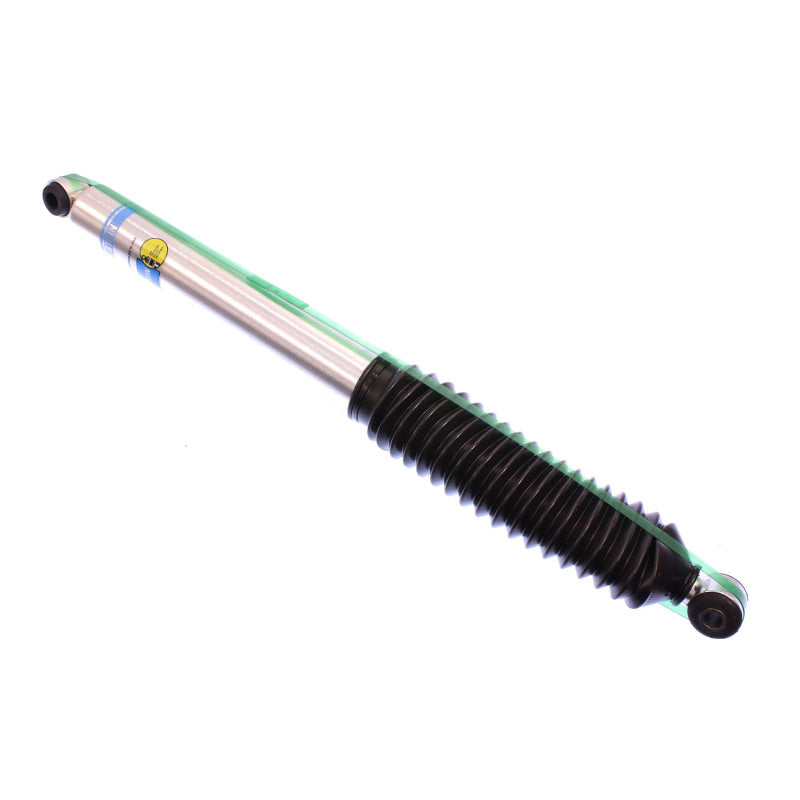

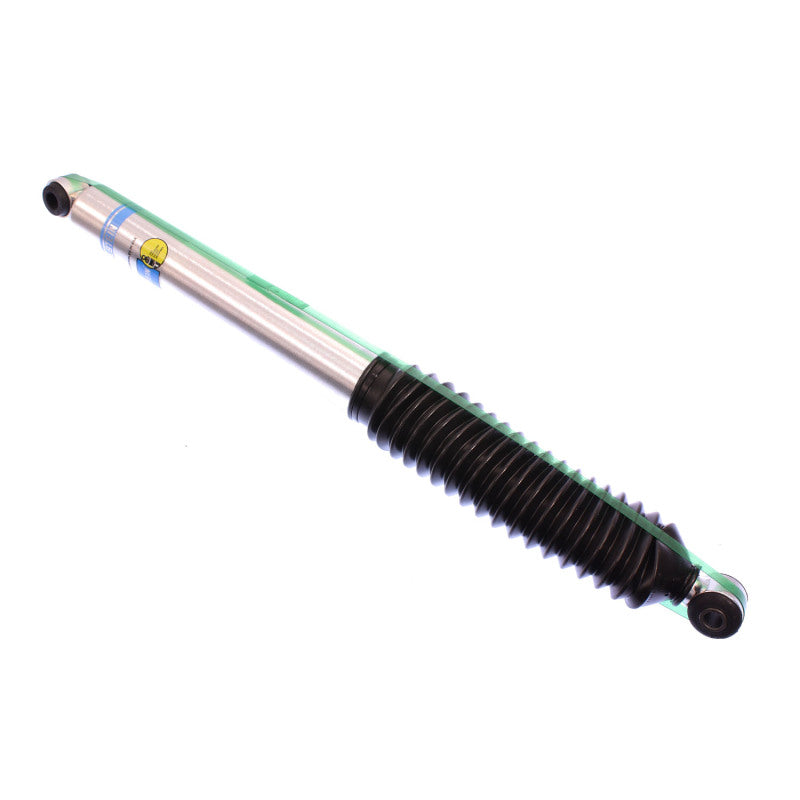

Bilstein 5100 Series 1993 Jeep Grand Cherokee Base Rear 46mm Monotube Shock Absorber - 33-151618

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Boot Included: Black Bellows
• Internal Design: Monotube
• Body Design: Smooth Body (Non-Coilover)
• Reservoir: No
• Finish: Zinc Plated
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Collapsed Length (mm): 404.0
• Piston Diameter: 46mm
• Stroke/Travel Length (in): 10.02
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 254.5
• Extended Length (mm): 658.5
• Lower Mount Type: Eye 12mm
• Series: B8 5100
• Extended Length (in): 25.93
• Upper Mount Type: Eye 16mm
• Collapsed Length (in): 15.91

Application

• Jeep Grand Cherokee 1993-1998, Grand Wagoneer 1993
