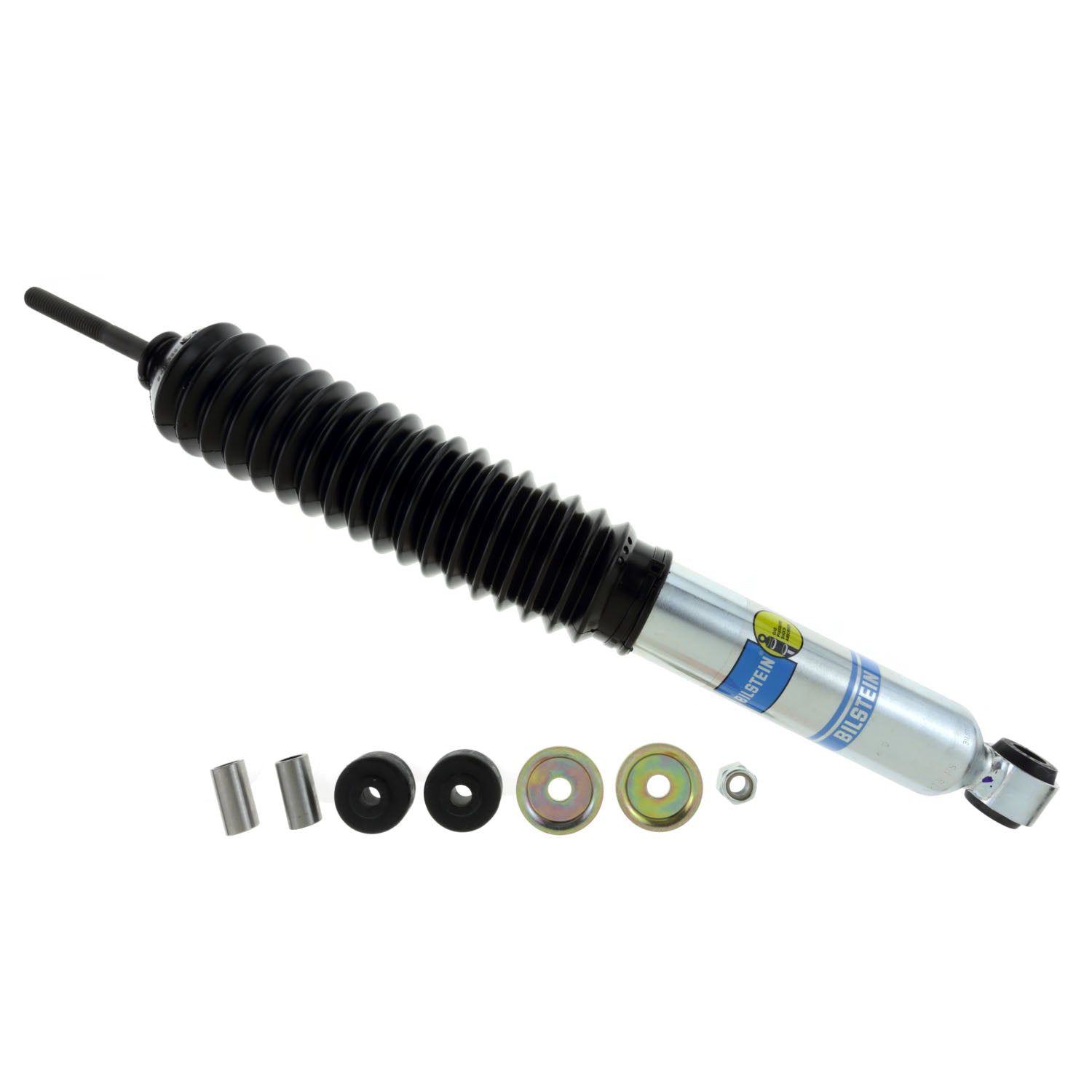

Bilstein 5100 Series 1984 Ford Bronco II Base Front 46mm Monotube Shock Absorber - 24-185493

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Boot Included: Black Bellows
• Upper Mount Type: Stem
• Collapsed Length (in): 12.17
• Extended Length (in): 18.98
• Internal Design: Monotube
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Collapsed Length (mm): 309.0
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 173.0
• Stroke/Travel Length (in): 6.81
• Reservoir: No
• Lower Mount Type: Eye 16mm
• Series: B8 5100
• Body Design: Smooth Body (Non-Coilover)
• Finish: Zinc Plated
• Extended Length (mm): 482.2

Application

• Ford Bronco 1966-1977, Bronco II 1984-1990, Explorer 1991-1994, Ranger 1983-1997
