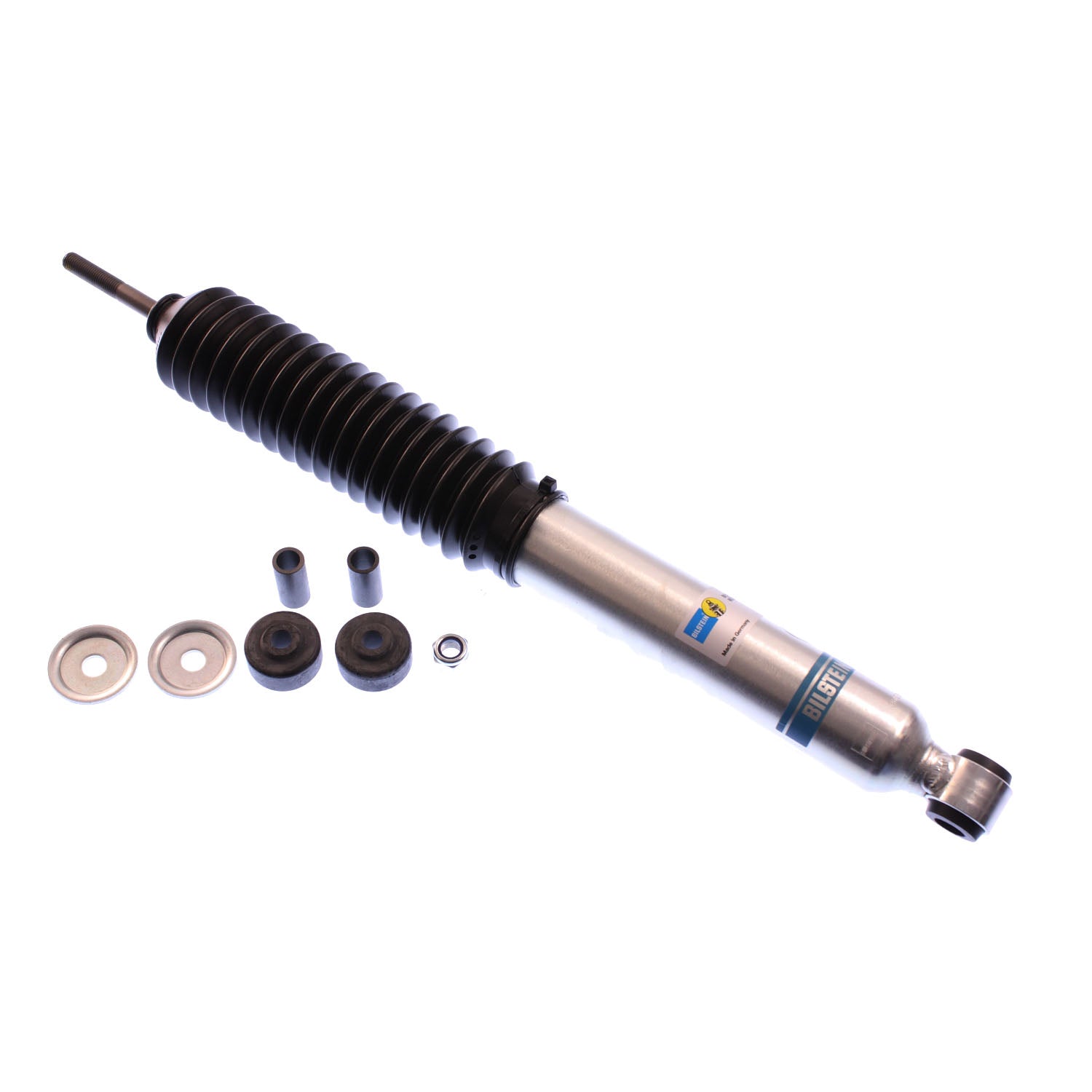

Bilstein 5100 Series 1983 Ford Ranger Base Standard Cab Pickup Front 46mm Monotube Shock Absorber - 24-185684

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Upper Mount Type: Stem
• Collapsed Length (in): 12.87
• Lower Mount Type: Eye 5/8in
• Internal Design: Monotube
• Boot Included: Black Bellows
• Extended Length (in): 20.49
• Spring Seat Included: No
• Piston Diameter: 46mm
• Collapsed Length (mm): 327.0
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 193.6
• Stroke/Travel Length (in): 7.62
• Series: B8 5100
• Body Design: Smooth Body (Non-Coilover)
• Reservoir: No
• Finish: Zinc Plated
• Extended Length (mm): 520.5
• Adjustable Damping: Non-Adjustable

Application

• Ford Ranger 1983-1997
