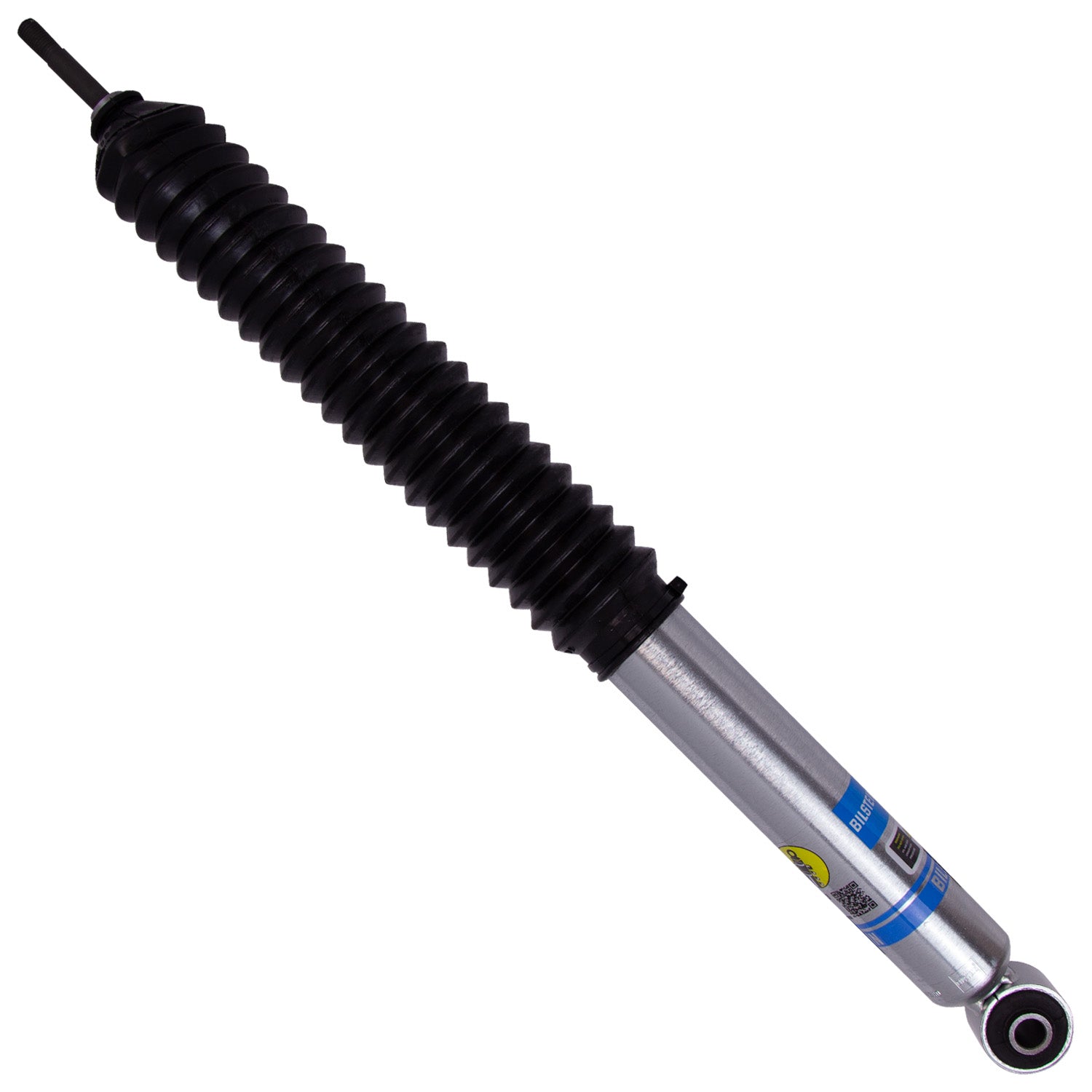

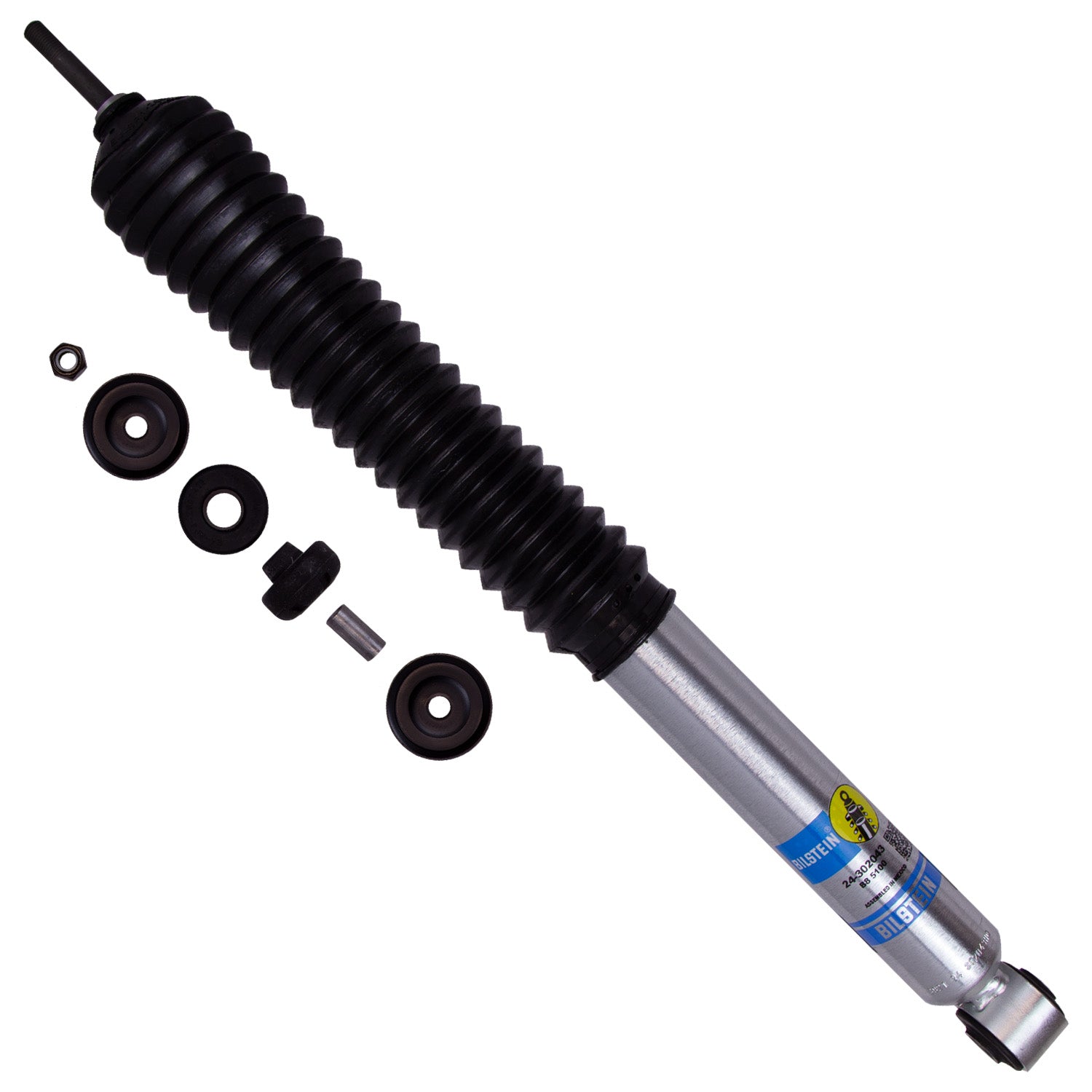

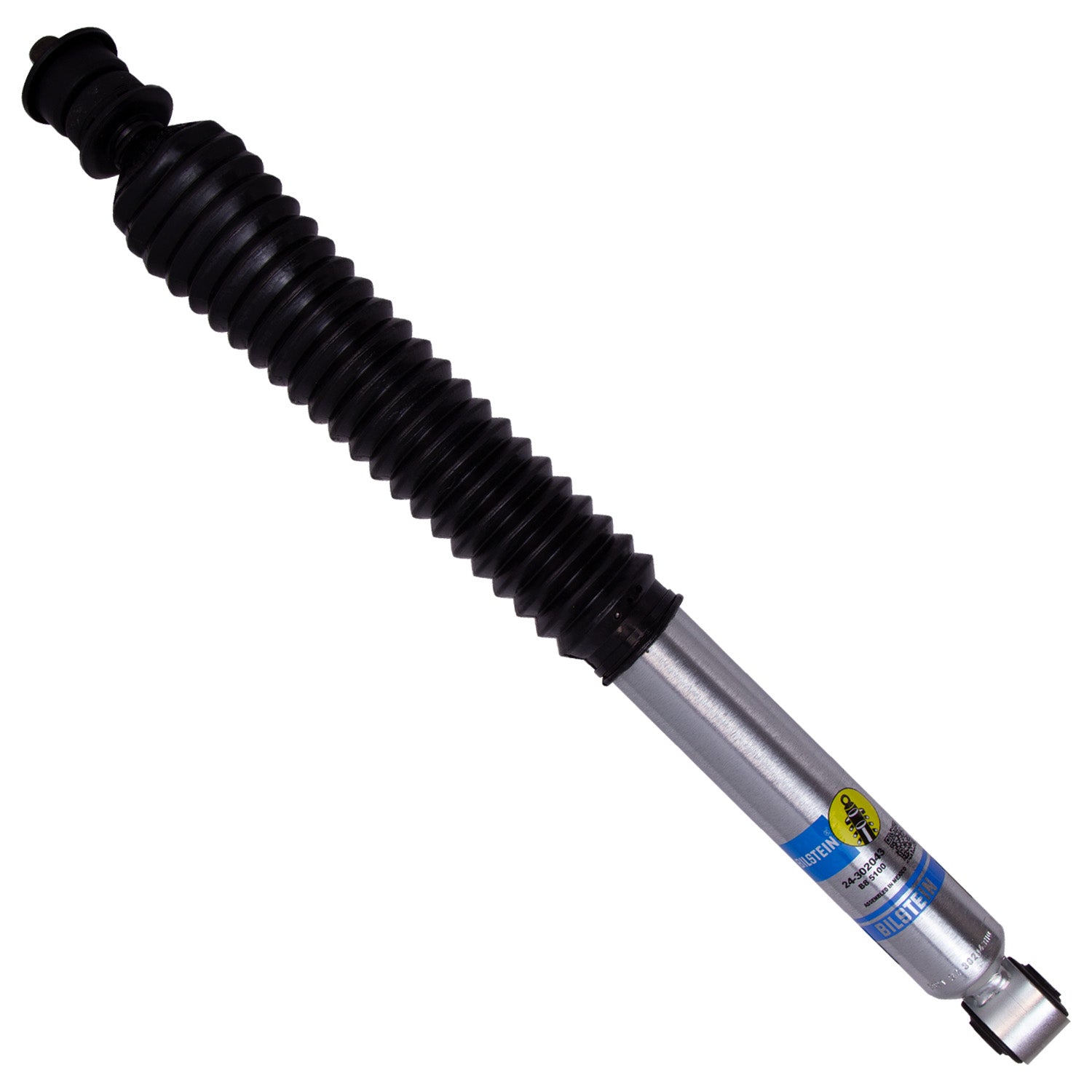

Bilstein 5100 Series 19-20 RAM 2500 4WD w/ Coil Spring Rear 0-1in Lifted Height Shock Absorber - 24-302043

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Finish: Zinc Plated
• Extended Length (in): 24.96
• Body Design: Smooth Body (Non-coilover)
• Collapsed Length (mm): 418.5
• Lower Mount Type: Eye 14.4mm
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Internal Design: Monotube
• Shaft Diameter: 12mm
• Stroke/Travel Length (mm): 215.4
• Stroke/Travel Length (in): 8.48
• Extended Length (mm): 634.0
• Collapsed Length (in): 16.48
• Reservoir: No
• Boot Included: Black Bellows
• Upper Mount Type: Stem
• Series: B8 5100
• Piston Diameter: 46mm

Application

• Ram 2500 2019-2026
