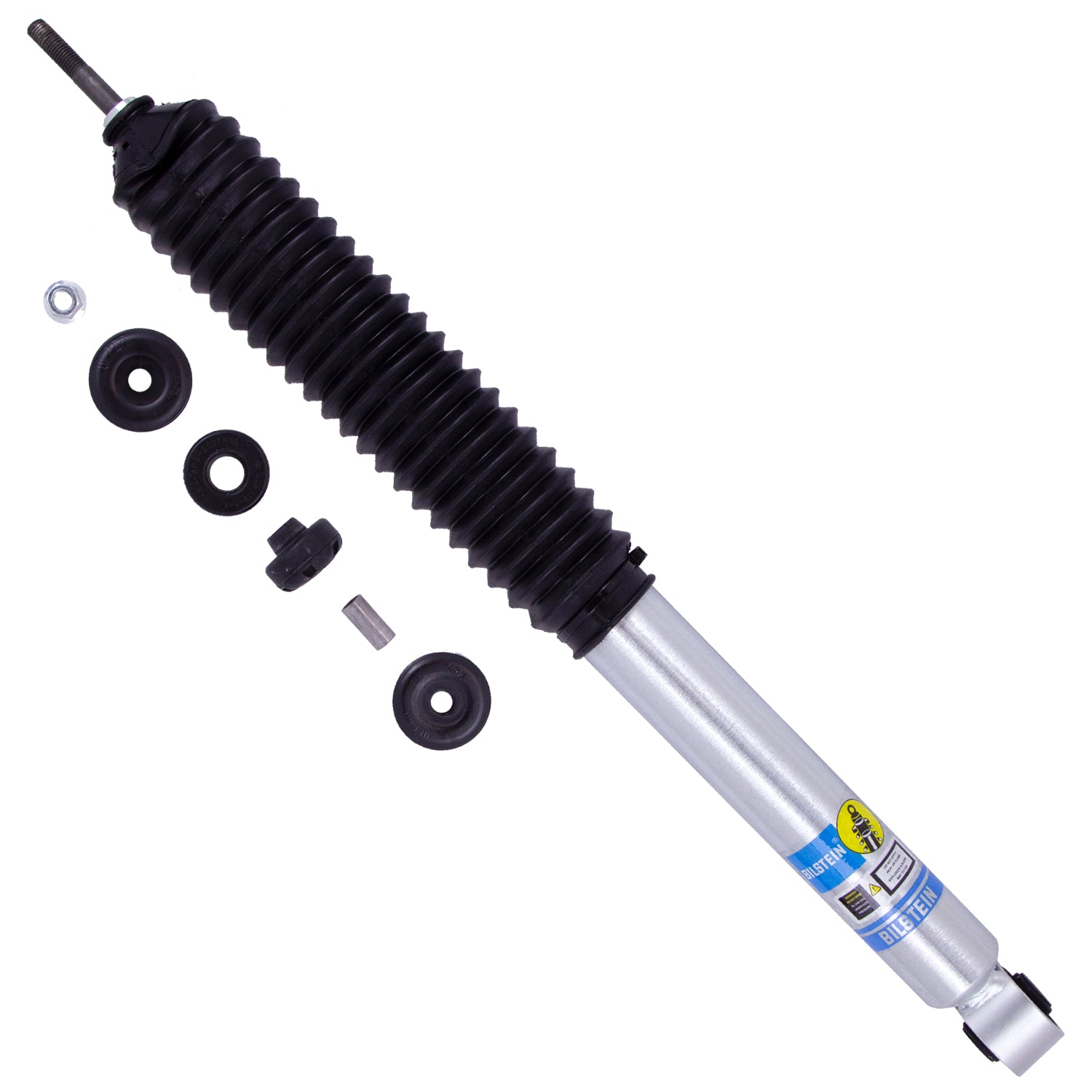

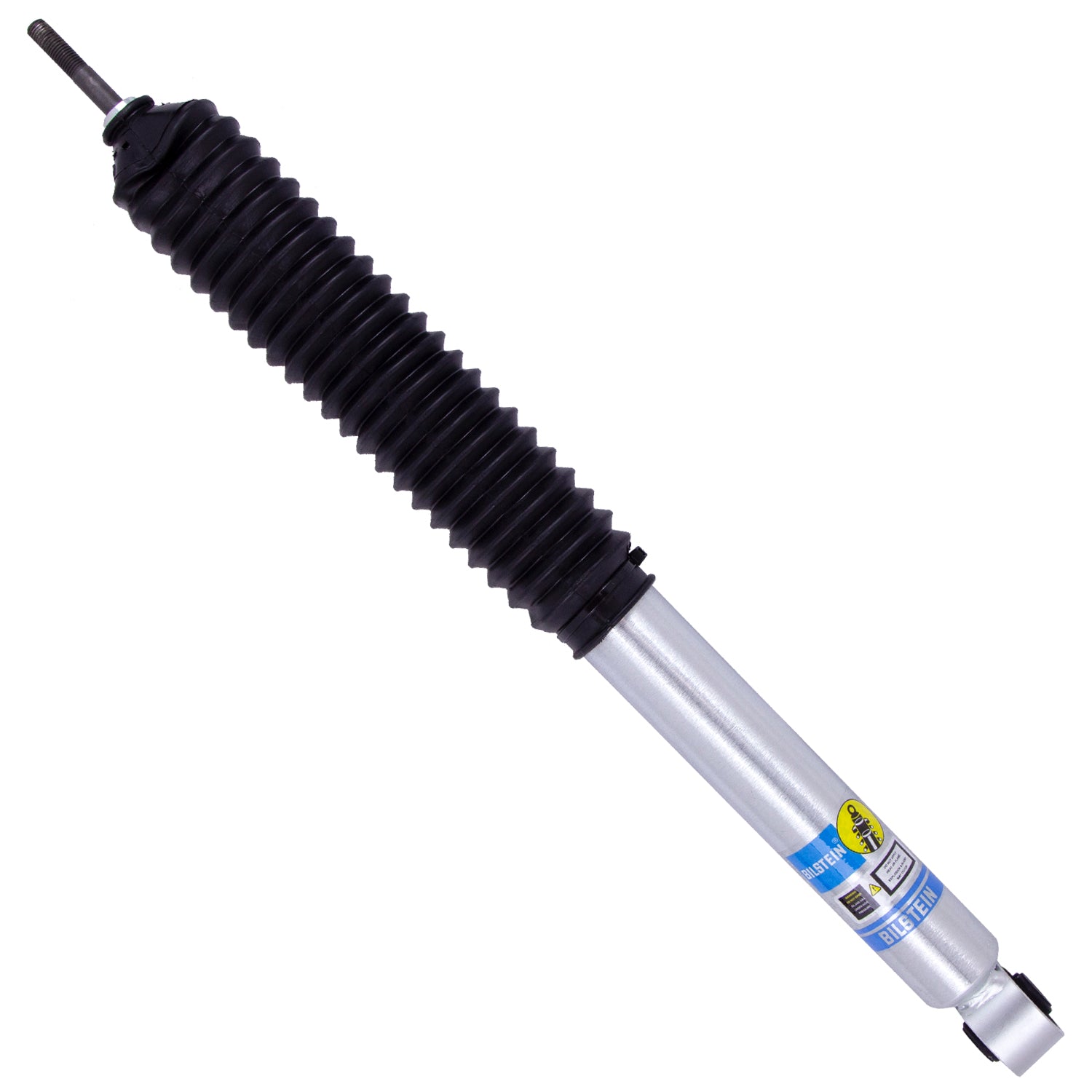

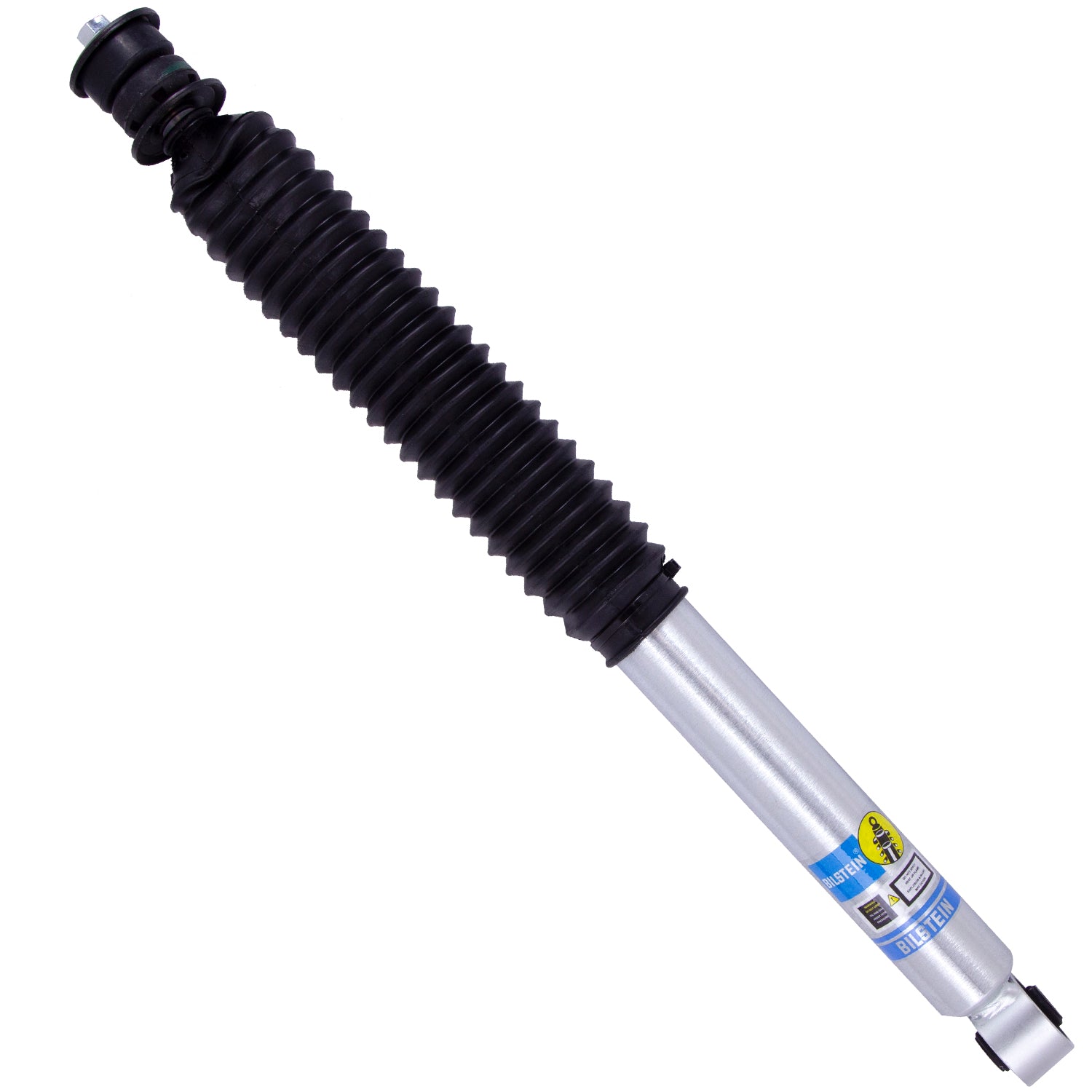

Bilstein 5100 Series 14-19 Ram 2500 Front (4WD Only/For Front Lifted Height 4in) Replacement Shock - 24-285674

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Internal Design: Monotube
• Upper Mount Type: Stem
• Body Design: Smooth Body (Non-coilover)
• Reservoir: No
• Extended Length (in): 25.47
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Collapsed Length (mm): 421.0
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 226.1
• Stroke/Travel Length (in): 8.90
• Boot Included: Black Bellows
• Finish: Zinc Plated
• Lower Mount Type: Eye 14.1mm
• Collapsed Length (in): 16.57
• Series: B8 5100
• Extended Length (mm): 647.0

Application

• Ram 2500 2014-2026, 3500 2013-2026
