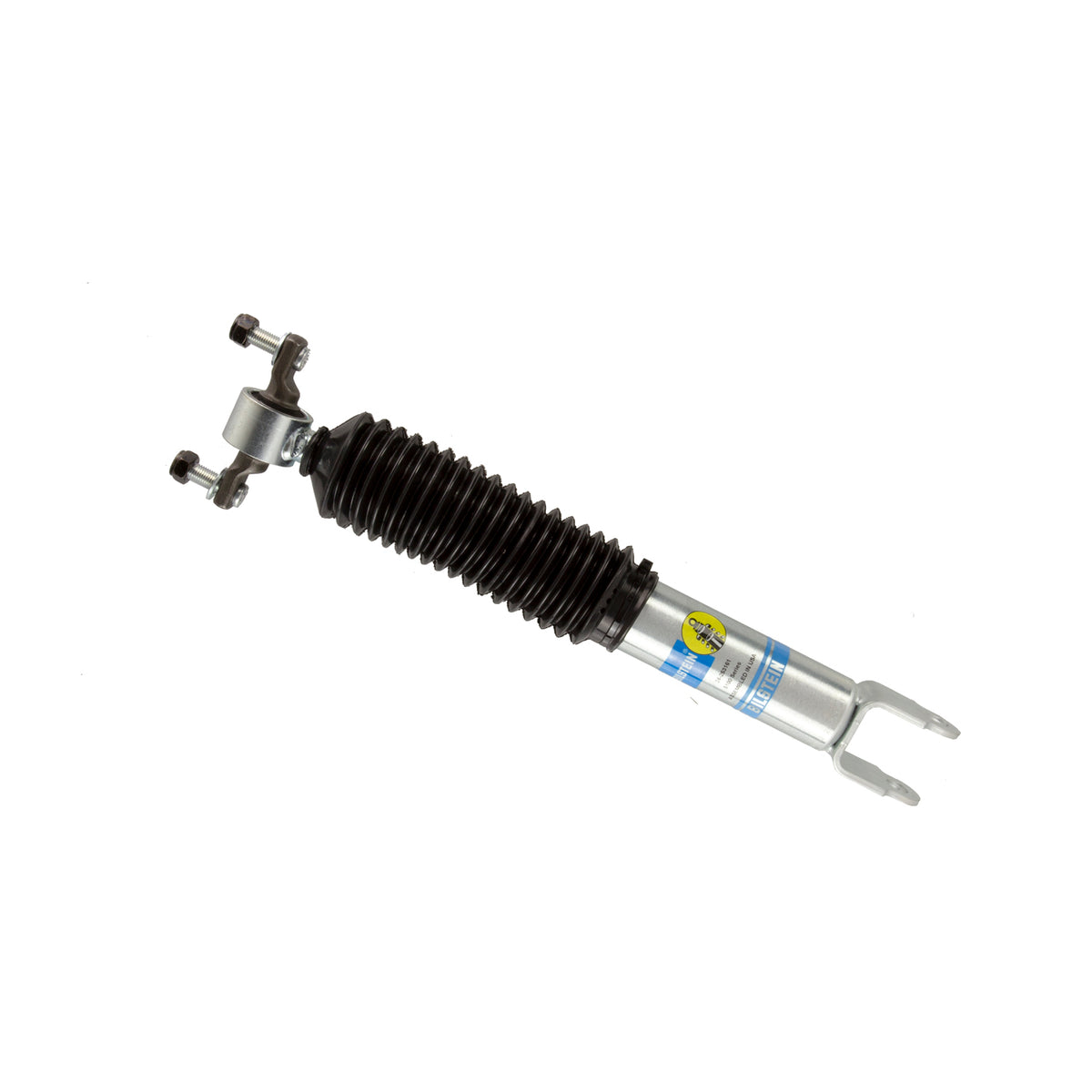

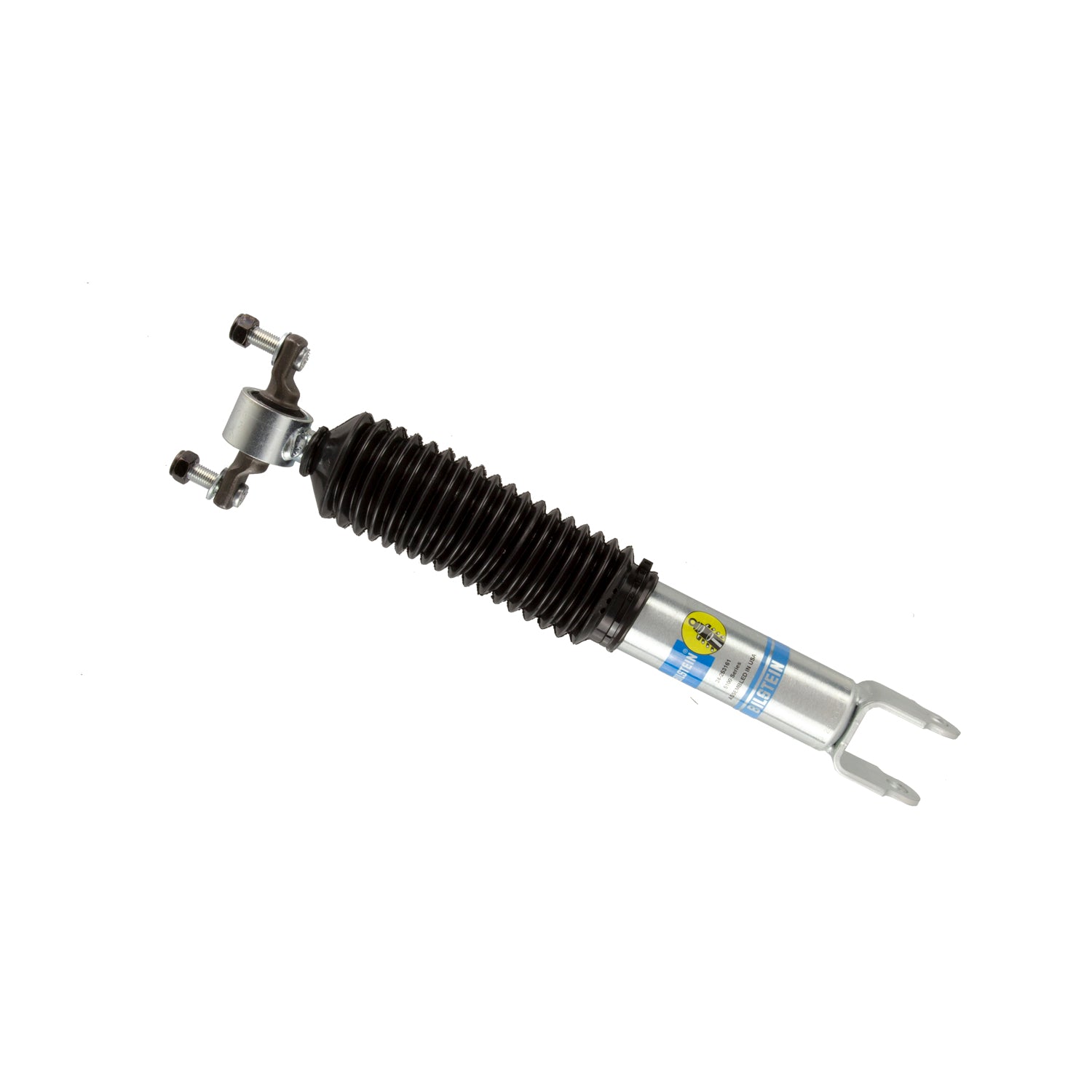

Bilstein 5100 Series 11-16 GM 2500/3500 Front 46mm Monotube Shock Absorber - 24-253161

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Body Design: Smooth Body (Non-Coilover)
• Internal Design: Monotube
• Upper Mount Type: Crossbar
• Collapsed Length (in): 14.06
• Lower Mount Type: Clevis
• Reservoir: No
• Series: B8 5100
• Boot Included: Black Bellows
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Extended Length (in): 18.41
• Extended Length (mm): 467.5
• Piston Diameter: 46mm
• Collapsed Length (mm): 357.0
• Stroke/Travel Length (mm): 111.0
• Shaft Diameter: 14mm
• Stroke/Travel Length (in): 4.37
• Finish: Zinc Plated

Application

• Chevrolet Silverado 2500 HD 2011-2026, Silverado 3500 HD 2011-2026, GMC Sierra 2500 HD 2011-2026, Sierra 3500 HD 2011-2026
