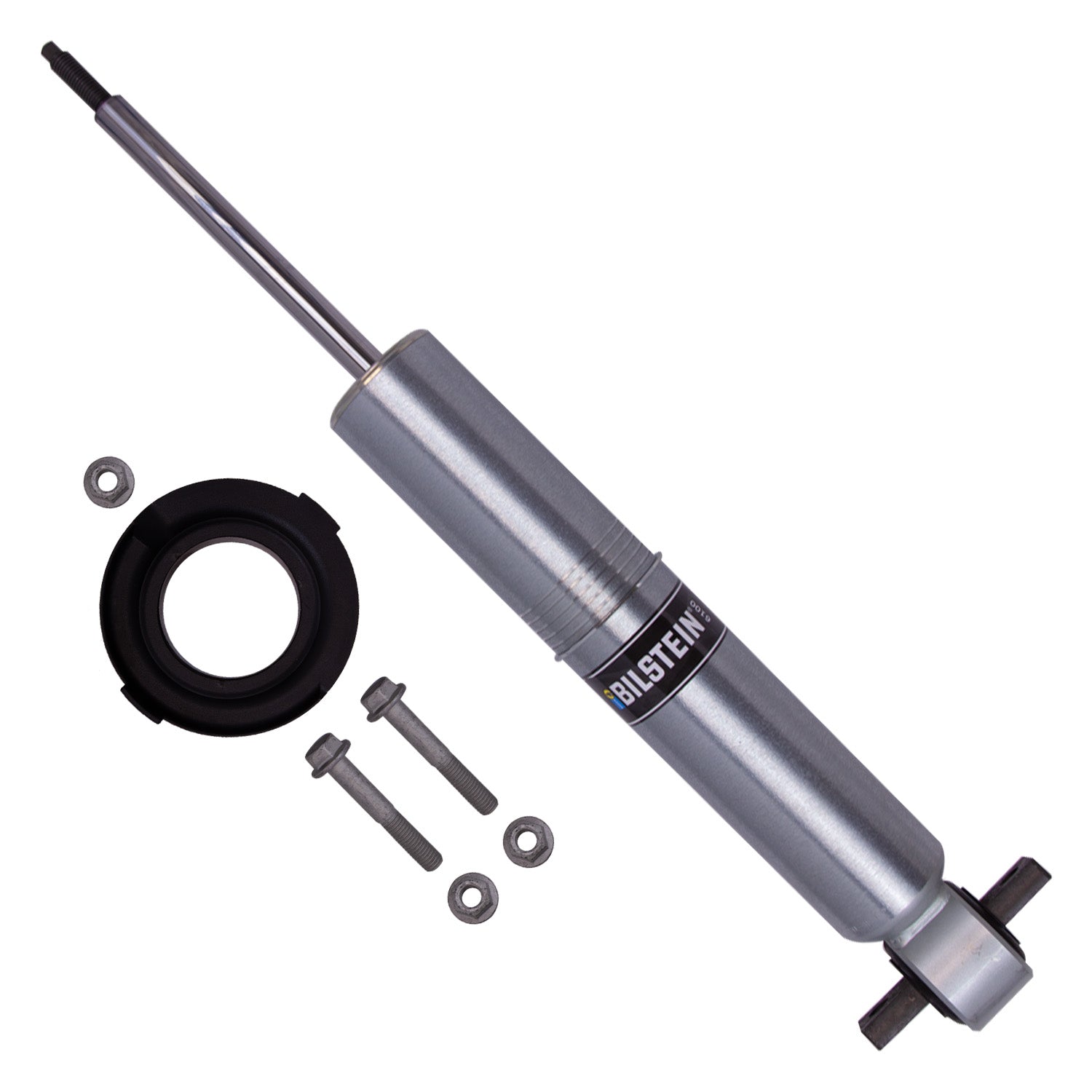

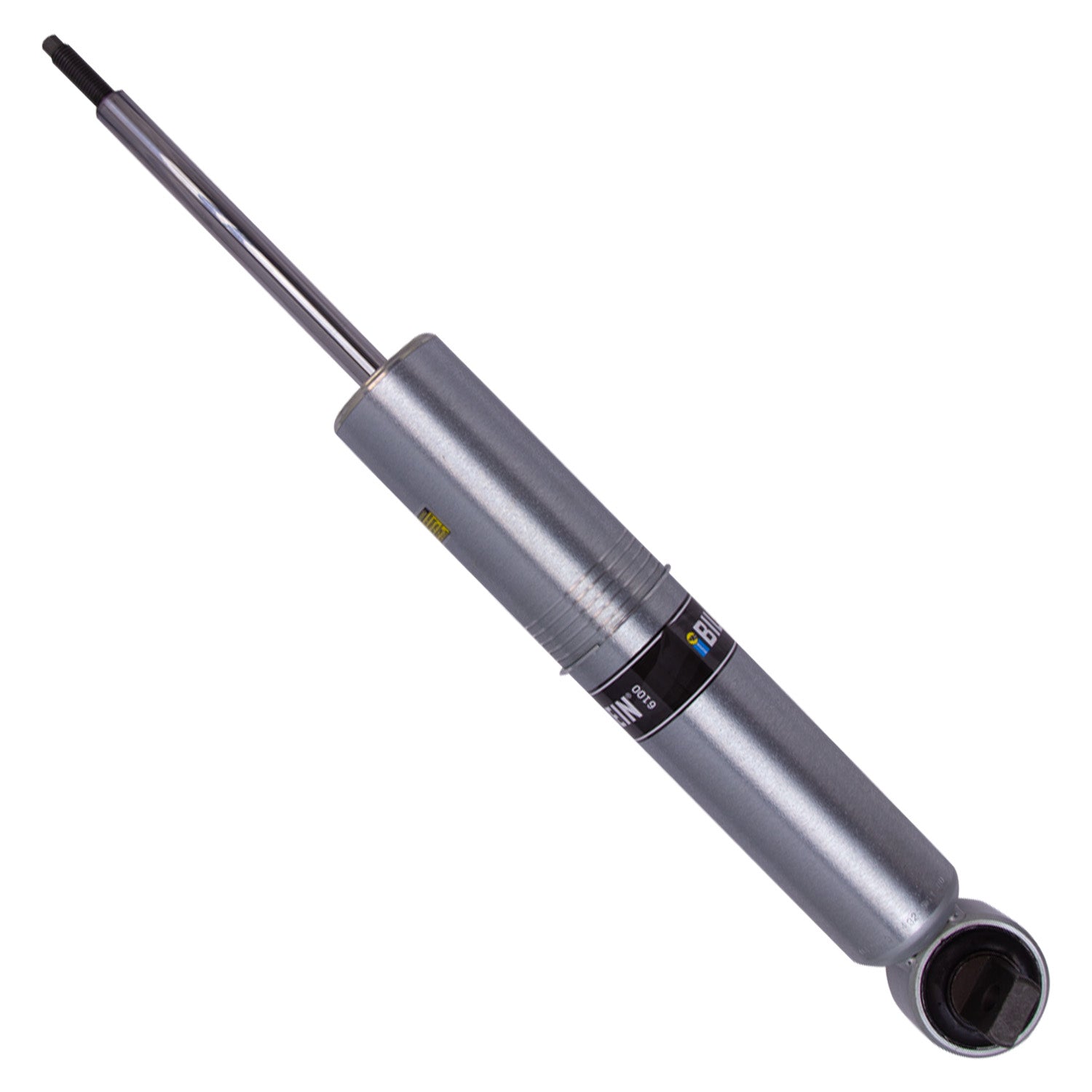

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston.
This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
Large 60mm body for increased oil capacity, cooling, and long-term durability.
60mm digressive piston improves ride comfort and control over rough terrain.
Vehicle specific tuning.
| Collapsed length (in) | 16.62 |
|---|---|
| Finish | Zinc Plated |
| Boot included | No |

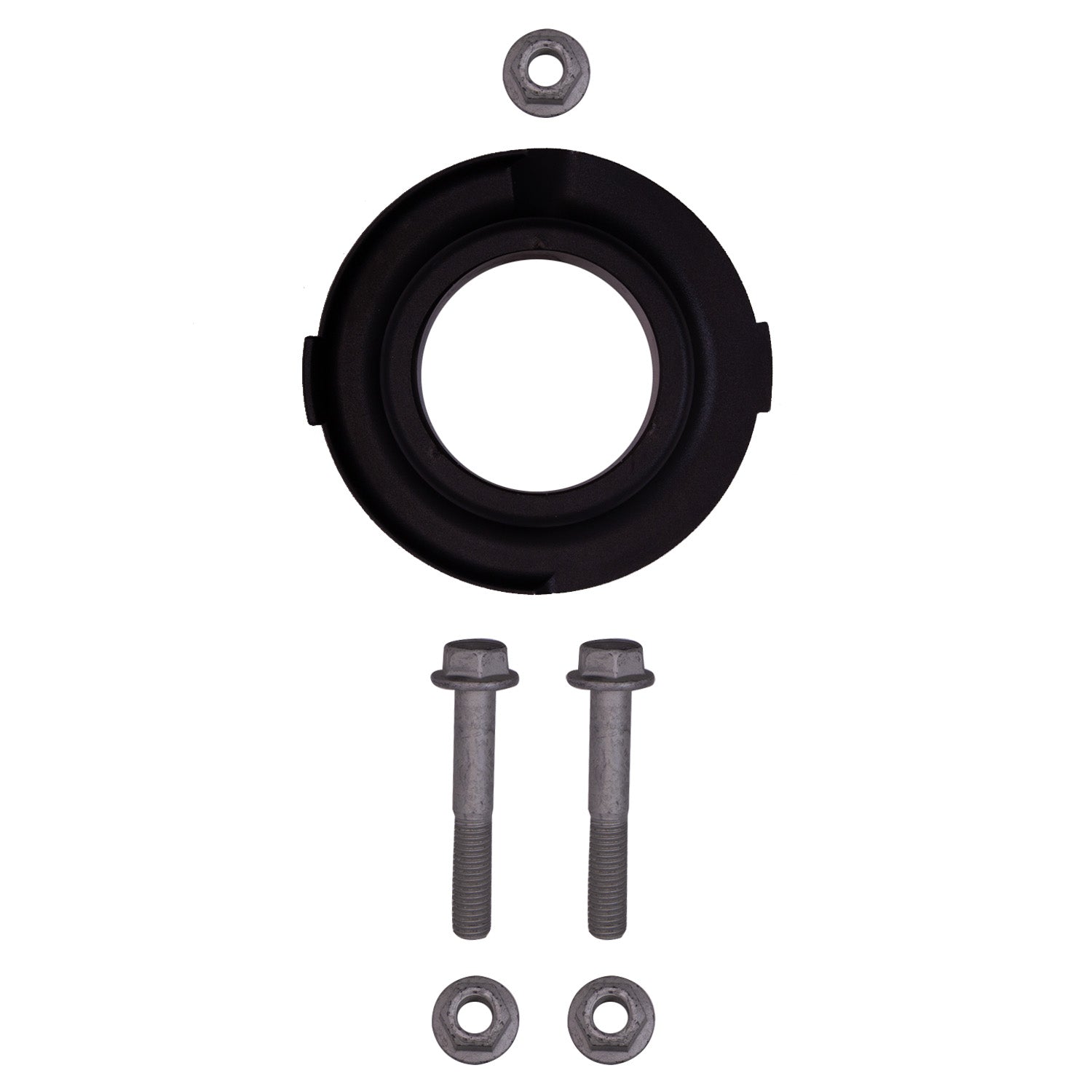

| Spring seat included | Yes |
| Internal design | Monotube |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Lower mount type | Crossbar |
| Extended length (mm) | 579.2 |
| Upper mount type | Stem |
| Body design | Snap Ring Grooved Body (Coilover) |
| Collapsed length (mm) | 422.2 |
| Extended length (in) | 22.80 |
| Series | B8 6100 (Ride Height Adjustable) |
| Piston diameter | 60mm |
| Stroke/travel length (mm) | 157.0 |
| Shaft diameter | 18mm |
| Stroke/travel length (in) | 6.18 |
| Part number | 24-325561 |
