SKU: SKU: BAJ257801

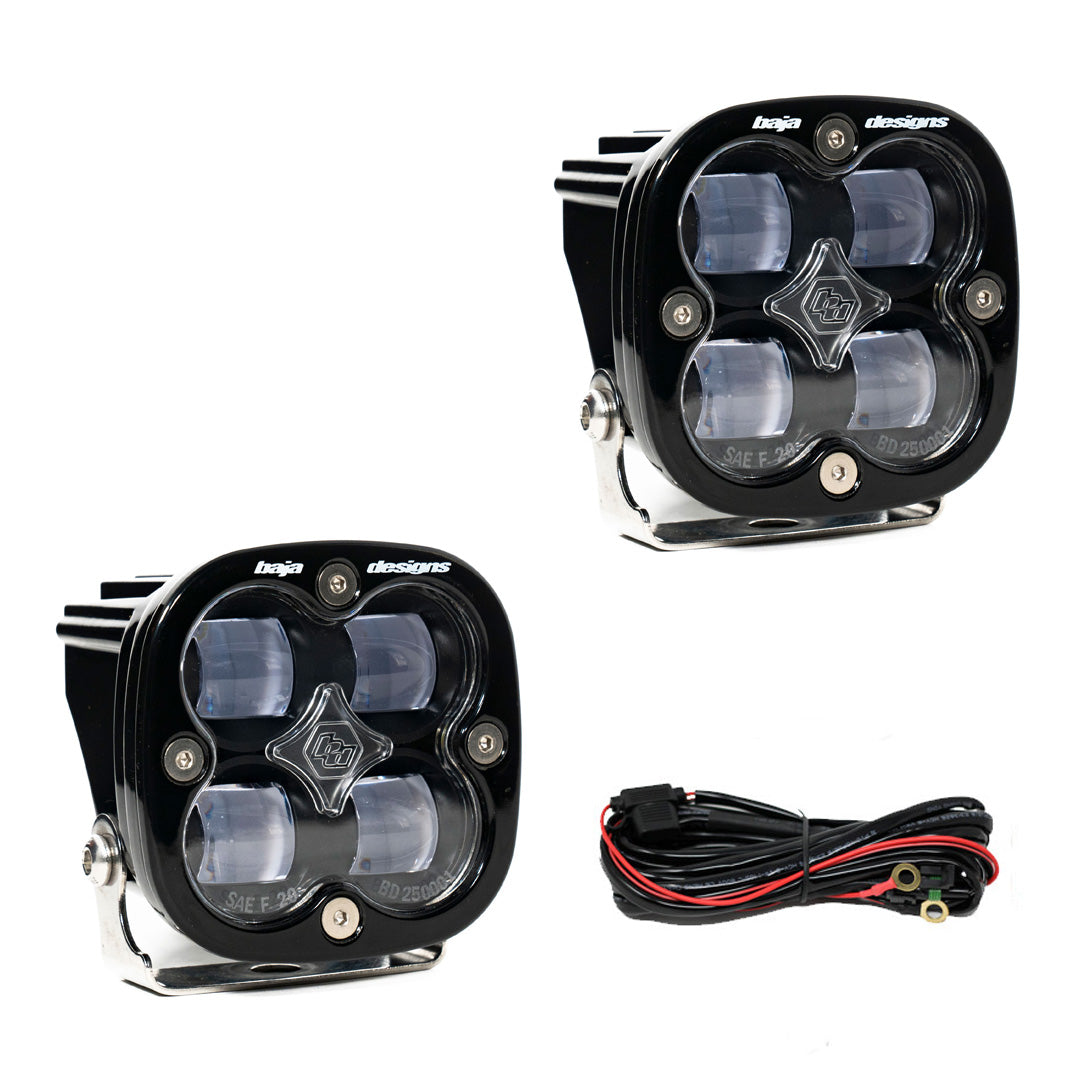

Brand new for Baja Designs is our SAE certified light. This light is based off of our Squadron series. While there are many visual characteristics that stayed the same the pattern, and circuitry are optimized in order to give our SAE light a street legal punch! We’ve put this light through rigorous tests to ensure that it would be an upgrade from most LED, HID, and Halogen factory fog lights.
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
| Amperage Rating (A) | 2.1 |
| Average Rated Life (hr.) | 49930 |
| Beam Pattern | SAE Fog |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2420 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Forward Projecting |
| Lighting Type | Cree LED |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron SAE LED Light Pod Pair w/ Wiring Harness |
| Wattage (W) | 29 |
| Wiring Harness Included | Yes |
| DOT Approved | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (SAE) | SAE Standard J583 |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Street Legal | Yes |
Installation Instructions
Installation Instructions
Brochure / Owner's Manual
WARNING: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
